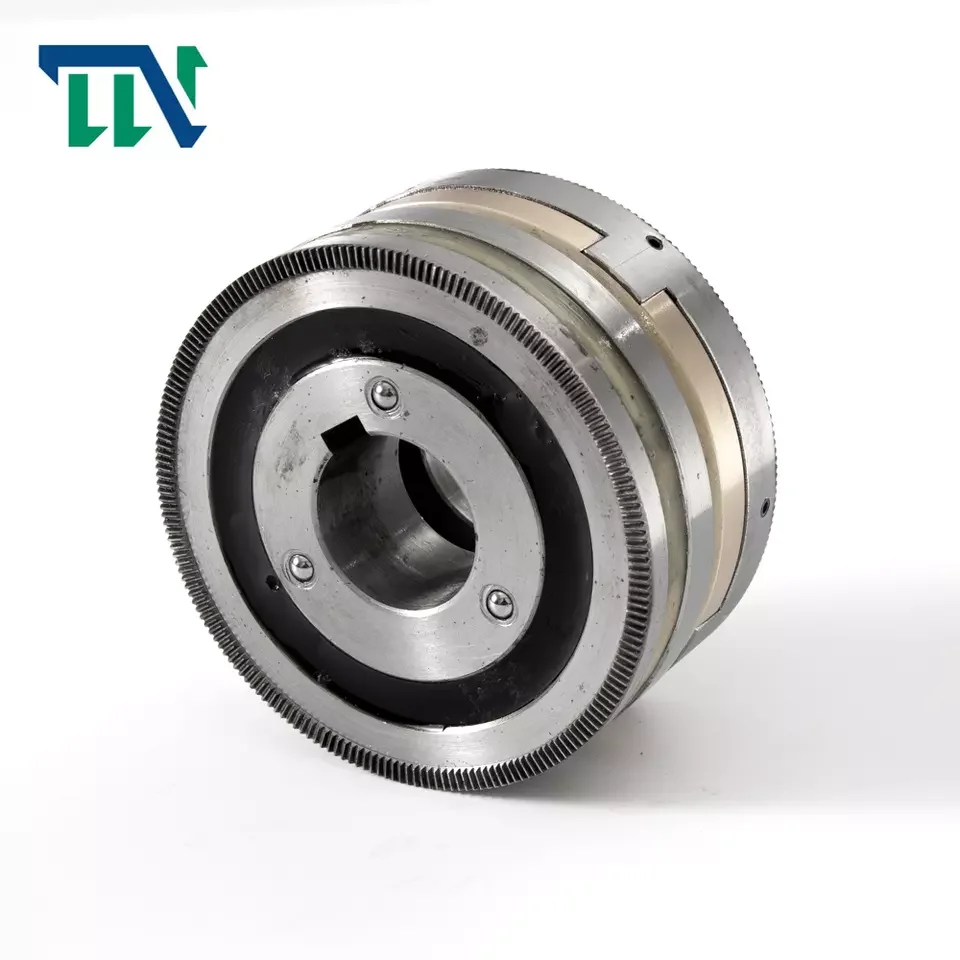

Жественные 2 серии DLY2-5AN зубья компрессор электромагнитная муфта тормоза для машинного оборудования
- Category: >>>
- Supplier: Changzhou,Tianniu,Transmission,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

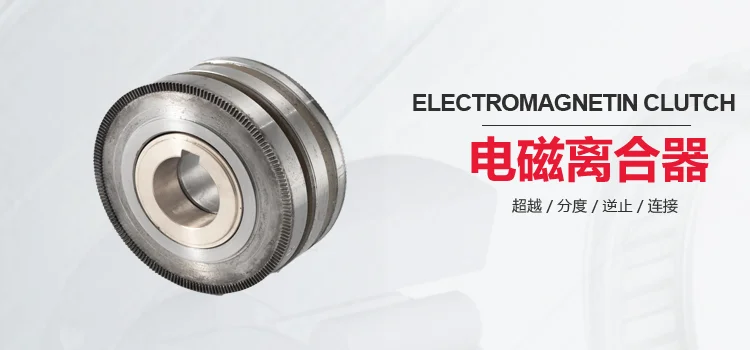

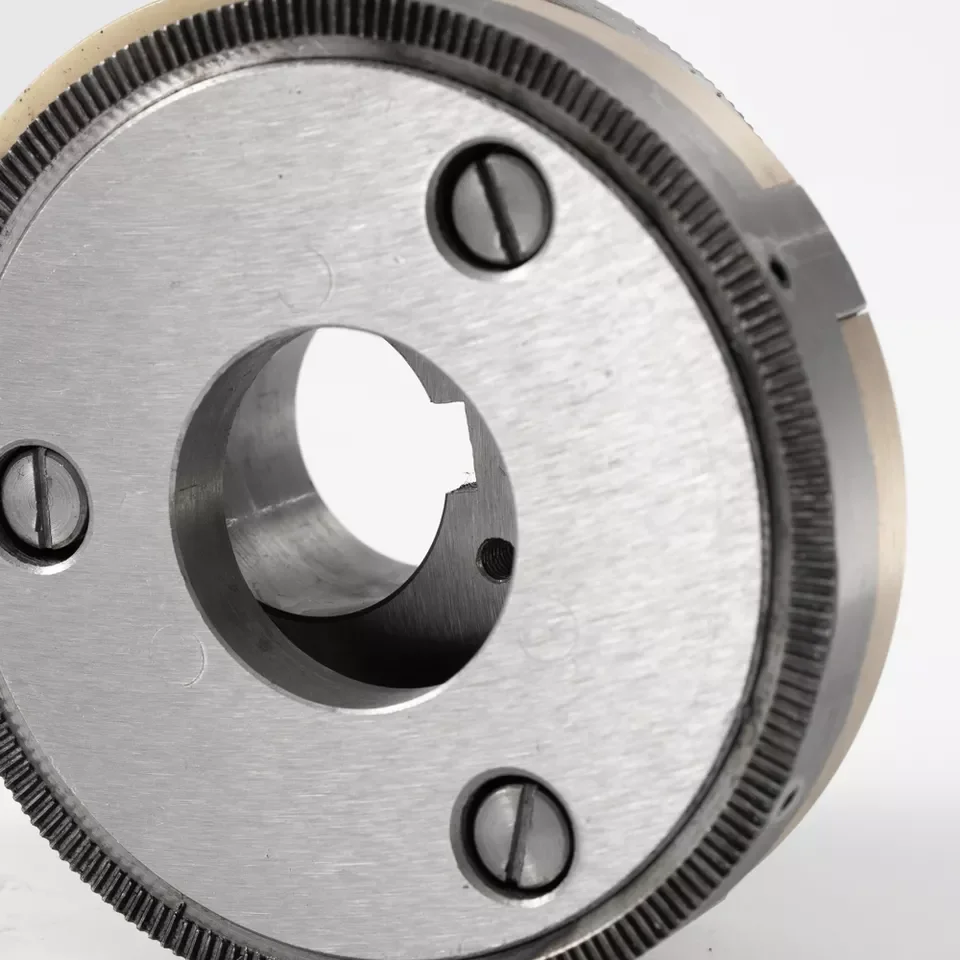

Product Display
Main use
When the relative revolution of the driving and the driven of parts is lower or zero,the clucth makes them combination,thus realize the purpose of starting and stopping ,changing the directions and positioning etc.The clucth is mainly used in machinery driving system,and widely in metal processing machine,metallurgy,steel rolling machine,packing machine,medical machine,food processing machine textile and printing and dying machine,papermaking machine,precision machine tool etc.

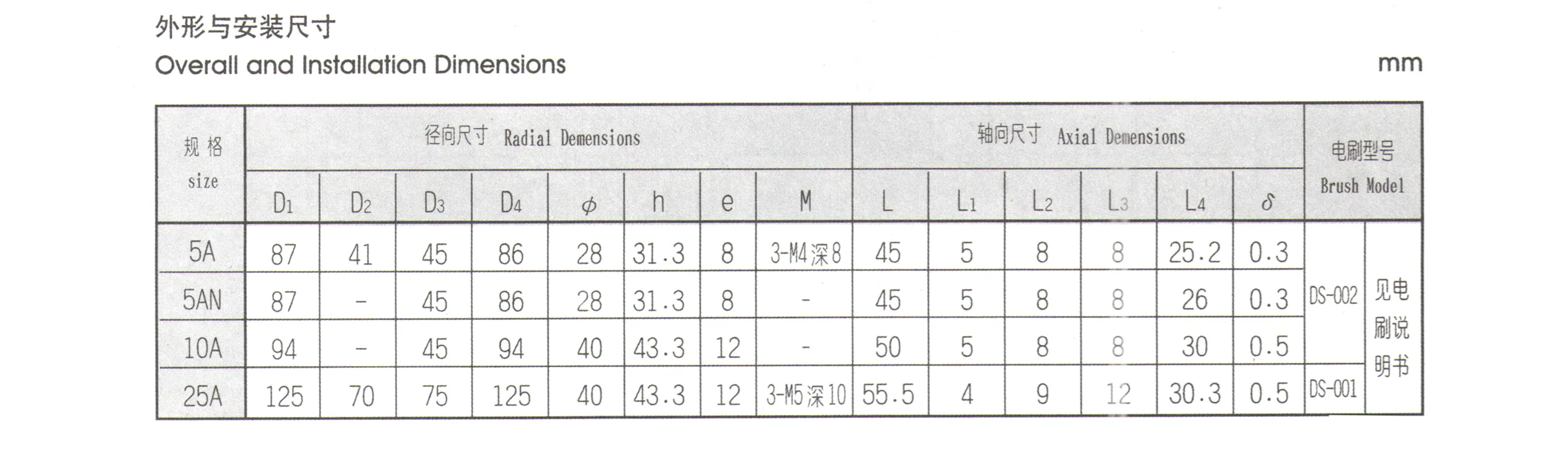

Components And Parameters

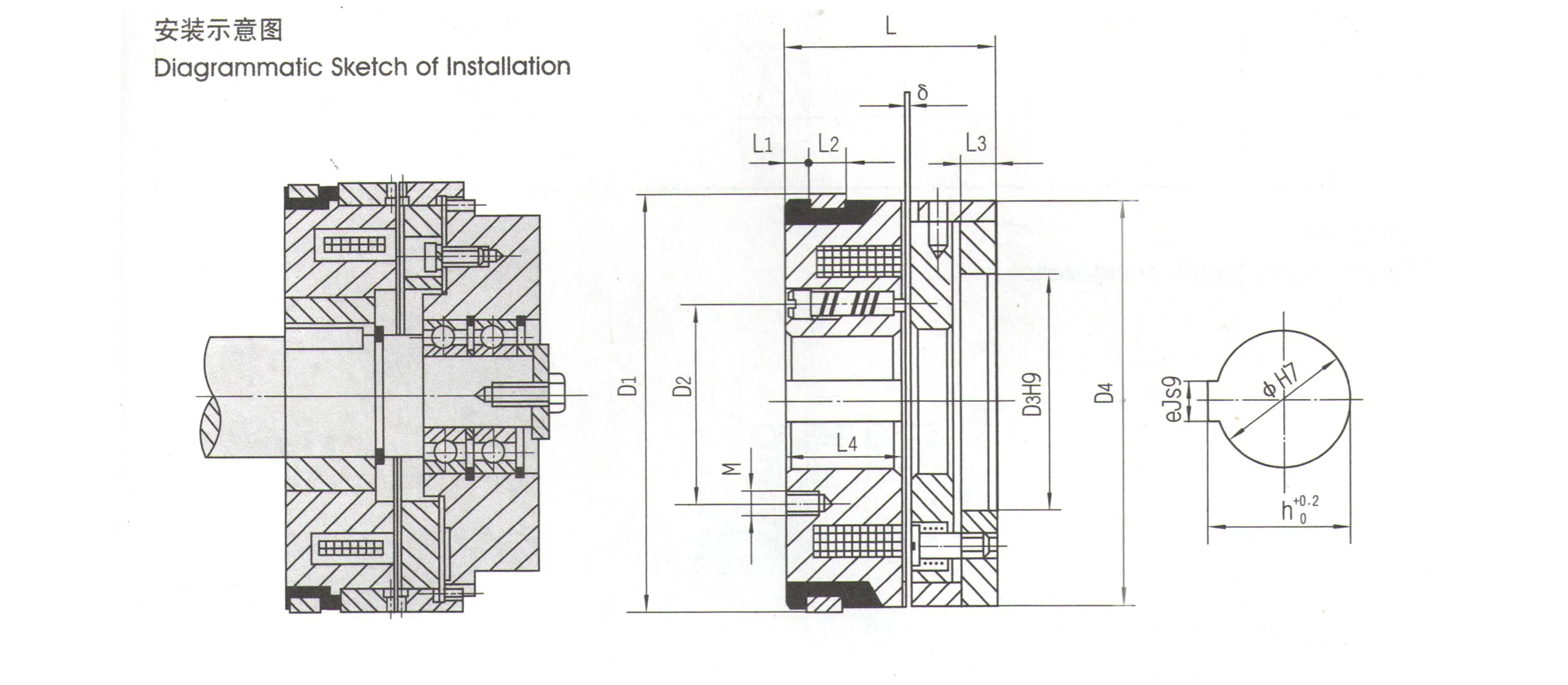

Installation
1.The clutch can be installed either in horizontal or in verial,If it mounted no the alex,the coaxlal degree between the driving and the driven shaft should not exceed 0.05mm,and must ensure the work clearence value σ.
2.The teeth of both ends should be cleaned before mounting the clutch.
3.The driving and the driven parts of the clutch must be fixed in axial direction,its axial moving doesn't permitted.
3.The driving and the driven parts of the clutch must be fixed in axial direction,its axial moving doesn't permitted.

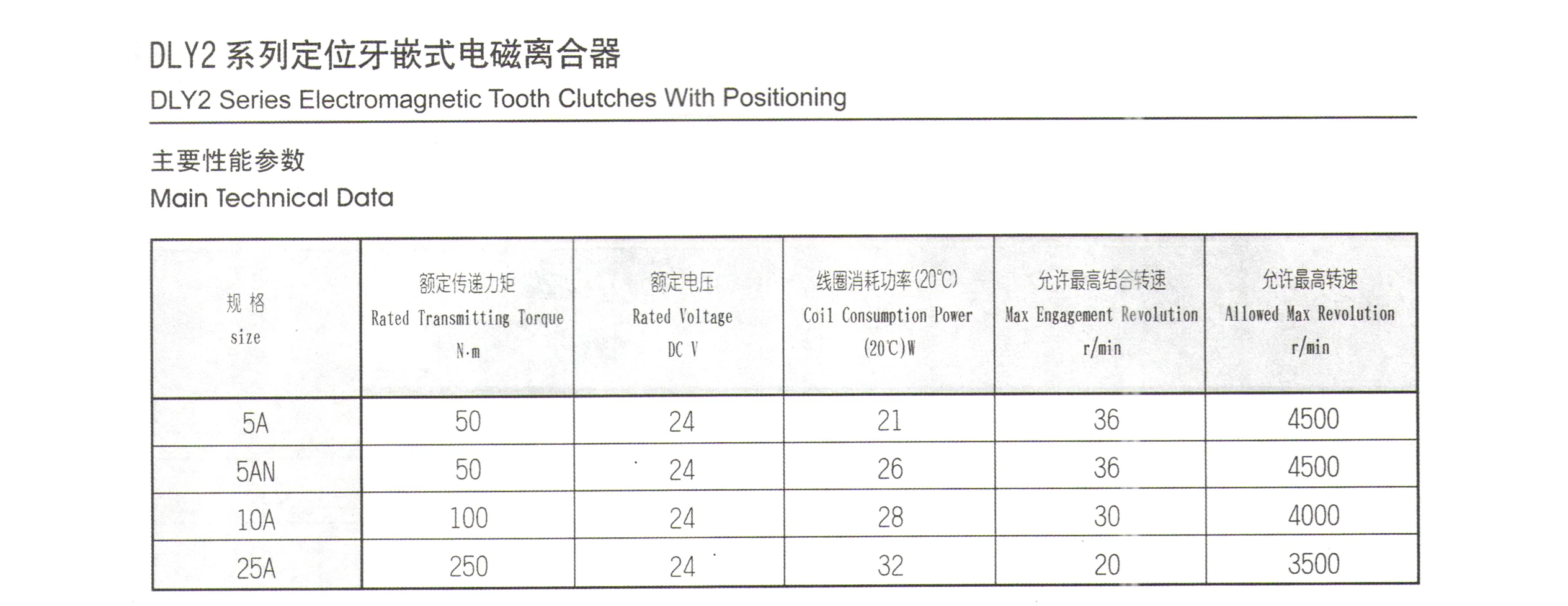

Technical Datas
Product name | Electroamgnetic Clutch |
Model | DLY2 |
Inner diameter | 28-40mm |
Outer diamaeter | 87-125mm |
Length | 45-55.5mm |
Rated Vlotage | 24V |
Rated Transmitting Torque | 50-250N.m |
Package | Carton box or as your requirements |
Payment terms | TT. L/C, D/A,D/P,Western Union,Paypal |
Application | Textile machine, fans, ventilators, printing machine |
The clutch can be operated reliably in following conditions
1.The elevation atitude of the clucth installation place doesn't exceed 2000nm.
2.Ambient envirmental temperature is between -5 °C to +40°C.
3.Around the medium,there is no gas and conductive dust that has nonbursting danger ans can't corrode metal and damage the insulator.
4.The voltage fluctuation of the clutch coil can't exceed -5 present to -15 present of the rated vlotage.
5.The clutch maybe operated in the state of having lubrication and non lubrication.
Production Flow
Packaging & Shipping
Certifications
Clients Visit
Company Information
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
We Recommend
stainless steel Sushi Rotary Conveyor Belt Conveyor Belt Sushi
$390.00 - $450.00

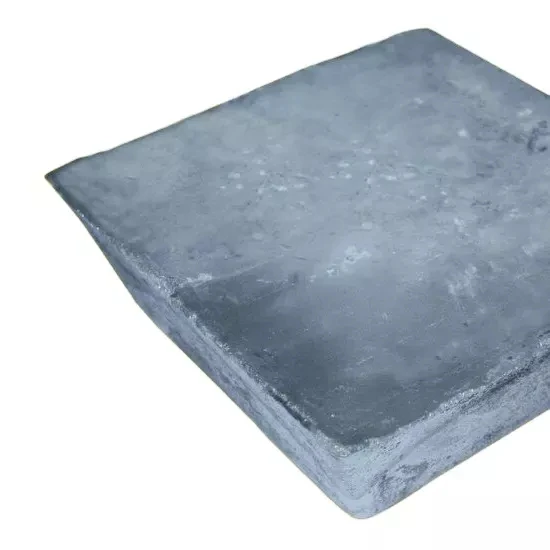

low price antimony metal ingots high quality pure antimony
