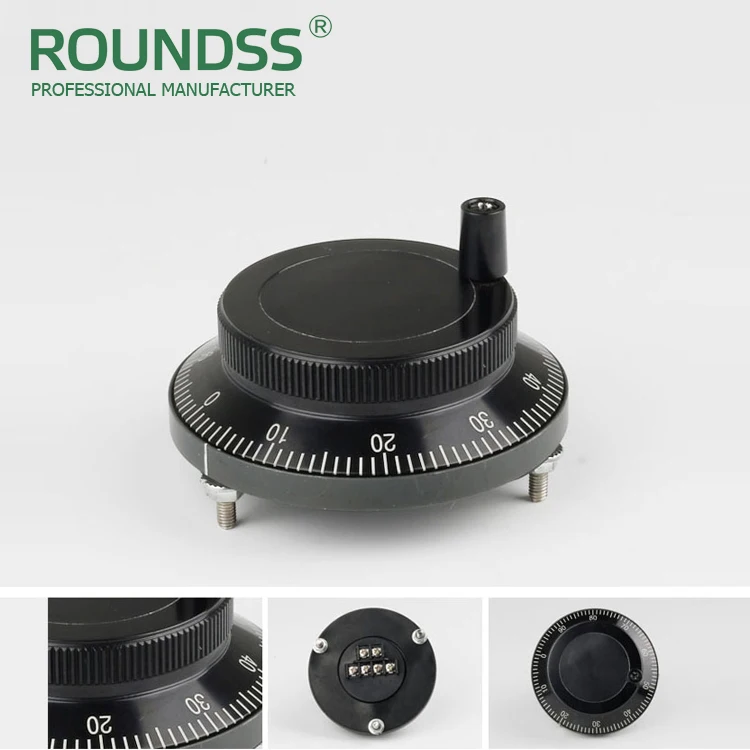

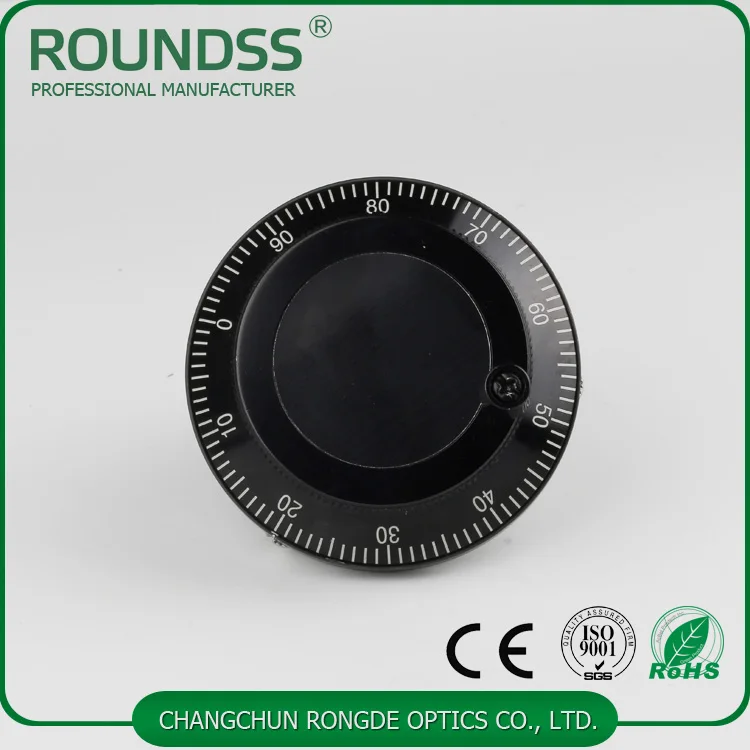

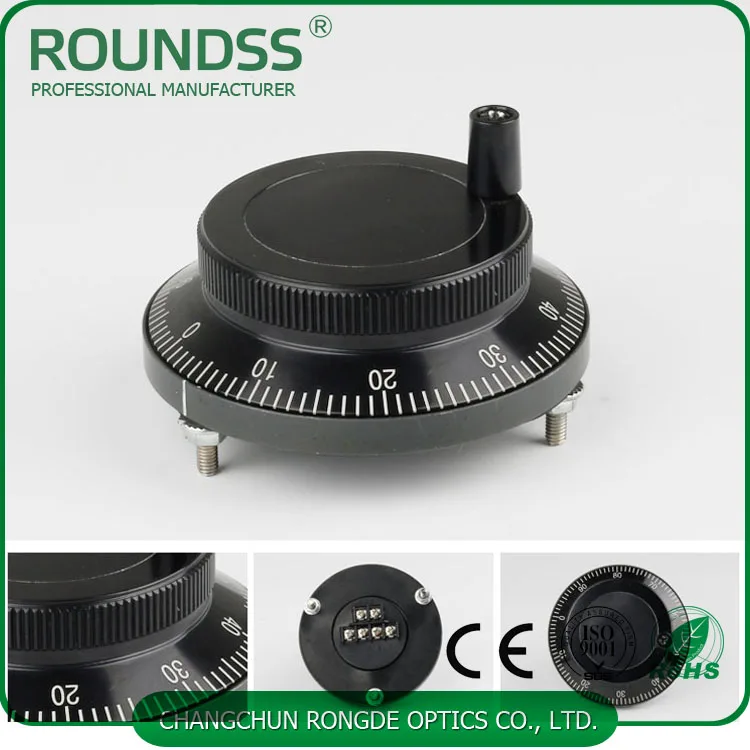

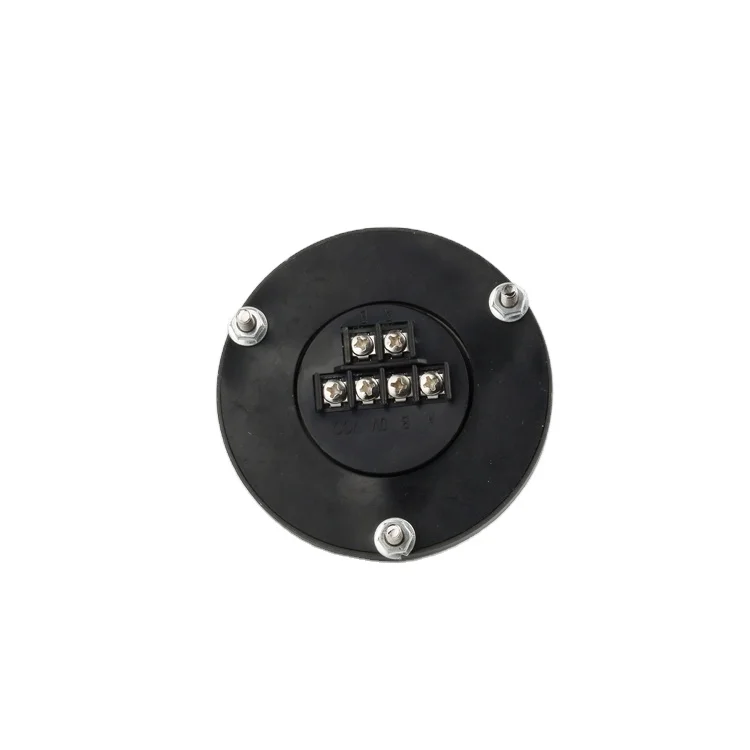

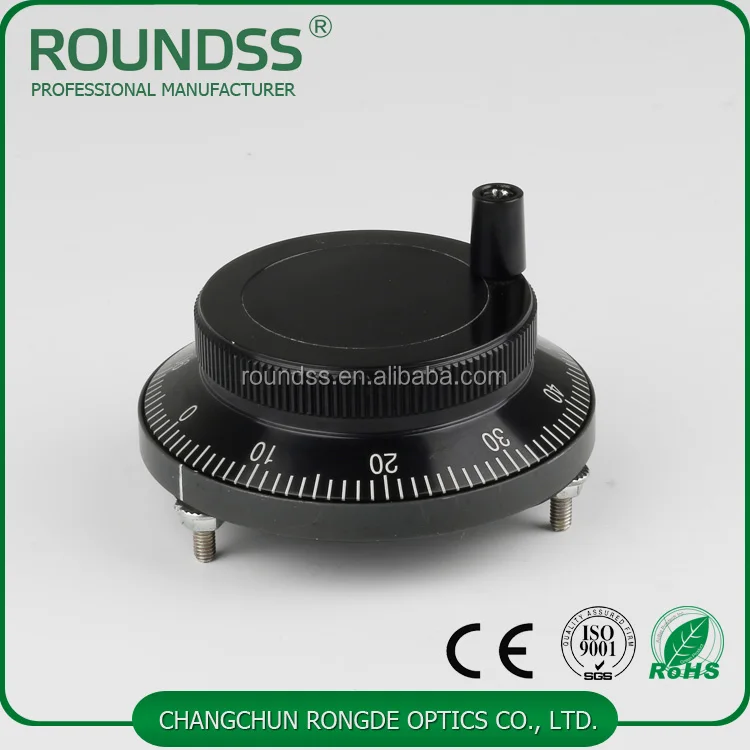

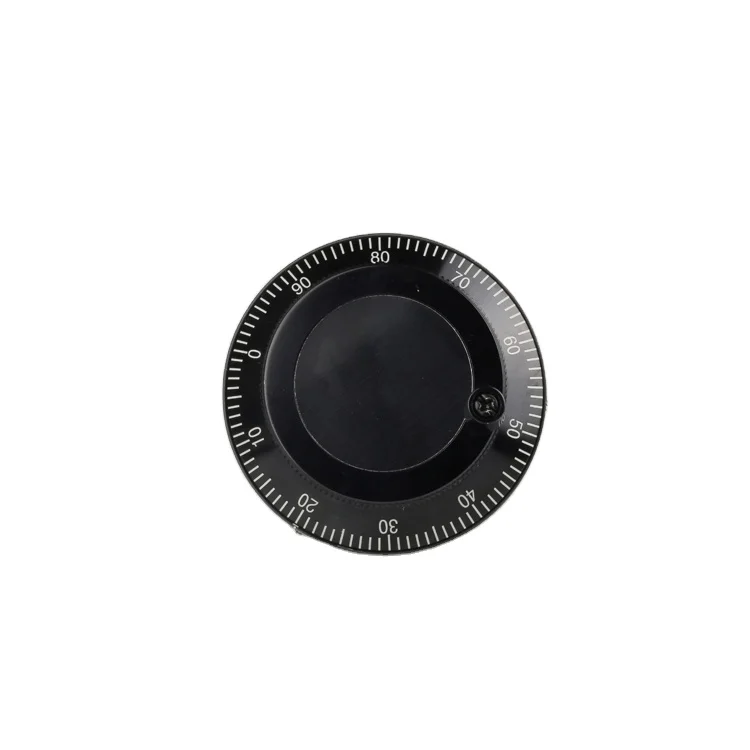

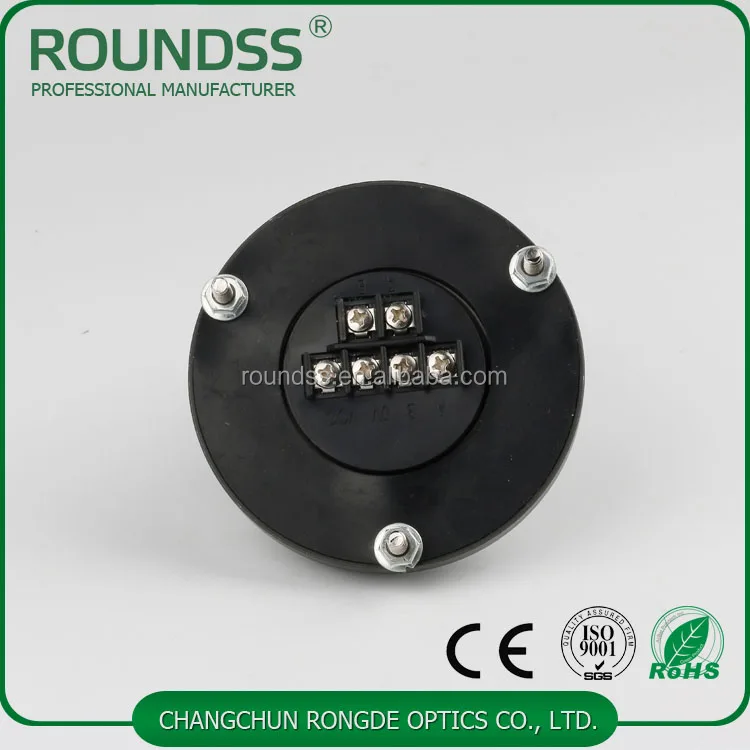

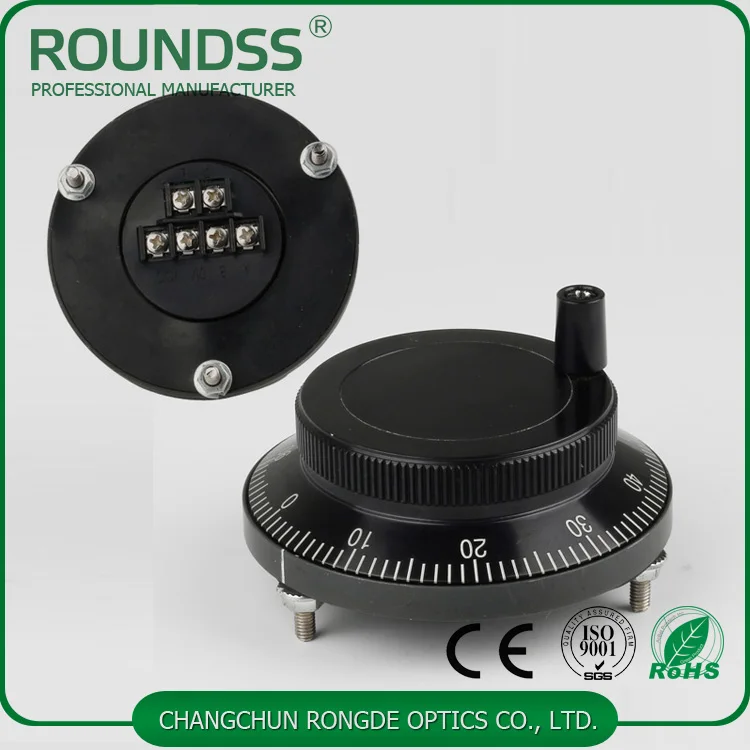

RHC 80.2 black metal design good price Hand Wheel 100PPR Encoder mpg for CNC encoder sensor

Product Overview

Description

RHC 80.2 black metal design good price Hand Wheel 100PPR Encoder mpg for CNC encoder sensor

Manual pulse generators(handwheel/mpg) are typically rotating knobs that generate electrical pulses. They are normally associated with computer numerically controlled (CNC) machinery or other devices involving positioning. When the pulse generator sends an electrical pulse to an equipment controller, the controller then moves a piece of equipment a predetermined distance with every pulse.



Optical encoders use a light source and a photo detector array to read the optical pattern of a plastic or glass disc and translate the pattern into a position data code.



1. Certification: CE & ISO9001 & RoHS.

2.Feature: sturdy and durable, easy to install, optional various output mode, etc.

3.Manufacturer: quality control, better delivery control and better cost control.

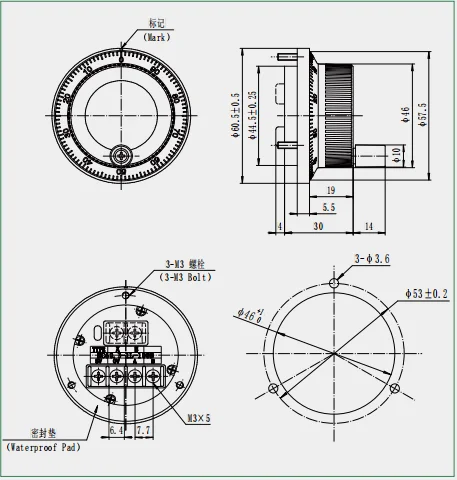

Electrical Specifications				Mechanical Specifications
Supply Voltage DC(V)		5-15V/10-30V	5 ±0.5	Slew Speed		600r/min
Output Model		Voltage	Line Driver	Normal Rotational Speed		≤200r/min
Current Consumption(mA)		≤60	≤120	Dial Life		3×105 turns(≤200r/min)
Output Voltage(V)	VH	≥Vcc-1	≥2.5	Environmental Specifications
	VL	≤0.5	≤0.5	Operating Temperature		-10-+60°C
Rise/Fall time(ns)		≤1	≤1	Weight		Appr. 130g
Frequency Response(kHz)		≤100	≤100	Protection Class		IP 65

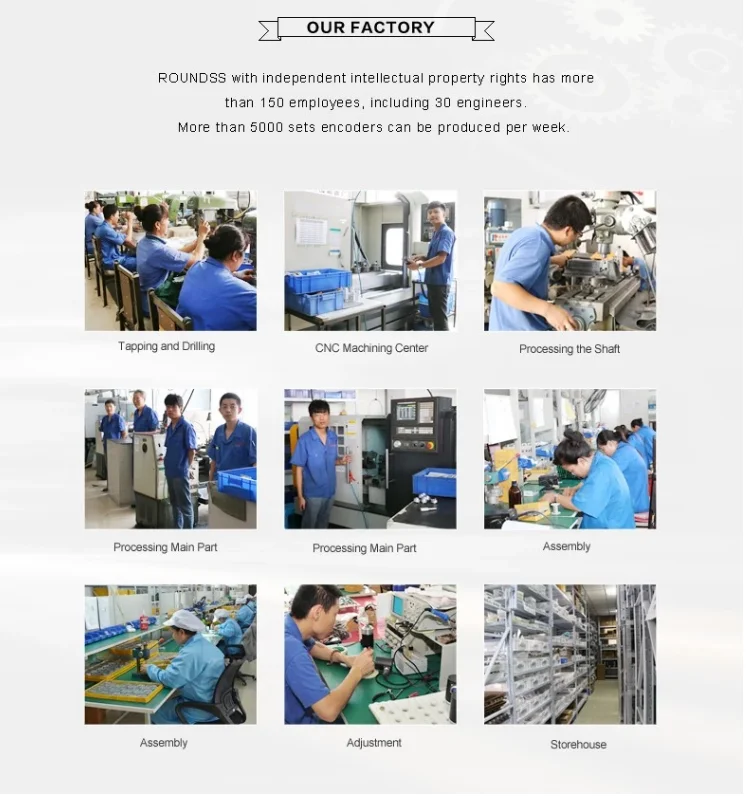

Changchun Rongde Optics Co., Ltd. is located in the modern city- Changhun which is know as the optoelectronics industry base of China. Specializing in the production of rotary encoders and other industrial automation sensor-related products, products used in speed measurement, angle measurement, length measurement. To improve the company’s sales and after-sales network, we set up branch company in Beijing, Guangzhou, Xi’an, Wuxi and Shanghai etc.

*Excellent quality: professional R&D team, strict quality testing.
*Rapid response: an extensive sales network to ensure timely and effective communication.
*Strength to ensure: adequate inventory, the shortest lead time.
*Customized service: to meet the various of needs from customers.
After-sales service: product warranty period of 18 months.











1. The questions about the encoder will be answered within 24 hours.

2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.

3. We can offer the information of dealer in your market if you want to contact them directly.

4. Update the procession of manufacturing.

5. Warranty 18 months: Free replacement of defective products within 18 months.





Q1:Can I have a sample for testing?

A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample



Q2:Can I add my logo on the encoder ?

A:Yes,OEM and ODM are available for us. But you should send us the Trademark authorization letter.



Q3:How can i get the after-service?

A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay. For our range hood motors it is lifelong maintenance.



Q4 :Do you have inspection procedures for encoder ?

A:100% self-inspection before packing



Q5:Can I have a visit to your factory before the order?

A: Sure,welcome to visit our factory.

Here is our factory address: No.1666, Ya’an Road, Beihu District, Chanchun, China

We can pick you up in the airport.



 More detail information, welcome to visit our website: www.roundss.com.cn
