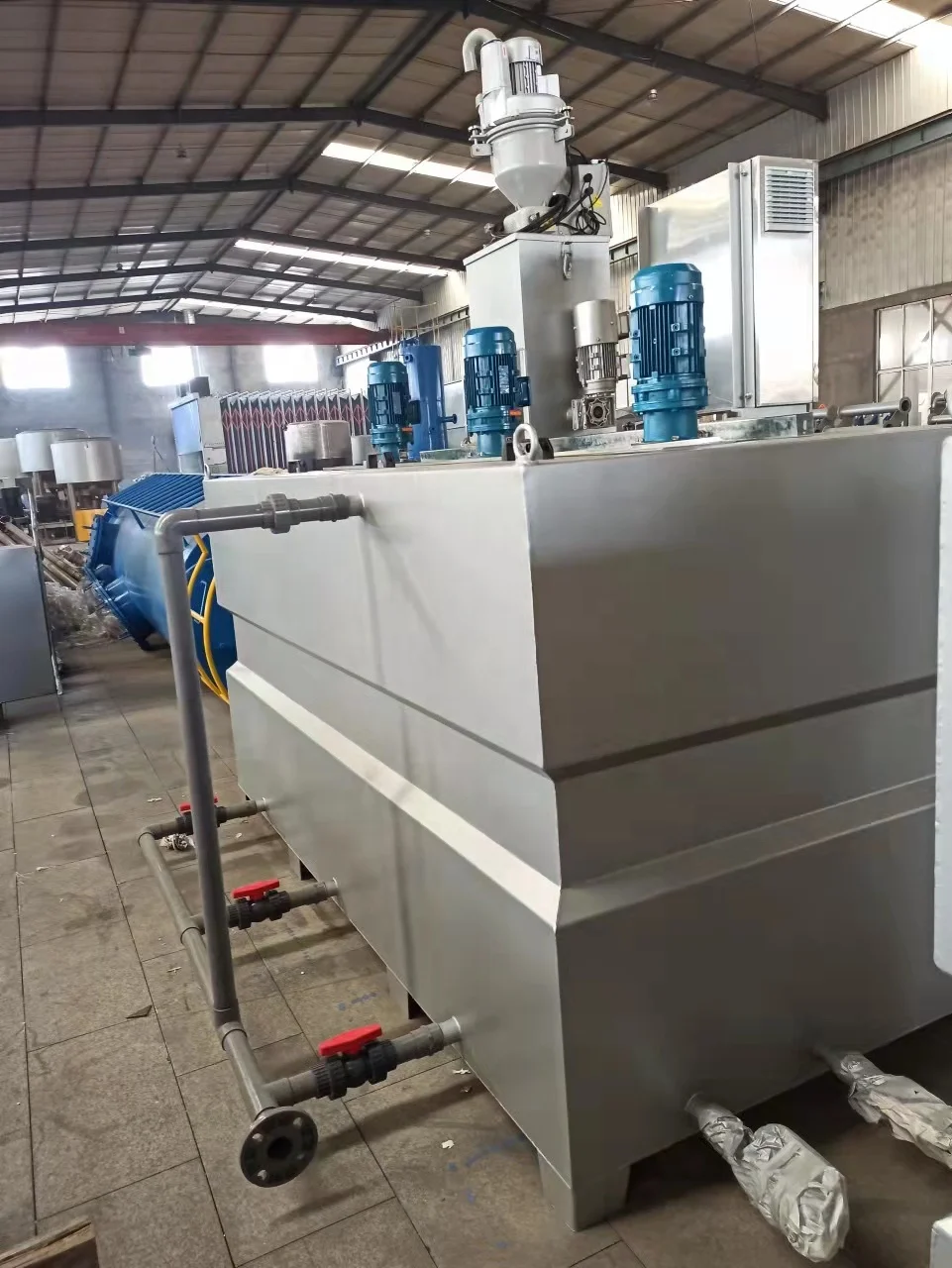

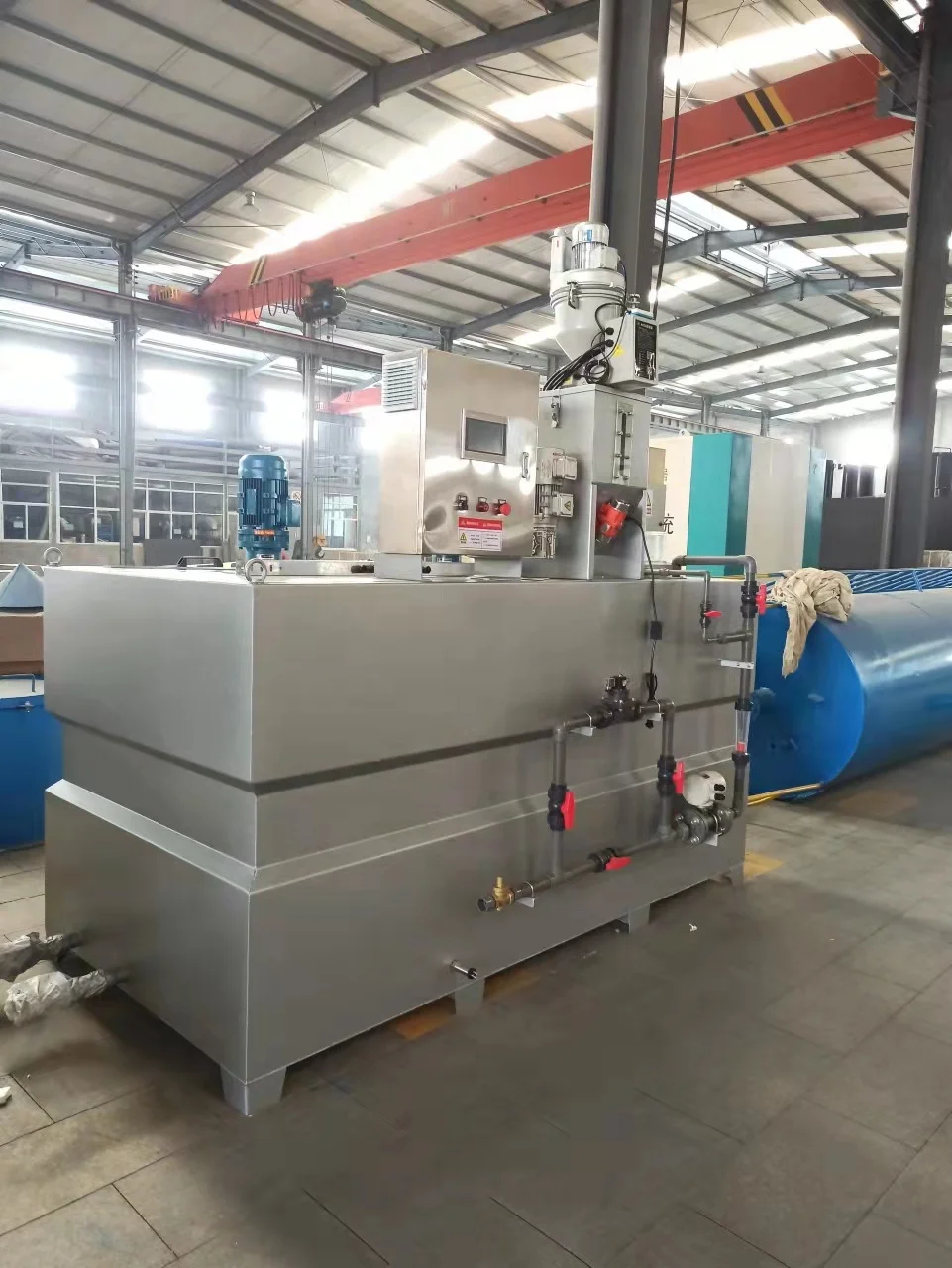

PAM Skid Mounted Stainless Steel 304 Automatic Powder Liquid Polymer Chemical Dosing System
- Category: >>>
- Supplier: Shandong Xuridong Machinery Co. Ltd.
Share on (1600726220489):
Product Overview
Description
Product Description
PAM Skid-mounted Automatic Sewage sludge Treatment Powder Liquid Polymer Chemical Dosing Equipment
PAM chemicals dosing system is an auxiliary auto-equipment, which can prepare and throw polymer solution continually.
It can complete the chemical combination and mixing of the polymer continually and efficiently in order to obtain homogeneous and activated solutions.
It can complete the chemical combination and mixing of the polymer continually and efficiently in order to obtain homogeneous and activated solutions.
The equipment can be widely used in wastewater treatment plant, sludge dewatering treatment mill.
And it is used for the treatment of water supply, boiler water, circulating water and wastewater in power plants. It can also be used in petroleum, chemical industry, environmental protection, water supply system and other industries.
1. Three water chests and two mixing chests. Two chests are mixing section, and one chest is stock section.
2. Feed the chemical powers one time per day, the usage is good one day.
3. The system can work continuously, and operate easily.

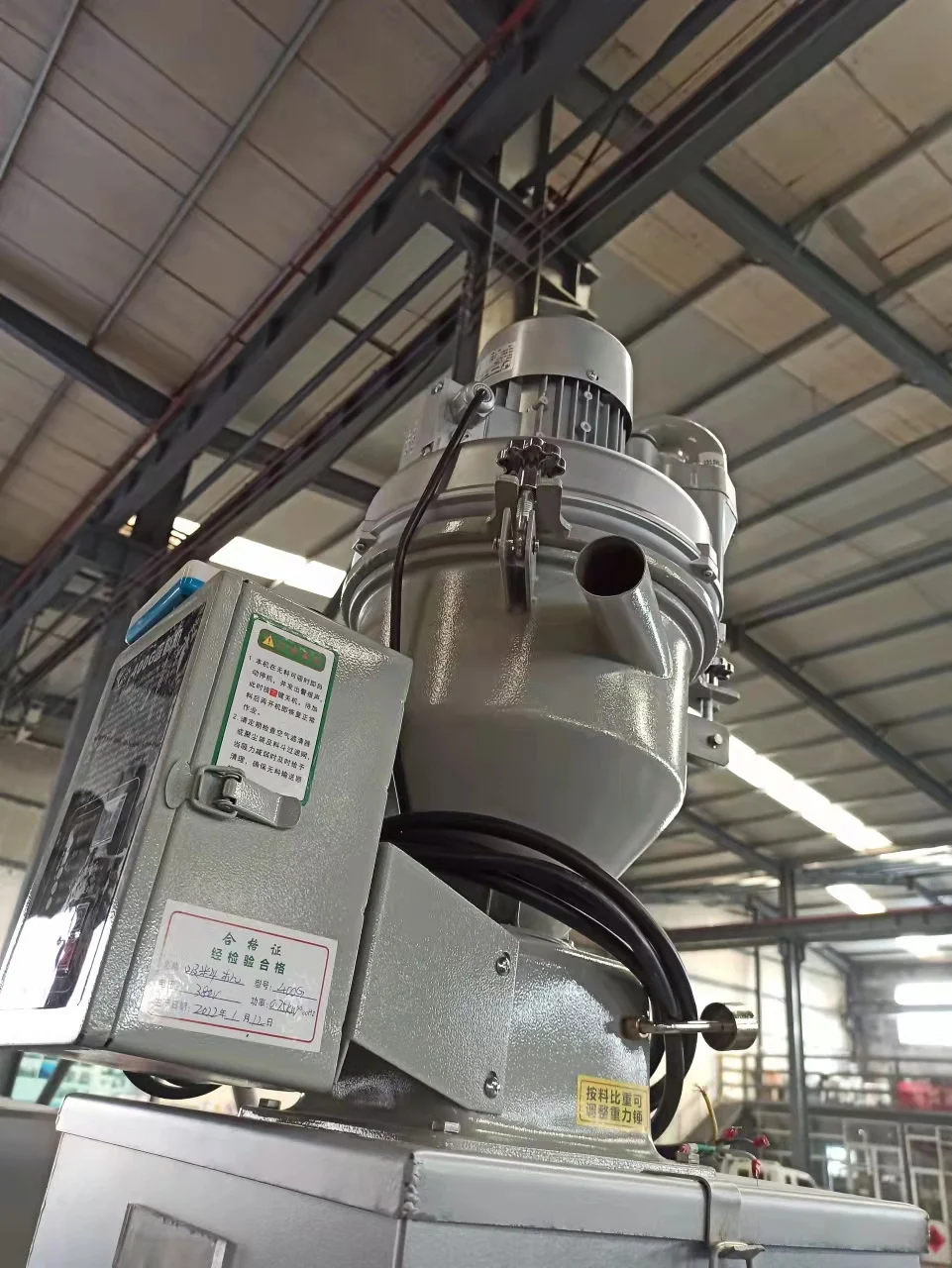

4. There are the heating screw and transporting system, and it can run automatically.
5. It is made of stainless steel 304, corrosion resistance and durability.
6. It is skid-mounted modular, and easy to install and move.
2. Feed the chemical powers one time per day, the usage is good one day.
3. The system can work continuously, and operate easily.
4. There are the heating screw and transporting system, and it can run automatically.
5. It is made of stainless steel 304, corrosion resistance and durability.
6. It is skid-mounted modular, and easy to install and move.
Features and application
Features:
01. Run automatically
02. Low power consumption
03. Overload safety protection
04. No noise, continuous and stable
05. Accurate measurement of liquid medicine
06. Continuous and stable operation
01. Run automatically
02. Low power consumption
03. Overload safety protection
04. No noise, continuous and stable
05. Accurate measurement of liquid medicine
06. Continuous and stable operation
Application:
01. Sewage / wastewater treatment mill
02. Sludge dewatwering mill
03. Water supply
04. Boiler water
05. Circulating water
06. Other industrial sewage treatment
01. Sewage / wastewater treatment mill
02. Sludge dewatwering mill
03. Water supply
04. Boiler water
05. Circulating water
06. Other industrial sewage treatment
Technical parameter
Model | Chemical Liquid Output (L/H) | Dry Powder Dosage (Kg/H) | Mixing Consistency (%) | Power (Kw) | Chemical Tank Oversize (Mm) |
PAMYJY-200 | 0-200 | 0-2 | 0.1-1 | 2.473 | 1250x600x600 |
PAMYJY-500 | 25-500 | 0-5 | 0.1-1 | 2.653 | 1500x900x900 |
PAMYJY-1000 | 50-1000 | 0-10 | 0.1-1 | 2.853 | 1900x1000x1000 |
PAMYJY-1500 | 75-1500 | 0.5-15 | 0.1-1 | 3.203 | 2000x1150x1150 |
PAMYJY-2000 | 100-2000 | 1-20 | 0.1-1 | 3.503 | 2200x1200x1200 |
PAMYJY-3000 | 150-3000 | 2-30 | 0.1-1 | 3.903 | 2500x1300x1300 |

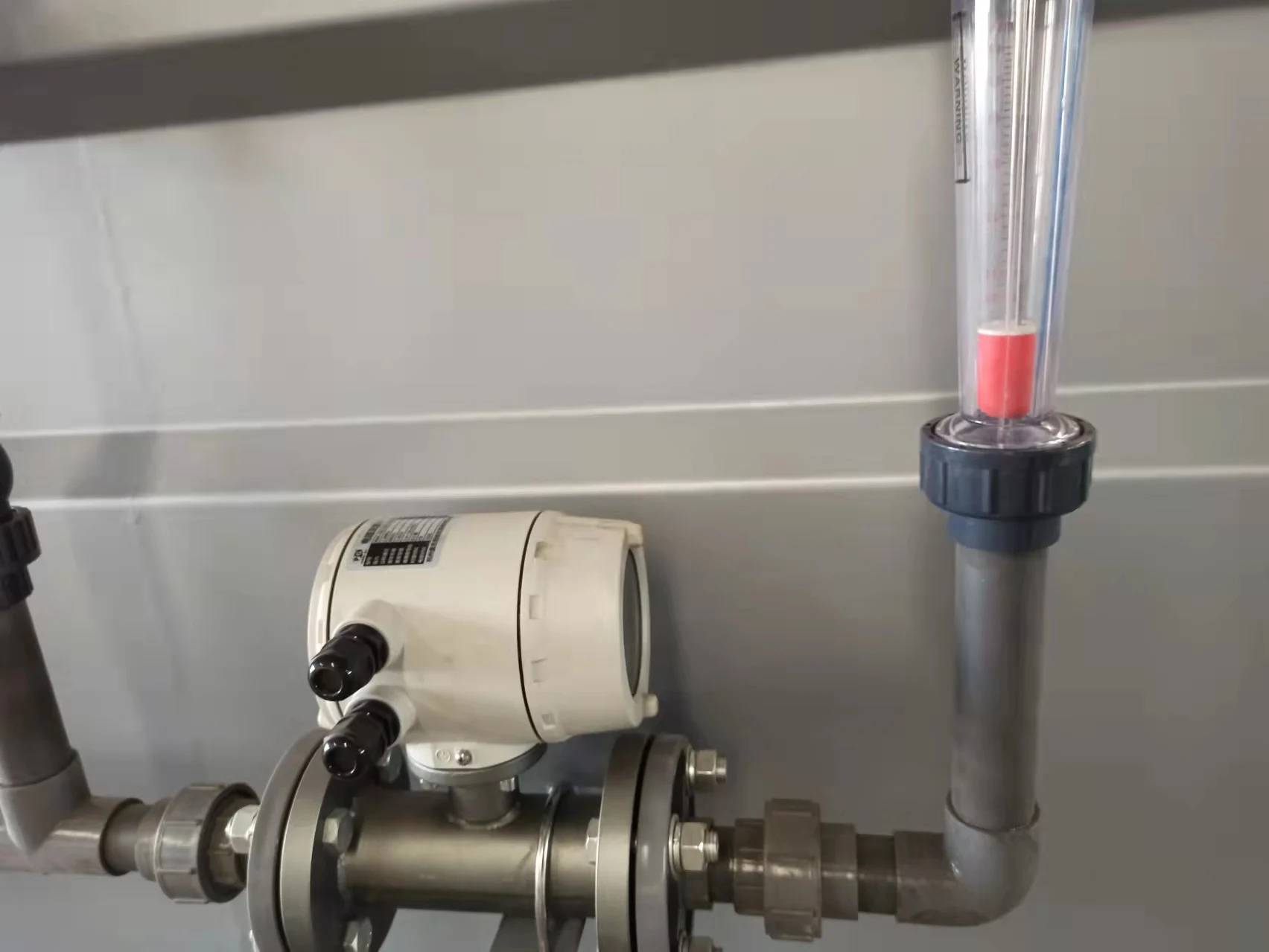

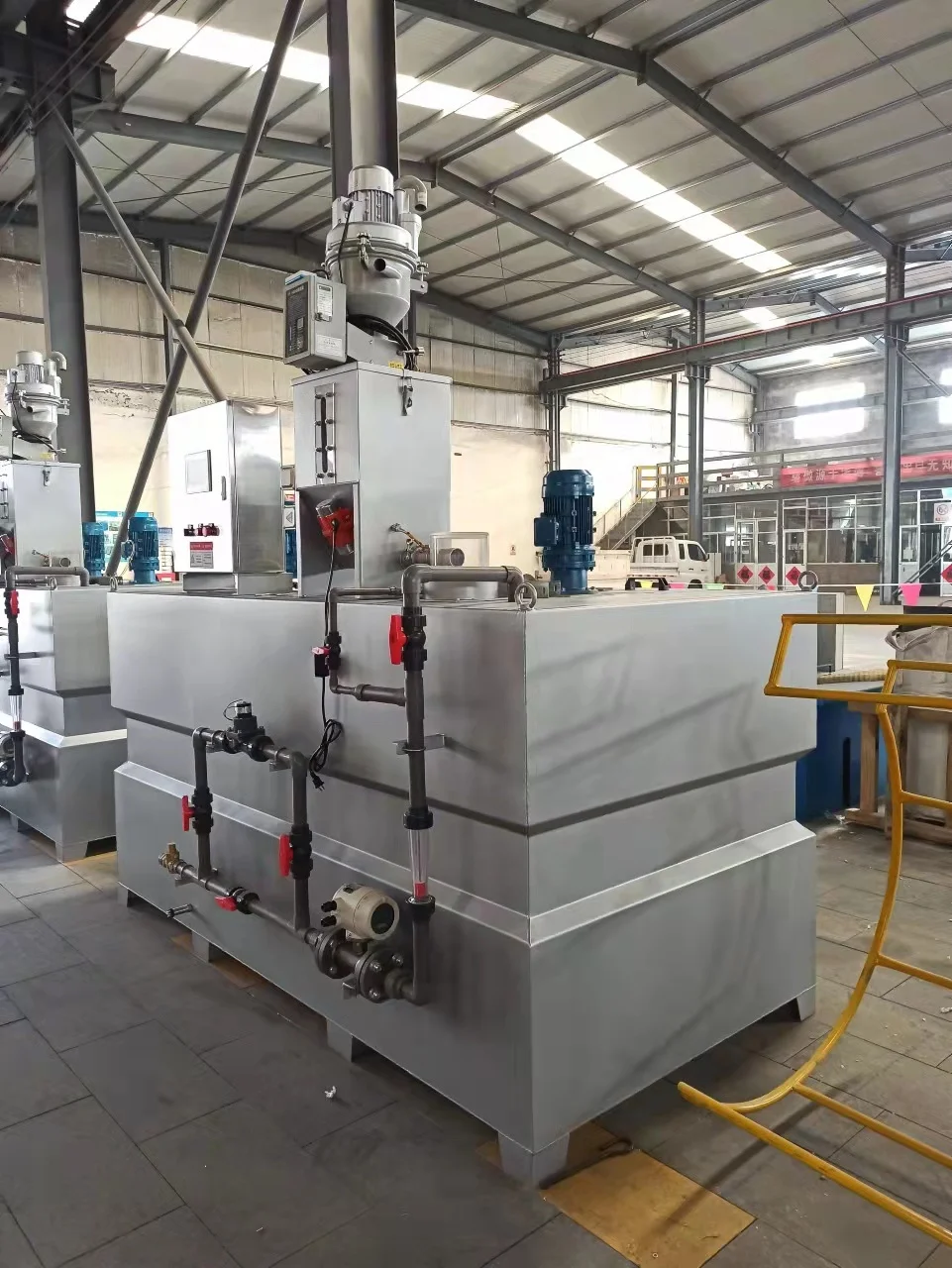

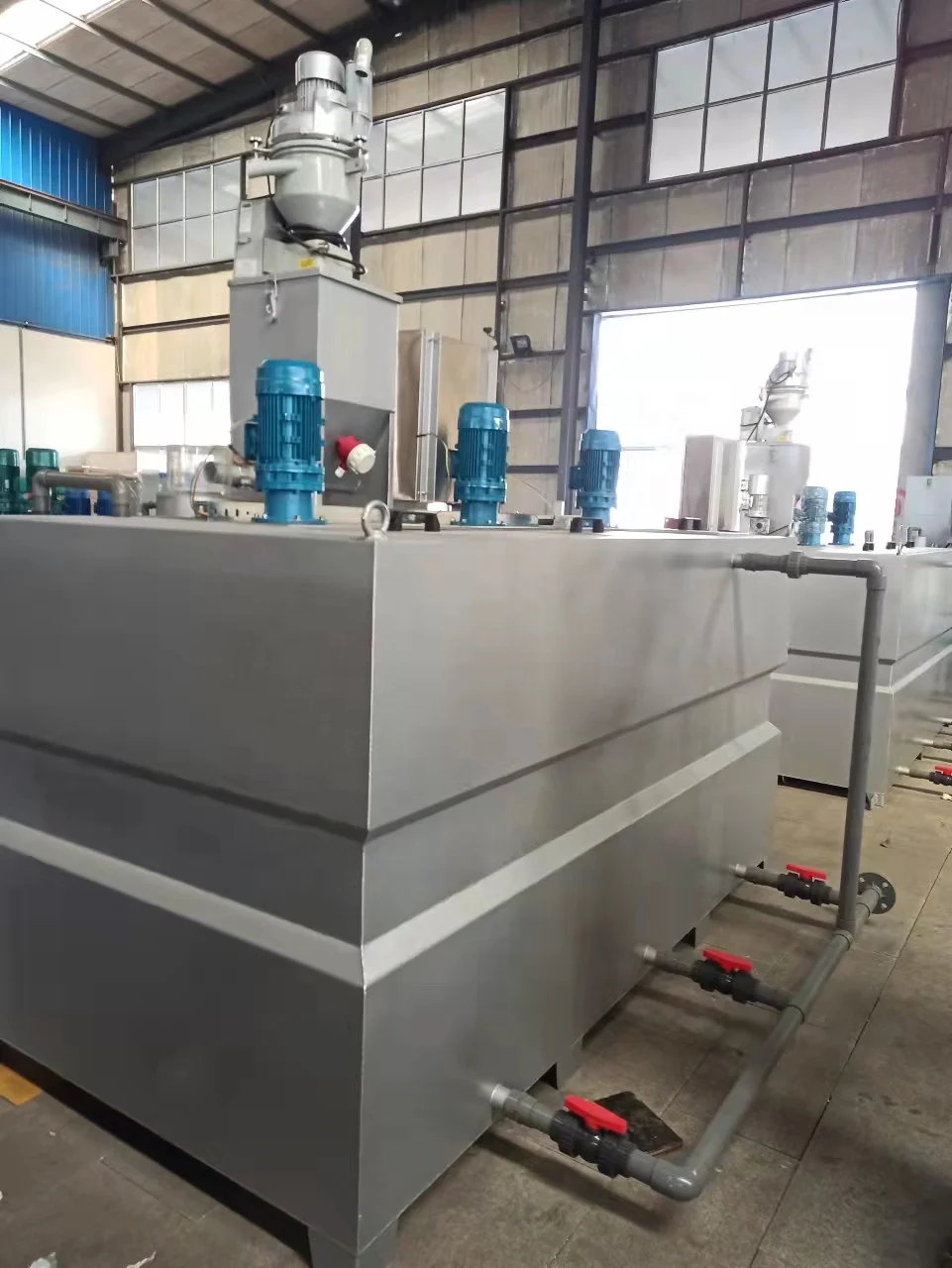

Detailed Images

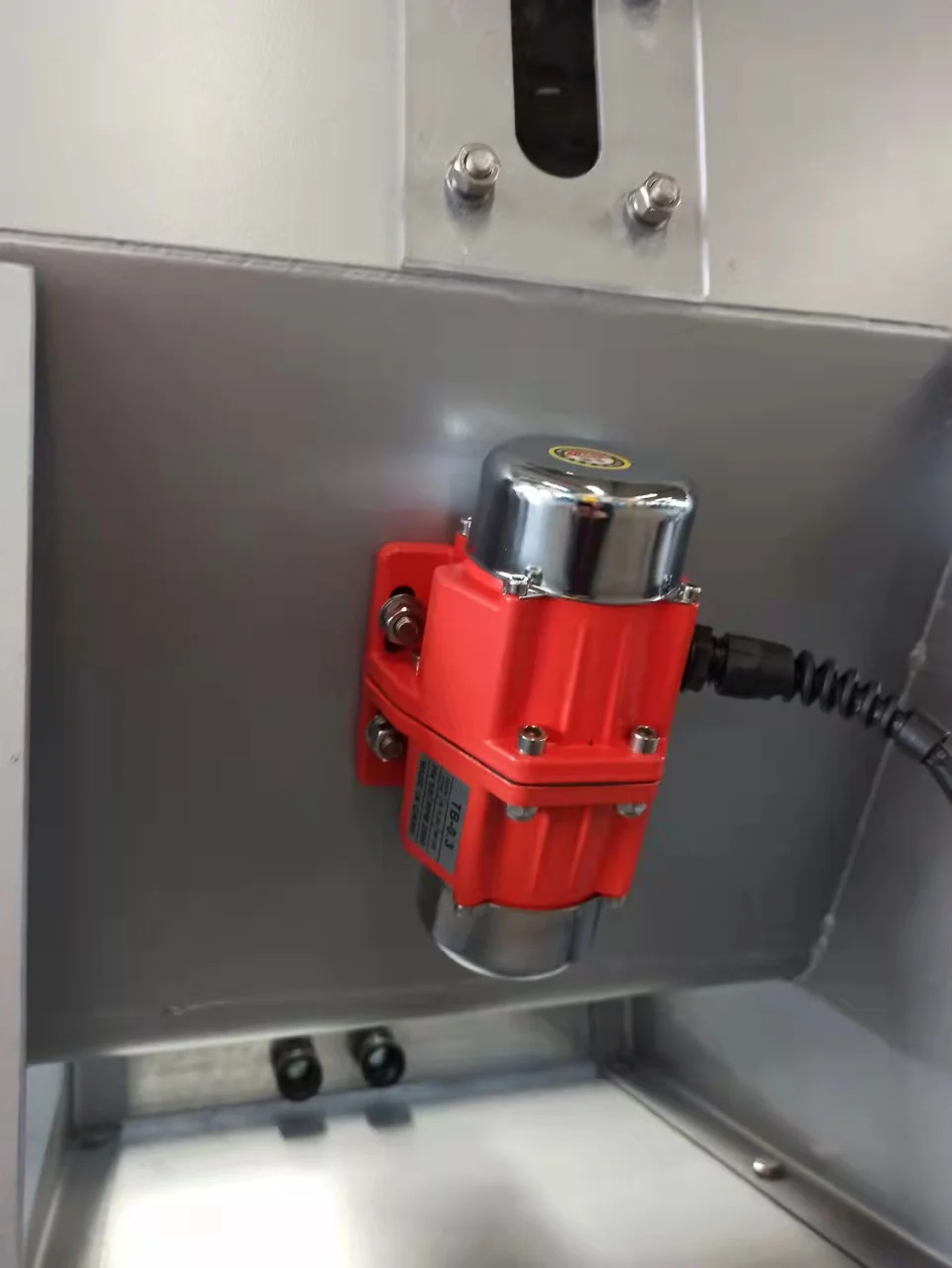

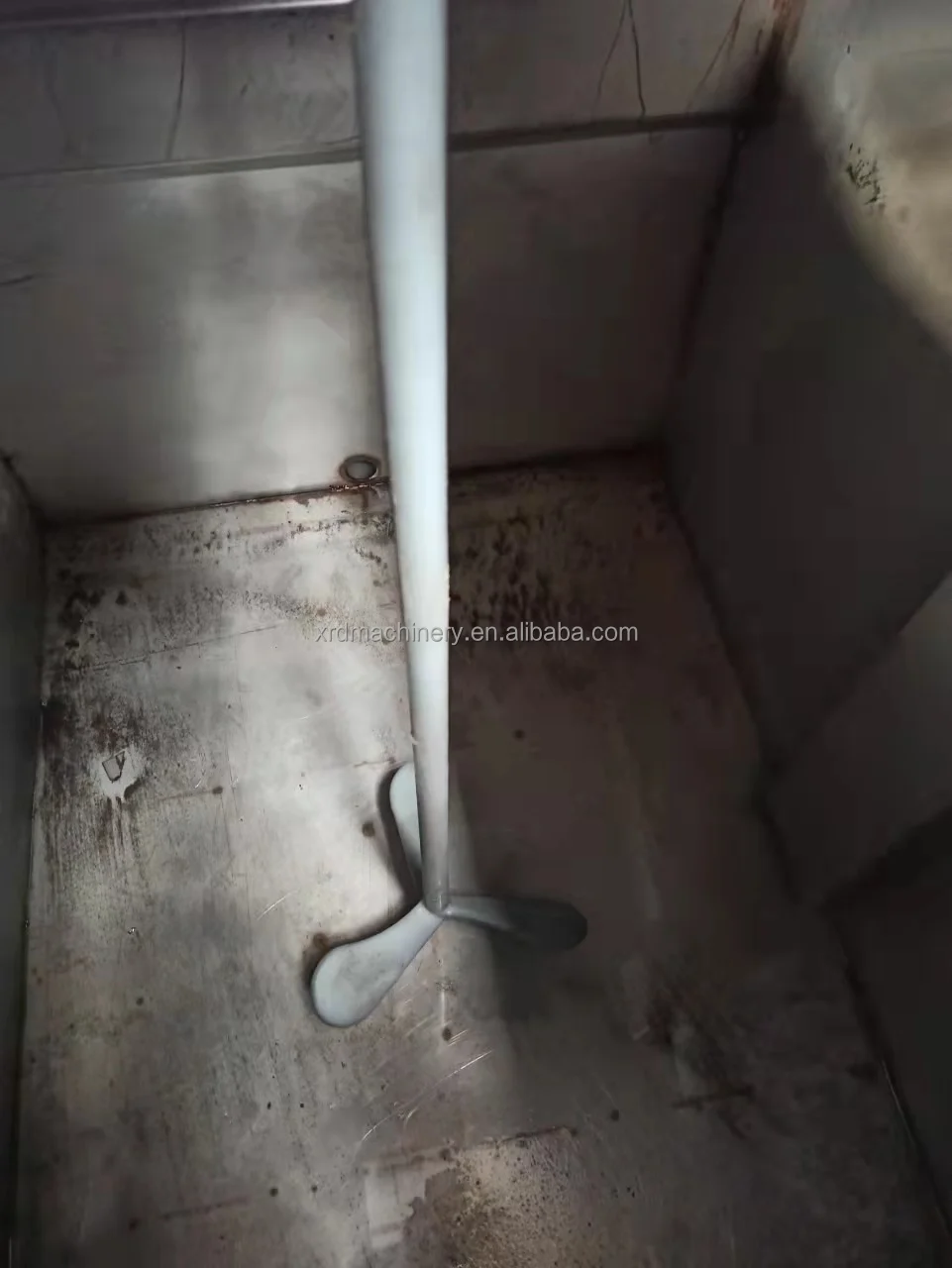

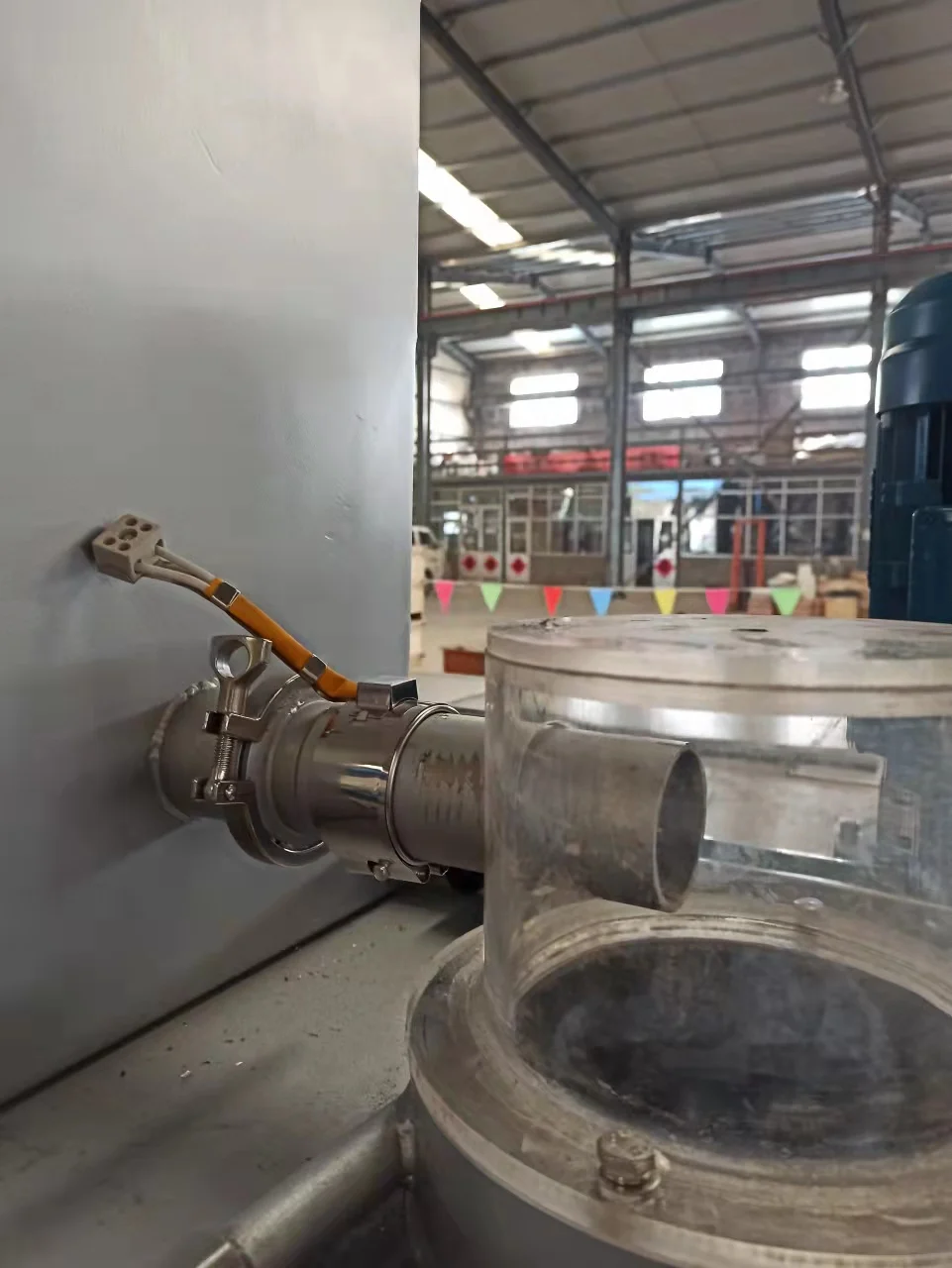

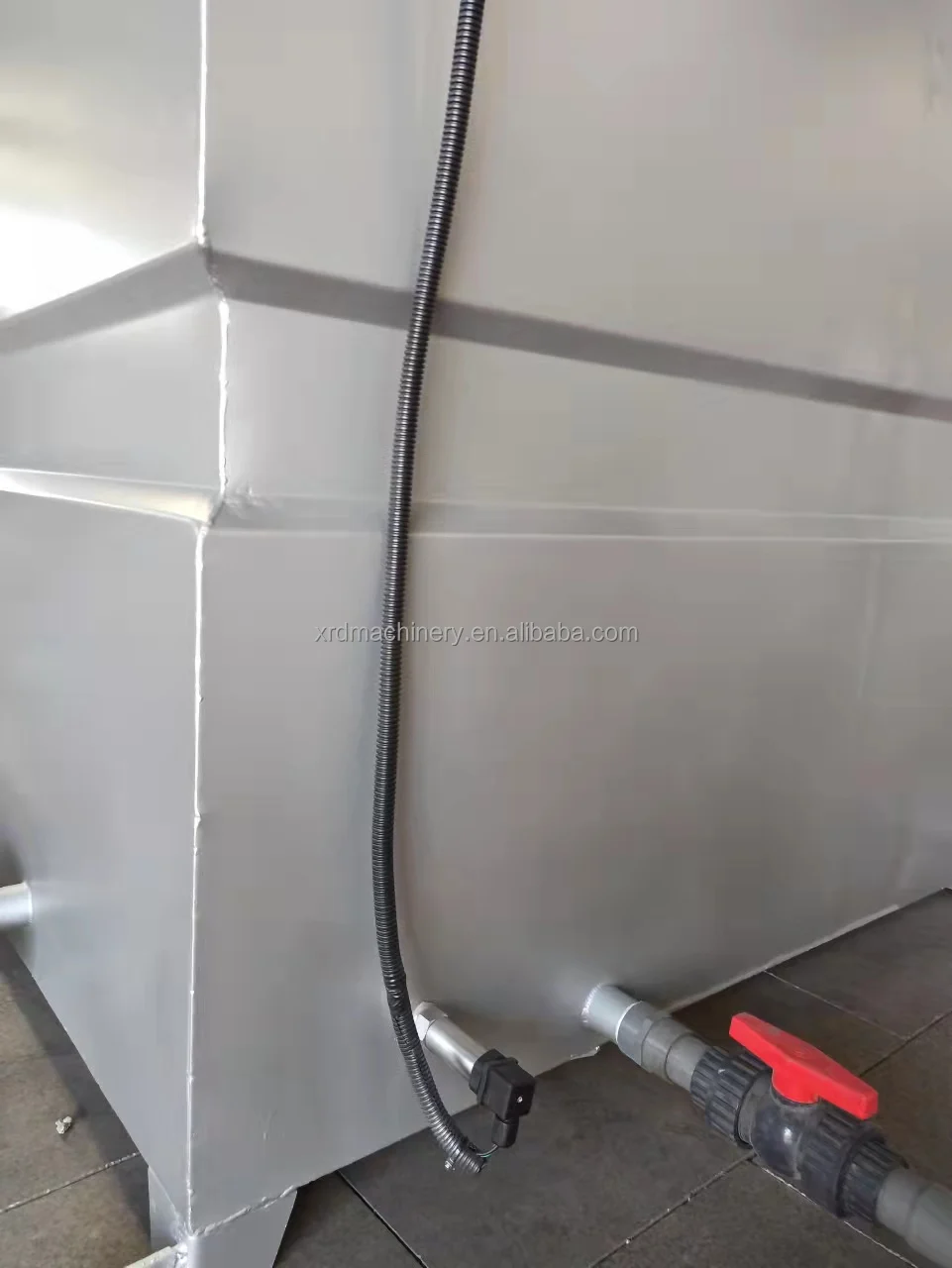

The body is made of stainless steel 304, and bar rake teeth is made of stainless steel 304, the motor is from Siemens, Schneider, or Chinese famous brand.
Company Introduction
Shandong Xuridong Machinery Co. Ltd., produces wonderful pulp and paper making machines and solutions, and pulp molding making machines and solutions, waste water treatment equipment and solutions, and tissue paper converting machines, that are technologically advanced, highly efficient and of superior quality. Our company covers an area of more than 10,000 square meters.
We export to many countries, including Europe, America, Africa, Middle east and Southeast Asia. Our prime location is in Zhucheng City, Shandong Province. We are in very close proximity to Qingdao port. Product design and development is a prime concern at Xuridong Machinery. Our technology department is composed of 12 talented designers, including 2 highly-skilled senior engineers.
With their wealth of comprehensive experience and impressive expertise, we have achieved a total of 32 patents over the past few years. And we have passed I S O 9 0 0 1, C E and S G S certifications. These accomplishments have been a powerful driving force enabling our company to continue to focus heavily upon innovation and efficiency while supplying new and upgraded products, in response to dynamic and ever-changing market demands. Our machining workshop has been equipped with only the most advanced and finest quality production machinery available. Last but not least, our electronic components are all purchased from Siemens, Schneider and other world-renowned brands. This accompanied by our in-house developed control cabinets enables us to provide a powerful guarantee on the quality of all electrical control systems.
We export to many countries, including Europe, America, Africa, Middle east and Southeast Asia. Our prime location is in Zhucheng City, Shandong Province. We are in very close proximity to Qingdao port. Product design and development is a prime concern at Xuridong Machinery. Our technology department is composed of 12 talented designers, including 2 highly-skilled senior engineers.
With their wealth of comprehensive experience and impressive expertise, we have achieved a total of 32 patents over the past few years. And we have passed I S O 9 0 0 1, C E and S G S certifications. These accomplishments have been a powerful driving force enabling our company to continue to focus heavily upon innovation and efficiency while supplying new and upgraded products, in response to dynamic and ever-changing market demands. Our machining workshop has been equipped with only the most advanced and finest quality production machinery available. Last but not least, our electronic components are all purchased from Siemens, Schneider and other world-renowned brands. This accompanied by our in-house developed control cabinets enables us to provide a powerful guarantee on the quality of all electrical control systems.
CONTACT WITH US
Mr. Bertram Young
Position: Trade manage and Engineer
Shandong Xuridong Machinery Co.,Ltd.
Shandong Xuridong Machinery Co.,Ltd.
Wechat: Y15253622917
Tel/Whatsapp: +8615253622917
Skype: Mr.young8899
Mob: 0086 13563631266； 0086 15253622917
E-mail: yangshengfeng@xuridong.com jinyang2088@foxmail.com
Tel/Whatsapp: +8615253622917
Skype: Mr.young8899
Mob: 0086 13563631266； 0086 15253622917
E-mail: yangshengfeng@xuridong.com jinyang2088@foxmail.com
Website: www.xuridong-en.com
Add: No.68, Tieyuan Road, Zhucheng City, Shandong Province, China------262200
Add: No.68, Tieyuan Road, Zhucheng City, Shandong Province, China------262200

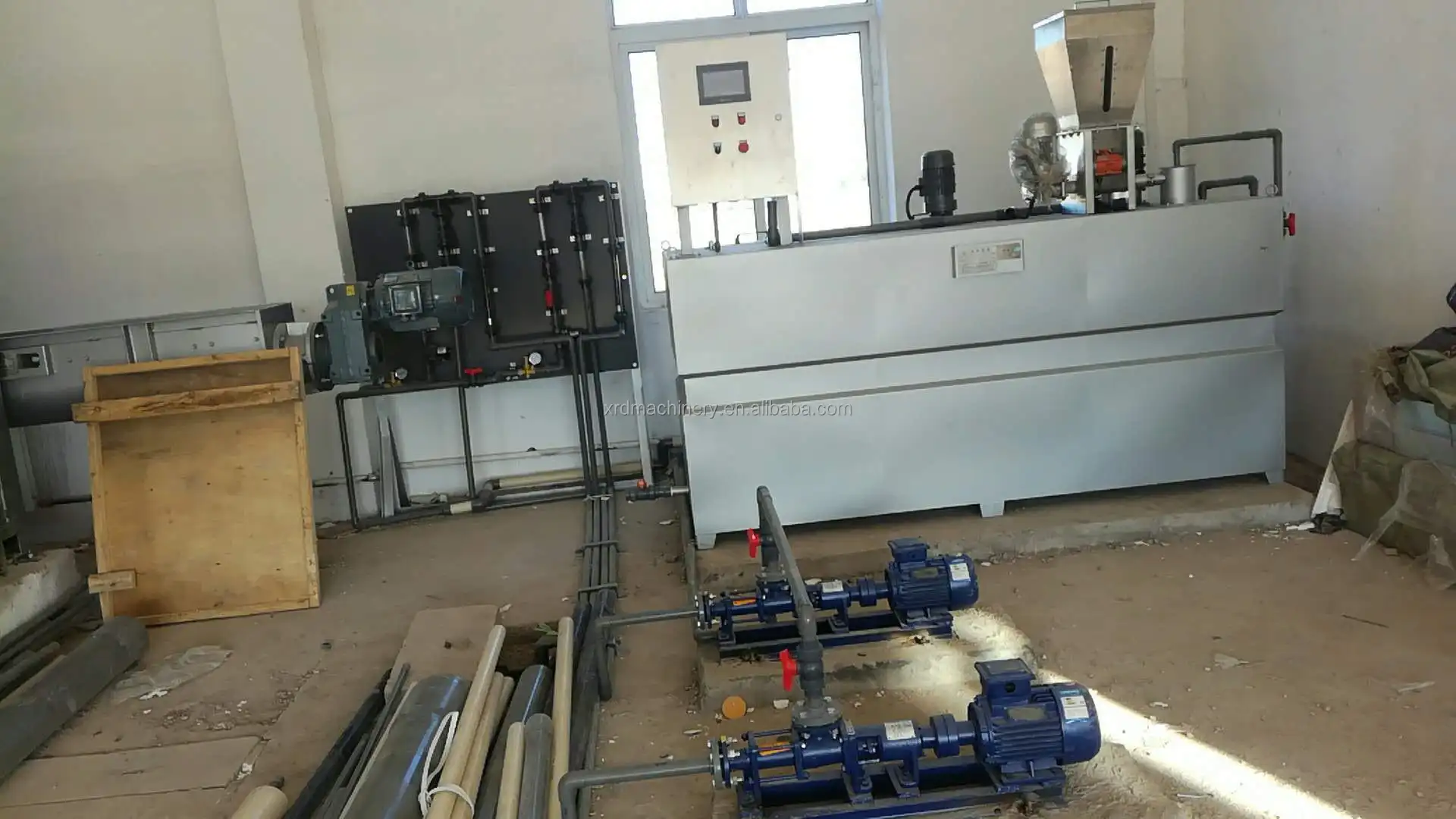

Customer Photos
Packing&Shipping
It can be packaged by container, or by wood case, or by plastic bags.
After Sales Service
1. We are responsible for correctly guiding the installation, commissioning and trial production of equipment for free, to ensure that we reach the design capacity within the planned time.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance, equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual travel.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance, equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual travel.
FAQ
01. How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard
process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa
fee, air tickets, accommodation, wages will be paid by buyers.
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard
process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa
fee, air tickets, accommodation, wages will be paid by buyers.
