CNC Automatic Rebar Bending Machine
- Category: >>>
- Supplier: Qingdao Dongfeihong Intelligent Technology Co. Ltd.
Share on (1600726223673):
Product Overview
Description
Introduction & Advantage

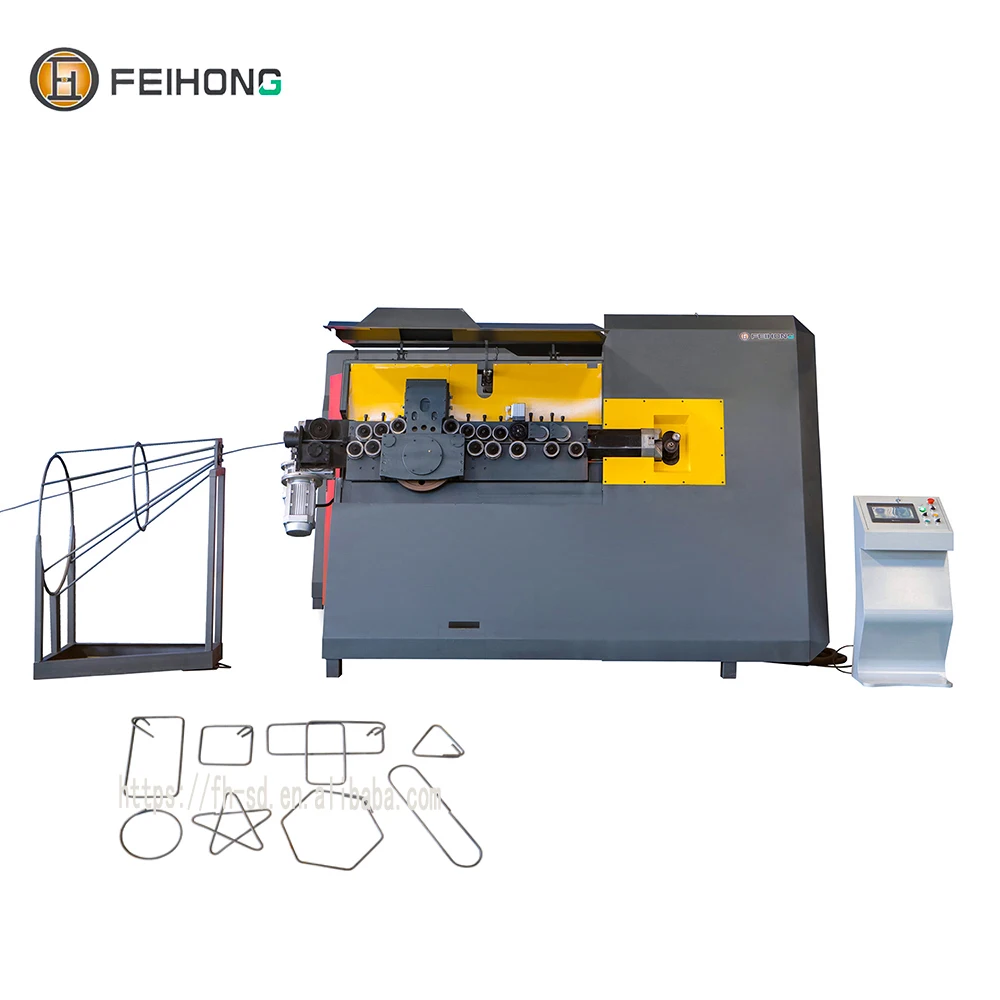

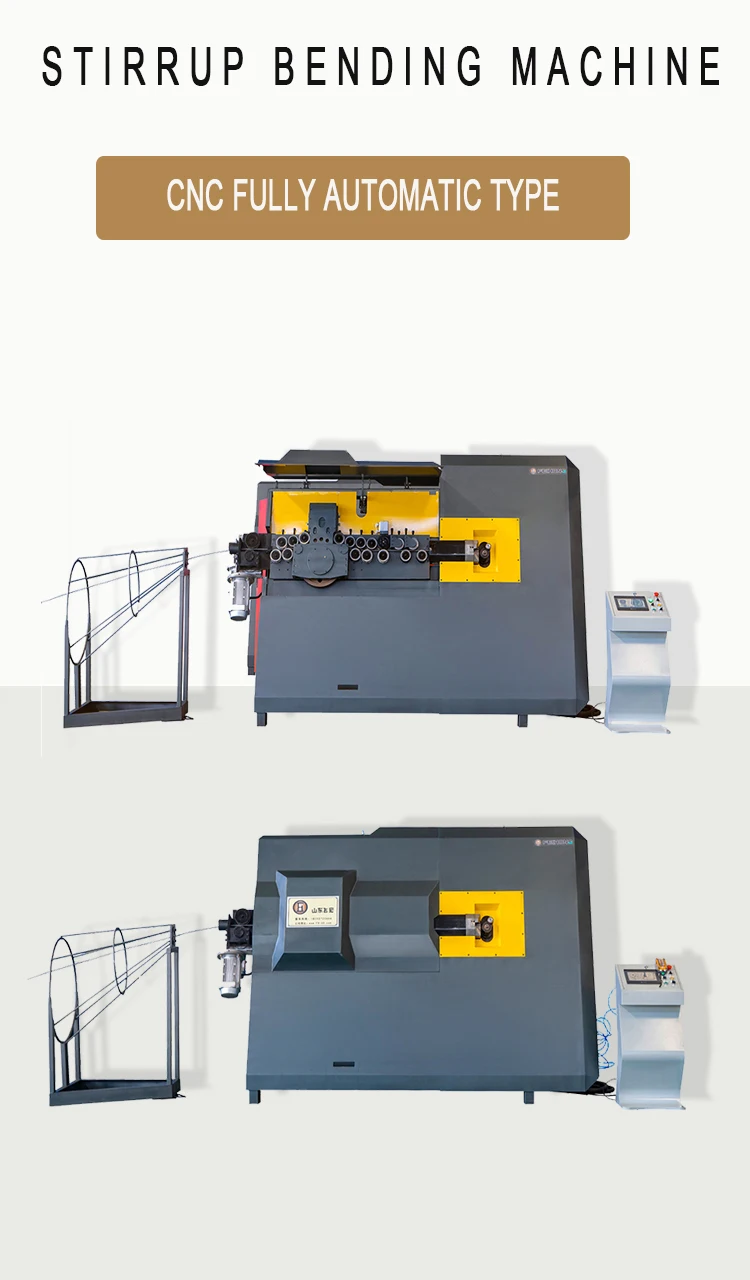

CNC stirrup bending machine FHG-12A
1. It is a fully automatic CNC rebar bending machine, the unique and mature technology is learned from Italy, and it adopts a curved straightening system with strong straightening ability and long service life.
2. This machine can process various types of cold-rolled, hot-rolled coils, and coiled steel bars with a diameter of 5- 12 mm , for making stirrups, hook bars, plate bars, etc.
3. The traction device adopts a turbine reducer, which is directly connected to drive and bend, and the reducer drives the connecting rod to cut, etc. With CNC program control and man-machine interactive operation interface, the machine can efficiently complete the threading, straightening and setting by a single person. Many tasks such as length fixing, bending, forming and cutting can be finished automatically.
4. The equipment has the characteristics of long service life, convenient maintenance, simple operation, and low operator work intensity.
5. We can also provide a variety of customized accessories to meet the diverse needs of customers.
2. This machine can process various types of cold-rolled, hot-rolled coils, and coiled steel bars with a diameter of 5- 12 mm , for making stirrups, hook bars, plate bars, etc.
3. The traction device adopts a turbine reducer, which is directly connected to drive and bend, and the reducer drives the connecting rod to cut, etc. With CNC program control and man-machine interactive operation interface, the machine can efficiently complete the threading, straightening and setting by a single person. Many tasks such as length fixing, bending, forming and cutting can be finished automatically.
4. The equipment has the characteristics of long service life, convenient maintenance, simple operation, and low operator work intensity.
5. We can also provide a variety of customized accessories to meet the diverse needs of customers.
Technical Parameters
Model | FHG-12A | ||||||
Single wire coiled deformed steel | Ф5-Ф13mm | ||||||
Single wire coiled round steel | Ф5-Ф14mm | ||||||
Double wire | Ф5-Ф10mm | ||||||
Rebar sizing accuracy | ±1mm | ||||||
Bending angle accuracy | ±1° | ||||||
Max Traction speed | 110m/min | ||||||
Max. bending angle | 165° | ||||||
Max.Bending Speed | 1200°/sec | ||||||
Max. stirrup side length | 1200mm | ||||||
Min. stirrup side length | 60mm | ||||||
Total installed capacity | 27kw | ||||||
Average energy consumption | 5kw/h | ||||||
Machine total weight | 2.6T | ||||||
Machine dimension | 3300mm*1260mm*2150mm | ||||||

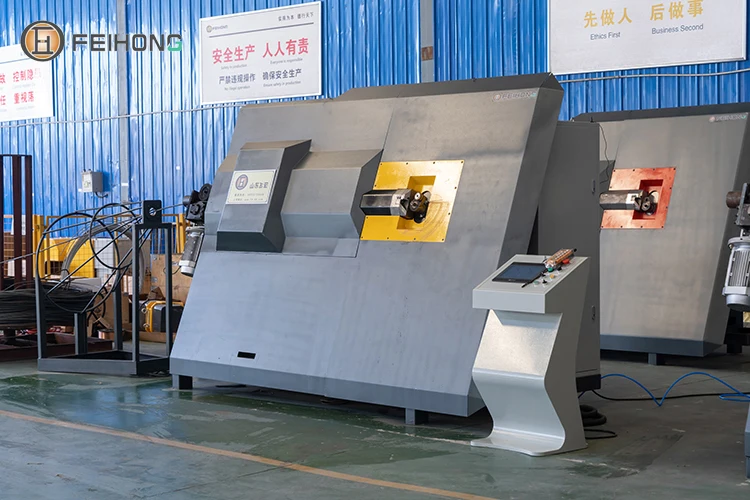

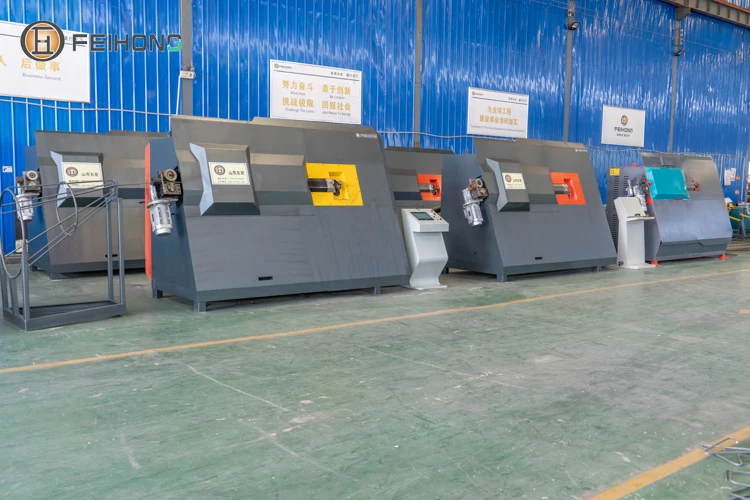

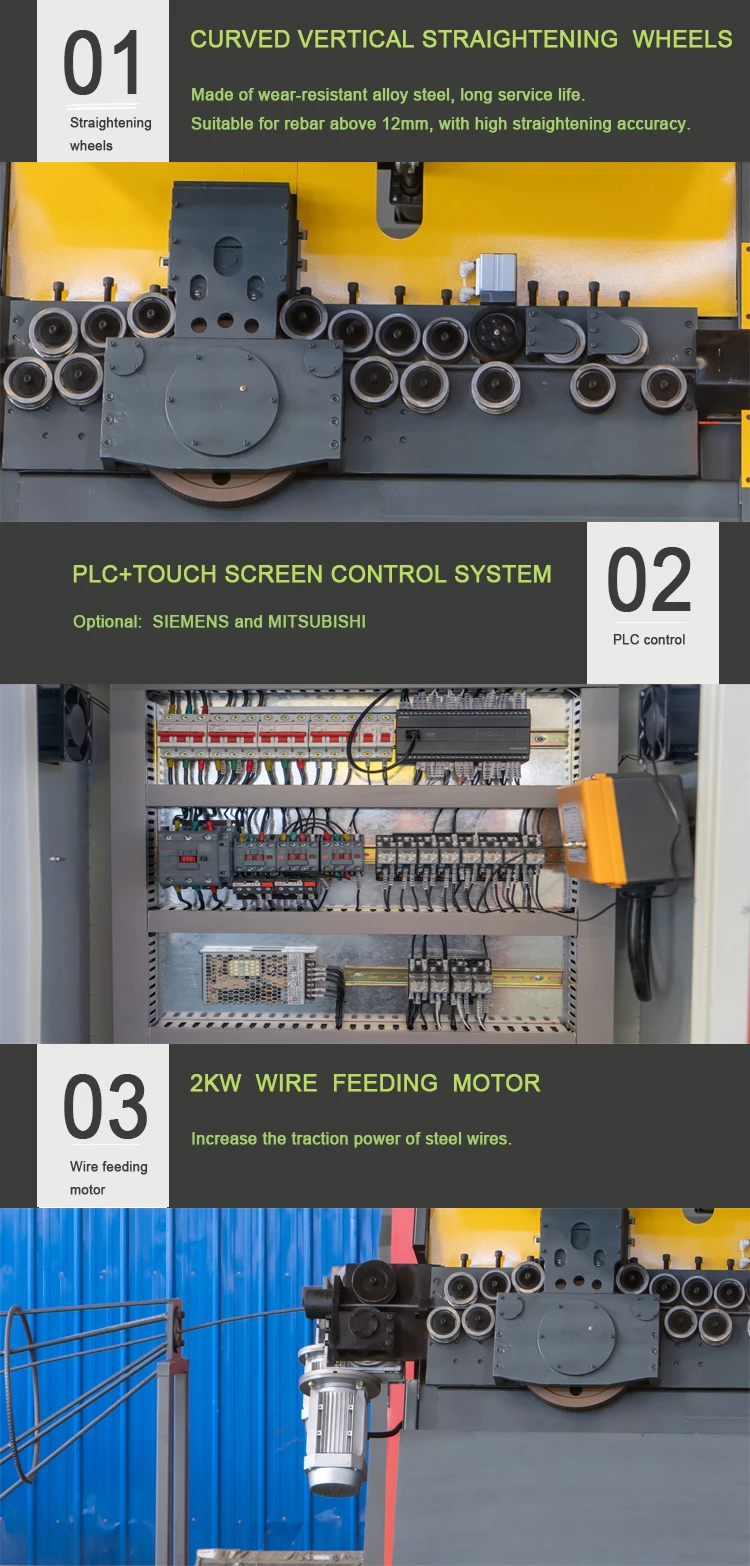

Product display
1. Without stopping the machine, the feeding and bending speed can be adjusted quickly. 1. Single operation for threading, leading and straightening.
2. Freely switch between automatic and manual work.
3. The remote control operation can be switched in manual mode.
4. PLC combined with touch screen control interface, easy to operate.
5. Complete types of stored graphics, easy to find.
2. Freely switch between automatic and manual work.
3. The remote control operation can be switched in manual mode.
4. PLC combined with touch screen control interface, easy to operate.
5. Complete types of stored graphics, easy to find.
333

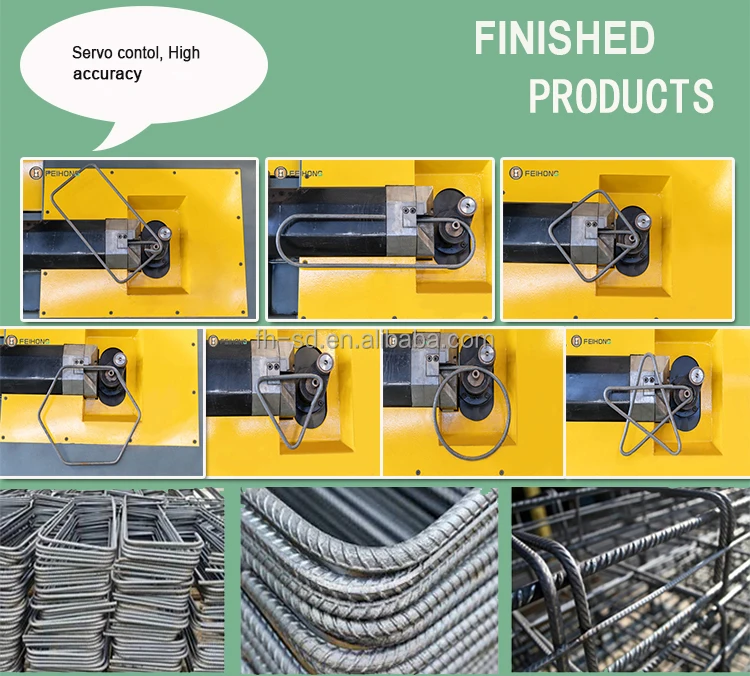

Finished product display

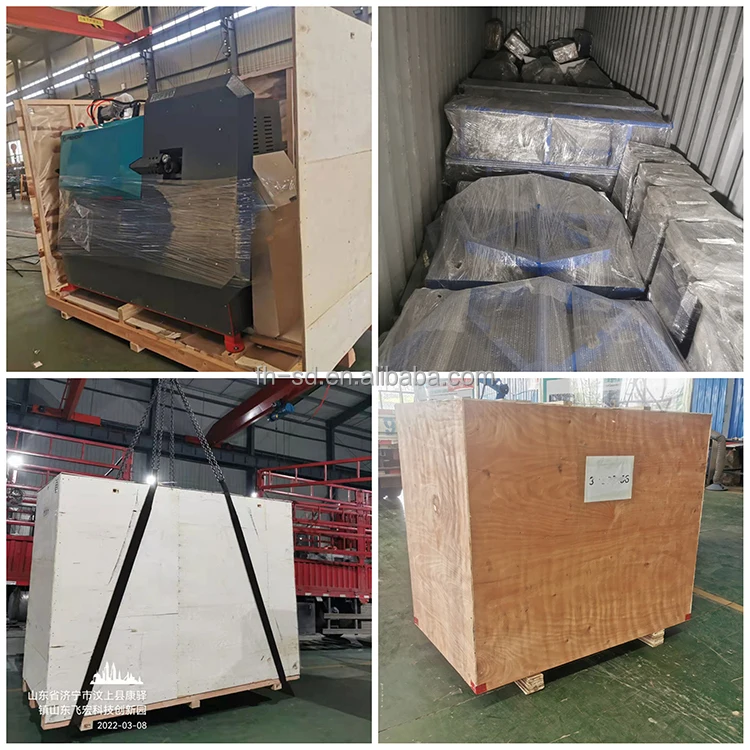

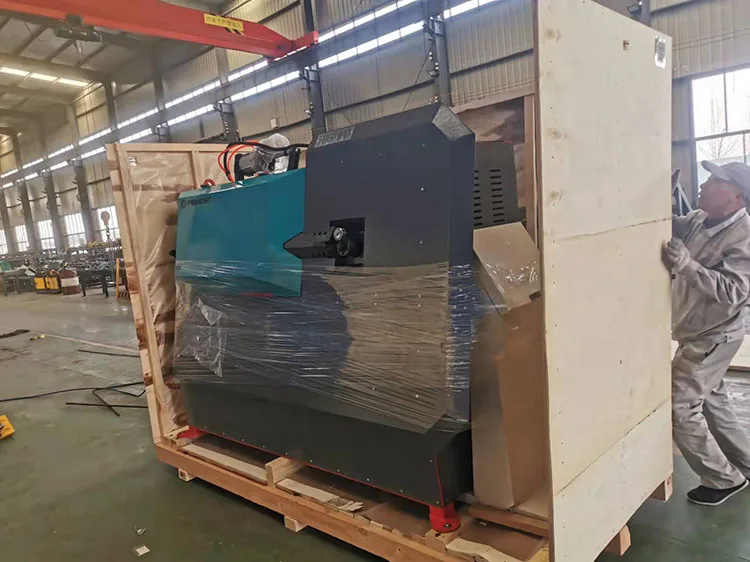

Package & Shipment
Two options
1. Wooden box is one option of packaging;
2. Usually we can choose just wrapped with PE films outside of the machine if it is shipped with a FCL.
