Film Capacitor CBB Metallized Polypropylene Film Capacitance Series

Item Name

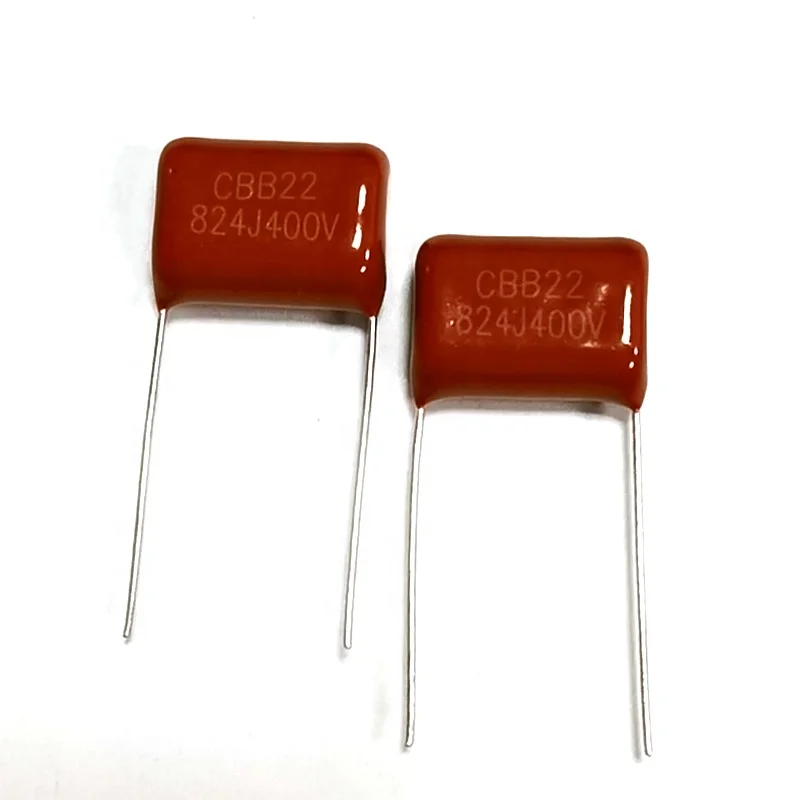

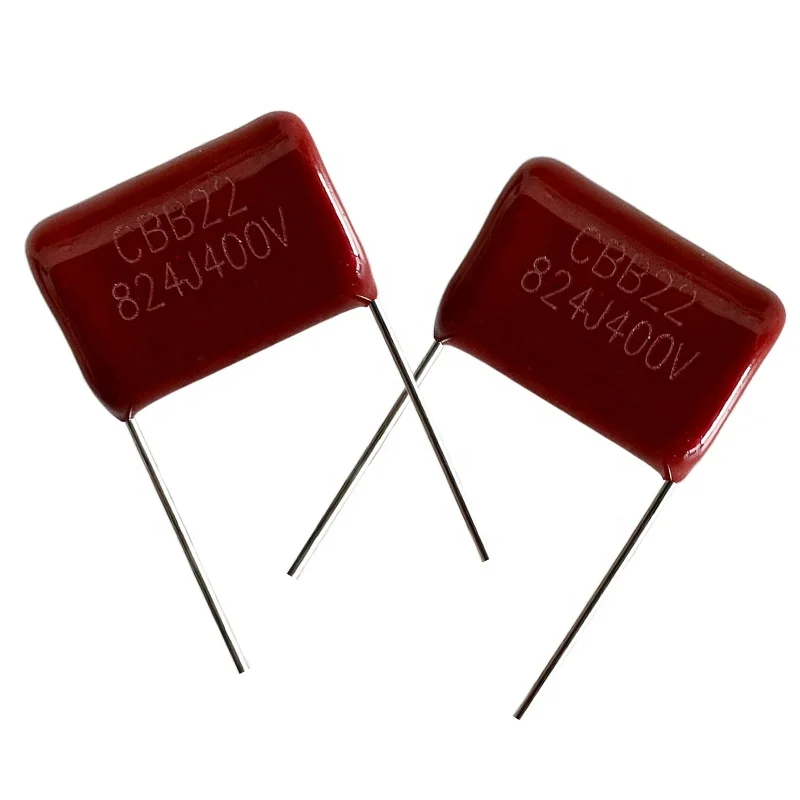

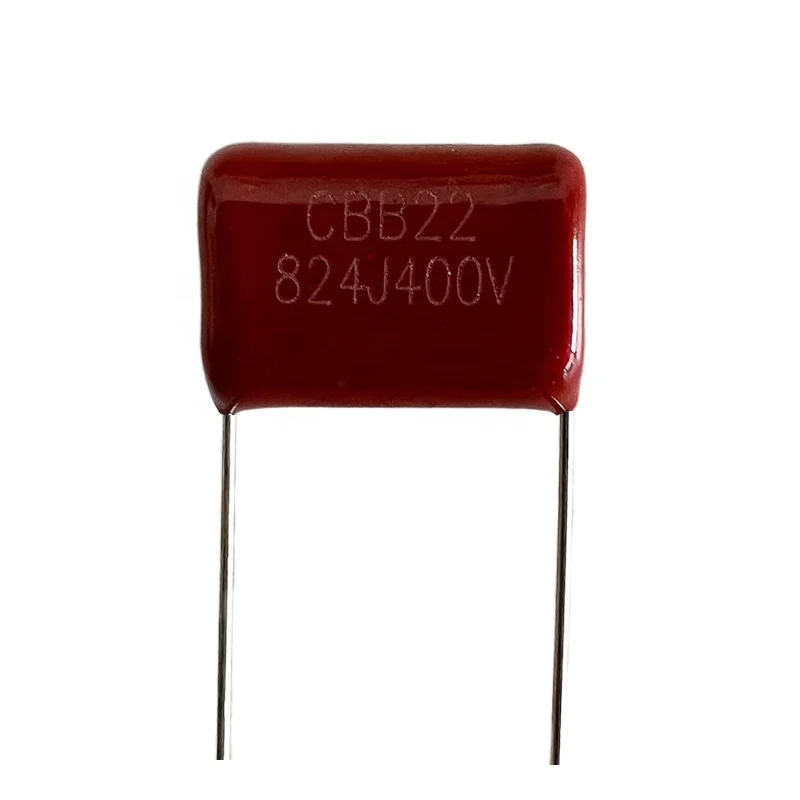

Metallized Polypropylene Film Capacitor,CBB22

Model Number

CBB22 824J400V P15

CBB22 824J400V P20

Structural materials

CBB22 are non-inductively wound with metallized polypropylene film as the dielectric/electrode with copper-clad steel leads and epoxy resin coating

Parameter

824J 0.82uf 400V

Pin distance

P15  P20

Specification:

Rated voltage:100V,160V,250V,400V,630V

Capacitance range:0.0047-3.3UF

Capacitance tolerance: ±5%(J) ±10%(k) ±20%(M)

Operating temperature:40/85/21

Voltage proof:1.5UR(5s)

Dissipation Factor:≤0.1%(20℃,1kHz)

Features:

1.Very low loss at high frequency ,suitable for high current

2.High insulation resistance,long life due to self- healing effect

3.Widely used in high frequency ,DC,AC and pulse ciruits

Customization:

Rated voltage,Capacitance range,Capacitance tolerance,Impedance, Shape, Size, Material,Certification..
