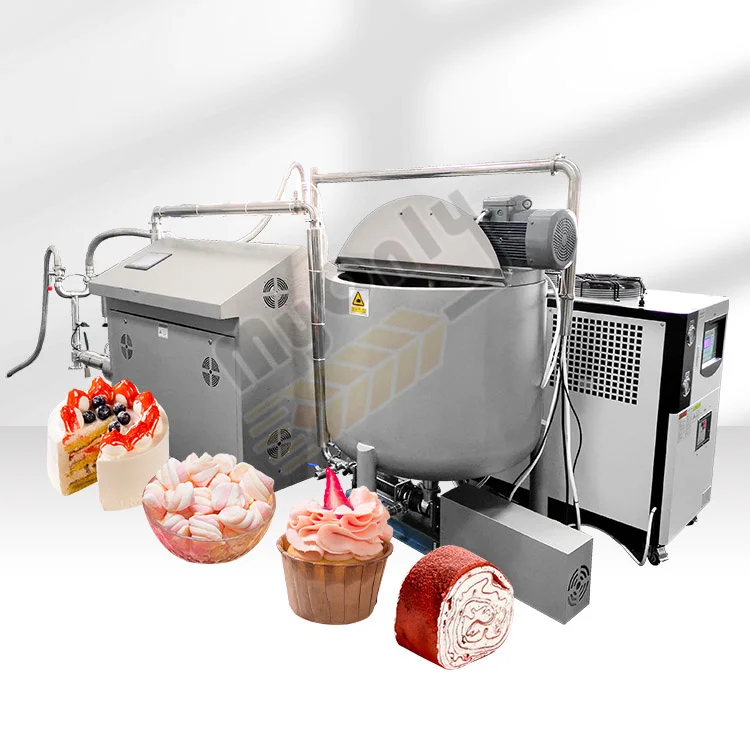

Continue Line bakery flour mixing machine/
industrial flour mixing or dough aerator

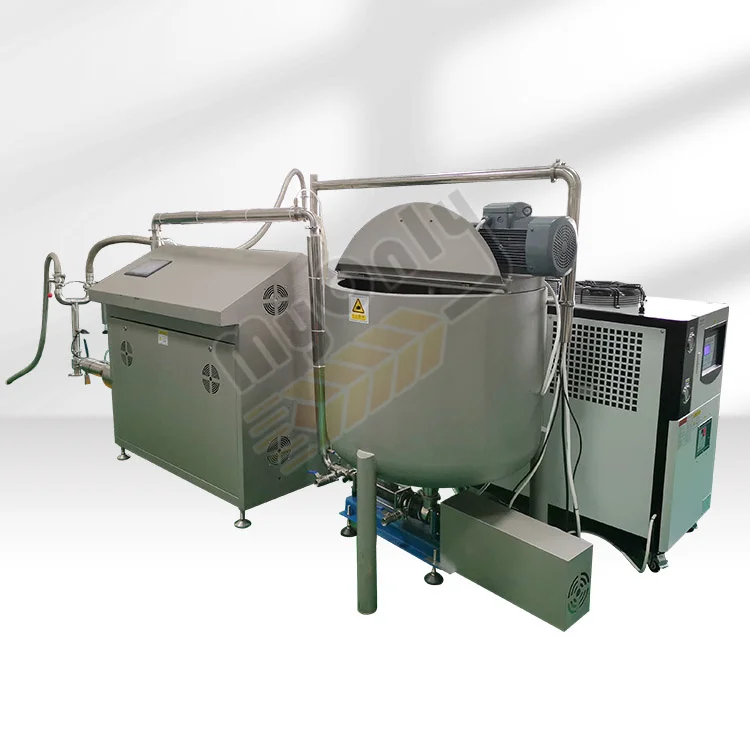

This machine is composed of cooling system, premix system, store system and mixing system, they are adopted from Germany Technical which is including High efficient cooling, mixing and others ( Mixing with the air and raw materials).
The Raw materials can be mixed and cooled in shortest time, then automatically convey to the Cake Forming Machine, This course can make the raw materials clean, non-pollution and no-fermented.
And also can save lots of labor and mixing time, so to make makes the product structure exquisite, and the expansion coefficient up to 0.4-0.35, So the finished product will be stable quality, good color taste better, and longer expiration date.
Material: The parts in contact with food are made of 304L stainless steel, and the whole machine is stainless steel sandblasting process.
Application: All cake pastes / marshmallow can be make .
Product Description
Main Feature :
1.Germany Technical
2.Saving Time and labors cost
3.To make cakes good color and tasting

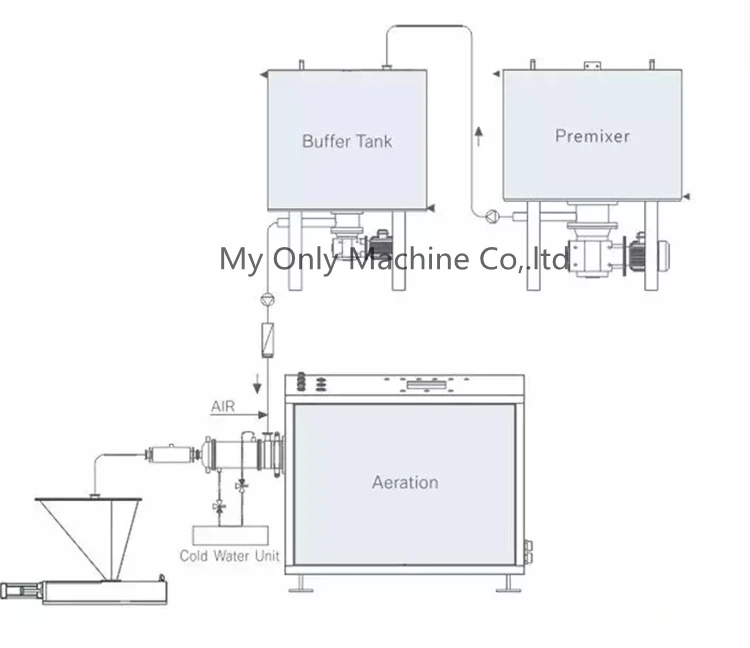

This unit adopts the most advanced cooling, inflating and high speed sending technology in the world. The whole equipment consists of mixing system, material storage system, cooling system, conveying system, sending system and control system. The agitated cake paste is quickly inflated to reach the required proportion to ensure that the product made is delicate, stable, soft taste, long shelf life, is a necessary choice for many large-scale enterprises.
For use: sponge cake, Swiss roll, steamed cake, gold cake, Mumboldt cake, gongs, egg yolk pie, etc.
Charactteristics
1. Machine with European CE stainless steel materials.
2. Digital super toch screen with advance inverters and switch.
3. Screen with different language, easy operation.
4 .The human-machine touch screen to convenient the operator.
5.The machine body is made of stainless steel 304,which is clean and health.Also it is very easy to clean and maintain.
No. | Machine/qty | Settings and technical data |
1 |
Dissolving tank
| A.300L Dissolving tank total volume: 300L B.Mixer motor power 0.75Kw C.Equip with valve, steam trap, pressure meter, safety valve D.Steam consumption: 100kg/h, pressure: 0.5Mpa E.Machine made of SUS304 material (except standard parts) F Machine size (L*W*H): 1100*1100*1400 mm G.Machine weight: 100Kg
|
2 |
Transfer pump
| Gear pump head diameter: 1”, motor power: 1.5Kw Pump head made of SUS304 material Include inlet and outlet SUS304 pipe Machine size (L*W*H): 560*250*250mm Machine weight: 40Kg |
3 |
Jam storage tank
| Storage tank total volume: 200L Mixer motor power: 0.75Kw Equip with syrup filter net,SUS304 outlet pipe Machine made of SUS304 Machine size (L*W*H):650*650*1350mm Machine weight: 120Kg
|
4 |
Transfer pump
| Flow rate:32L/min Delivery:2M Power:1.5 KW Weight:120KG Size:780×390×350 mm |
5 |
Gelatin melting Tank & pipe
| Jacket tank 1pcwith insulation, material SUS304 with Motor (0.75kw)and reducer with SUS304 Stirrer capacity:200L: capacity: 70L
|
6 |
Jelly mass cookert | 200L jacketed mixing tank 1set, mixer motor power 1.5Kw 200L jacketed storage tank 1set Vacuum pump motor power: 4kw, including SUS304 pipe and automatic valve system Syrup transfer pump motor power: 0.75Kw, speed adjustable, including jacketed pipe and valve control system Water heating system, including steam heating water tank, water pump, pipe heat preservation control system Steam control system 1set, including automatic valve and piping system Electrical control use PLC, large screen etc centralized control Machine made of SUS304 material (except standard structural parts) Machine size:1800*1600*2300mm Machine weight: 600kg
|
7 |
Continuous bubble machine
| Power 4KW, inverter DANFOSS Use hot water to keep temp. power 2KW material 304 Air compressor: 0.3MPA
|
8 | Flavor and fragrance Dispensing system
| Dosing pump 8sets Small storage tank 8sets The machine is all made of stainless steel |
9 |
Gelatin jelly extrusion Cooling & Forming Machine
|
Multi-head Extruder 1set Powder Machine 2sets Cutting Machine 1set Cooling Host 18M Discharge Conveyor 2.4M Machine surface and food contact parts are made by stainless steel 304
|
Packaging & Shipping
1.We can load container at:Qingdao,Shanghai, Ningbo,Tianjin, Guangzhou, etc.
2.We provide shipping methods:Courier service,Air transport,Sea Transport
3.Can accept order:Full container cargo load,Less container load
4.Delivery term :EXW,FOB,CIF,CNF, Door to Door etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
Our Services
Training and Use
1.We will supply with the machine operation manual in English version for installing and operation.
2.We will make training video for client’s reference.
3.Customer can come to our factory for free training.
Warranty and After sales service
1.Our warranty is within 12 months from the date when client receive the material.
2.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to support.
