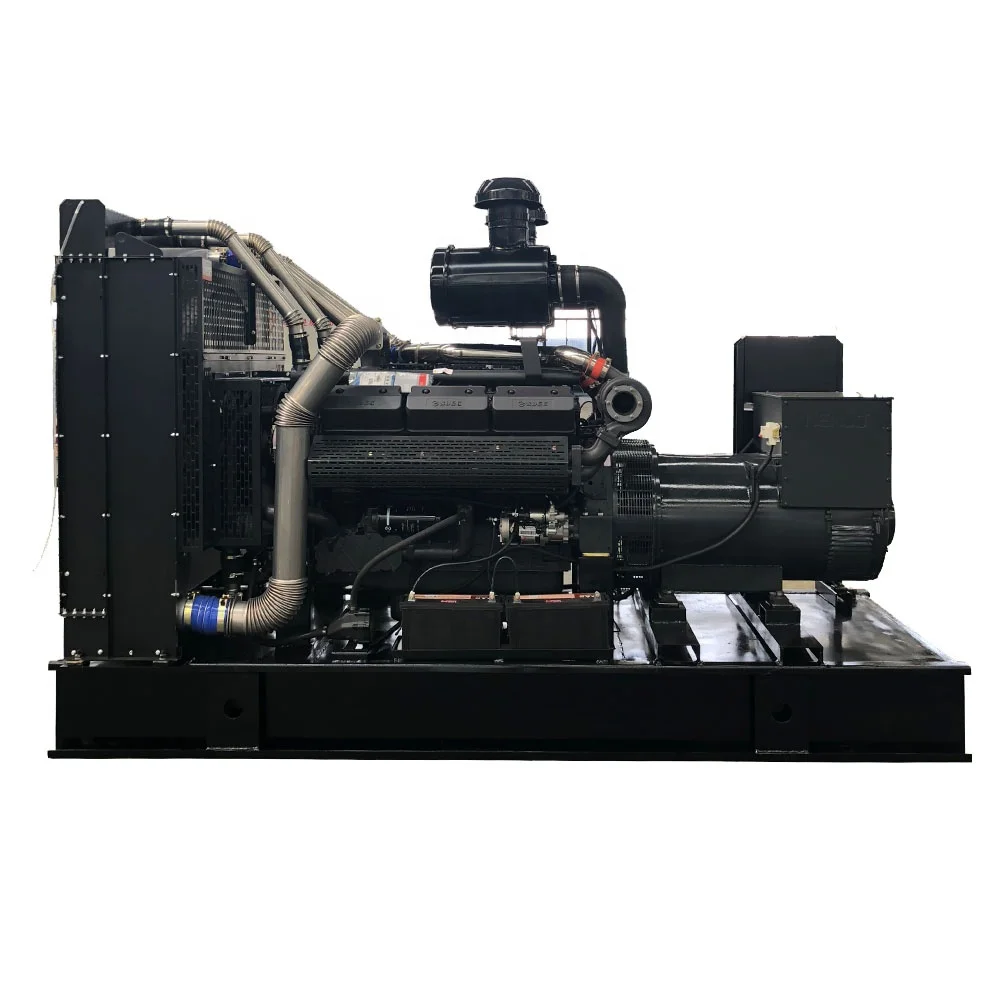

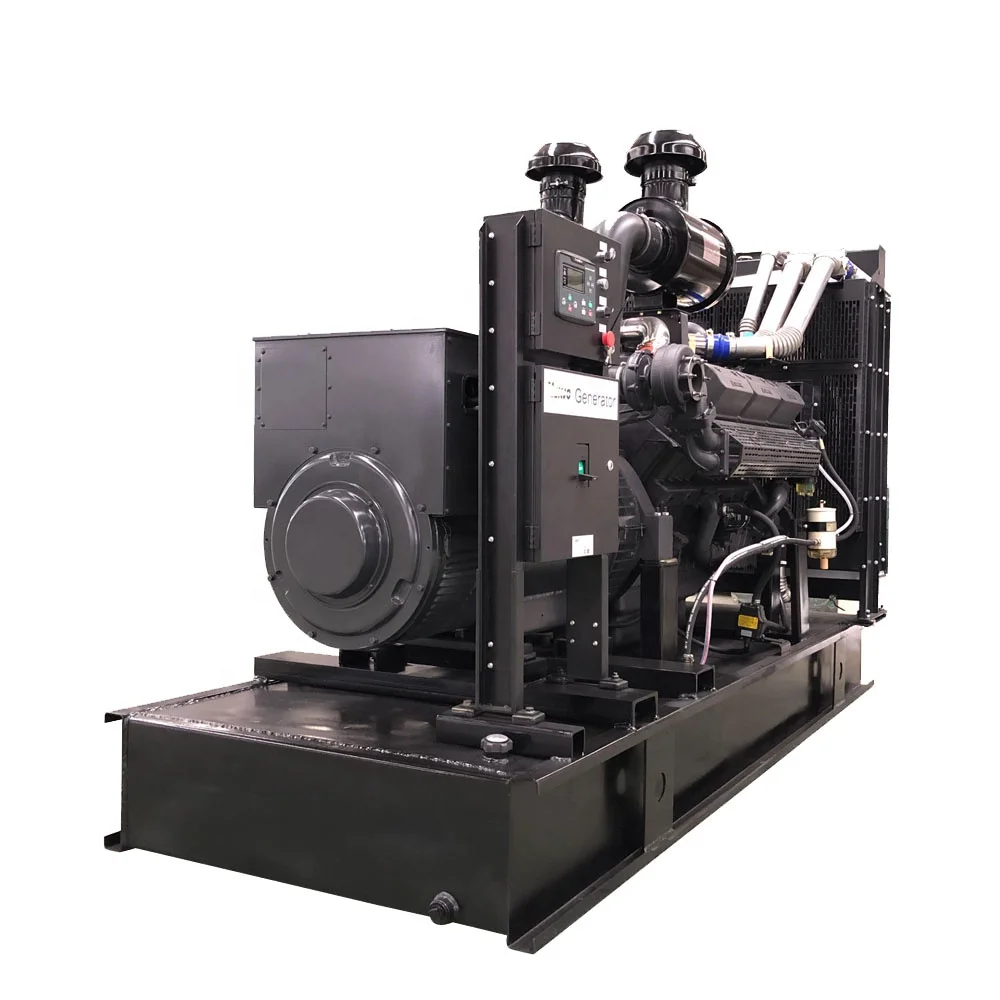

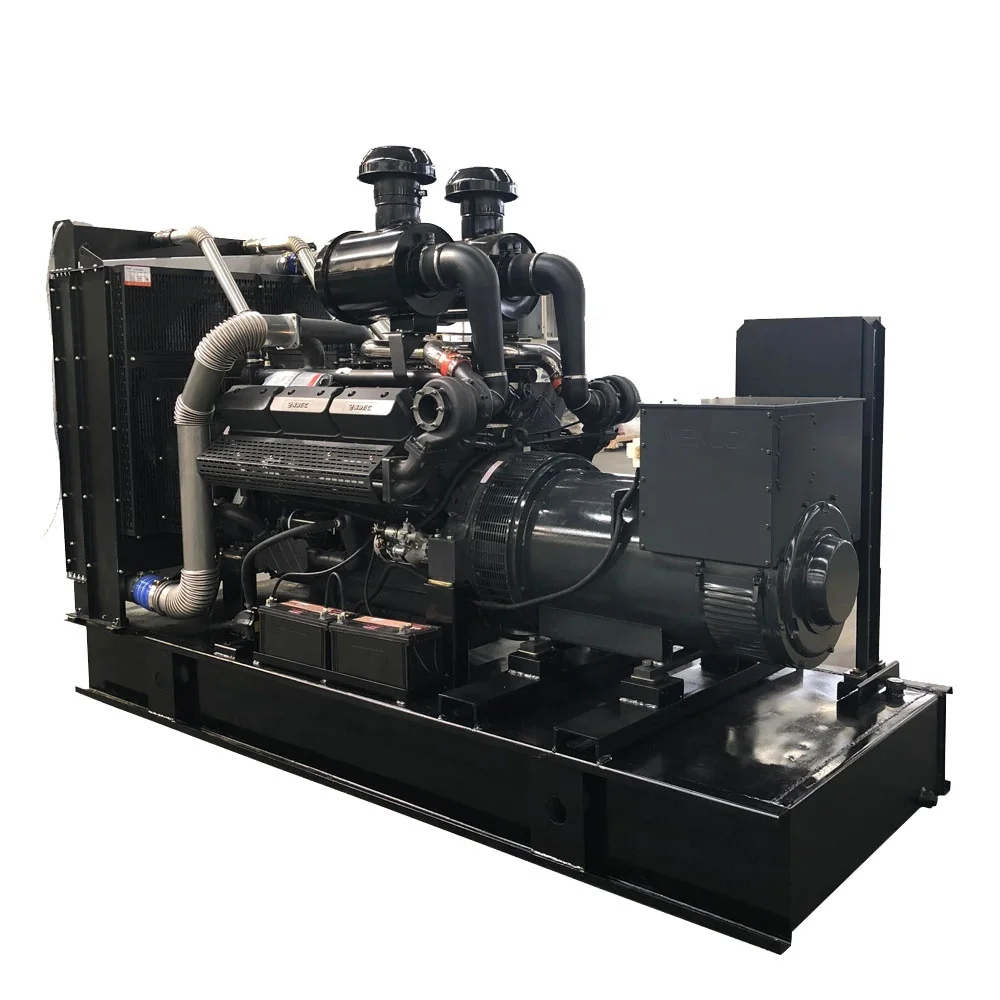

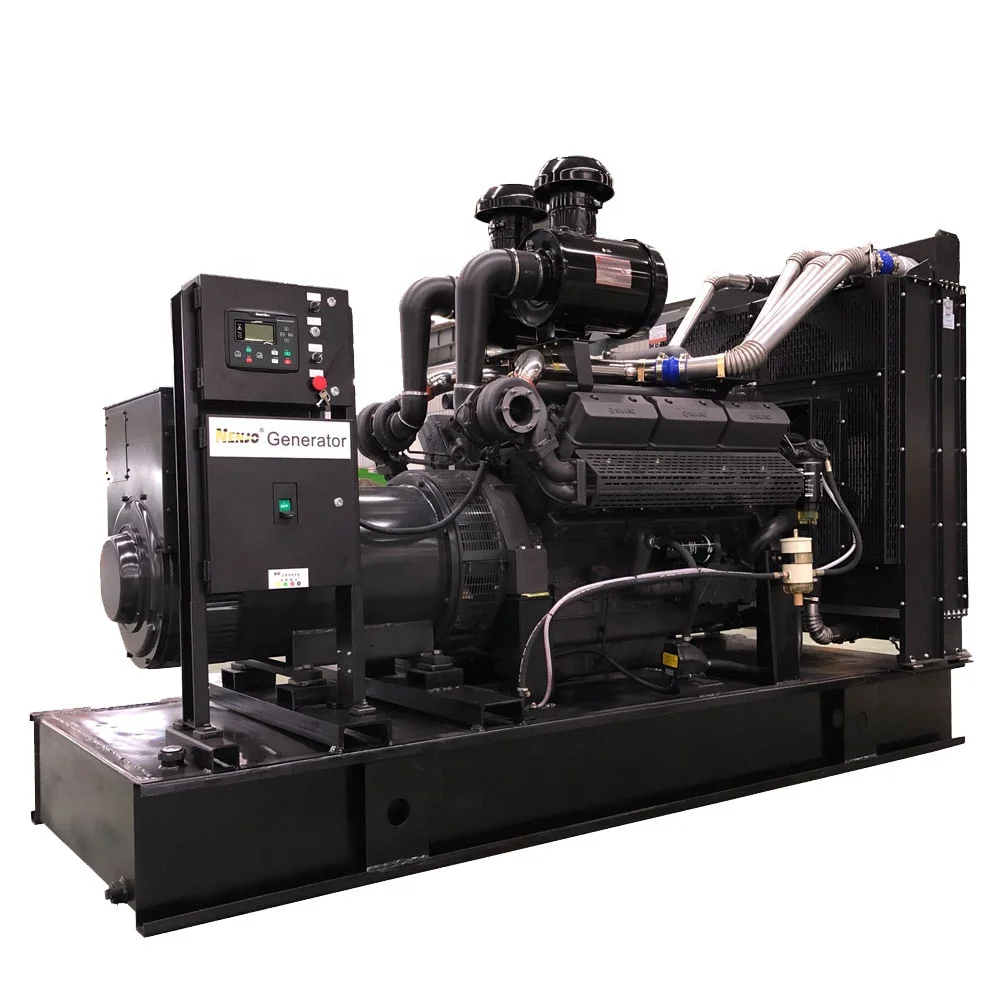

Hot Sale Global Warranty Low Price 220kw 250kva Low Noise Diesel Generator Electricity Generation
- Category: >>>
- Supplier: Jiangsu Hengtong Generator Manufacture Co. Ltd
Share on (1600726315618):
Product Overview
Description
Hot Sale Global Warranty Low Price 220kw 250kva Low Noise Diesel Generator Electricity Generation
Diesel Generator Set Data Sheet | ||||||||
Generator Model | GF220SC | |||||||
Power | 220kw/250kva | |||||||
Rated Voltage | 400V | |||||||
Frequency | 50HZ | |||||||
Power Factor | 0.8(Lagging) | |||||||
Dimension(L*W*H) | 3100*1230*1700mm | |||||||
Weight | 2750kg | |||||||
Diesel Engine Data Sheet | ||||||||
Brand | SHANGCHAI | |||||||
Model | SC13G355D2 | |||||||
Number of Cylinder | 6 | |||||||
Speed | 1500RPM | |||||||
Cycle | Four Stroke | |||||||
Cooling Method | Water Cooling | |||||||
Bore*Stroke | 135*150mm | |||||||
Speed Governor | Electronic | |||||||
Power | 260kw | |||||||
Lubrication oil Capacity | / | |||||||
Fuel Consumption | ≤200g/kw.h | |||||||
Starting Method | 24V Electrical Starting | |||||||
Alternator Data Sheet | ||||||||
Brand | HengTong | |||||||
Model | HTI-220 | |||||||
Power | 220kw/250kva | |||||||
Connecting Type | 3 Phase and 4 Wires | |||||||
Number of Bearing | Single | |||||||
Protection Grade | IP23 | |||||||
Insulation Class | H | |||||||
Exciter Type | Brushless, Self-excited, AVR Controller | |||||||
Altitude | ≤1000M | |||||||
Controller | ||||||||
Optional Controller Brand | Smartgen/Deepsea/ComAp etc. | |||||||
Factory and Workshop
Control System
Manual Controller
- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.
Automatic controller
Brand: Smartgen, ComAp or Deepsea
Brand: Smartgen, ComAp or Deepsea
- Control with AMF module;
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.
ATS Control System(Suyang, Aisikai, Schneider，ABB)
- Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine BottProvide start signal to automatic control system;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
- Changeover between the mains supply and power generated by gen-set;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
- Changeover between the mains supply and power generated by gen-set;
Synchronous Parallel Controller
Brand: Smartgen, ComAp or Deepsea
Brand: Smartgen, ComAp or Deepsea
- Manual/auto parallel system generators;
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..
Silent Canopy Details
-Compact structure with high-strength chassis;
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-40-50℃Radiator;
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user
Assembing Process
Packing & Shipping
Global service
Installation and Test Generator in Sri Lanka
Installation and Test Generator in Russia
Customer Visiting
Exhibition shows
Middle East Energy 2020, Dubai.
Machine and Electricity 2019,Vietnam.
Certificate(CE,ISO,CSA, CCS etc.)
