Durable DIP CBB Film Capacitor 100V 160V 250V 400V 630V 105J 115J 125J 135J 155J 824J Metallized Polypropylene Capacitor

Item Name

Metallized Polypropylene Film Capacitor,CBB22

Model Number

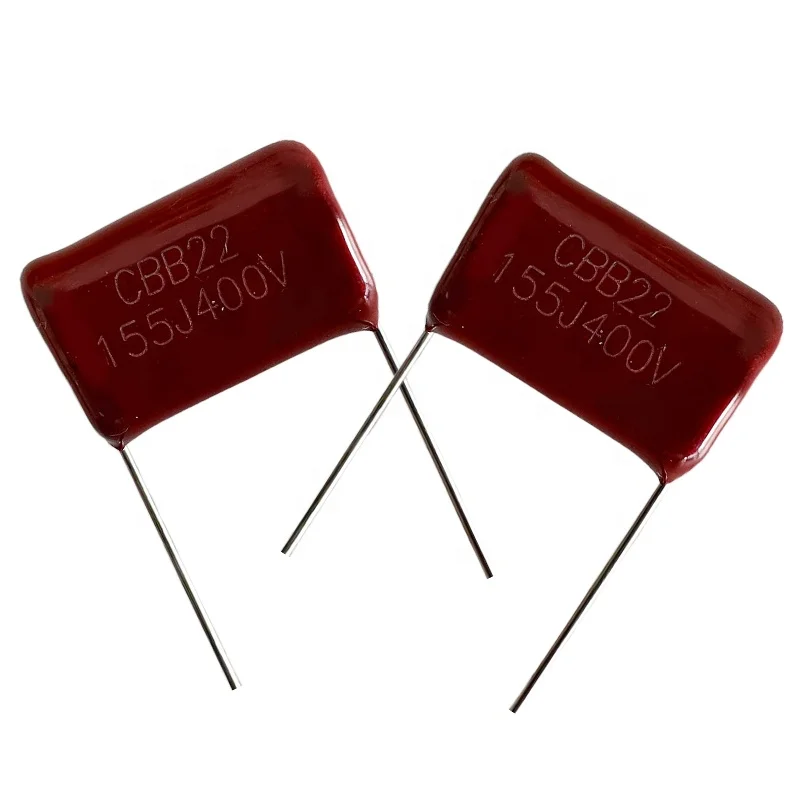

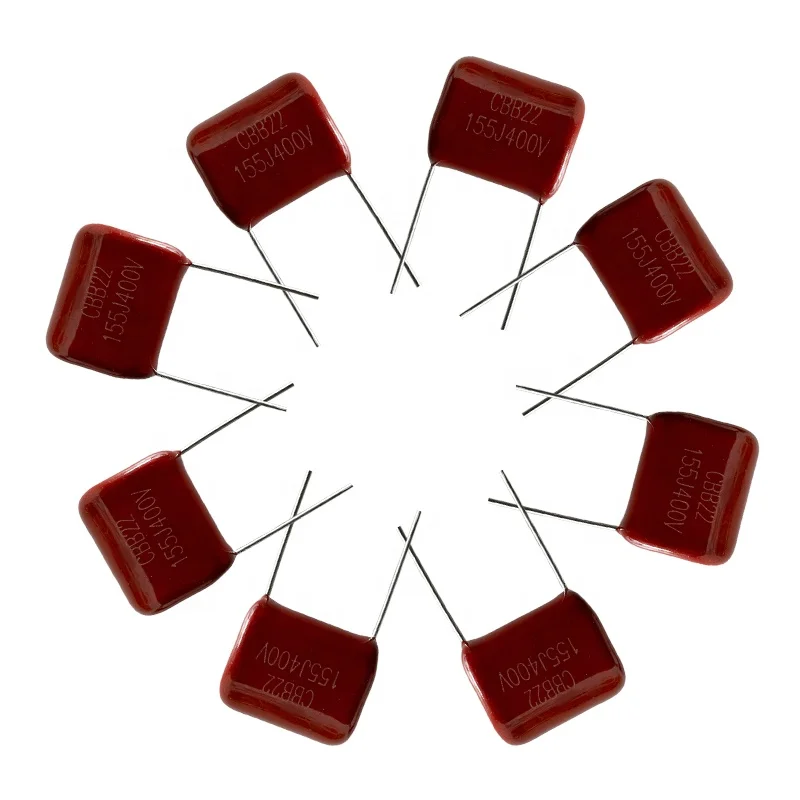

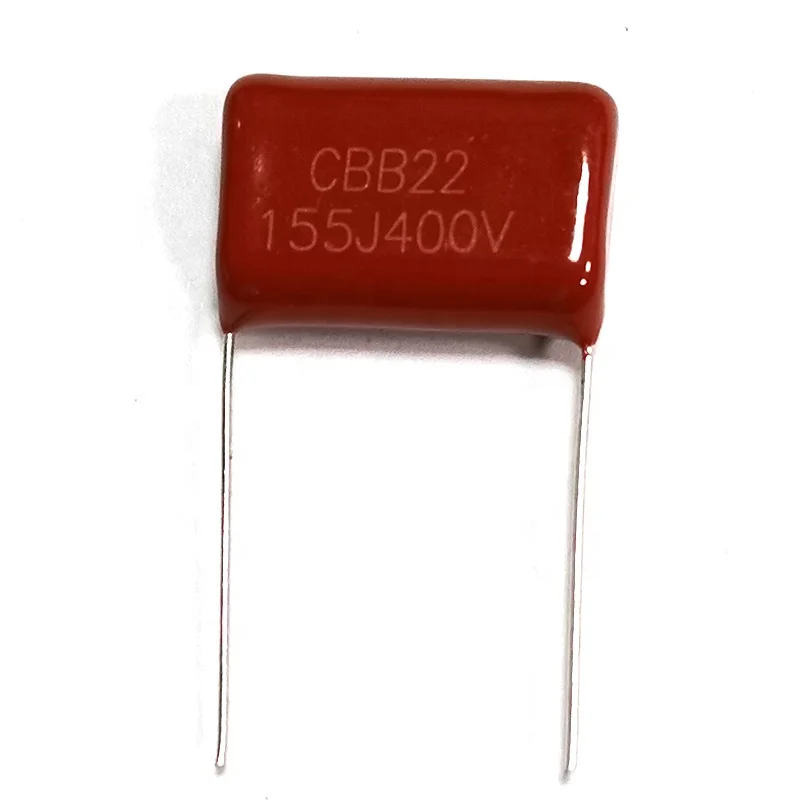

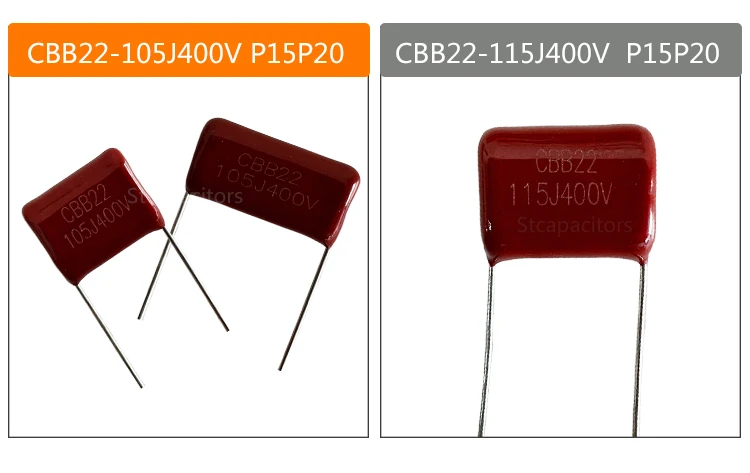

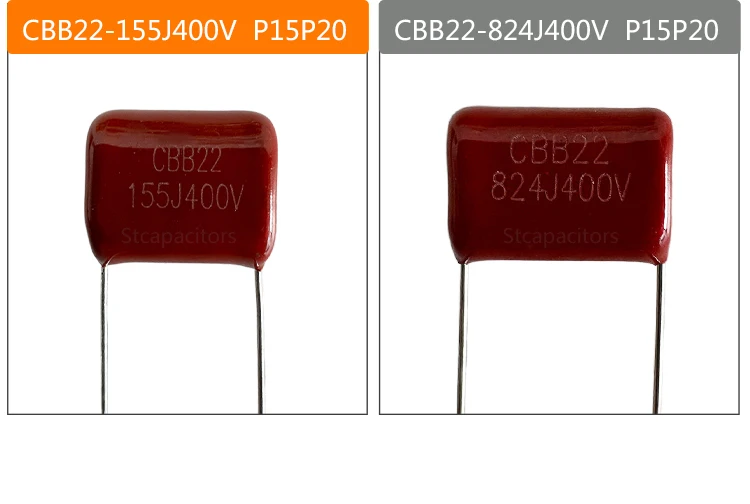

CBB22 155J400V P15

CBB22 155J400V P20

Structural materials

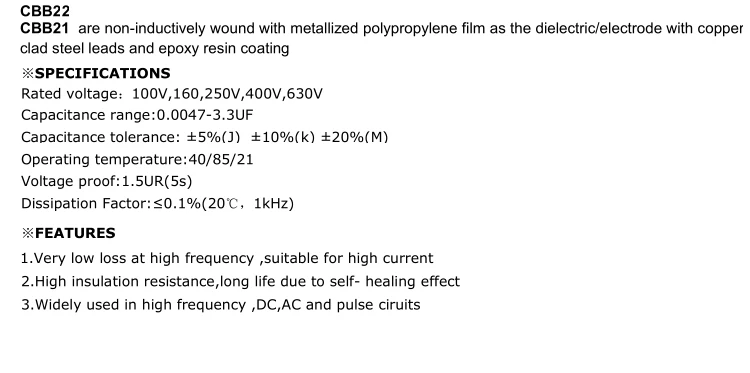

CBB22 are non-inductively wound with metallized polypropylene film as the dielectric/electrode with copper-clad steel leads and epoxy resin coating

Parameter

155J 1.5uf 400V

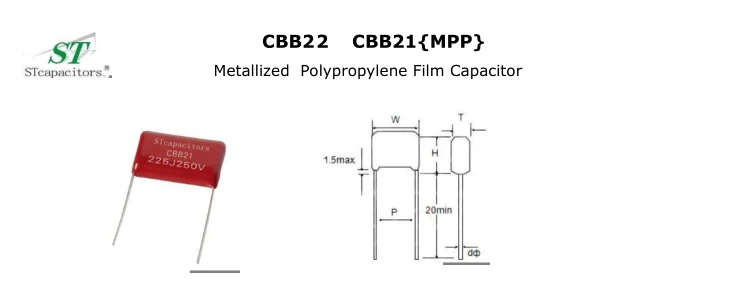

Pin distance

P15  P20

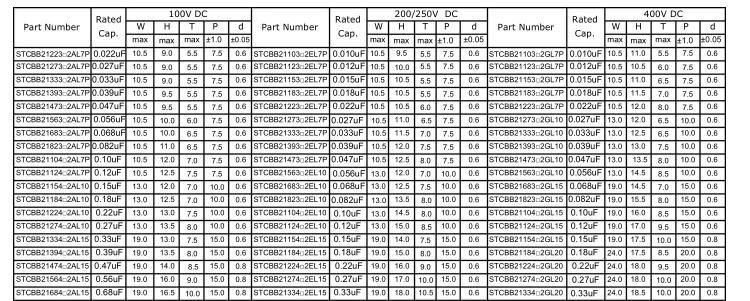

Specification:

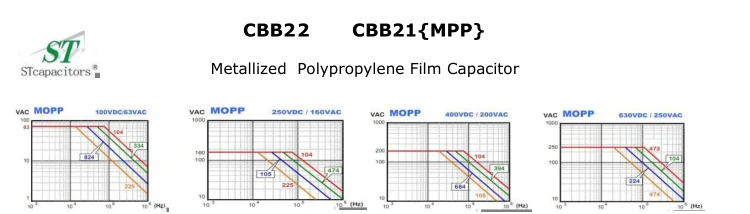

Rated voltage:100V,160V,250V,400V,630V

Capacitance range:0.0047-3.3UF

Capacitance tolerance: ±5%(J) ±10%(k) ±20%(M)

Operating temperature:40/85/21

Voltage proof:1.5UR(5s)

Dissipation Factor:≤0.1%(20℃,1kHz)

Features:

1.Very low loss at high frequency ,suitable for high current

2.High insulation resistance,long life due to self- healing effect

3.Widely used in high frequency ,DC,AC and pulse ciruits

Customization:

Rated voltage,Capacitance range,Capacitance tolerance,Impedance, Shape, Size, Material,Certification..
