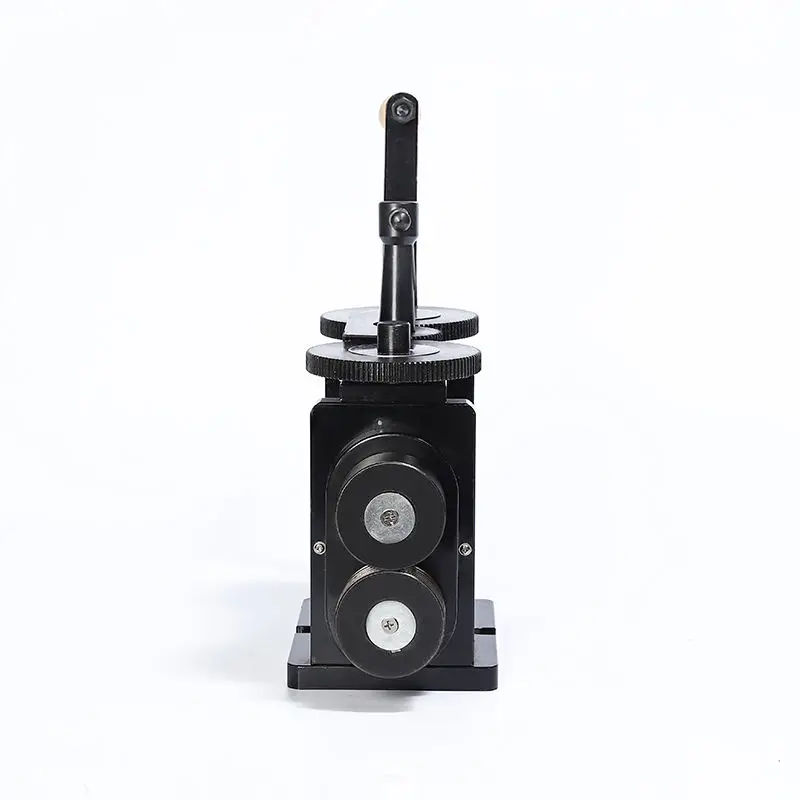

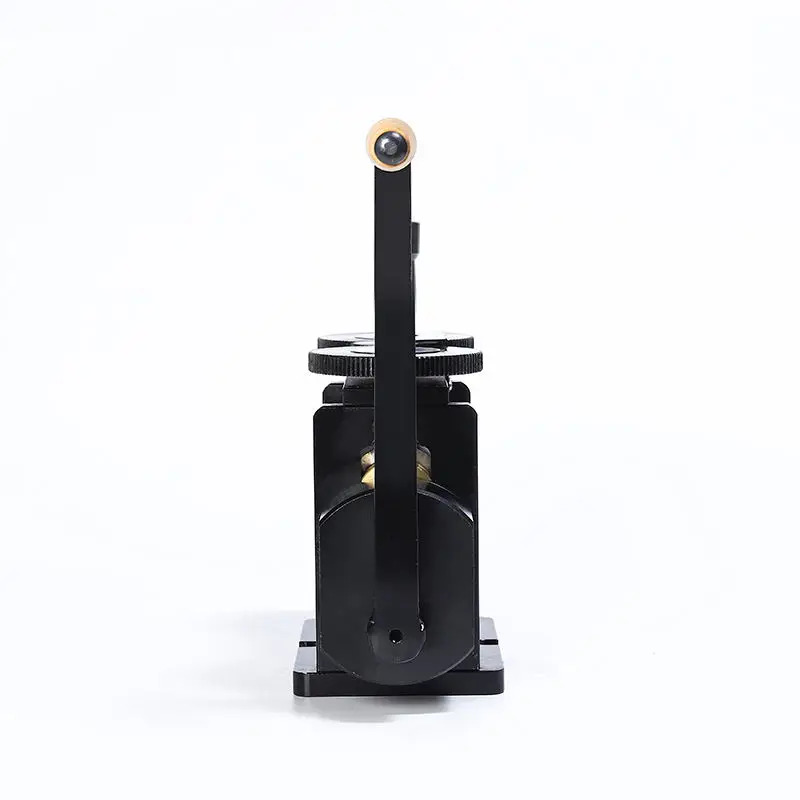

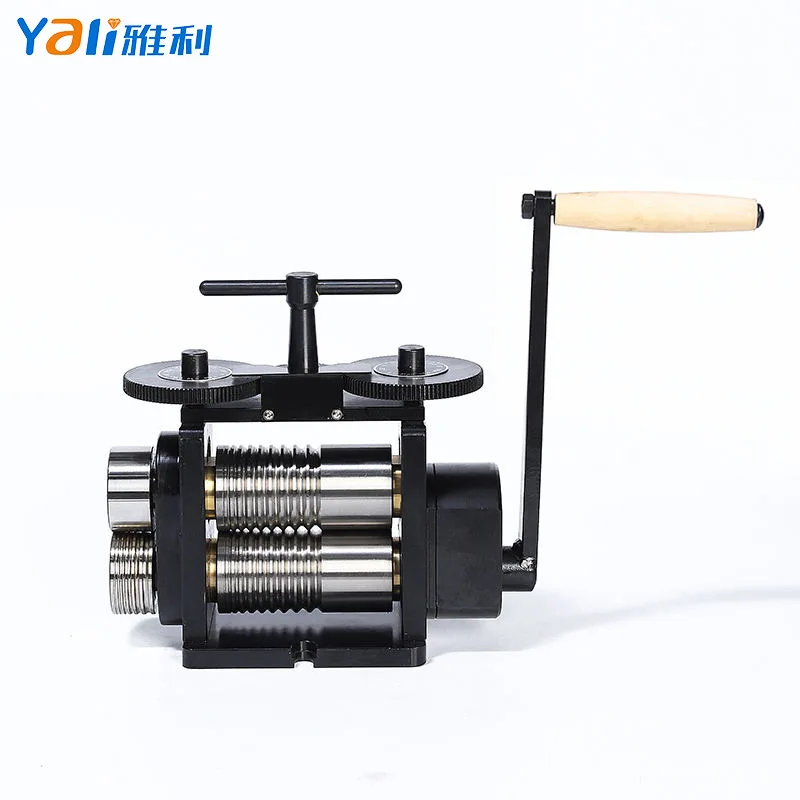

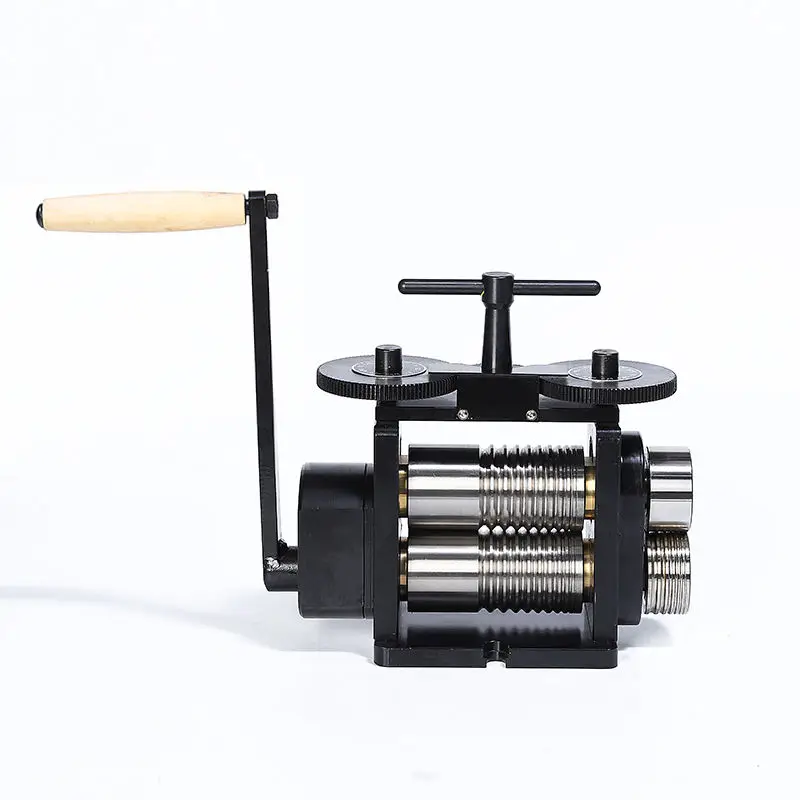

130MM Gold Silver Copper Pieces Lines Rolling Mill Machine Jewelry Rolling Mills
Product features:
1.This machine is particularly designed by the extending cold-drawn metal. The rolling mill has a reasonable structure, long life span , perfect workmanship and the simplicity of operation.
2.In order to fully make use of the effective superficial area for wire and flat milling simultaneously, the roll region is well planned.

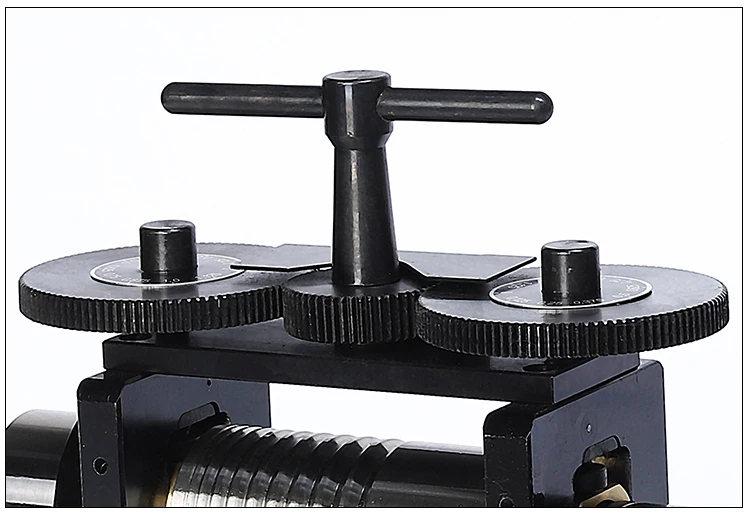

3.Considering the maintenance, the linkage adopts the cross-linked coupling. In addition, the bevel wheel and the dual-speed motor enable the equipment to work steadily and quietly.
| Description | Details |
| Item No. | RM02-130 |
| Product name | Jewelry Rolling mill |
| Gear Ratio | 4:1 |
| Roller width | 130MM |
| Roller diameter | 65MM |
| Maximum opening | 4.5MM |
| Flat Area | 63MM |
| Square Wire +/-0.01mm | 1.0, 2.0,2.5,3.0, 4.0, 4.5,5.0MM |
| Ring shank-half round ellipsis | 2.5X1.0, 3X1.25, 4X1.5MM |
| Dimension | 30*14*30cm |
| Shipping dimension | 34*34*20cm |
| Gross weight | 24 |





Our Company:
Founded in 2013,Guangzhou Yali Jewelry Technology co.,ltd,is a professional supplier of jewelry equipement,consumble,and technical support for jewelry manufacturing .We not only sell products,but also provide good technical services to our customers.We provide a completeset of equipment solutions for jewelry manufacturing from 3D platemaking to electroplating .
In the past five years,We value credit,abide by the contract,guarantee the product quality by the multi-variety management characterstic and the rinciple of small profits and large sales,has won the general customers’ trust and the high praise.





New products from manufacturers at wholesale prices
