Product Overview
Description

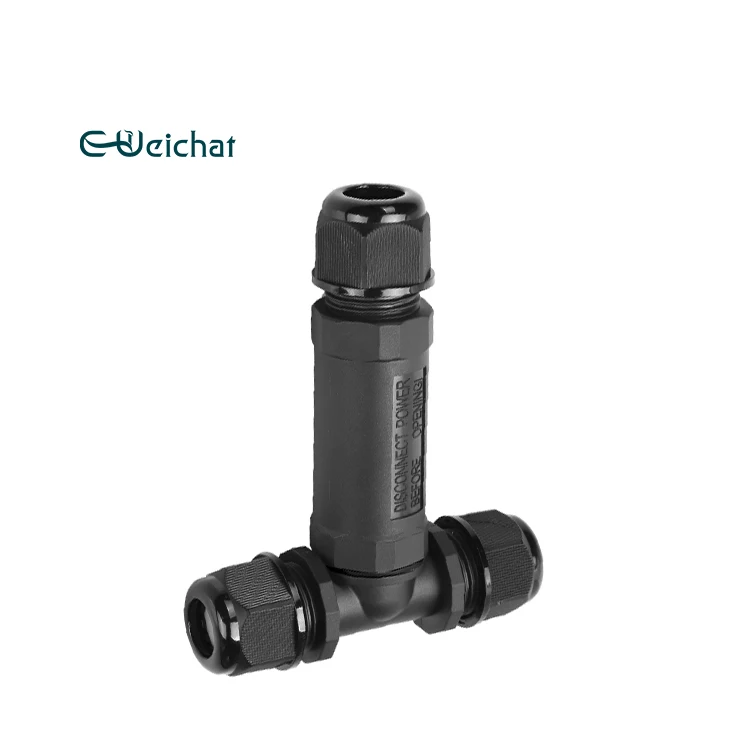

E-WeiChat Outdoor Lighting LED Lighting Terminal Wire Electrical Waterproof 3 4 pinConnector
Product Description
| ELECTRICAL CHARACTERISTICS | |
| Product model | EW-M25T-C |
| Number of Poles | 3pin /4pin/5pin |
| Operating current | 4A |
| Operating voltage | 400V |
| MECHANICAL CHARACTERISTICS | |
| Protection against solid/water (IP) | IP68 |
| CABLE CHARACTERISTICS | |
| Wire cross-section min.-max. (stranded cable) | 0.5mm² - 4.0mm² |
| Wire cross-section min.-max. (solid cable) | 0.5mm² - 4.0mm² |
| Cable Diameter min-max | 5-9mm; 9-12mm;10-14mm |
| MATERIAL CHARACTERISTICS | |
| Connector housing | PA66 UL94-V2 |
| Cable gland | |
| Sealing & Gasket | Silicone |
| Contacts | Nickel-plated brass |
| Screws | Zinc |
| Temperature range | -40℃/+105℃ |
