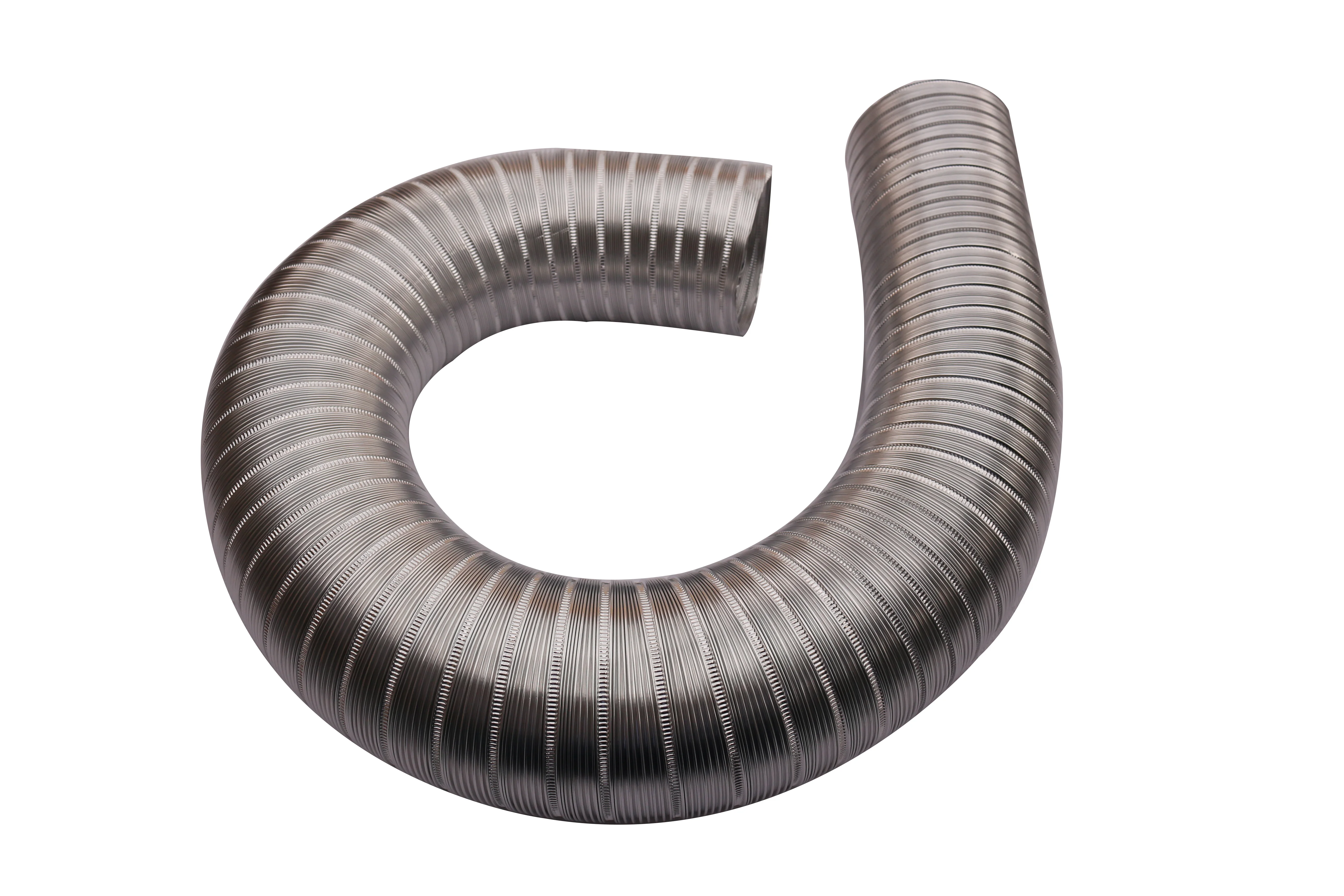

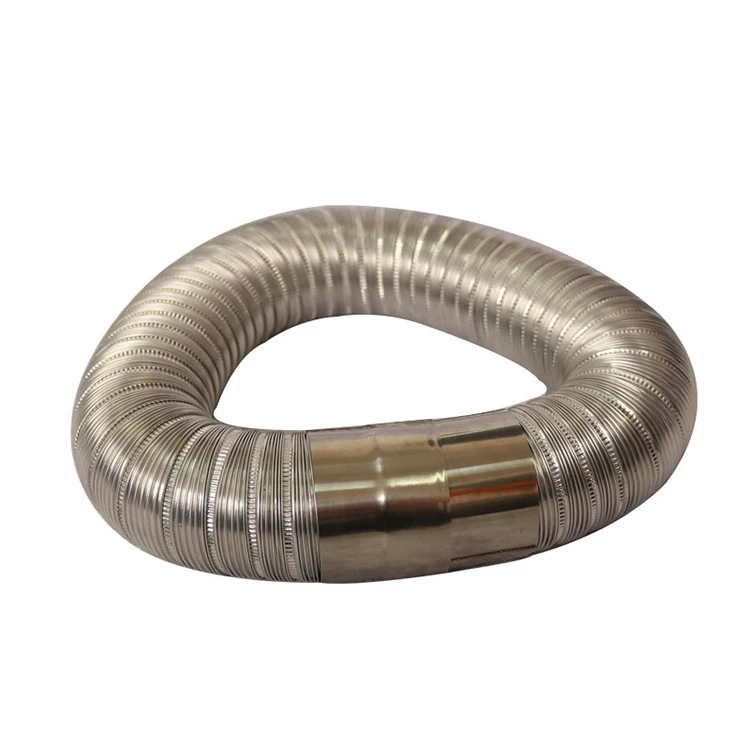

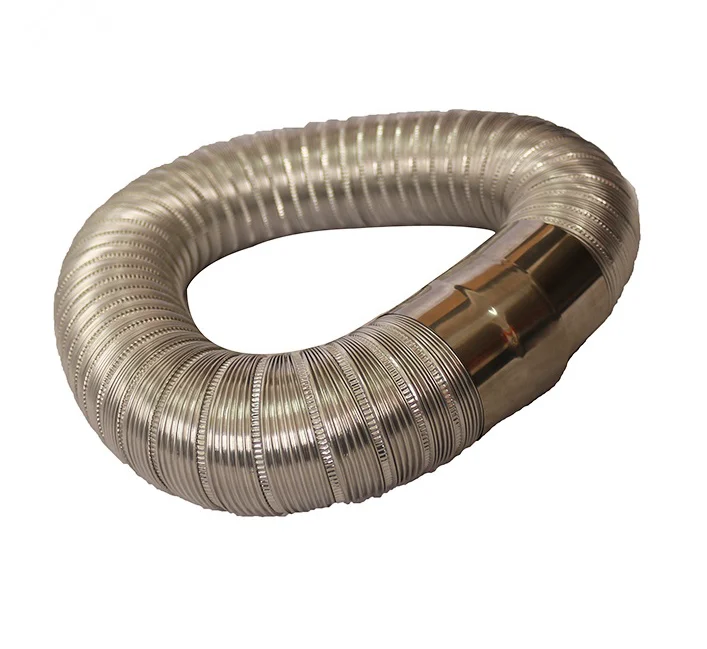

OEM Design Semi rigid Stainless Steel Flexible Duct For Air Conditioning Ventilalator Duct
- Category: >>>
- Supplier: Shanghai Qianjing Ducting Co. Ltd.
Share on (1600726413480):
Product Overview
Description
Production Paramenters
Product Name | Semi-rigid Stainless Steel Flexible Duct | |
Product Code | XY-302 | |
Construction | Stainless steel 304/316/316L | |
Color | Silver | |
Available Diameter | 45mm-300mm(1.8"-12") | |
Standard Length | 4m(Max) | |
Thickness | 0.1mm | |
Fire Resistance | Class A2(Max) | |
Goffer Number | 4,7 | |
Compress Ratio | Can not be compressed | |
Temperature Range | -30℃/+400℃ | |
Operating Pressure | 2000Pa-3000Pa | |
Maximum Air Velocity | 30m/s | |

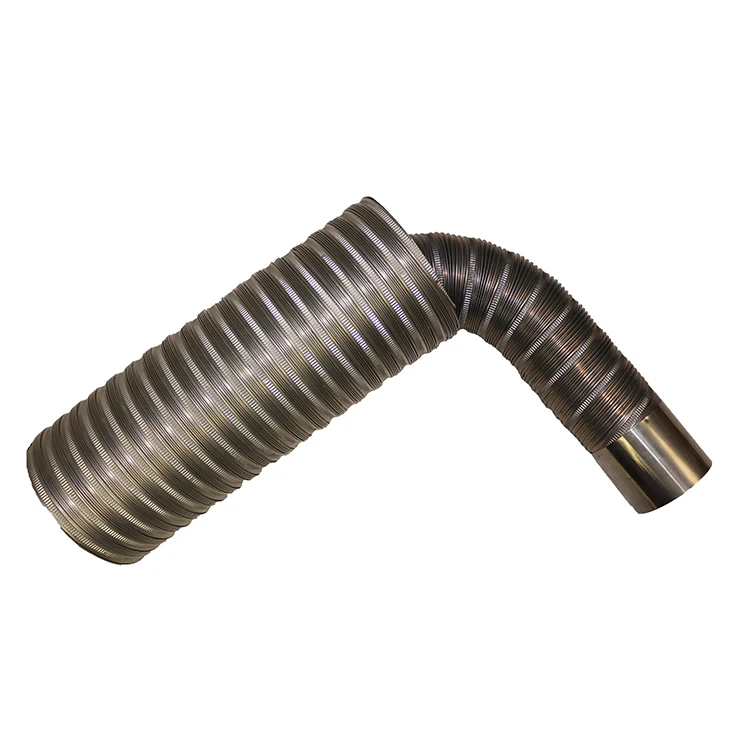

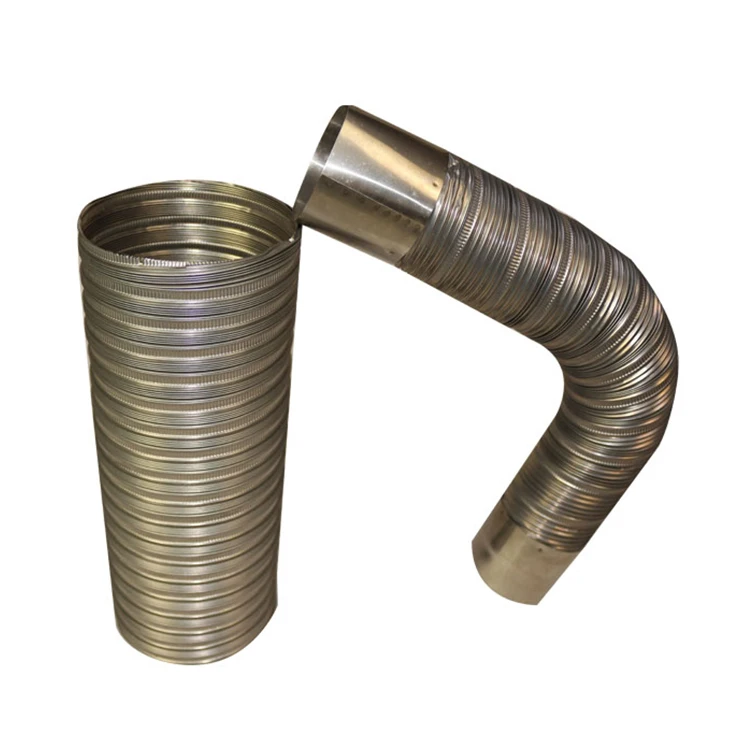

Semi-rigid Stainless Steel Flexible Duct
Features:
1.Semi-rigid Stainless Steel Flexible Duct is made by Stainless steel 304/316/316L, it is semi flexible and easy to install.Suitable for automatic instrument signal tube, automatic instrument wire protection tube; Precision optical ruler circuit, industrial sensor, electronic equipment circuit protection tube; Safety protection of electrical circuit, capillary protection of thermal instrument and internal support of air core high voltage optical cable.
2.MAX length is 4 meters or as customized request.
3.Duct can not be compressed.
4.As a flexible pressure resistant pipe fitting, stainless steel bellows is installed in the liquid conveying system to compensate the mutual displacement of the connecting ends of pipes or machines and equipment, absorb vibration energy, and play the role of vibration damping and silencing. It has many characteristics, such as good flexibility, light weight, corrosion resistance, fatigue resistance, high and low temperature resistance, etc.
Features:
1.Semi-rigid Stainless Steel Flexible Duct is made by Stainless steel 304/316/316L, it is semi flexible and easy to install.Suitable for automatic instrument signal tube, automatic instrument wire protection tube; Precision optical ruler circuit, industrial sensor, electronic equipment circuit protection tube; Safety protection of electrical circuit, capillary protection of thermal instrument and internal support of air core high voltage optical cable.
2.MAX length is 4 meters or as customized request.
3.Duct can not be compressed.
4.As a flexible pressure resistant pipe fitting, stainless steel bellows is installed in the liquid conveying system to compensate the mutual displacement of the connecting ends of pipes or machines and equipment, absorb vibration energy, and play the role of vibration damping and silencing. It has many characteristics, such as good flexibility, light weight, corrosion resistance, fatigue resistance, high and low temperature resistance, etc.
Production Packing
Carton Measurement for packing(length 10m/pc) | ||||||||
Diamter(mm) | PVC Duct | COMBI PVC Duct | Aluminum Duct | Insulated Duct | ||||
75mm | 100*100*300mm | 100*100*900mm | 100*100*410mm | 150*152*1010mm | ||||
102mm | 125*125*300mm | 130*130*450mm | 125*125*410mm | 182*182*1010mm | ||||
125mm | 150*150*300mm | 150*150*450mm | 150*150*410mm | 200*200*1010mm | ||||
152mm | 175*175*260mm | 180*180*410mm | 175*175*370mm | 230*230*1010mm | ||||
165mm | 185*185*260mm | 190*190*410mm | 185*185*370mm | 240*240*1010mm | ||||
203mm | 225*225*260mm | 230*230*410mm | 225*225*370mm | 280*280*1010mm | ||||
254mm | 275*275*260mm | 280*280*410mm | 275*275*370mm | 330*330*1010mm | ||||
305mm | 325*325*260mm | 330*330*410mm | 325*325*370mm | 380*380*1010mm | ||||
315mm | 340*340*260mm | 340*340*410mm | 340*340*370mm | 390*390*1010mm | ||||
355mm | 375*375*260mm | 380*380*410mm | 375*375*370mm | 430*430*1010mm | ||||
405mm | 425*425*260mm | 430*430*410mm | 425*425*370mm | 480*480*1010mm | ||||
455mm | 475*475*260mm | 480*480*410mm | 475*475*370mm | 530*530*1010mm | ||||
505mm | 520*520*260mm | 530*530*410mm | 520*520*370mm | 580*580*1010mm | ||||
555mm | 575*575*260mm | 580*580*410mm | 575*575*370mm | 630*630*1010mm | ||||
