Product Overview
Description

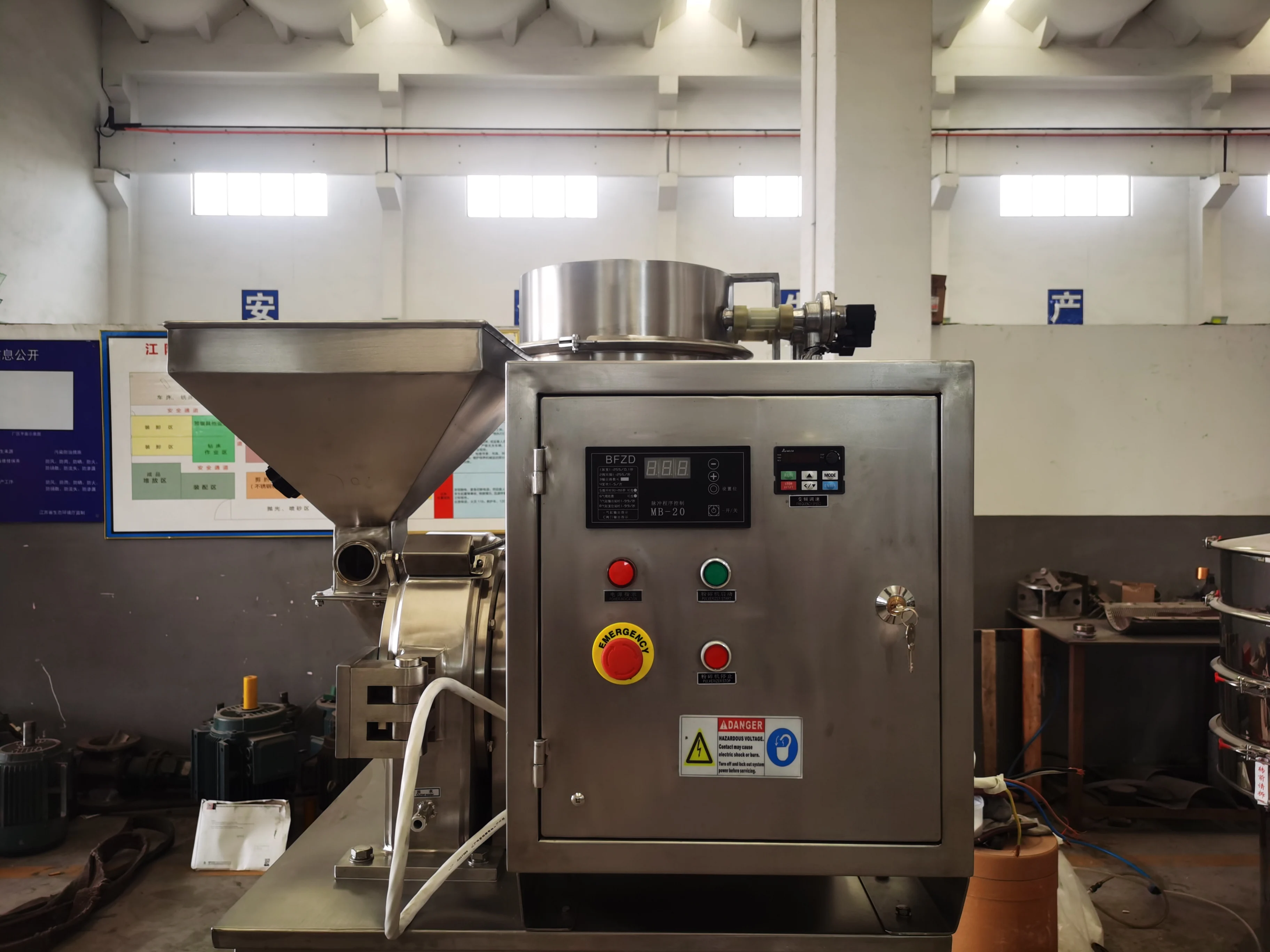

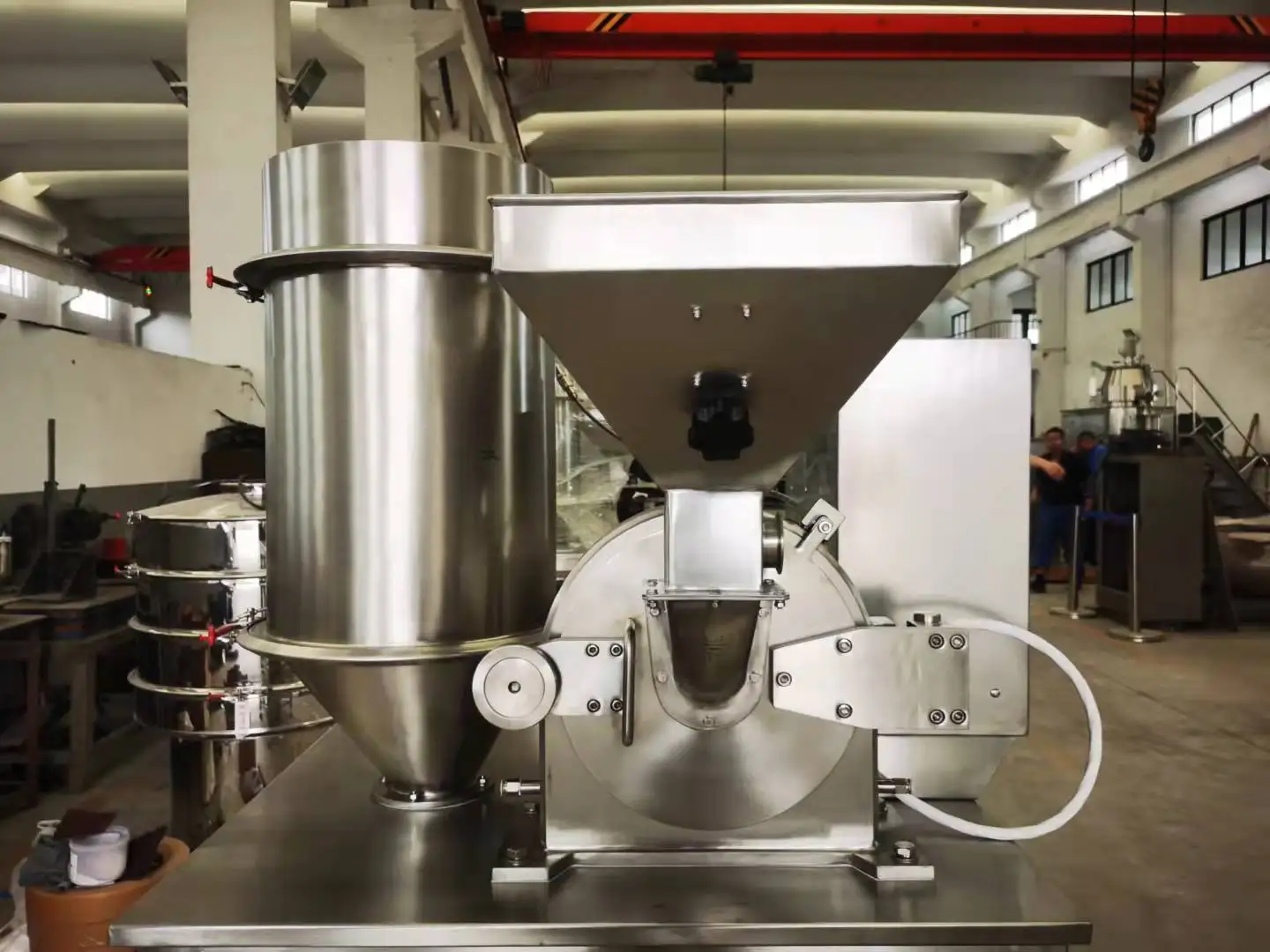

WF-30C Crushing Machine

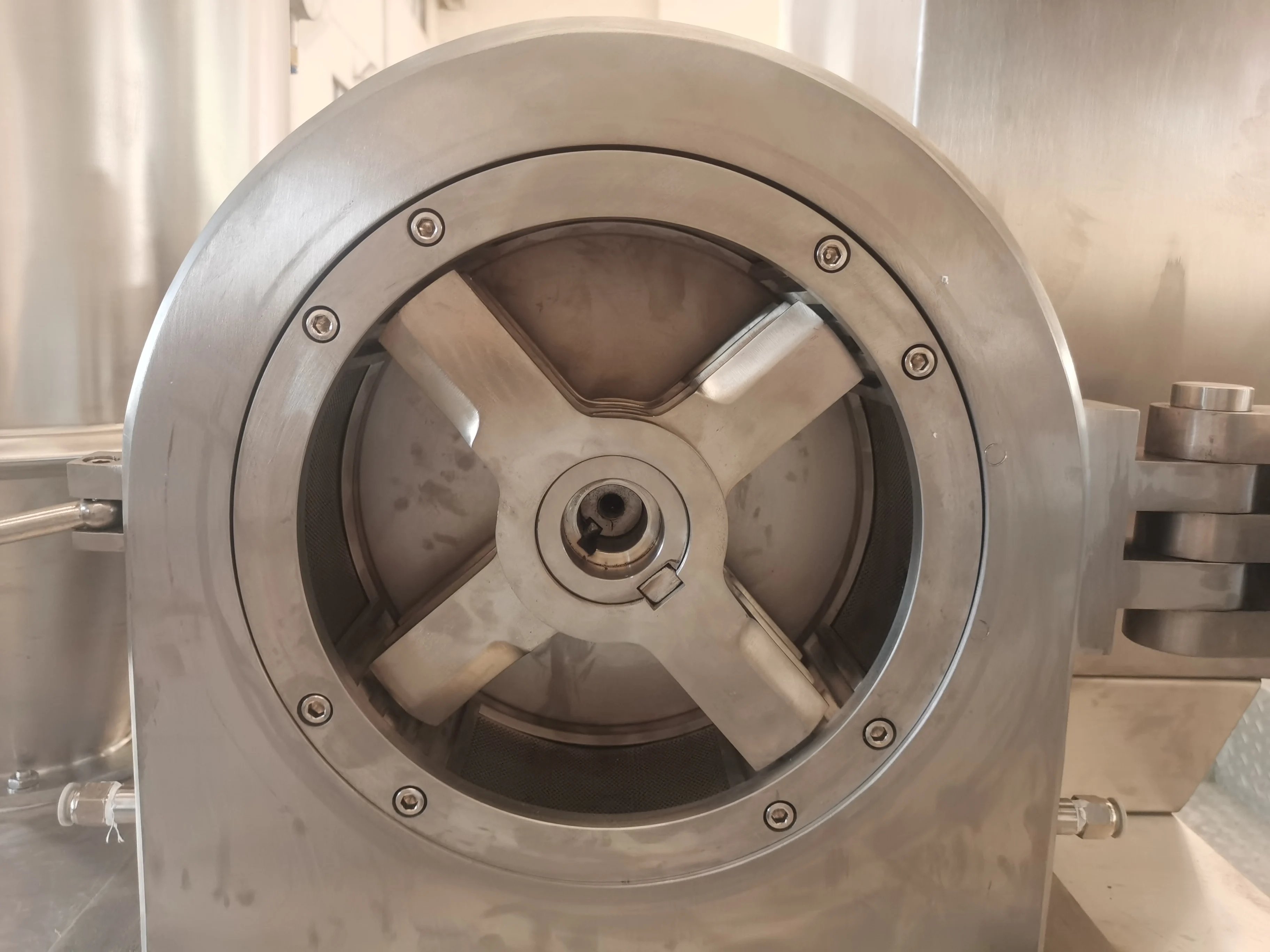

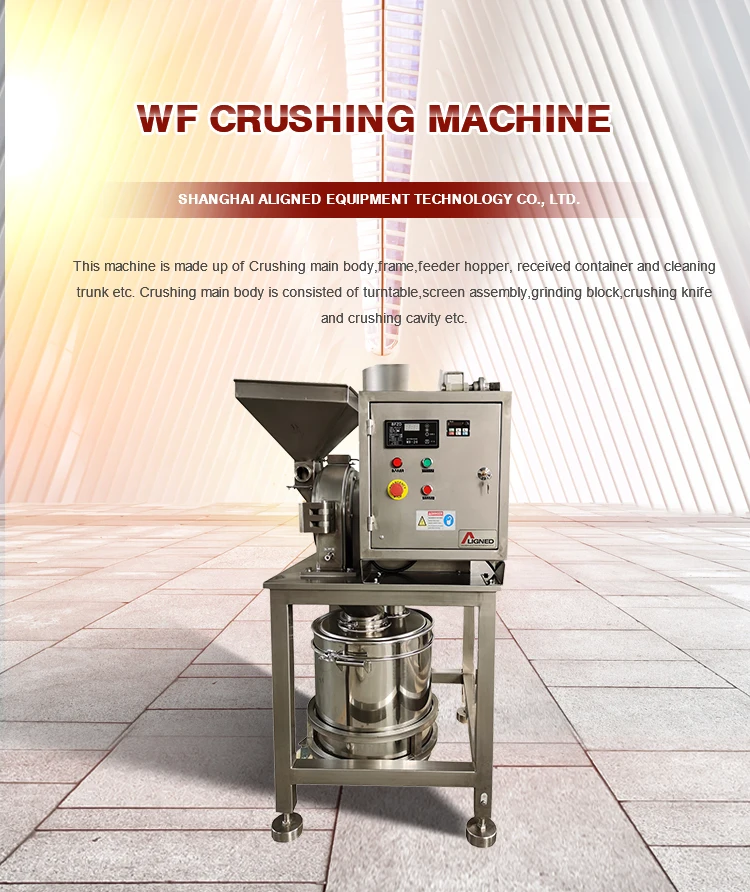

This machine is made up of Crushing main body,frame,feeder hopper, received container and cleaning trunk etc. Crushing main body is consisted of turntable,screen assembly,grinding block,crushing knife and crushing cavity etc.Motor would make principal axis rotate through belt drive. After materials entering to crushing cavity, high speed airflow materials would suffer high strength crash and strike.The crushing knife,grinding block and screen assembly will carry out the second round crash and strike to ensure the outputs meet the requirement. The qualified outputs would be filtered through outlet hopper and unqualified outputs would have a same process again until these outputs meet to the requirement. Therefore, the outputs would be even and the distribution range of particle would be small.
Model | WF-15C | WF-30C | WF-60C | WF-80C |
Capacity(kg/h) | 10-200 | 30-800 | 50-1200 | 100-1500 |
Material Size (mm) | <10 | <15 | <15 | <15 |
Product Size(mesh) | 80-320 | 80-320 | 80-300 | 80-300 |
Total Power(kw) | 14.3 | 38.85 | 69.6 | 87.6 |
Main Revolution(r/min) | -6000 | -3800 | -2800 | -2500 |
Overall Dimension(L * W * H)(mm) | 4200*1200*2700 | 6640*1300*3960 | 7500*230034530 | 9000*2300*4530 |
Weight(kg) | 850 | 1500 | 3200 | 3700 |
This airflow would take the heat(emitted by crash material) out to outer of cavity. This machine shell has water leg. This water leg can circulate different cold coal-water, so it has cooling function. The machine is designed according to GMP standard.It has dust extraction.The working principle is to collect the qualified particle which meet the requirement of GMP standard. Through the blow-back of pulser, the dust would be collected by the collection bucket.It can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
1. The crushing chamber can adopt universal, turbine, blade, and hammer type crushing structure.
3. The machine has the buffer discharging device, and the effect of material and air pressure separate automatically.
2. The structure adopts the method of discharging directly, reducing the phenomenon of small production and high
temperature because of the wind resistance.
3. The machine has the buffer discharging device, and the effect of material and air pressure separate automatically.
4. The fineness is controlled by time, the longer the grinding time, the higher the fineness.
5. Fine grinding, can grind a small amount of material .
6. This machine is the most ideal crushing equipment, and it is a new generation and has high production.
