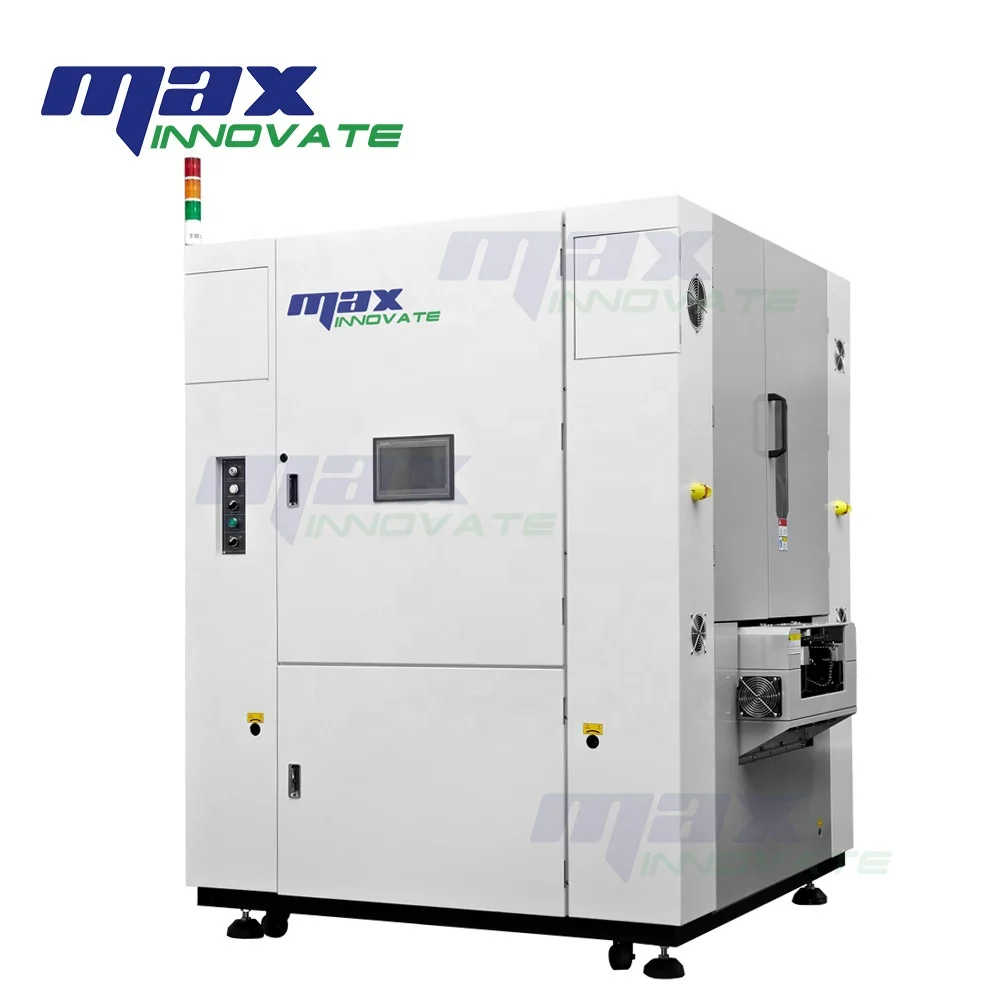

CE Certificate Vertical Curing Oven Automatic IR Curing Oven For Sale
- Category: >>>
- Supplier: Max Innovate Technology (Shenzhen) Ltd.
Share on (1600726415341):
Product Overview
Description
Product Overview
Description:

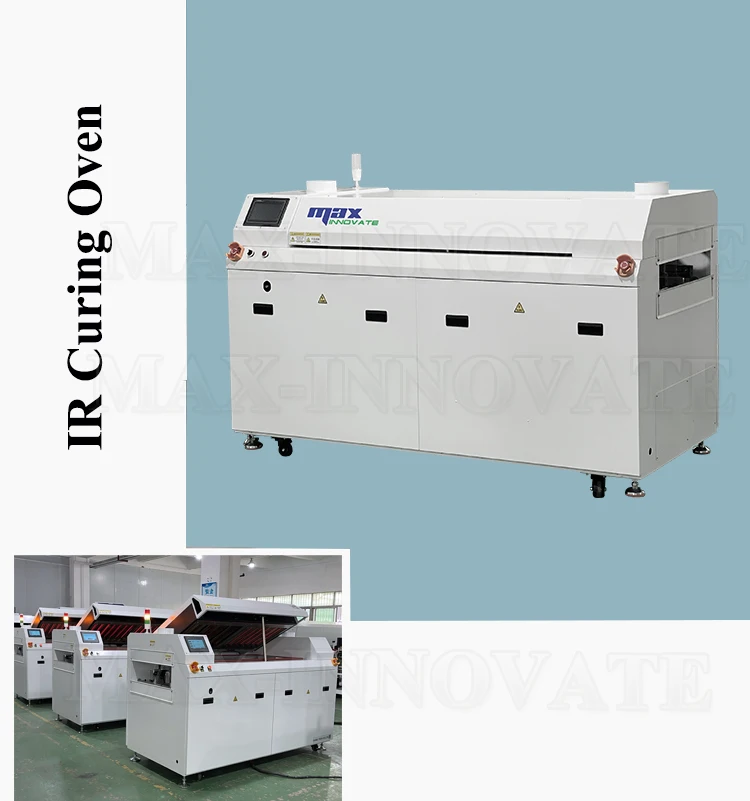

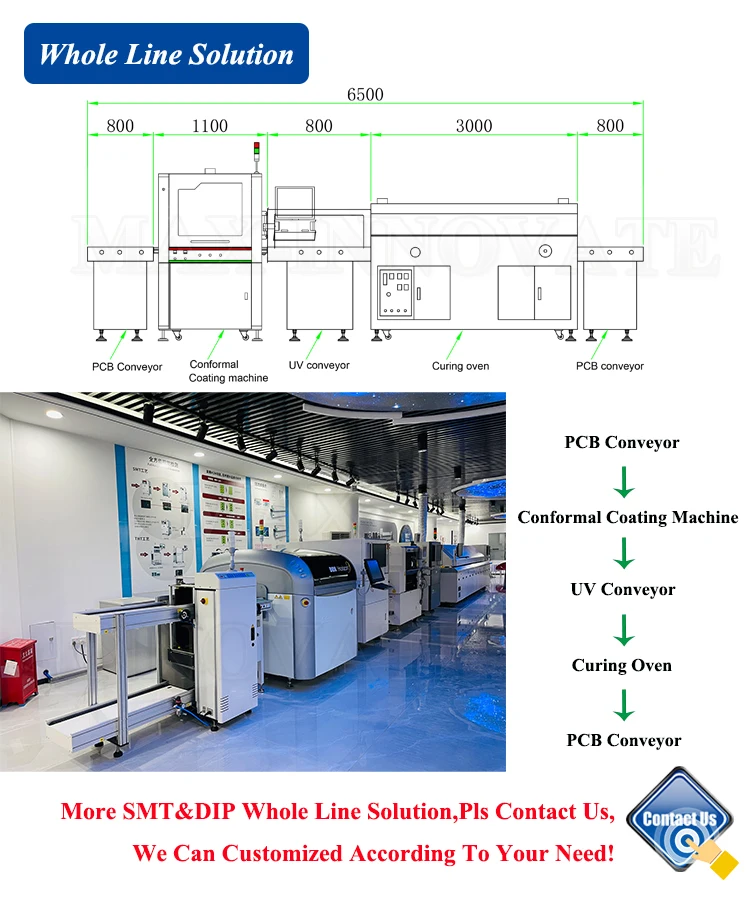

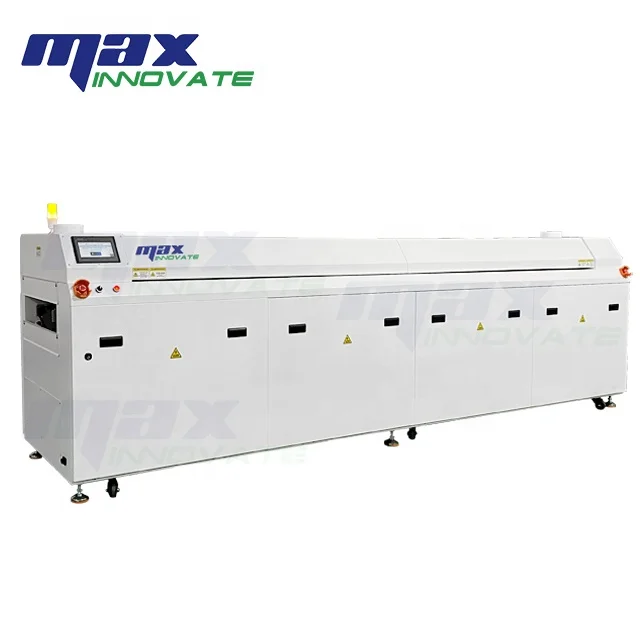

The Curing Oven is used for drying glue on the PCB after Conformal Coating Machine. (Machine length can customized, save time, save space)
1.Temperature controlled meter control, simple operation;
2.Each zone control by PID temperature controlling, temperature control more accurate for multi zones;
3.Motor runs stable and reliable;

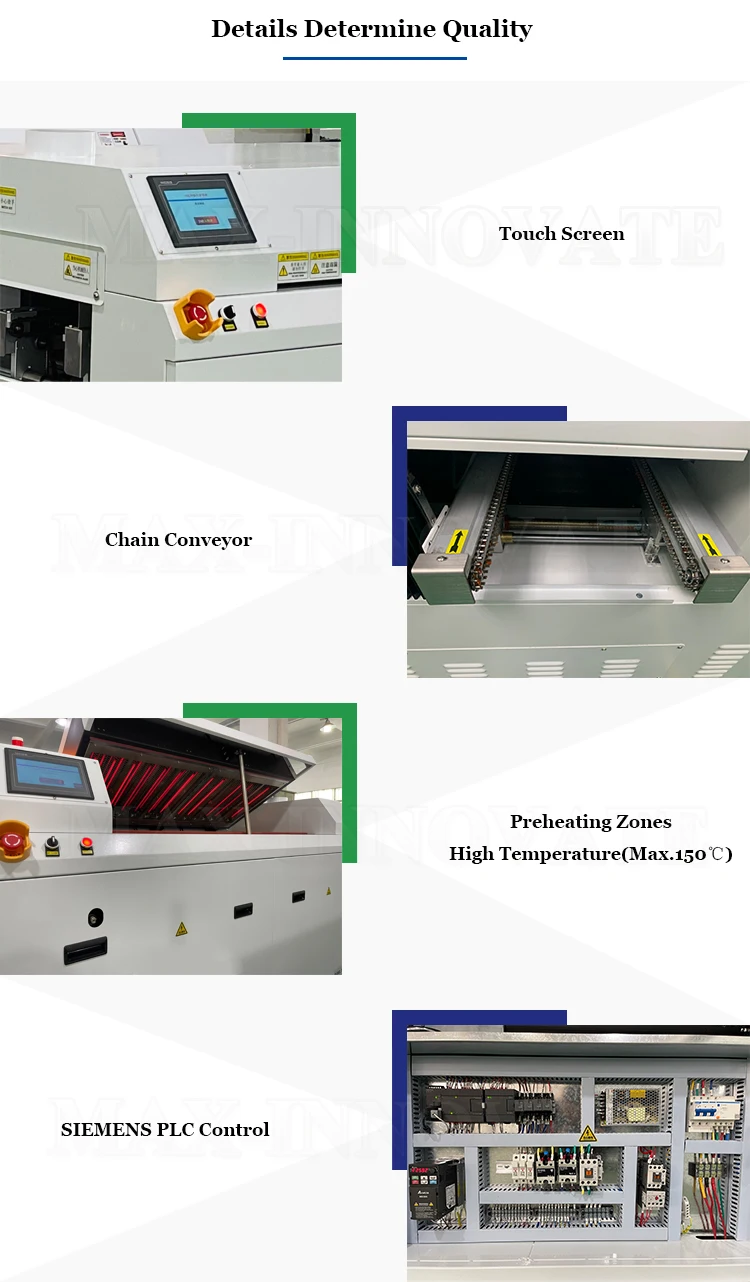

4.Using infrared plus micro-tube hot air circulation heating method, the heating temperature of each zone can be individually controlled, greatly improve the circulation of hot air flow, rapid heating, the maximum temperature is up to 150 ℃; hearth and interior are use of special materials, the external thicker insulation cotton ensure minimum heat loss;
5.Transmission chain fully closed loop control;
6.High-strength guide rail design, thermal deformation, to ensure accuracy;
7.Rail width adjust by manual , control panel, easy to use;
8.Efficient energy saving: start with a very low average power.
Model | IR-CO2000 | ||||||
Dimensions | 2000*960*1250mm | ||||||
PCB conveyor height | 900±20mm | ||||||
PCBA width range | 50～400mm | ||||||
Direction | L-R or R-L (optional) | ||||||
Conveyor speed | 700～2000mm/min | ||||||
Conveyor motor power | 120w | ||||||
Temp control range | ±1.5℃ | ||||||
Heating time | Approx.20min | ||||||
Power | 3P 5 Wires (5W,3P) 380V | ||||||
Start power | 8KW | ||||||
Weight | Approx.260Kgs | ||||||
Products Description
Related Products
All kinds SMT&DIP Machine,welcome inquiry and discuss with us!
Packing&Shipping
Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details :7-10days
Port:Shenzhen
Delivery Details :7-10days
Max Machine from the production to packaging to transportation, have strict quality control, use high-quality materials, make the best products, so that every customer satisfaction.
Accept various modes of transportation, fast delivery time!
