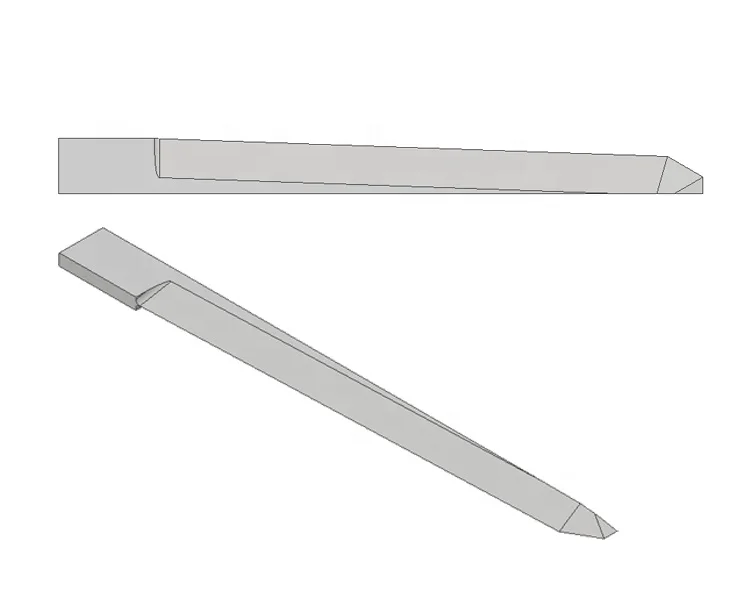

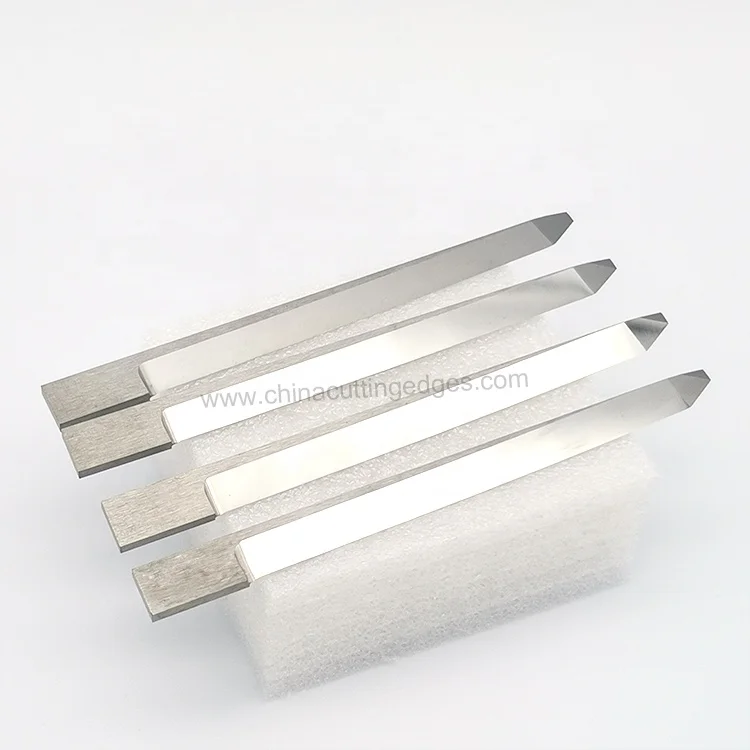

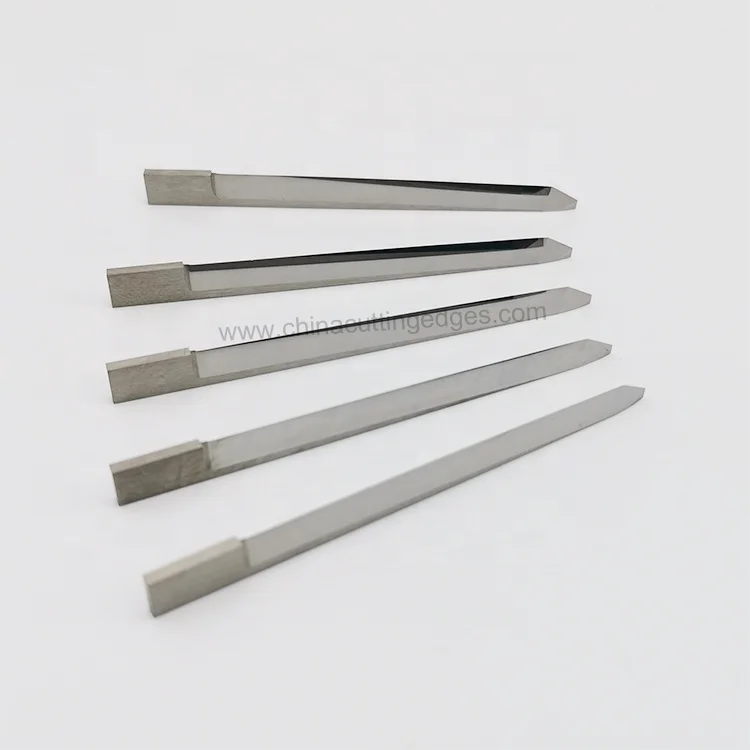

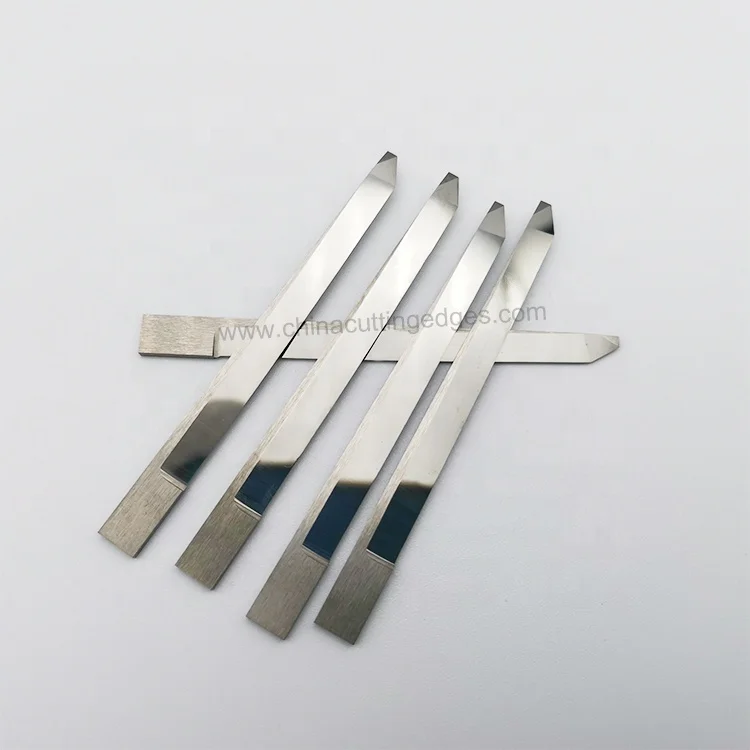

Zund blade z64 plotter knife oscillating blade
- Category: >>>
- Supplier: Xiamen Pktol Advanced Material Co. Ltd.
Share on (1600726415378):
Product Overview
Description
Product Description
We supply Zund Cutter Blade Z64, Carbide Zund Z64 Oscillating blade, Z64 Carbide Zund Cutter Blade, Z64 Blade 5002739, Zund Z64. China Tungsten Carbide Zund Cutter Blade Z64 commonly used for the cutting of Corrugated, Foam board/Foam, Insulating mat etc.
Product Pamaeter
Place of Origin: | China (Mainland) | Brand Name: | PKTOL | ||
Model Number: | PK64 | Type: | Oscillating blade flat | ||
Max. Cutting depth: | 57mm | Length: | 67mm | ||
Thickness: | 1.5mm | Material: | Tungsten Carbide | ||
Pre-cut: | 3.5 + 0.03 x TM | Post-cut: | - | ||
Hardness: | HRA 89~95 | OEM: | Acceptable | ||
Properties: | Cost-effective blade for soft, thick materials. Short life expectancy | ||||
Logo: | Acceptable | Package: | Acceptable customized | ||
Product Feature and Application
Wells use high-tech technology, the blade is made of ceramic composite and tungsten carbide is treated on the blade surface, so the blade is not easy to wear and tear when cutting and does not touch the powder, reduce the friction when slitting. it solves the difficult problem, greatly improves the slitting accuracy and speed, and prolong service life of the blade. The development of this tool saves a lot of cost for customers.
China Tungsten Carbide Zund Cutter Blade Z64 commonly used for the cutting of Corrugated, Aramid fiber, Carbon fiber, Fabric, Felt, Foam board/Foam, Folding Carton, Glass fiber, Nonwoven fabric, Nylon fabric, Polyester fabric, Leather hide etc.
The distinction between the following blade types
• Drag blades: used in non-powered tools such as UCT, KCT, VCT, SCT, C2, insert sleeve 40) Particularly suitable for Foils, Paper, Thin folding carton, PVC, Plastic ,Carpet ,Light foam core etc.
• Oscillating blades: used in EOT/POT oscillating tools.
Recommended materials: Folding carton, Gasket materials, Foam, Leather, Rubber, Felt, Woven, Textiles, Plastic etc.
• Rotary blade: decagonal (ten-sided) blades for DRT/PRT tools.
Recommended for breathable materials such as textile, carbon fiber, glass fiber, etc.
• Oscillating blades: used in EOT/POT oscillating tools.
Recommended materials: Folding carton, Gasket materials, Foam, Leather, Rubber, Felt, Woven, Textiles, Plastic etc.
• Rotary blade: decagonal (ten-sided) blades for DRT/PRT tools.
Recommended for breathable materials such as textile, carbon fiber, glass fiber, etc.
Detailed Image
Company Profile
Our Advantages
10 years experience
1). Size standard or as per your requirements;
2).Very advantageous price.
3).Good English communication;
4).Professional technology on product;
5).Could accept trial order.
Quality guarantee
1). High-quality raw materials and years of processing and production experience ensure stable product quality;
2). Strict inspection process to ensure that each product is qualified.
24-hour service
1). 7×24 hours online service, tracking the progress of the order at any time, and timely feedback to the customer.
2). Provide other services to customers
\t\t\t\t\t\t\t\t\tOur Services \t\t\t\t\t\t\t
Quality and service
1). Quality Inspection and Warranty
China Cutting Edges products are strictly checked over 20 inspection process from powder to completed. We can keep and improve our quality, and are very pleased to hear that customers are satisfied with PKTOL stabilized products.
2). OEM &ODM Service is highly welcomed.
1)customized Logo/Brand;
2)help products design;
3). When the order is confirmed, all the drawings and samples will be converted into CAD drawing. We will arrange time
schedule for producing customer order after design drawings are confirmed by both parties. During the producing period, we will update tracking and recording progress and feedback to customers regularly.
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: Does your price have an advantage?
A: Of course, we will determine the price based on the quantity, complexity and processing materials of your products.
Q3. what are your main products?
A: 1. Carbide blades, Ceramic knives, Zund cutter blade, Plotter Blade and holder, CNC Engraving Bits and Milling Tools etc.
2. Used for paper, corrugated, tape, film, packing, food, Wire etc.
Q4. How do you pack your products?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q5. what's the payment term?
A. We accept 30% deposit and 70% balance against copy of BL, both by T/T and L/C is acceptable.
Q6. Would you accept to use our logo?
A.OEM is acceptable only if the quantity is reasonable.
Q7. Do you have catalogue and price list?
A. We have E-catalogue and paper Catalogue. But the price is according to your quantity.
We hope that this information will help you. If you have any other questions, please call our 24-hour service hotline or you can leave a message on this website or via E-mail contact with PKTOL.
