6x4 Howo Maker Mixxing Cement Trucks Mixers Concrete Mixer Truck

Product Overview

Description

6x4 Howo Maker Mixxing Cement Trucks Mixers Concrete Mixer Truck



Why would our clients choose FOCUS CUMMINGS/DCEC engine truck mixer?

1. HINO chassis are available in FOCUS CUMMINGS/DCEC engine truck mixer;


2. international famous brand hydraulic drive fits are adopted in our CUMMINGS/DCEC engine truck mixer;


3. integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;


4. multi-points control system enables the mini beton truck operation to be easier, safer and more comfortable;


5. air pressure water supply system with large capacity water tank.

What are the main features of FOCUS CUMMINGS/DCEC engine truck mixer?

1. Oil tank and radiator are imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for our transit CUMMINGS/DCEC engine truck mixer.


2. Pump, motor and reducer in CUMMINGS/DCEC engine truck mixers are all original imported AMERICA static pressure driving system with big driving torque and high efficiency.


3. Imported hose and connector are separately from GERMANY EMB and ITALY MANULI.


4. Hose buckling device is totally from GERMANY HYDAC.


5. Stirring vat auto-welding improves CUMMINGS/DCEC engine truck mixer  production efficiency and makes welding quality finer.

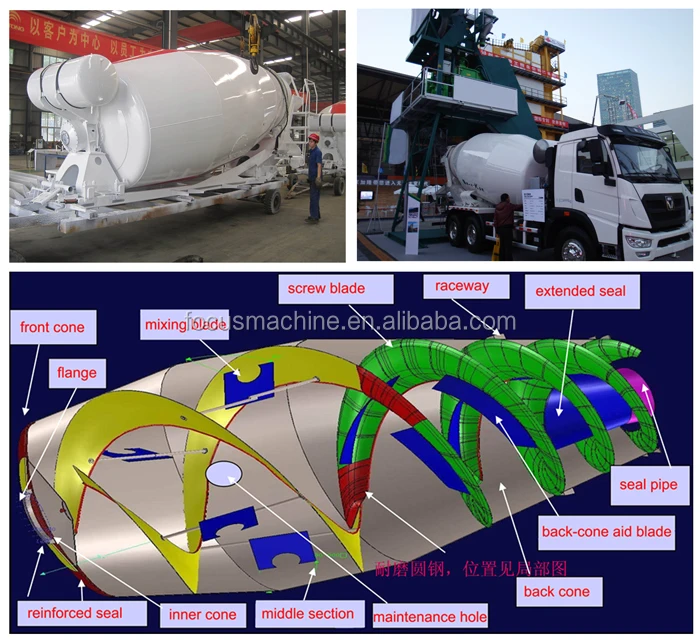

6. Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in our CUMMINGS/DCEC engine truck mixer.


7. Fault indicator for the CUMMINGS/DCEC engine truck mixer can check all welding seams of stirring vat to ensure good welding quality after it’s being welded by auto-welding machine.


8. Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.



FOCUS concrete mixer truck technical data

Model		8m³	9m³	10m³	12m³	14³
Truck	Chassis	HINO	HINO	HINO	HOWO	HOWO
	Length(mm)	8550	9200	9800	10150	10150
	Width(mm)	2490	2490	2495	2496	2496
	Height(mm)	3800	3800	3830	3900	3960
	Weight(kg)	25000	25000	31000	31000	31000
	Load weight(kg)	12600	13000	15650	16370	16700
	Max.speed(kg/h)	75	72	90	90	50
	Oil consumption(L/100km)	32	34	38	38	38
Engine	Engine model	WD615.69
	Engine type	6-cylinder direct injection diesel engine with water cooling
	Engine power(kg)	247(2200r/min)		247(2000r/min)
	Max.torque(N.M)	1250(1600r/min)
Working device	Drum volume(m³)	12.8	14.7	17.05	19.65	20.1
	Mixing volume(m³)	8	9	10	12	14
