Product Overview
Description

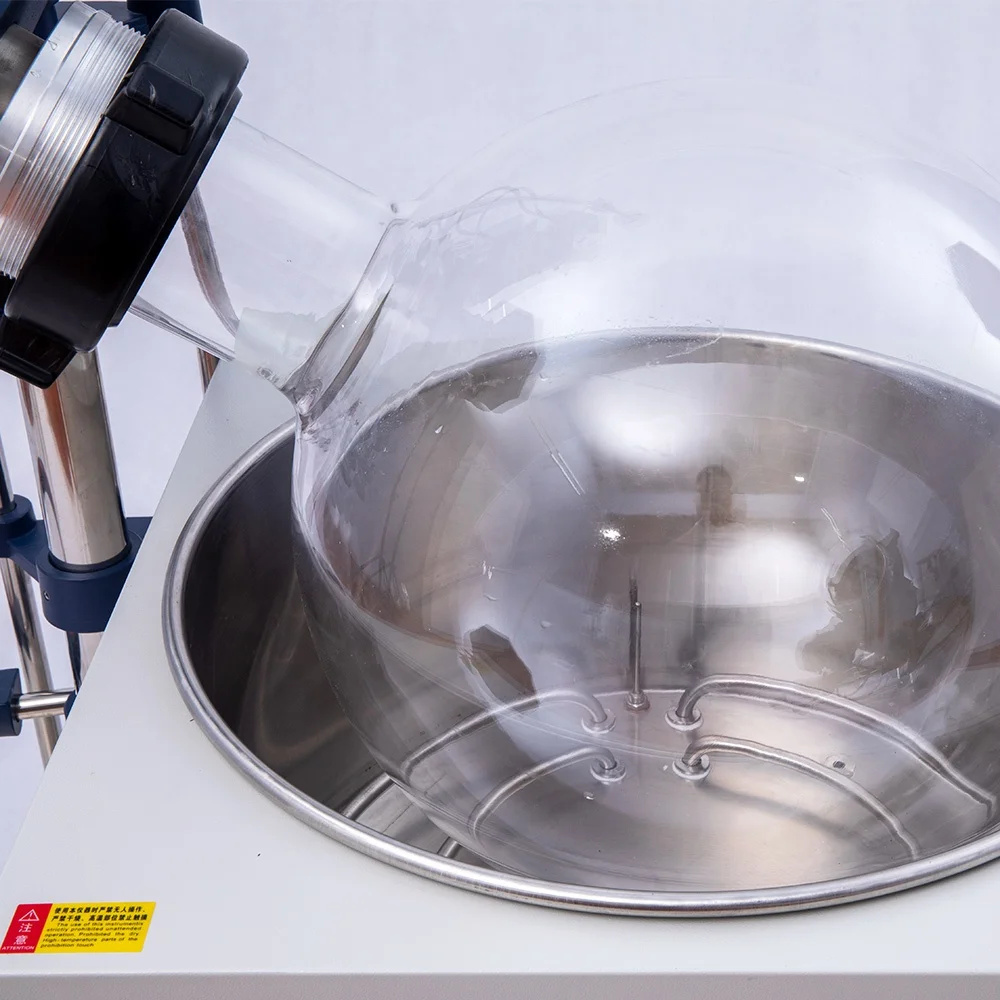

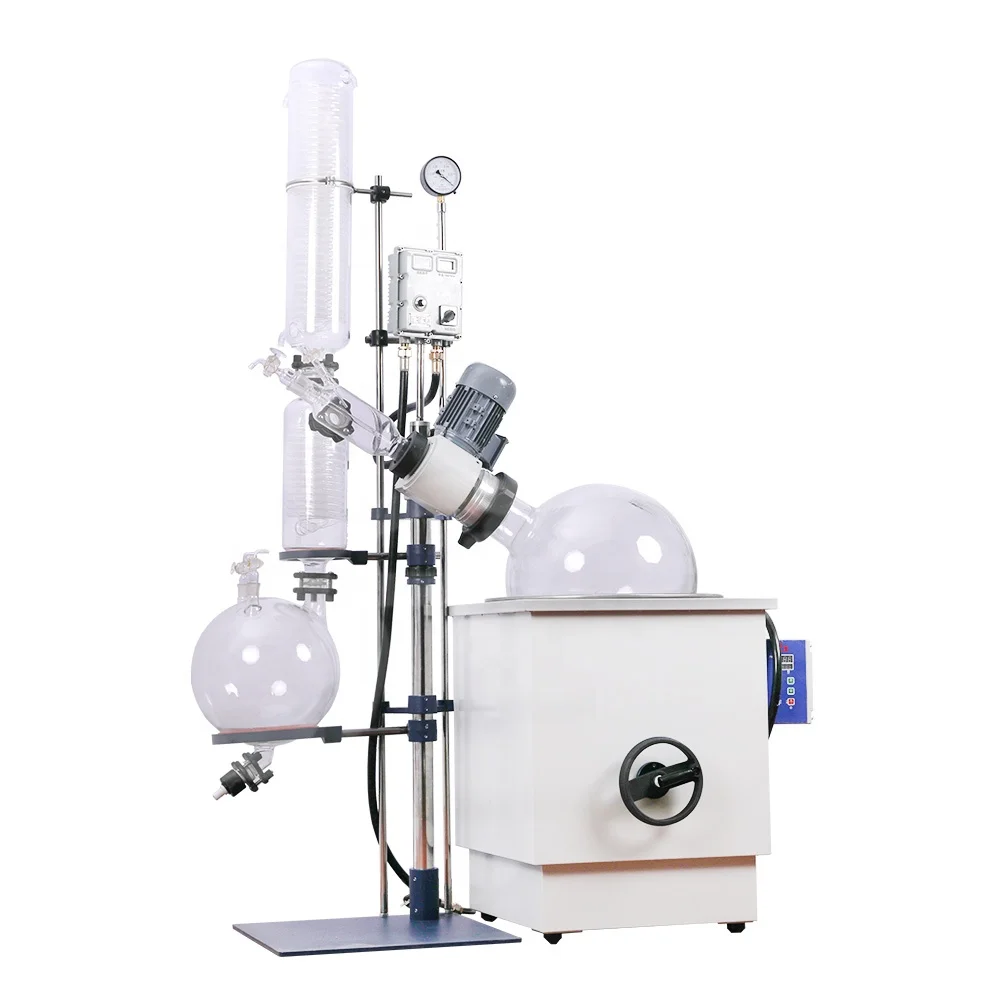

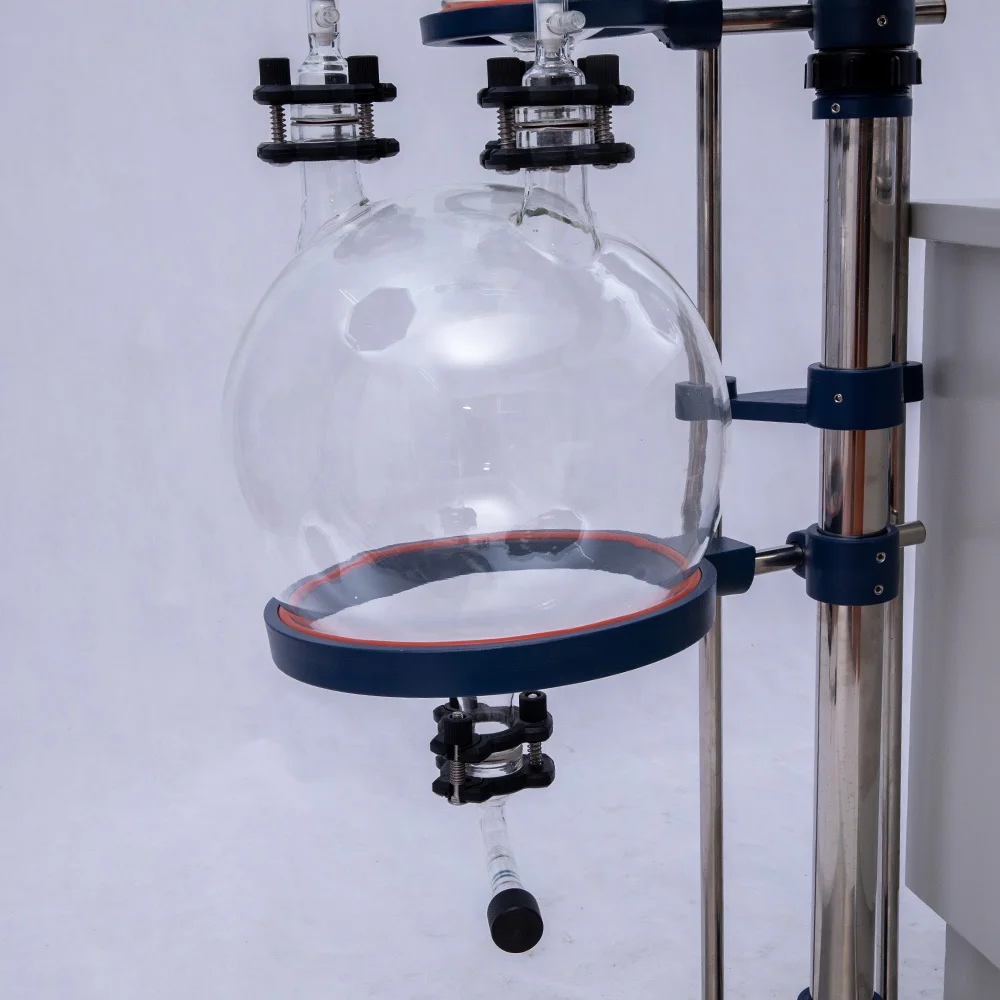

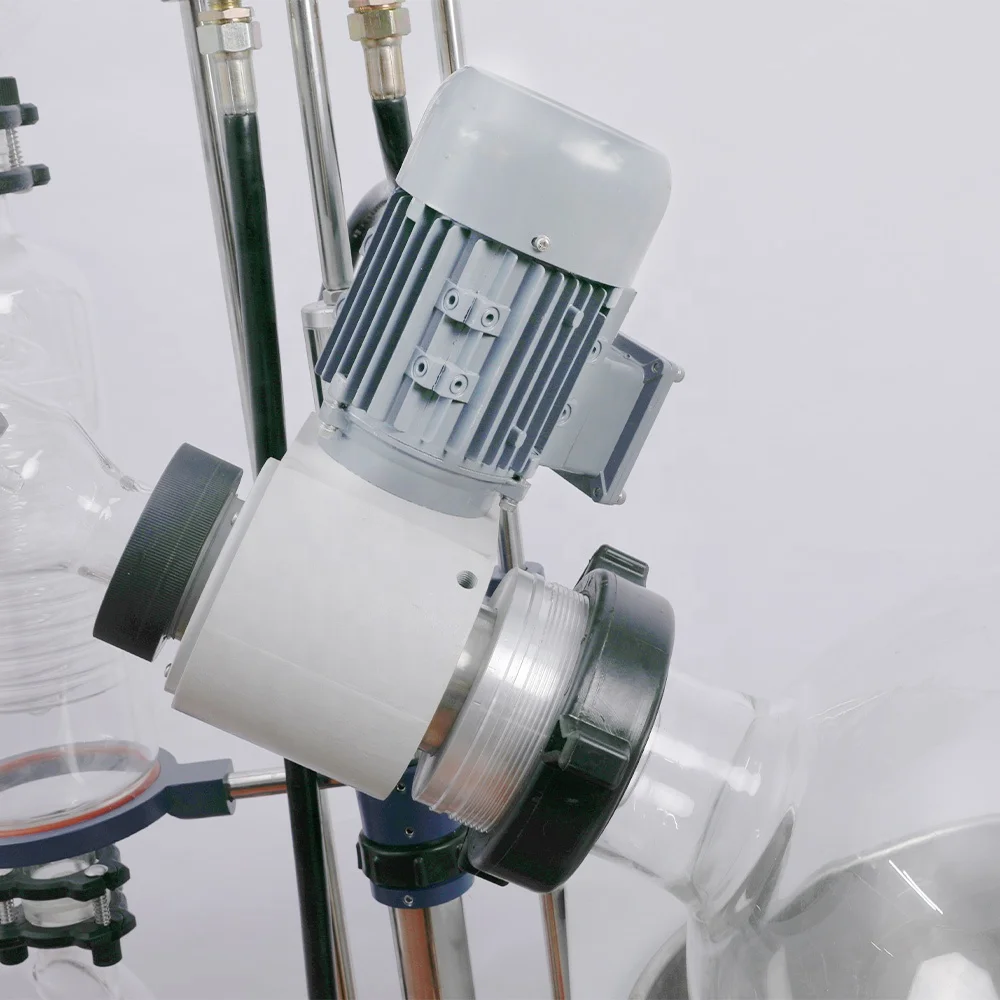

Explosion-proof Explosion Proof Crystallization Purification Rotary Evaporator
Product Description
Mino Rotary Evaporators series are perfectly designed for many different distilling processes, from standard evaporation without vacuum control to complex distillation processes with vacuum control. During the development of evaporators, Mino focuses on the features and functions of safety, convenience, and cost savings.
Technical Parameters
| 0.5L~50L Rotary Evaporator With Hand Lift | ||||||
| Model | RE-1L | RE-3L | RE-5L | RE-10L | RE-20L | RE-50L |
| Rotary Flask | 1L | 3L | 5L | 10L | 20L | 50L |
| Collection Flask | 1L | 2L | 3L | 5L | 10L | 20L |
| Reachable Vacuum | -0.098MPA | |||||
| Motor Power | 40W | 120W | 180W | |||
| Rotation Speed | 0-120rmp | |||||
| Heating Power | 1.5KW | 2KW | 2KW | 4KW | 4KW | 6KW |
Overall Dimension (L*W*H)(cm) | 68*30 *83 | 67*32 *94 | 70*33.5 *101 | 105*54 *180 | 115*54 *187 | 125*54 *200 |
Static Temperature Control Range | Water Bath: RT-99℃; Oil Bath: RT-200℃±0.2℃ | |||||
| Voltage | 220V/50HZ or Customized | |||||
| Heating Bath | Stainless Steel; Hand Lift | |||||
| Glass Material | High Borosilicate Glass 3.3 | |||||
