LCR meter substitute Chroma LCR meter
- Category: >>>
- Supplier: Xiamen Sanshine Magnetoelectric Device Manufacture Machinery Co. Ltd.
Share on (1600726503126):
Product Overview
Description
Product Description

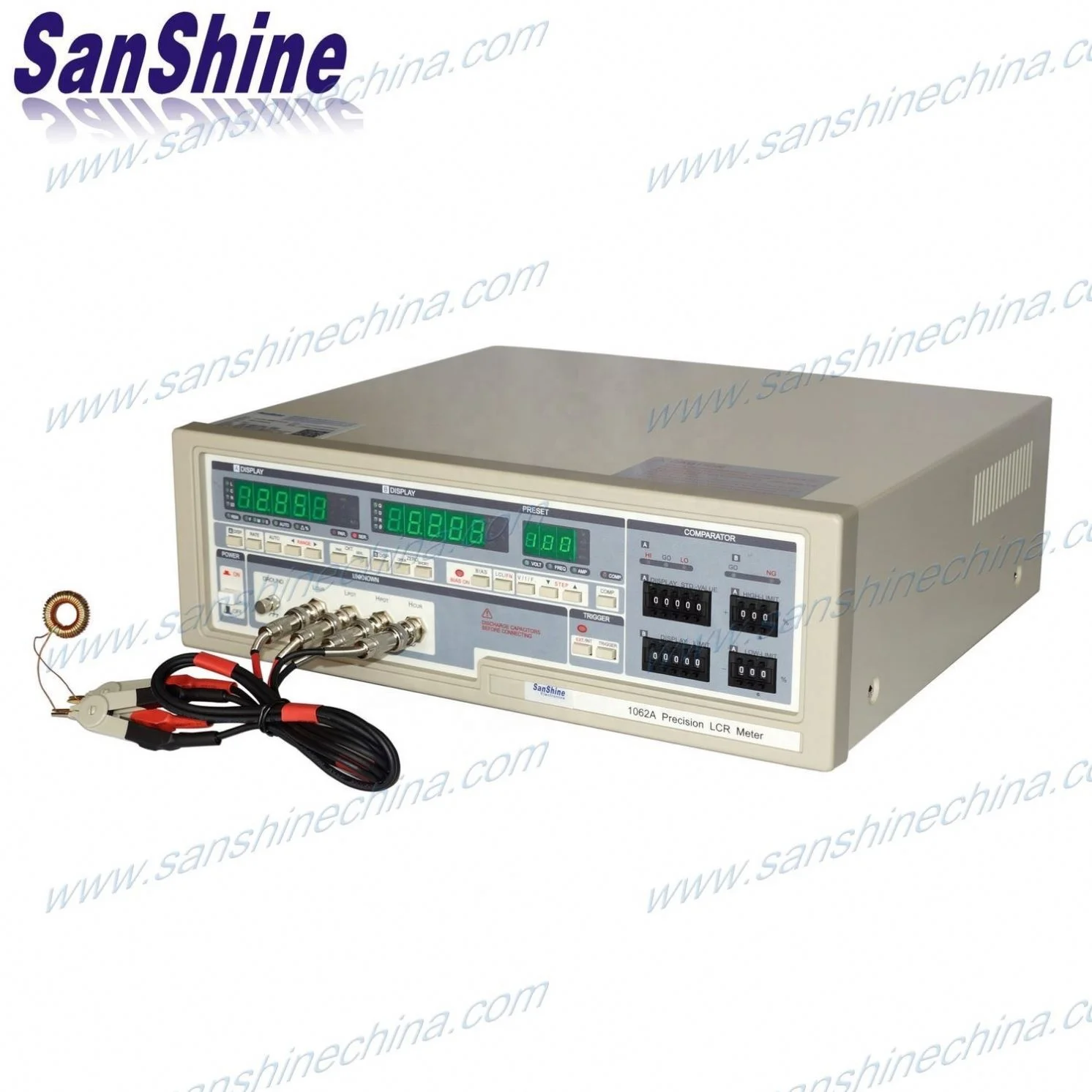

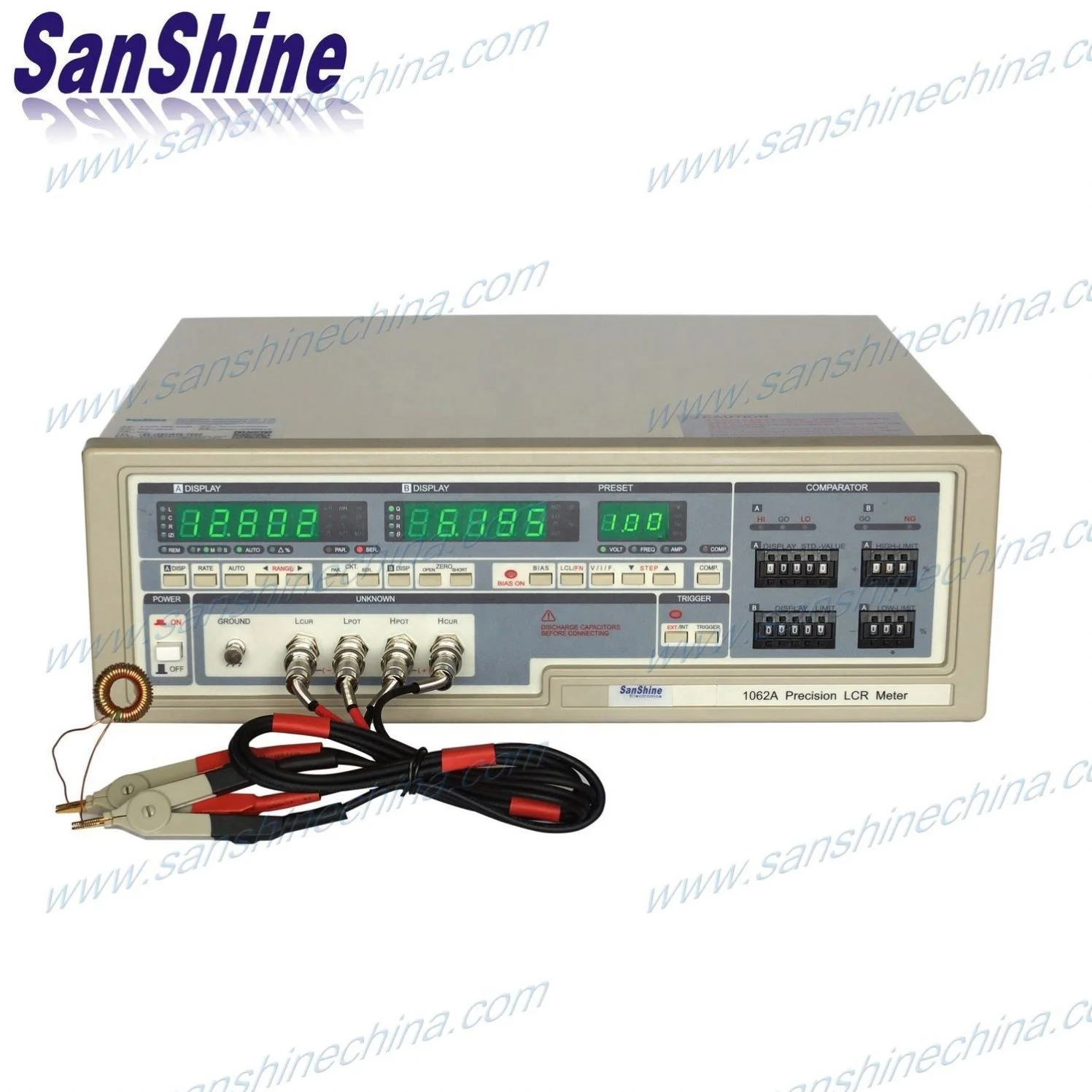

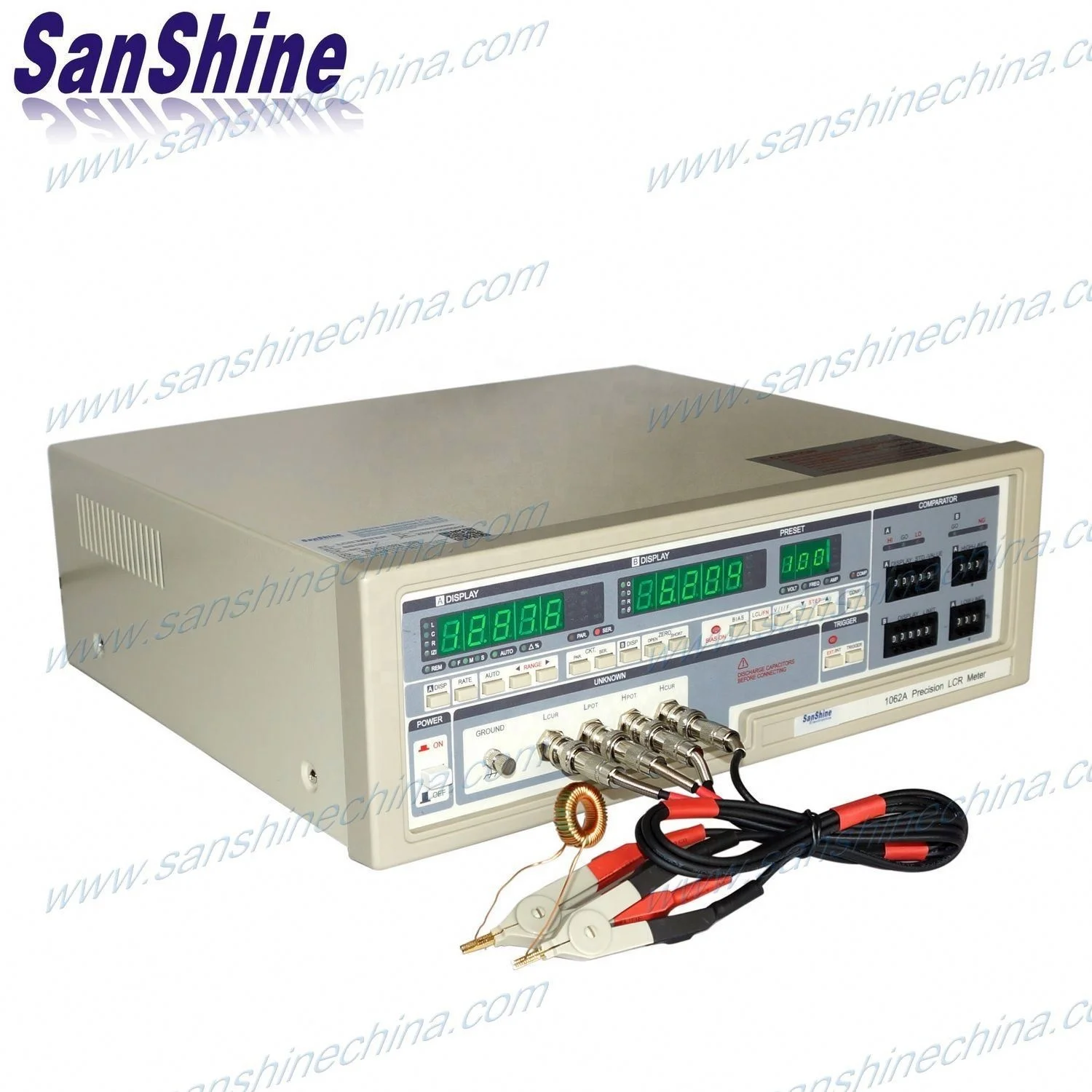

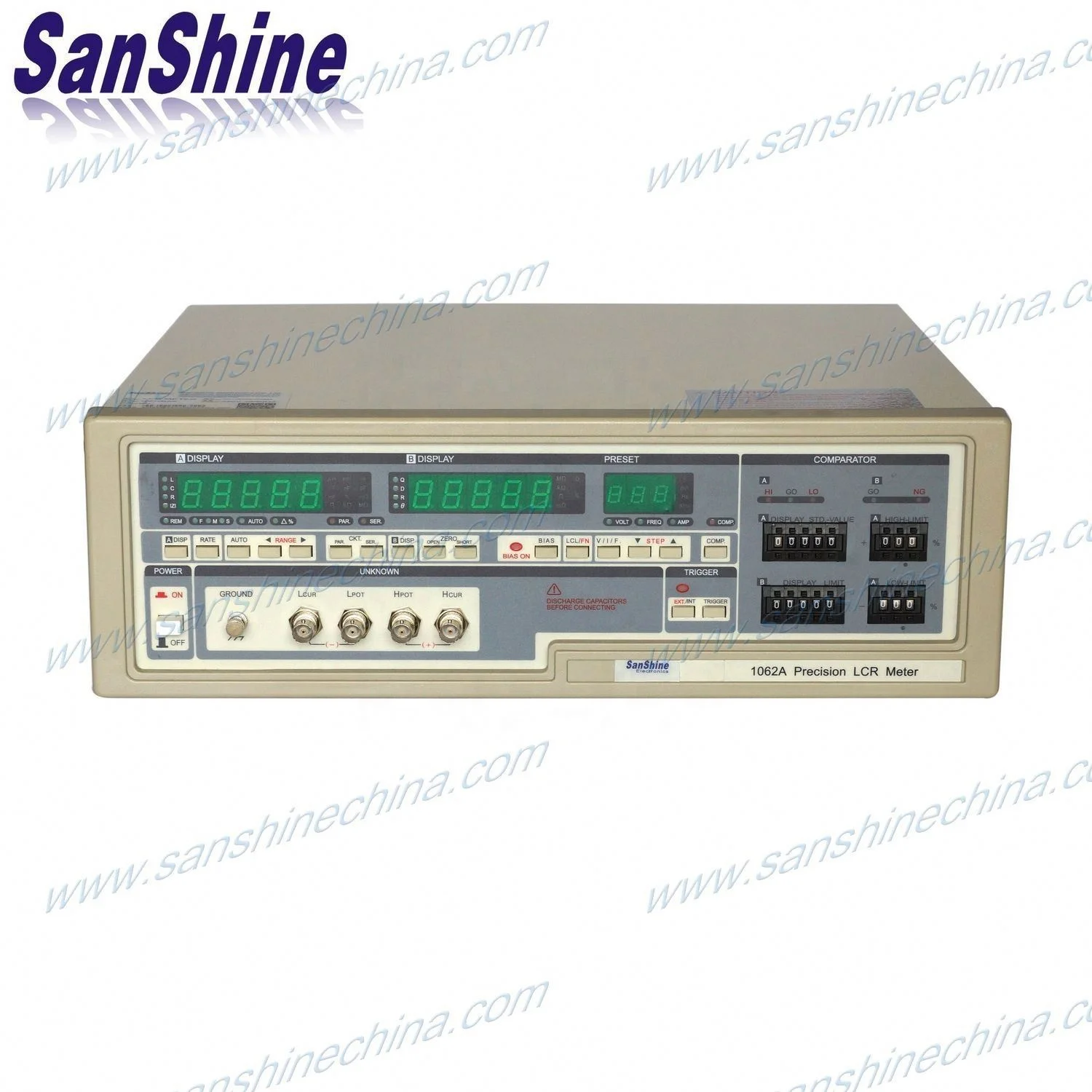

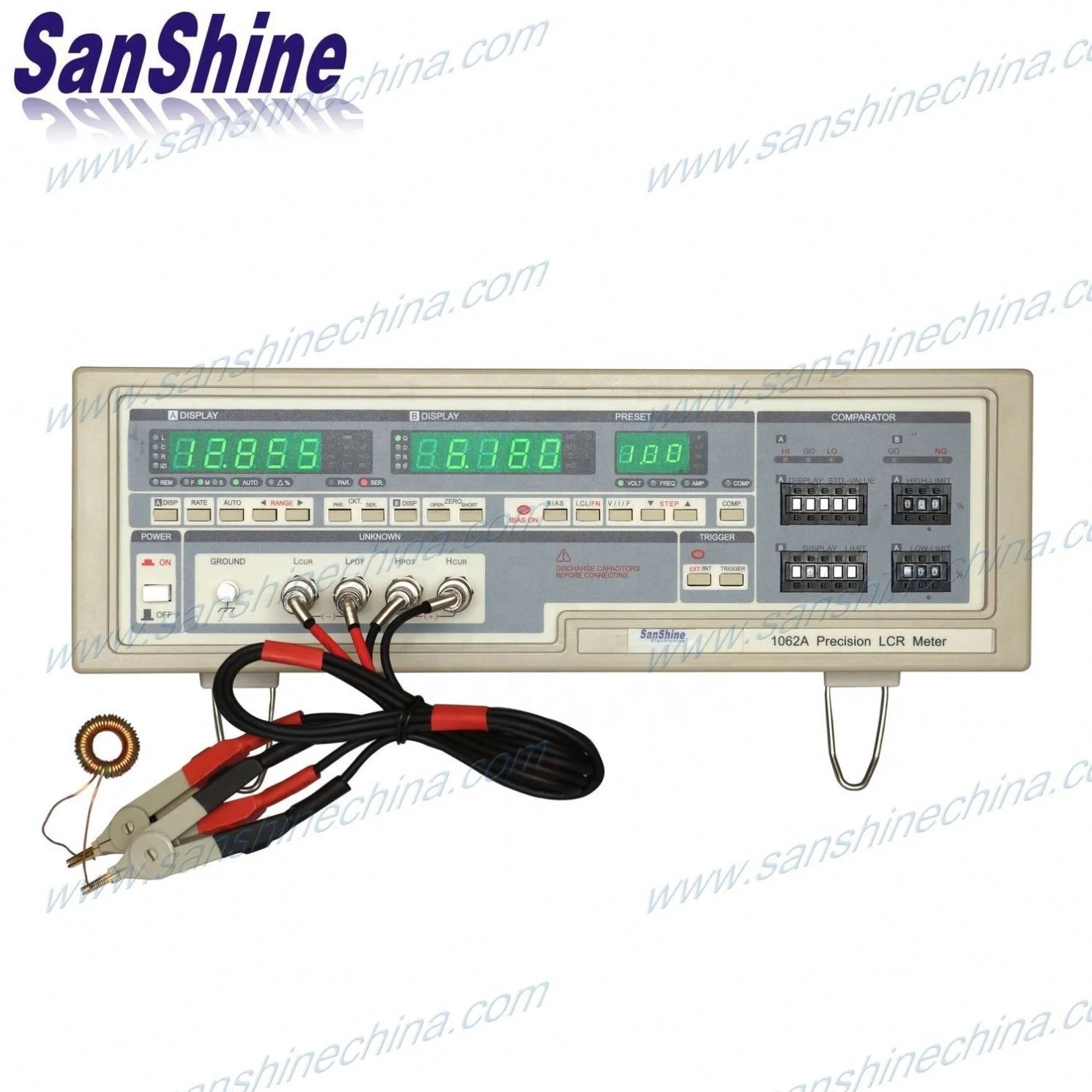

Description of SS1061A/1062A LCR meter substitute Chroma LCR meter 1062A :
SS1061A/1062A LCR meter substitute Chroma LCR meter 1062A are a high-grade component test instrument upgraded from 106X series,with 4 output impedance modes and measuring results compatible with other well-known LCR meters.
Key feature of SS1061A/1062A LCR meter substitute Chroma LCR meter 1062A:
Test frequency: 40Hz ~ 200KHz
Test voltage: 10mV ~ 2.5V, 10mV/step
4 output impedance modes: 25Ω, 100Ω, 50Ω, 2Ω
Direct comparison: HP4284, GR1689, WK3245, NF2330
Order Items of SS1061A/1062A LCR meter substitute Chroma LCR meter 1062A :
1061A
1062A
4-terminal test clamp(within tester)
Test pen(optional)
Test box(optional)
SMD test wire(optional)
Specification of SS1061A/1062A LCR meter substitute Chroma LCR meter 1062A:
SS1061A/1062A LCR meter substitute Chroma LCR meter 1062A are a high-grade component test instrument upgraded from 106X series,with 4 output impedance modes and measuring results compatible with other well-known LCR meters.
Key feature of SS1061A/1062A LCR meter substitute Chroma LCR meter 1062A:
Test frequency: 40Hz ~ 200KHz
Test voltage: 10mV ~ 2.5V, 10mV/step
4 output impedance modes: 25Ω, 100Ω, 50Ω, 2Ω
Direct comparison: HP4284, GR1689, WK3245, NF2330
Order Items of SS1061A/1062A LCR meter substitute Chroma LCR meter 1062A :
1061A
1062A
4-terminal test clamp(within tester)
Test pen(optional)
Test box(optional)
SMD test wire(optional)
Specification of SS1061A/1062A LCR meter substitute Chroma LCR meter 1062A:
Model | SS1061A | SS1062A | ||
Test parameter | ||||
Main display | L ,C, R, Z | |||
Subaltern display | Q ,D ,ESR ,θ | |||
Measure signal | ||||
Meas. Level | 10mV~2.5V,10mV/step | |||
Meas. Frequency | 40HZ~200KHZ | |||
Frequency accuracy | ±0.15% | |||
Out impedance | 25Ω±5% ,100Ω±5% ,50Ω±5% ,2Ω±10%(load impedance ≥ 10Ω) | |||
Measure Range | ||||
Main parameter | L(0.00001uH ~ 9999.99H), | |||
C(0.0001pF~9999.9mF) | ||||
R(0.0001mΩ~9999.9MΩ), | ||||
Z(0.0001mΩ~9999.9MΩ) | ||||
Subaltern parameter | Q, D(0.0001~9999.9),θ(-90.00°~90.00°), Δ %(0.0001%~99999%) | |||
Base accuracy | 0.15% (AC parameter 1KHZ ) | |||
Measure speed (1KHZ ) | ||||
Best fast | 13Measurement/S | |||
Fast | 10Meas./S | |||
Middle | 5Meas./S | |||
Slow | 1Meas./S | |||
Trigger | internal | internal, external, manual | ||
Display | ||||
L,C,Z,R | 5pcs digitals | |||
Q,D,R, θ | 5pcs digitals | |||
Frequency ,level | 3pcs digitals | |||
Q,D,R, θ | 5pcs digitals | |||
DC base | 0 | |||
Revising function | open, short | |||
Equivalent circuit model | series ,parallel | |||
Automatic judgement | pass or fail | |||
Common specification | ||||
Environment | temperature :10 ºC ~ 40 ºC ,humidity :10%~90%RH | |||
Power consuming | Max.55W | |||
Power | 90~125V , or 190~250V,, 48HZ~62HZ | |||
Weight | 5.4Kg | 7.5Kg | ||
Meas. (W×H×L ) | 270×105× 350mm | 405×130× 365mm | ||
