New high efficiency 1/6 P800 pile sonic integrity testing pile integrity tester
- Category: >>>
- Supplier: Yantai Bede Machinery Co. Ltd.
Share on (1600726576455):
Product Overview
Description
Products Description

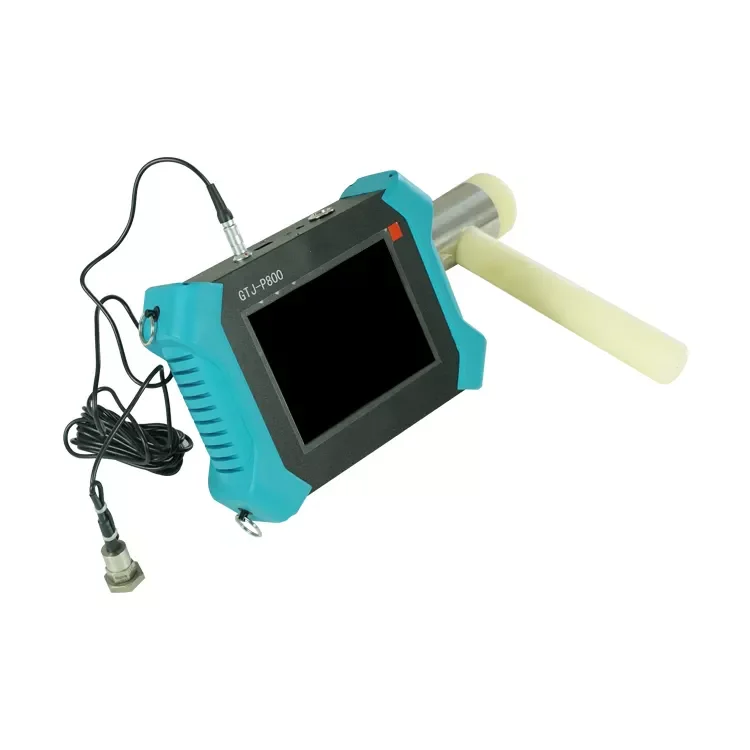

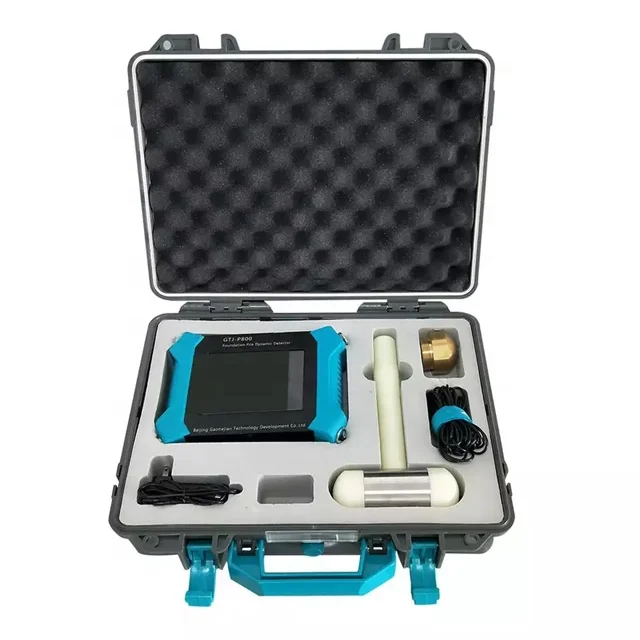

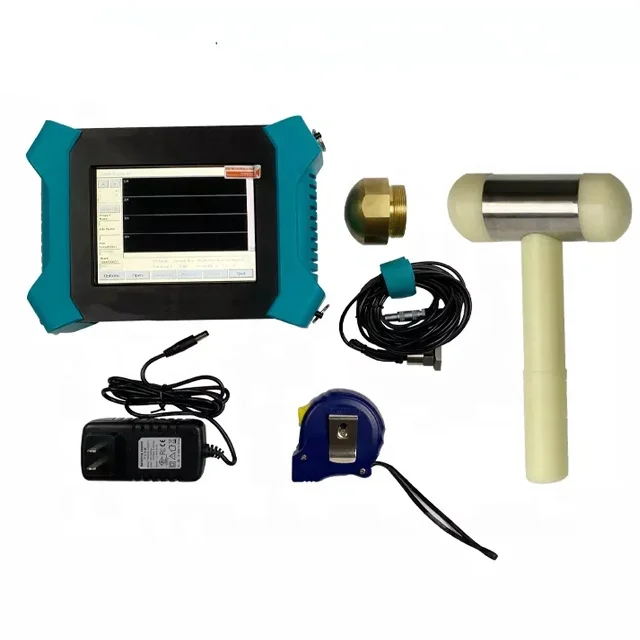

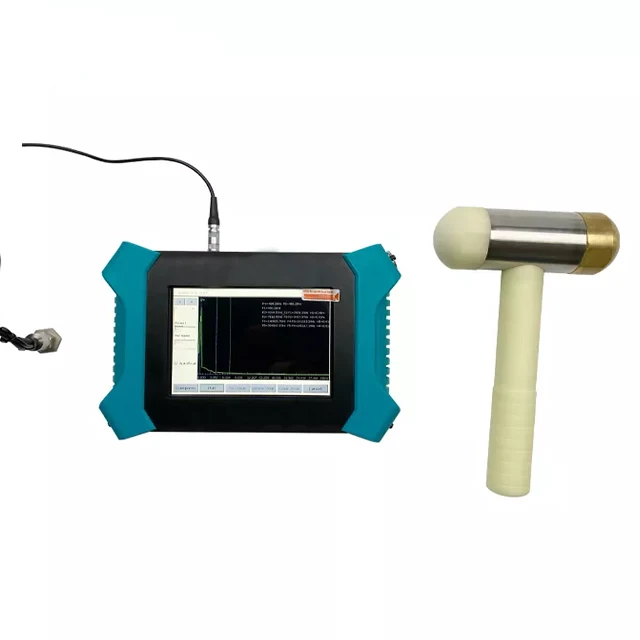

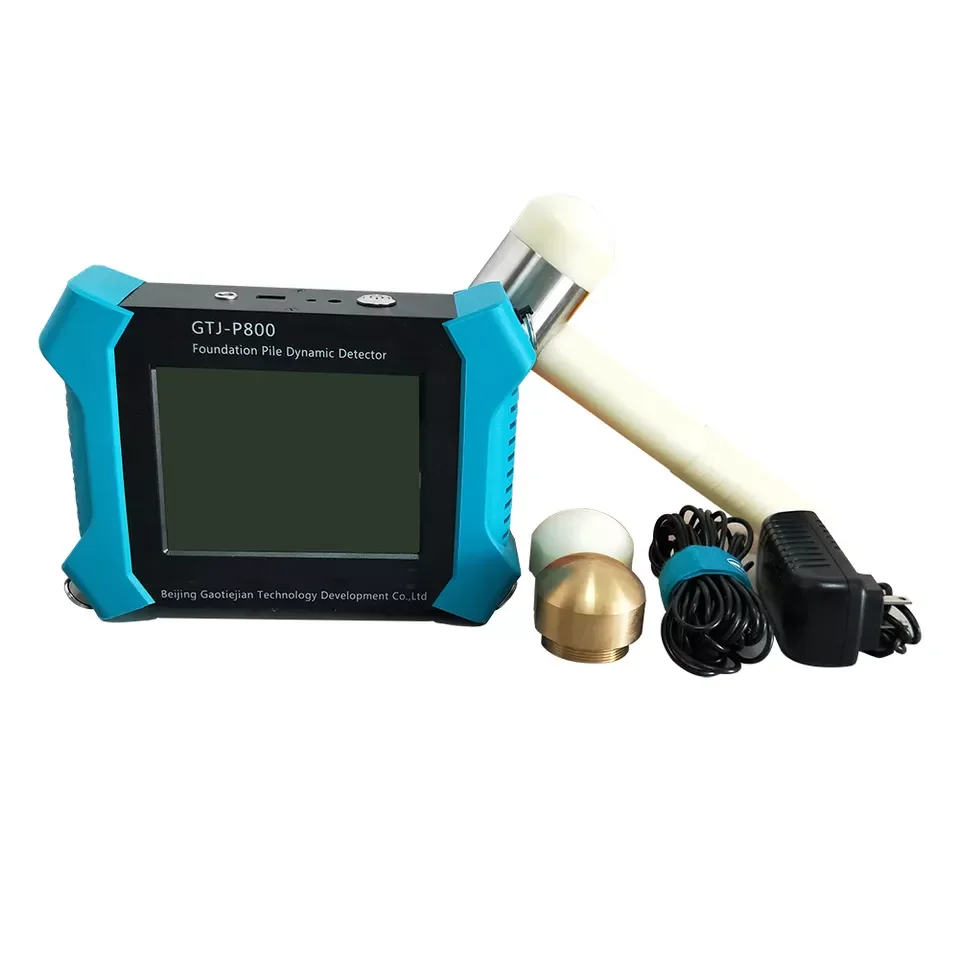

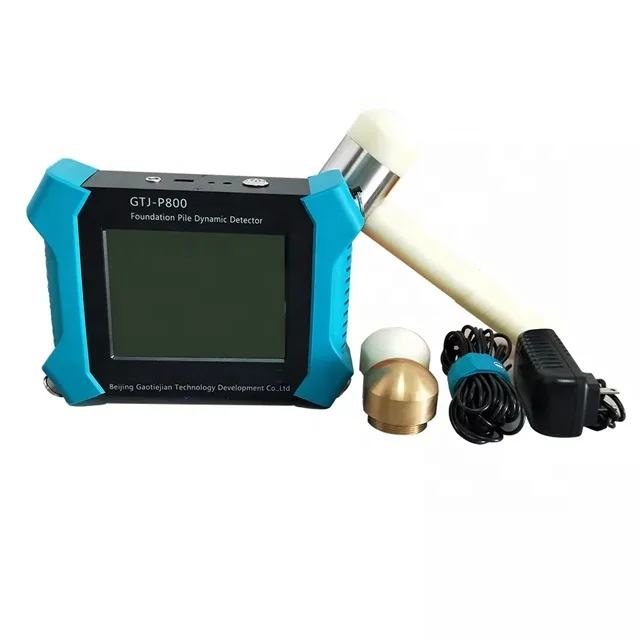

New high efficiency 1/6 P800 pile sonic integrity testing pile integrity tester
The dynamic testing instrument for foundation pile is a test and analysis instrument for testing the structural integrity of foundation pile and the vertical bearing capacity of single pile under impact or vibration load in the process of pile integrity testing and monitoring of prefabricated pile. The purpose is to determine the bearing capacity and structural integrity of pile.
Features
1.This Low Strain Integrity Testing apparatus is easy to operate and users can quickly master the method of using it based on the
requirement of engineering testin.2.Small size, light weight, easy to carry
3.User through the touch screen operation, the interface is simple
4.Support multiple waveform processing methods to make defect location more accurate
5.Large data memory, support mobile storage
1.This Low Strain Integrity Testing apparatus is easy to operate and users can quickly master the method of using it based on the
requirement of engineering testin.2.Small size, light weight, easy to carry
3.User through the touch screen operation, the interface is simple
4.Support multiple waveform processing methods to make defect location more accurate
5.Large data memory, support mobile storage
Product Paramenters
specifications and models | GTJ-P800 |
System noise voltage | less than2mV |
dynamic range | greater than138dB |
Amplifier band | 10Hz~10kHz |
A/Dresolution ratio | 16bitA/D |
sample interval | 2us~32768us |
sampling length | 1024,2048,4096 |
Time indication error | less than1% |
number of channels | 1 |
magnification times | 1~128 |
trigger mode | signal to trigger |
transducer sensitivity | 100mV/g |
Sensor band | 1-10000Hz |
continuous working period | greater than10hour |
power supply | Built-in rechargeable lithium battery(+7.4V) |
display screen | 640*480 capacitive touch screen |
operating mode | touch |
PRODUCT FEATURES
1.New upgraded wireless cloud transmission function;
2.The operation of the instrument is convenient and fast.
From the requirement of engineering inspection, the user can quickly master the usage method;
From the requirement of engineering inspection, the user can quickly master the usage method;
3.Small size, light weight, easy to carry;
4.The user operates through the touch screen, and the interface is simple;
5.Support multiple waveform processing methods to make defect positioning more accurate;
6.large-capacity data memory, support for mobile storage; 7.Built-in rechargeable lithium battery, long standby time;
8.The analysis software under Windows platform has comprehensive functions and flexible
printing settings. It can print preview and output processing results, and can generate test reports.
printing settings. It can print preview and output processing results, and can generate test reports.
Model | GTJ-P800 | System noise voltage | ＜ 2mV |
Dynamic range | ＞ 138 dB | Amplifier band | 10Hz ~ 10kHz |
A/ D resolution | 16 bit A/ D | Magnification | 1 ~ 128 times |
Sampling interval | 2us~32768us | Sample length | 1024,2048,4096 |
Time indication error | ＜ 1% | Channel numbers | Single channel |
Sensor sensitivity | 100mV/g | Sensor band | 1-10000Hz |
Continuous working time | ＞ 10 hours | Operating mode | Touch |
Working environment | Temperature: -10 ~ 40 ℃ Humidity <90% RH | Power supply mode | Built-in rechargeable lithium battery (7.4 V) |

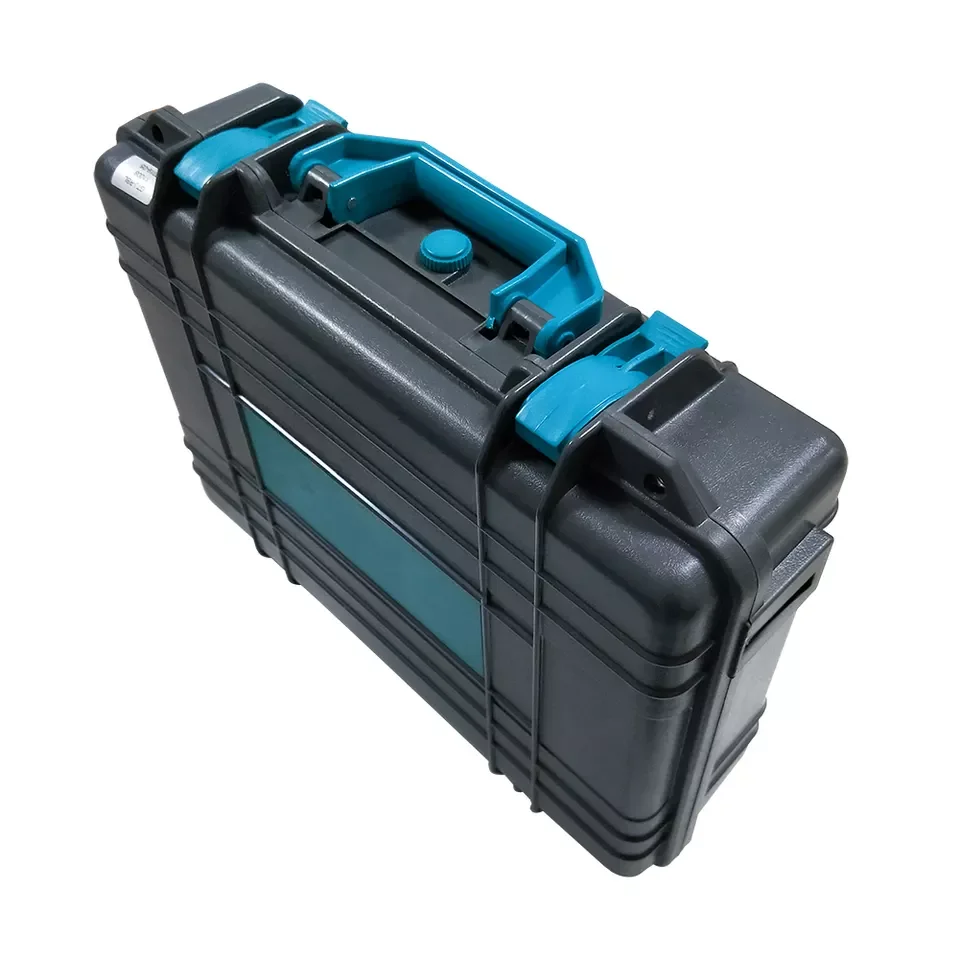

Product Packaging
FAQ
Q: Are you a factory or trade company?
A: We are a trade company with 2 factories. And we can supply one-stop service as a trade company if diverse goods are needed.
Q: What's the MOQ?
A: Well, the MOQ is different from 1 set to 50 set according to machines size. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 setS.
Q: Do you have professional engineers?
A:Yes. We have professional engineers and designers. We can provide OEM products.
Q: Can you provide custom machine, Yes or No?
A:Yes. We can provide custom machine for clients.
Q: Is OEM acceptable to your factory?
A: Yes, OEM production is one of our advantages.
Q: What's your lead time / delivery time / date for delivery?
A: 3-7day
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CIF/DDU/DDP if needed.
A: We are a trade company with 2 factories. And we can supply one-stop service as a trade company if diverse goods are needed.
Q: What's the MOQ?
A: Well, the MOQ is different from 1 set to 50 set according to machines size. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 setS.
Q: Do you have professional engineers?
A:Yes. We have professional engineers and designers. We can provide OEM products.
Q: Can you provide custom machine, Yes or No?
A:Yes. We can provide custom machine for clients.
Q: Is OEM acceptable to your factory?
A: Yes, OEM production is one of our advantages.
Q: What's your lead time / delivery time / date for delivery?
A: 3-7day
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CIF/DDU/DDP if needed.
