G4 polyester Synthetic fiber cotton pre air filter raw material media industrial filter
- Category: >>>
- Supplier: Shanghai Junkai Environmental Engineering Co. Ltd.
Share on (1600726705740):
Product Overview
Description

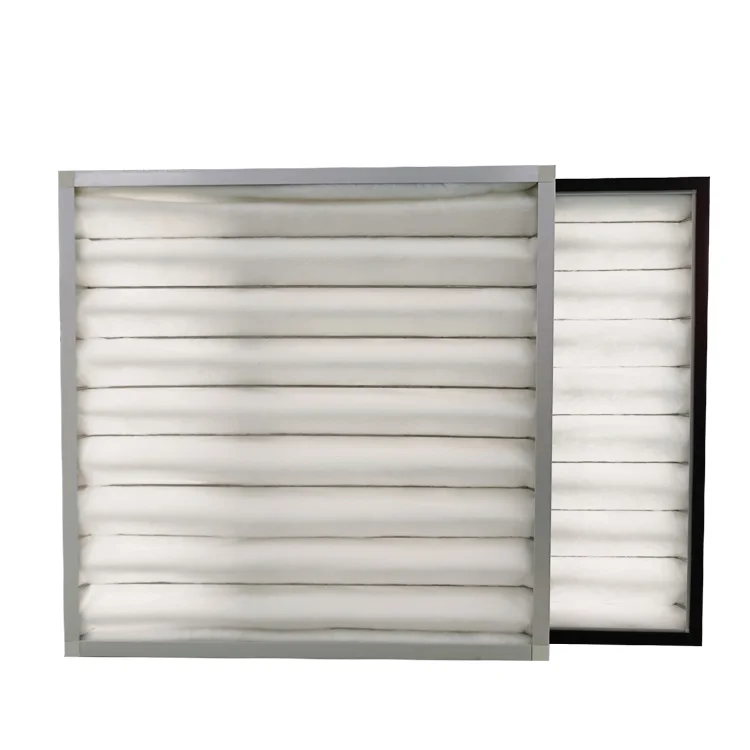

G4 polyester Synthetic fiber cotton pre air filter raw material media industrial filter
About us
1)We are a professional manufacturer of air filters with ISO9001:2008
2)In case specifications or structure changes,subject to company's latest data.
3)We offer OEM/ODM
2)In case specifications or structure changes,subject to company's latest data.
3)We offer OEM/ODM
Features
Frame: Aluminum mill-finished frame
Media: Polyester fiber. Suitable for high humidity conditions, progressively built-up thermal bonded polyester fiber, steel
supports, high strength, replaceable filter media.
Efficiency: (EN779:2002)G3,G4, F5
(ASHRAE 52.2:2007) MERV7,MERV8, MERV9
Final pressure is recommended:250Pa
Resistant temperature:80-100 °C
Flame retardant level: DIN 53438 F1
supports, high strength, replaceable filter media.
Efficiency: (EN779:2002)G3,G4, F5
(ASHRAE 52.2:2007) MERV7,MERV8, MERV9
Final pressure is recommended:250Pa
Resistant temperature:80-100 °C
Flame retardant level: DIN 53438 F1
Common specifications
Model | Dimensions(mm) W x H x D | Efficiency EN799 | Rated Air Flow (m3/h) | Initial Pressure Drop(pa) 70% 100% 120% | Initial Pressure Drop(pa) |
JPF-12X24X2 | 290X595X46 | G2 | 1700 | 45 70 100 | 250 |
JPF-20X24X2 | 490X595X46 | 2800 | |||
JPF-24X24X2 | 595X595X46 | 3400 | |||
JPF-12X24X2 | 290X595X46 | G3 | 1700 | 65 95 135 | |
JPF-20X24X2 | 490X595X46 | 2800 | |||
JPF-24X24X2 | 595X595X46 | 3400 | |||
JPF-12X24X2 | 290X595X46 | G4 | 1700 | 85 130 175 | |
JPF-20X24X2 | 490X595X46 | 2800 | |||
JPF-24X24X2 | 595X595X46 | 3400 | |||
JPF-12X24X2 | 290X595X46 | F5 | 1700 | 100 140 205 | |
JPF-20X24X2 | 490X595X46 | 2800 | |||
JPF-24X24X2 | 595X595X46 | 3400 |
Please feel free to contact us if you have any questions!
