Product Overview
Description

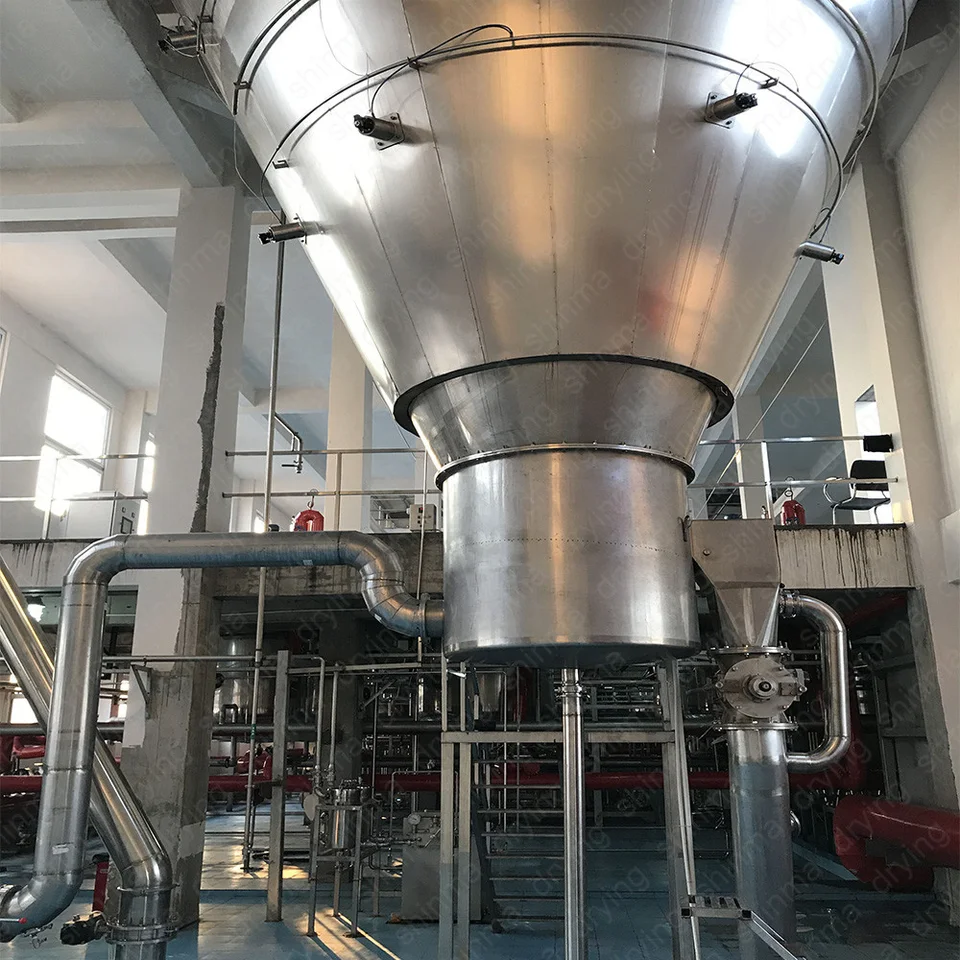

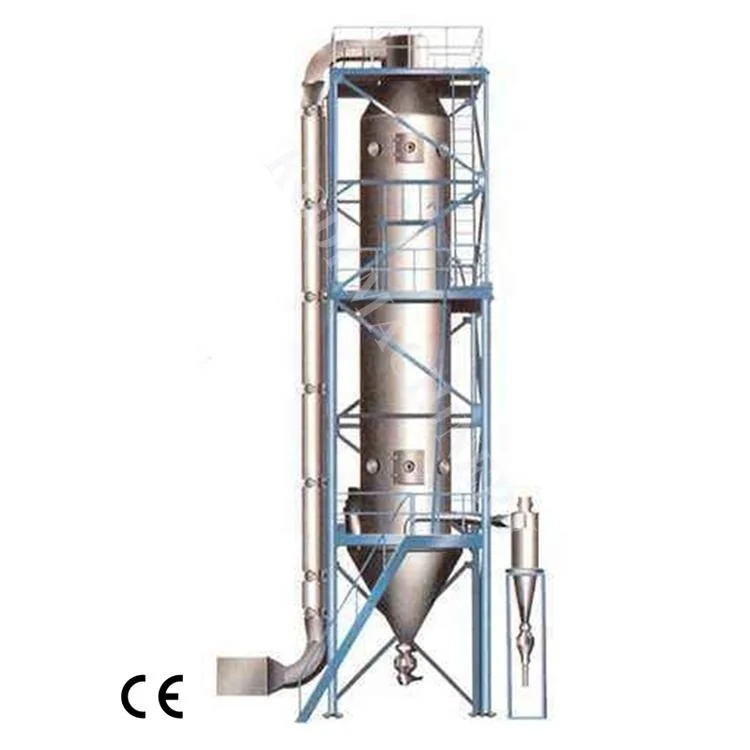

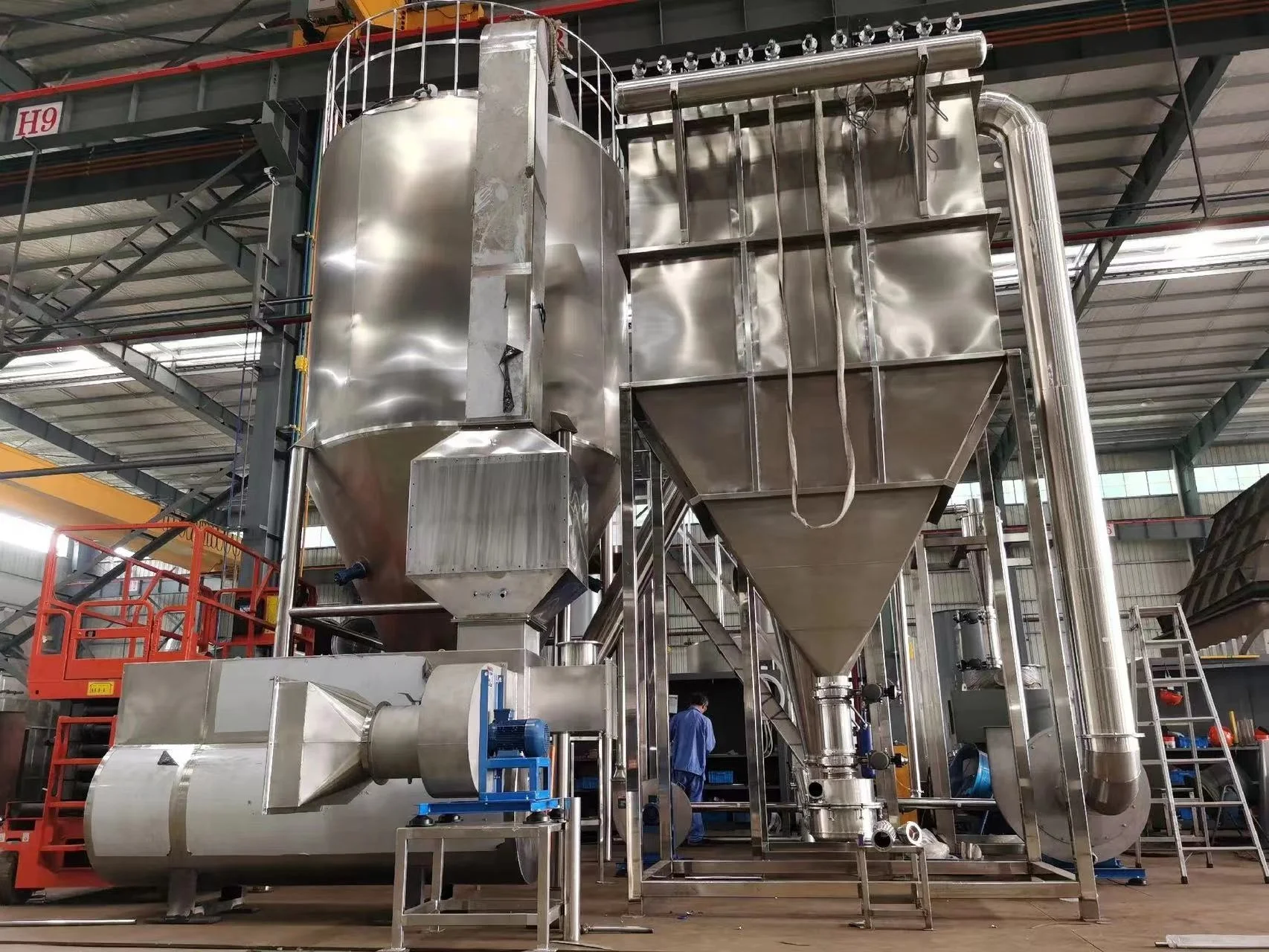

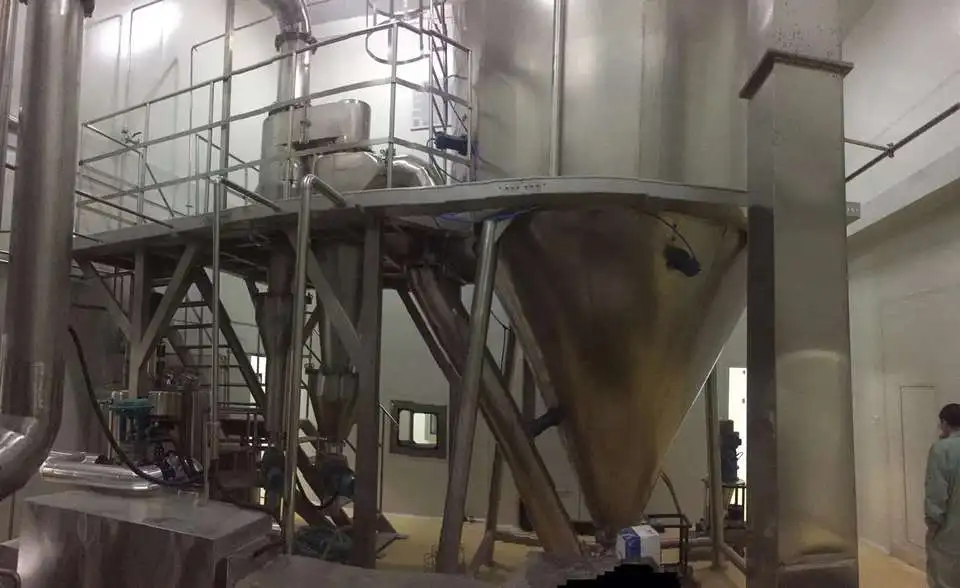

YPG Pressure Spray Dryer

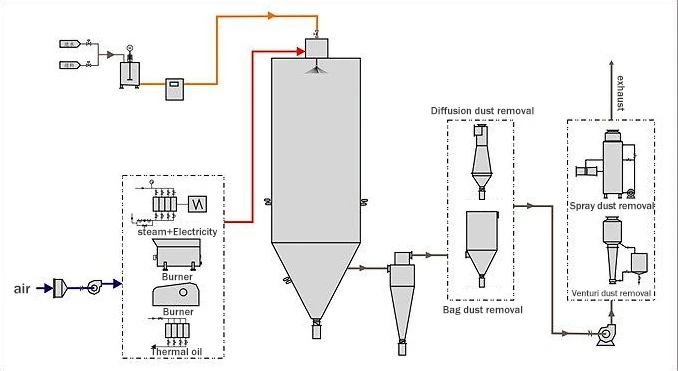

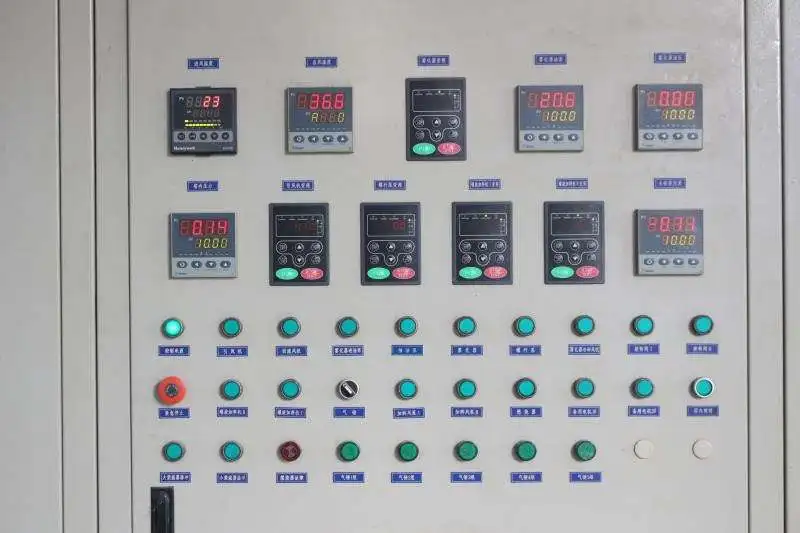

YPG pressure spray dryer is suitable for solution, suspension, slurry, paste material, etc. Liquid material is atomized to small fog drops. And fog drops contact with hot air directly in the drying tower. Moisture content is evaporated instantly. So spray dryer features high efficiency, high mass transfer area, and short drying time, in general it is 5~30 seconds. Operating temperature can be adjusted according to actual situation, in general inlet air temperature is 150~500°C. And its automation control degree is control, environment solution environment can be solved.
Pressure Spray Granule Drying | ||||||||||||||||
Model | YPG-25 | YPG-50 | YPG-100 | YPG-150 | YPG-200 | YPG-300 | YPG-500 | YPG-1000-2000 | ||||||||
Evaporation Capacity(kg/h) | 25 | 50 | 100 | 150 | 200 | 300 | 500 | The index depends on the practical situation. | ||||||||
Overall Dimension(Diameter*Height)(mm) | 1300*7800 | 1800*9200 | 2400*11600 | 2600*14000 | 2800*15300 | 3200*17100 | 3800*19000 | |||||||||
Power(kW) | 15 | 22 | 28 | 30 | 37 | 42 | 50 | |||||||||
High-pressure Pump Pressure(Mpa) | It can be adjusted from 0.6 to 5 according to the material. In general, the pressure will be between 1 and 3 | |||||||||||||||
Heating Resource | Electricity | Electricity+Steam | Electricity+Coal fuel (oil) hot air furnace | |||||||||||||
Inlet Air Temperature(℃) | 300-350 | |||||||||||||||
Product Water Contents | ≤5% | |||||||||||||||
Material Restoration | >97% | |||||||||||||||
Chemical industry: organic catalyst, resin, synthetic washing powder, oils, thiamin, dyestuff, intermediate of dyestuff, white
carbon black, graphite, ammonium phosphate and so onFoodstuff: amino acid and similar substance, flavoring, protein, starch, dairy products, extractive substance from coffee, fish powder,extractive substance from meat and so on
Pharmaceutical: Chinese patent medicines, agrochemicals, antibiotics, medical drinking agent and so on
Ceramics: magnesium oxide, kaoline, all kinds of metallic oxide, dolomite and so on
Granulating through atomizing: all kings of fertilizer, aluminum oxide, ceramics powder, pharmaceutical, heavy metallic supe hardness steel, chemical fertilizer, washing powder, Chinese patent medicines and so on.
carbon black, graphite, ammonium phosphate and so onFoodstuff: amino acid and similar substance, flavoring, protein, starch, dairy products, extractive substance from coffee, fish powder,extractive substance from meat and so on
Pharmaceutical: Chinese patent medicines, agrochemicals, antibiotics, medical drinking agent and so on
Ceramics: magnesium oxide, kaoline, all kinds of metallic oxide, dolomite and so on
Granulating through atomizing: all kings of fertilizer, aluminum oxide, ceramics powder, pharmaceutical, heavy metallic supe hardness steel, chemical fertilizer, washing powder, Chinese patent medicines and so on.
Jiangsu Changshi Drying Technology Co., Ltd specializes in design, production and development of mixer, dryer, crusher, granulator, vibrating screen, dust collector and conveyor. The company has modern standard workshop buildings, engineering and technical personnel with medium and senior titles, more than 10 sets of processing equipment.The specialty provides complete set of powder equipment and solutions. In accordance with the GMP certification standard, the whole process of service is provided.

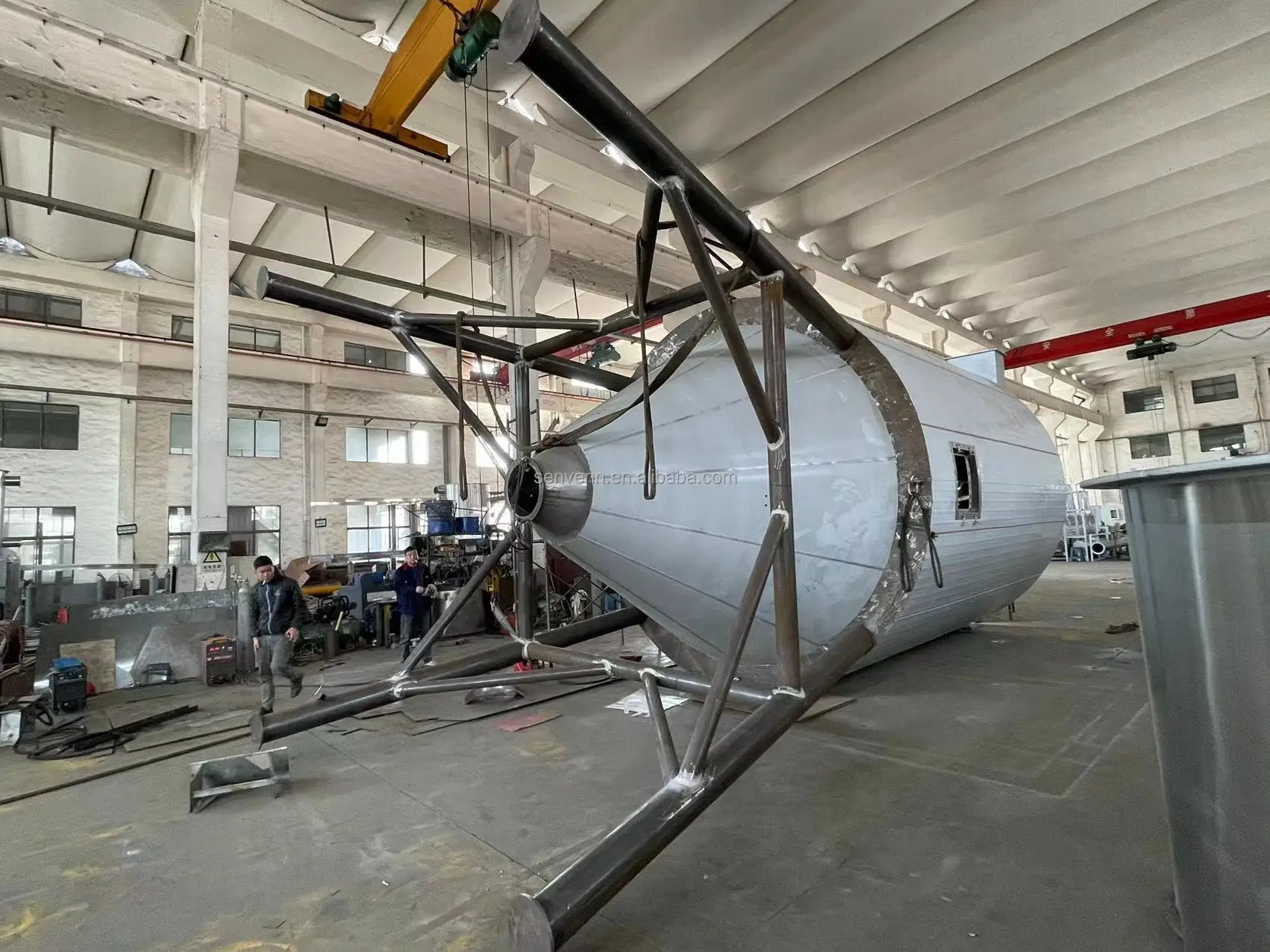

Multiple sets of advanced and sophisticated equipment
Complete and strict production control to be ensure the quality
Clean and tidy warehouse management
Service before sell:
----Provide relative technical data for help equipment selection
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
Service in sell:
----Provide factory layout according to contract
----Manufacturing ordered equipment according to the related standard
----A presentation report of manufacturing situation will be offered every 15days
----Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
----Photo of wooden case will be offered, wooden case with standard shipping marks.
----Photo of freight loading will be offered.
----A record of detailed delivery list will be offered
----A record of detailed freight loading list will be offered
----All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
----Manufacturing ordered equipment according to the related standard
----A presentation report of manufacturing situation will be offered every 15days
----Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
----Photo of wooden case will be offered, wooden case with standard shipping marks.
----Photo of freight loading will be offered.
----A record of detailed delivery list will be offered
----A record of detailed freight loading list will be offered
----All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
Service after sell:
----Send service engineer for help instruct installation.
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell
1.Can I use this machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2.Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3.Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4.How can we visit your factory?
You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5.How to transport equipment?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6.What is the voltage of the equipment?
The equipment voltage is 110V~380V, the specification can be customized according to the voltage standard of the country where your equipment is used.
2.Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3.Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4.How can we visit your factory?
You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5.How to transport equipment?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6.What is the voltage of the equipment?
The equipment voltage is 110V~380V, the specification can be customized according to the voltage standard of the country where your equipment is used.
