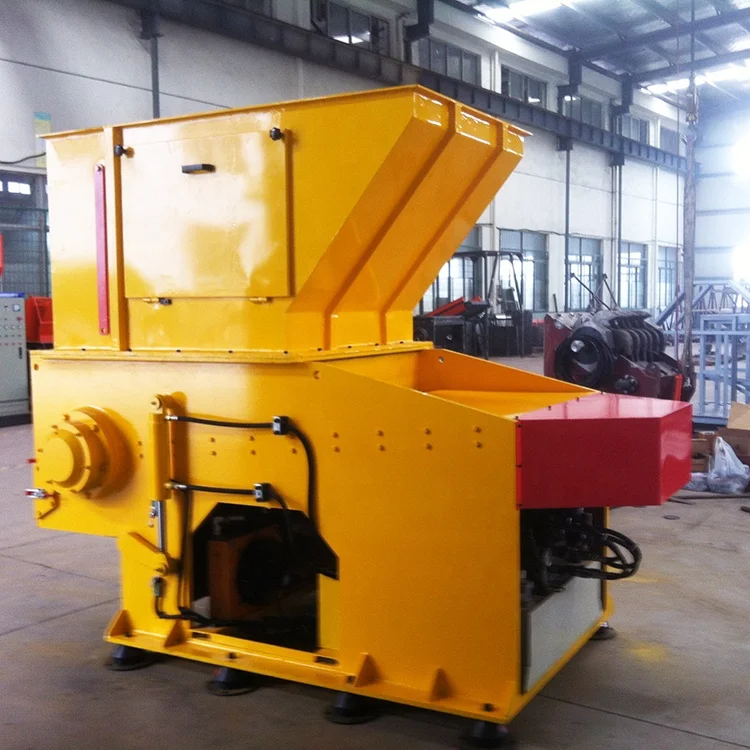

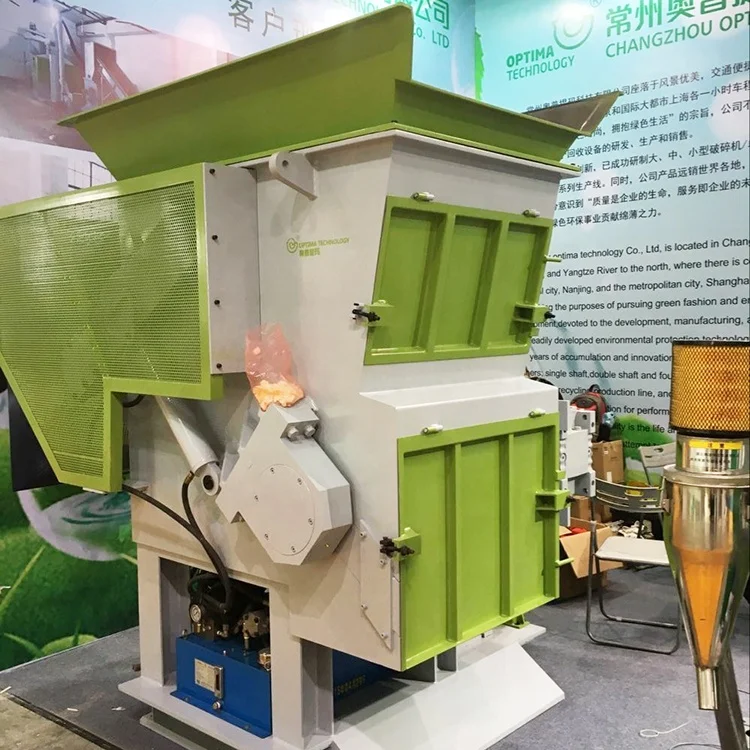

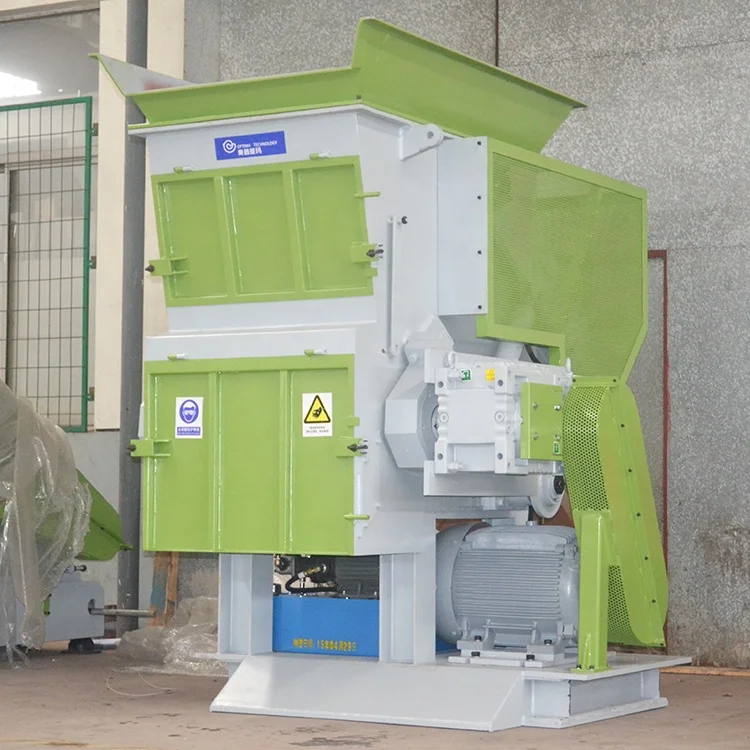

cutting mill copper cable shredder,crusher
- Category: >>>
- Supplier: Changzhou Optima Technology Co. Ltd.
Share on (1600726833944):
Product Overview
Description
Product Overview
MACHINE DESCRIPTION
The single-shaft shredder (1-shaft shredder) is particularly suitable for shredding large quantities of post-consumer, domestic and industrial waste. The robust construction makes the machine ready for heavy and intensive use. Single shaft shredder consist of one shaft with pieces of rotary blades,it can be used to shred solid materials such as plastic, rubber, fiber, paper, wood, electrical components, cables, etc.
Application:
1.Plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon.
2.Plastic pipes
3.Film, Woven bags
4.Living garbage
5.Medical waste
6.Electronic Waste
7.Copper Wire, Aluminum Cable with steel
8.Aluminum Cans
9.Wood: Pallet, tree root, solid wood etc
10.Other materials
1.Plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon.
2.Plastic pipes
3.Film, Woven bags
4.Living garbage
5.Medical waste
6.Electronic Waste
7.Copper Wire, Aluminum Cable with steel
8.Aluminum Cans
9.Wood: Pallet, tree root, solid wood etc
10.Other materials
FEATURES AT A GLANCE
1. Advanced structure, reasonable design, low speed, large torque, and low noise.
2. The cutter comes with a split-type structure, it is convenient to replace and is specially used for shredding hollow materials,
sheets, plates, and other materials.
3. Equipped with a power protection relay to effectively prevent motor damage caused by power supply overvoltage, Undervoltage,
and lack of equivalence.
4. Adopt PLC intelligent control, automatically detect the load of the motor, automatically run forward, stop, reverse and alarm.
5. Equipped with a video surveillance system.
2. The cutter comes with a split-type structure, it is convenient to replace and is specially used for shredding hollow materials,
sheets, plates, and other materials.
3. Equipped with a power protection relay to effectively prevent motor damage caused by power supply overvoltage, Undervoltage,
and lack of equivalence.
4. Adopt PLC intelligent control, automatically detect the load of the motor, automatically run forward, stop, reverse and alarm.
5. Equipped with a video surveillance system.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Motor Power | Shaft Speed | Hydraulic Power | Screen Dia. | Hopper Size |
OSX3060 | 30kw | 80rpm | 4kw | Φ30~60mm | 570*600mm |
OSX3880 | 45kw | 80rpm | 4kw | Φ40~100mm | 700*850mm |
OSX46100 | 45kw | 80rpm | 4kw | Φ40~100mm | 800*1000mm |
OSX46120 | 55kw | 80rpm | 4kw | Φ40~100mm | 800*1200mm |
OSX46150 | 75kw | 80rpm | 5.5kw | Φ40~100mm | 800*1500mm |
OSX75150 | 2*75kw | 80rpm | 7.5kw | Φ40~100mm | 1100*1500mm |
PRODUCT CONFIGURATION
PLC

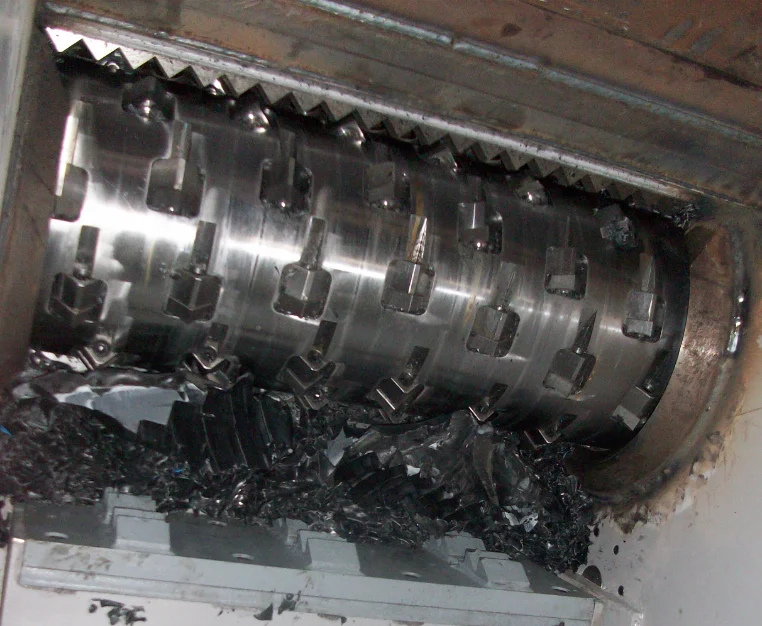

Blades
Motor

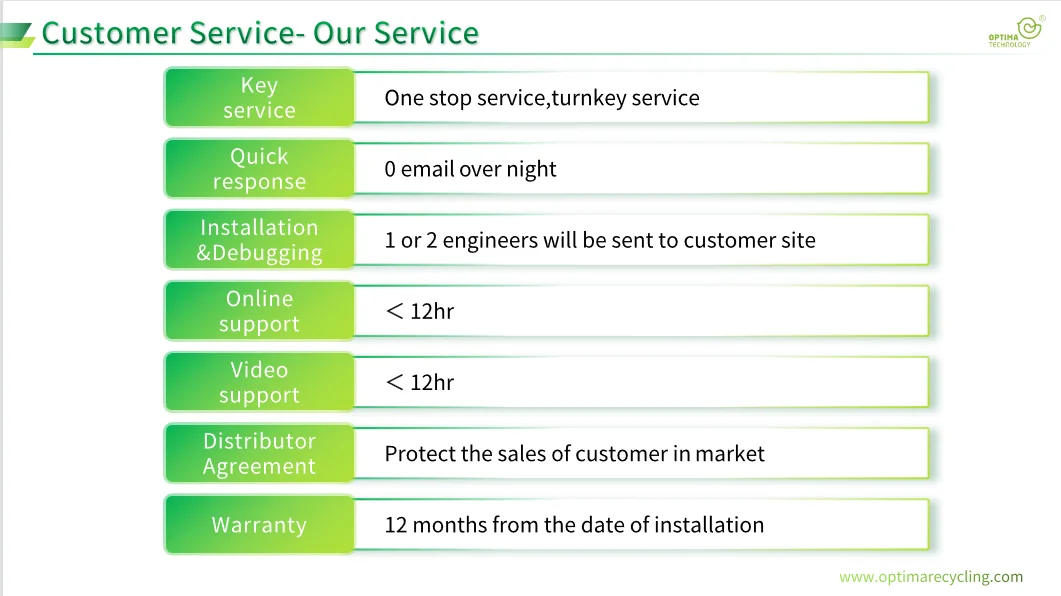

SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
Why choose Optima as partner?
1. Founded in 2011,10+ years manufacturer and exporter
2. Italian technology
3. Contracted manufacturer for USA brand
4. Cover a full range of sizes and applications
5. CE certified
6. ISO9001 system approval
7. One stop service, turnkey service
8. 1hr to airport,2hr to Shanghai port , 3hr to Ningbo port
1. Founded in 2011,10+ years manufacturer and exporter
2. Italian technology
3. Contracted manufacturer for USA brand
4. Cover a full range of sizes and applications
5. CE certified
6. ISO9001 system approval
7. One stop service, turnkey service
8. 1hr to airport,2hr to Shanghai port , 3hr to Ningbo port
FAQ
Q1: Will you send the engineer to guide installation?
A: Yes, according to the customer's requirement, engineers will be sent to guide installation, commissioning, and training.
Q2:Can you offer the OEM and the R&D product?
A: OEM & ODM are available by the engineering team with 15+ years of experience.
Q3:What is the main feature of your shredder?
l Be designed with an aggressive low RPM, and high torque shredding technology.
l All of our blades are made from exotic steel and heat treated to an average of 56-60 on the Rockwell Scale.
l Each shaft is driven by its own Siemens motor, giving it plenty of power to drive through tires and thick steel beads.
l Customized capacity can be up to 20tons per hour.
A: Yes, according to the customer's requirement, engineers will be sent to guide installation, commissioning, and training.
Q2:Can you offer the OEM and the R&D product?
A: OEM & ODM are available by the engineering team with 15+ years of experience.
Q3:What is the main feature of your shredder?
l Be designed with an aggressive low RPM, and high torque shredding technology.
l All of our blades are made from exotic steel and heat treated to an average of 56-60 on the Rockwell Scale.
l Each shaft is driven by its own Siemens motor, giving it plenty of power to drive through tires and thick steel beads.
l Customized capacity can be up to 20tons per hour.
