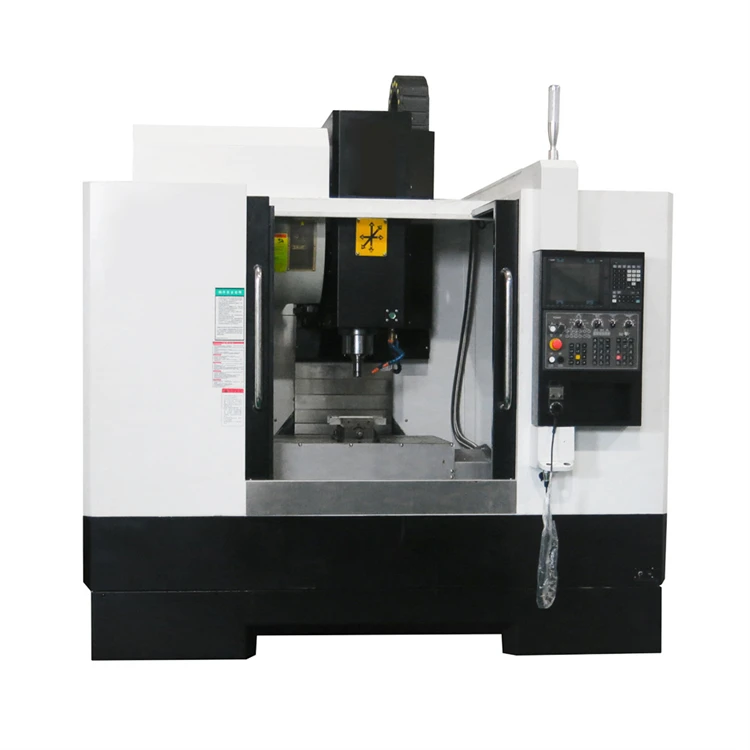

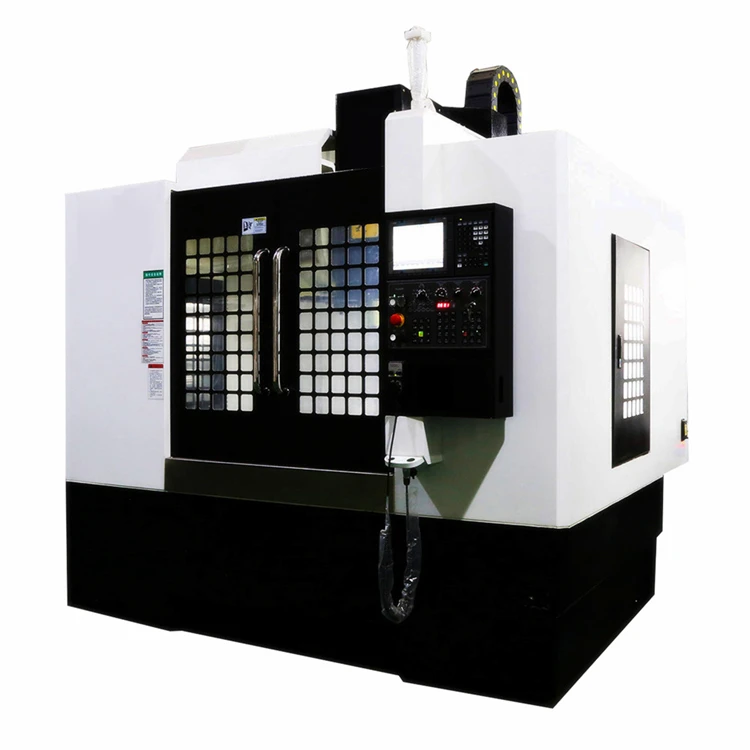

Vmc640 3 Axis Cnc Vertical Machining Center
- Category: >>>
- Supplier: Henan Austing Machinery Co. Ltd.
Share on (1600726881043):
Product Overview
Description
Products Description
Feature
1. The structure of the machine tool is a three coordinate unit structure. The machine body is an integral casting. The sliding table moves in X direction (left and right movement), the ram moves in Y direction (back and forth movement) on the sliding table, the spindle box moves in Z direction (up and down movement) on the column, and the A and C axis NC turntables are fixed on the worktable and rotate around X and Z axes. The machine tool is more reasonable in structure through finite element analysis during the design process to ensure the processing rigidity of the machine tool.
2. The machine tool is equipped with Huazhong 818D CNC system to realize five axis five linkage to meet the processing
requirements of spatial surfaces, and with five axis three linkage (four linkage) system to realize five axis three linkage and four linkage to economically meet the positioning processing of spatial angles.

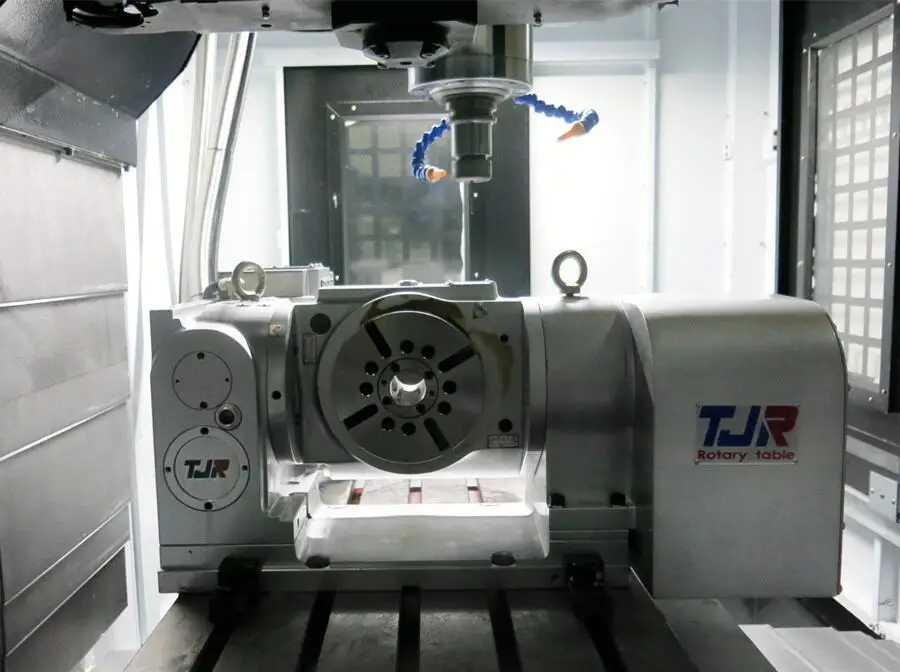

3. The double axis rotary worktable is driven with large torque through the transmission mechanism with large reduction ratio, and the closed-loop control of A and C axes is realized through the servo drive motor to achieve high-precision angle control of the turntable.
2. The machine tool is equipped with Huazhong 818D CNC system to realize five axis five linkage to meet the processing
requirements of spatial surfaces, and with five axis three linkage (four linkage) system to realize five axis three linkage and four linkage to economically meet the positioning processing of spatial angles.
3. The double axis rotary worktable is driven with large torque through the transmission mechanism with large reduction ratio, and the closed-loop control of A and C axes is realized through the servo drive motor to achieve high-precision angle control of the turntable.
Specification
Place of Origin | china |
Brand Name | Austing |
Model Number | VMC640 |
Condition | new |
Spindle Taper | BT40 |
No. of Spindles | Single |
Type | VERTICAL |
Dimension(L*W*H) | 2180x2535x2280MM |
Weight (T) | 3.5 |
Table Size (mm) | 920X400 |
CNC Control System | GSK,FANUC,MITSUBISHI,KND,Siemens,DELEM |
Number of Axes | 3.4.5 |
Table Travel (X) (mm) | 650 |
Table Travel (Y) (mm) | 400 |
Table Travel (Z) (mm) | 500 |
Positioning Accuracy (mm) | ±0.005/300 JIS |
Repeatability (X/Y/Z) (mm) | ±0.003/300 JIS |
Range of Spindle Speed(r.p.m) | 40-8000 |
Spindle Motor Power(kW) | 5.5/7.5 |
Max. Table Load(kg) | 300 |
Feed Speed(mm/min) | 2-10000 |
Rapid Feed Speed(m/min) | 30/30/24 |
Min. Time of Tool Change(s) | 3 |
Tool Magazine Capacity | 16 |
Key Selling Points | Competitive Price |
Warranty | ONE YEAR |
Voltage | Customized |
Applicable Industries | Construction works ,Retail,Machinery Repair Shops,other |
Marketing Type | hot product2022 |

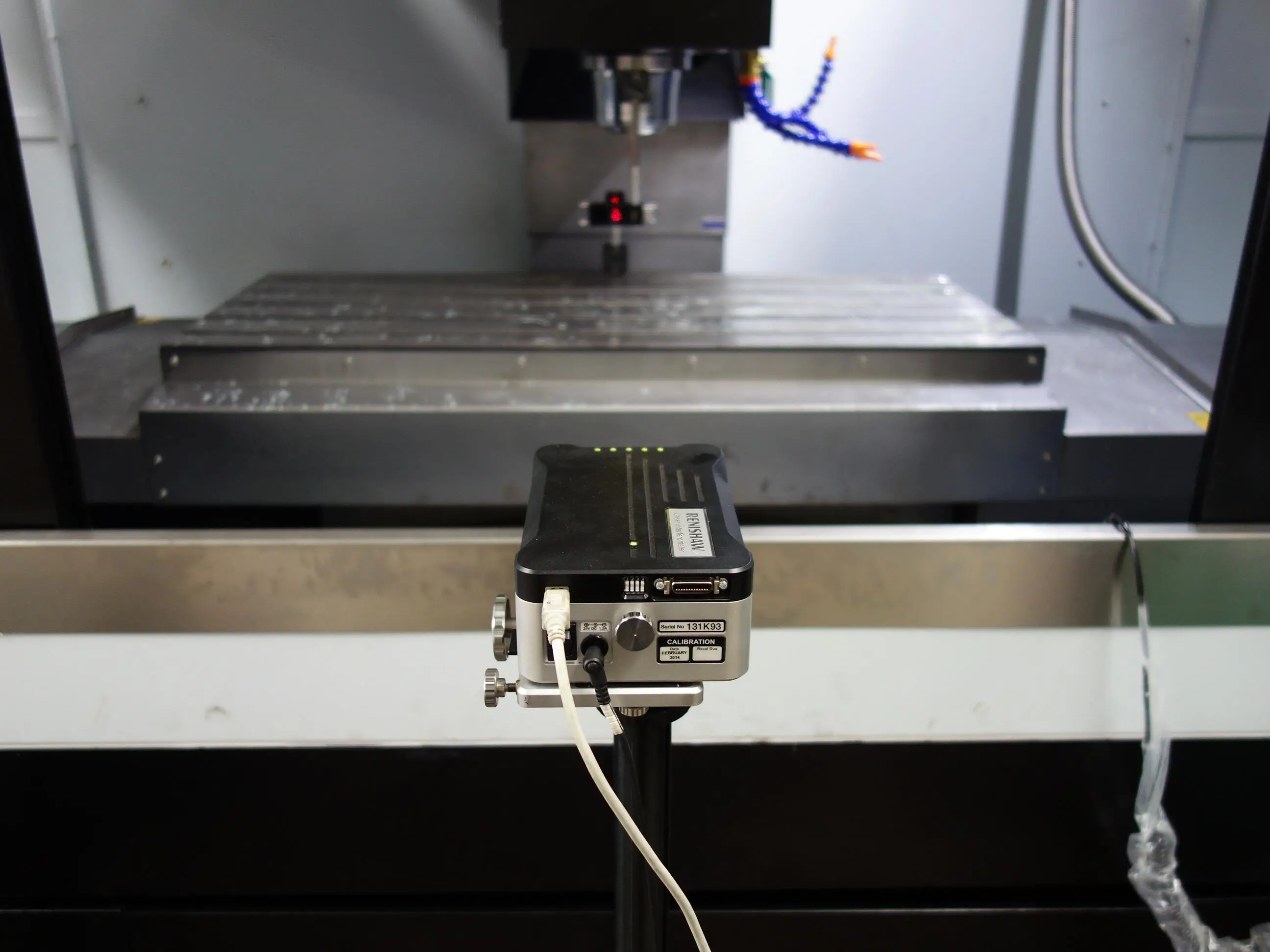

Machinery Test Report | provided |
Video outgoing-inspection | provided |
Warranty of core components | one year |
Core Components | motor |
Machine Type | VMC640 economic China vertical cnc milling machine 3 axis |

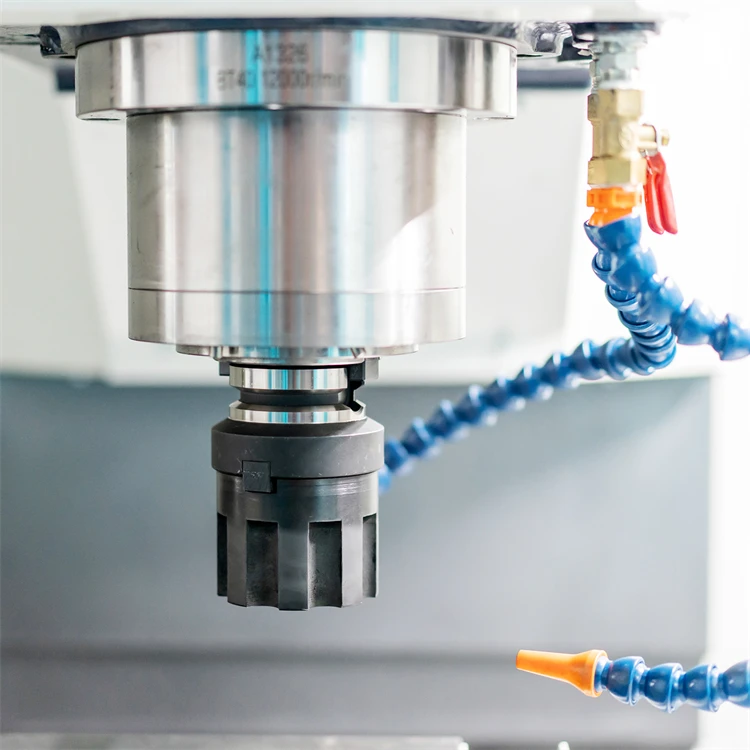

Spindle | Taiwan 10000rpm spindle |
Highest Speed | 8000rpm |
Guideway | X,Y linear guide ways |
Ball Screws | Taiwan or Germany |
Lubrication System | Automatic intermittent lubrication |
Motor Power | 5.5kw |
Cooling System | water cooling, air cooling |
Tool Magazine | umbrella type tool magazine |
Tool Magazine Capacity | 16pcs |

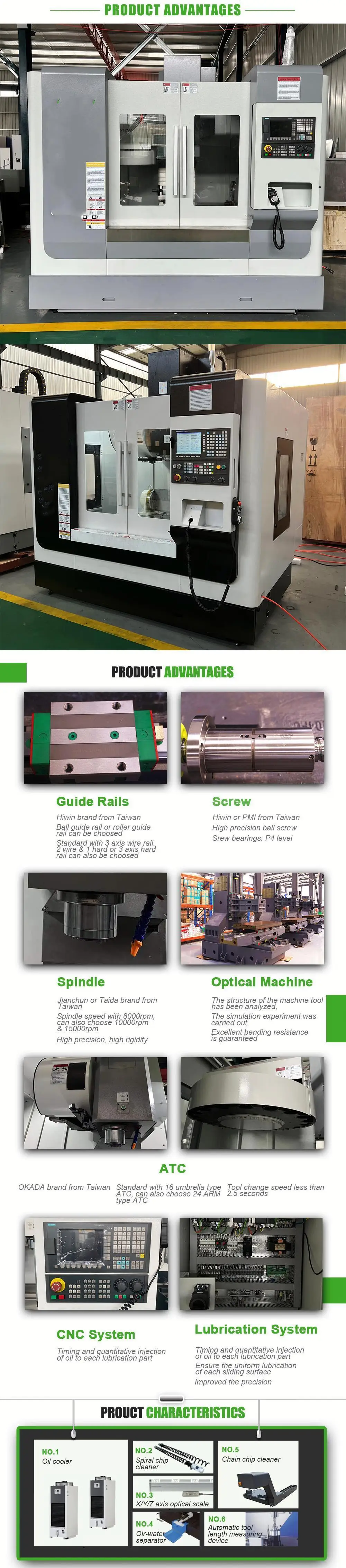

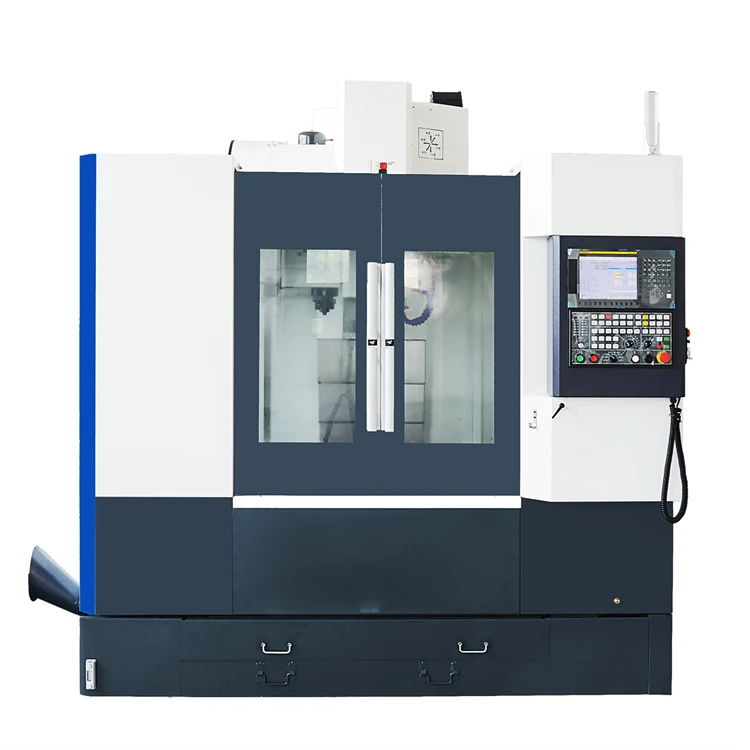

Details Images

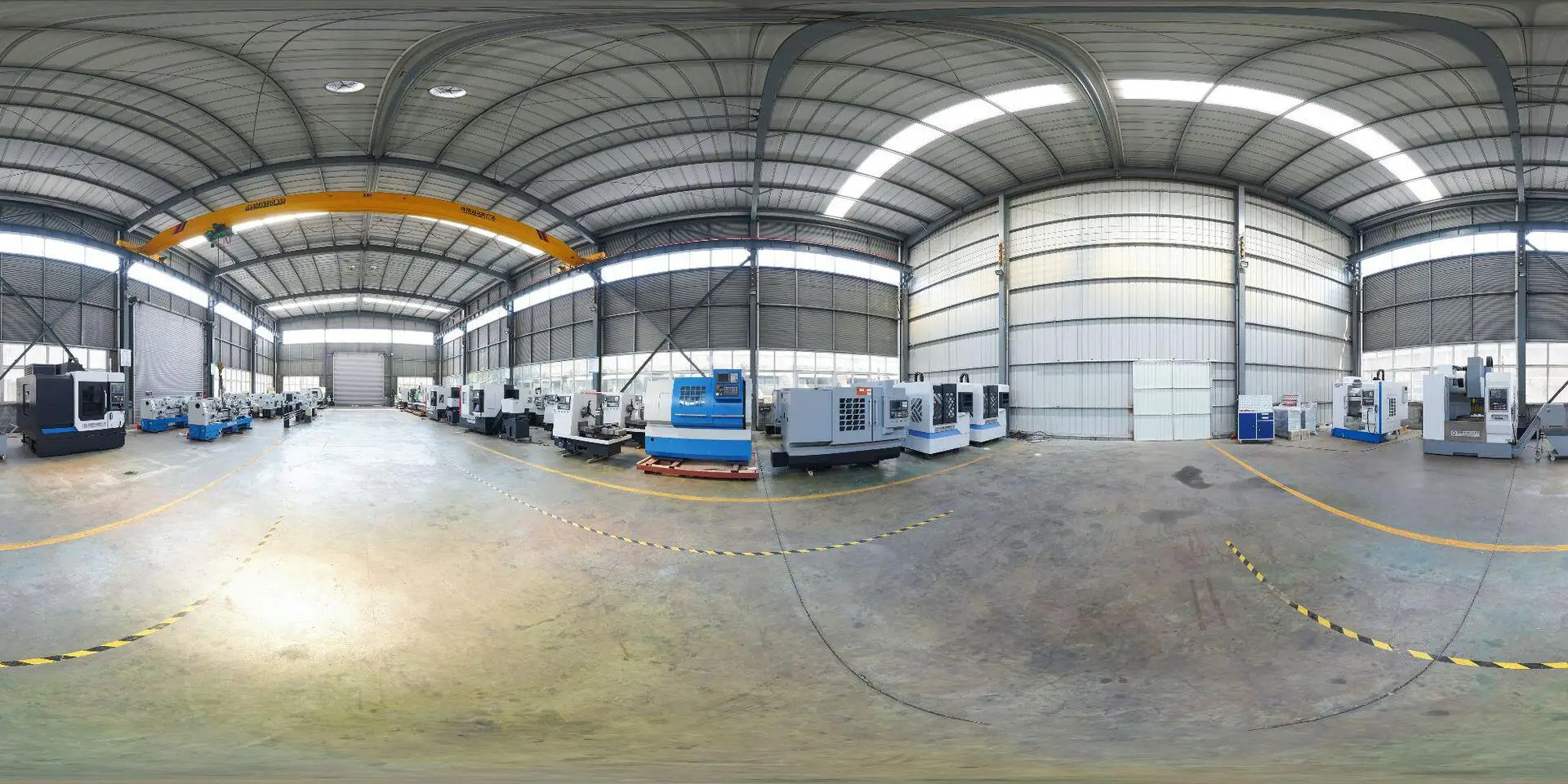

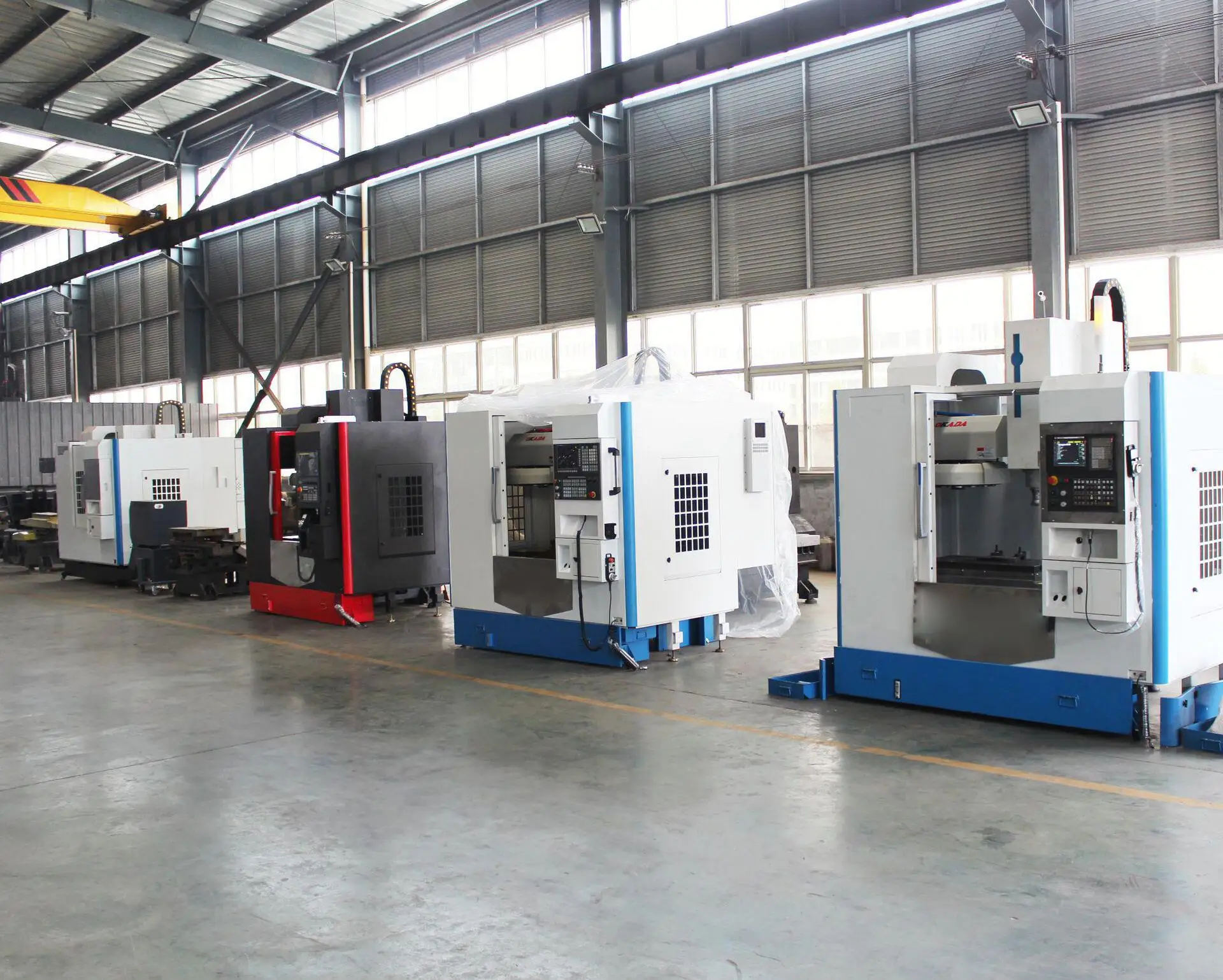

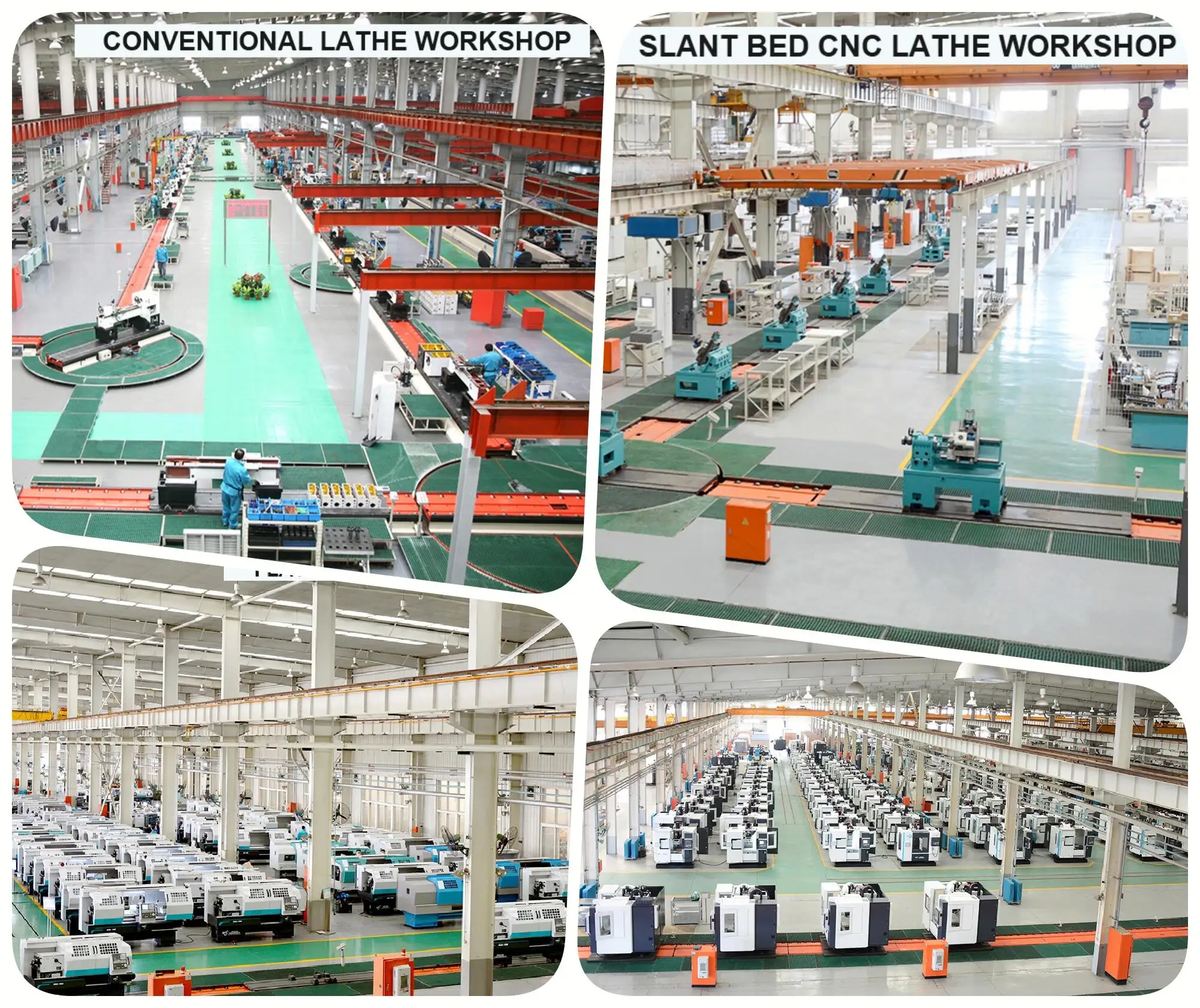

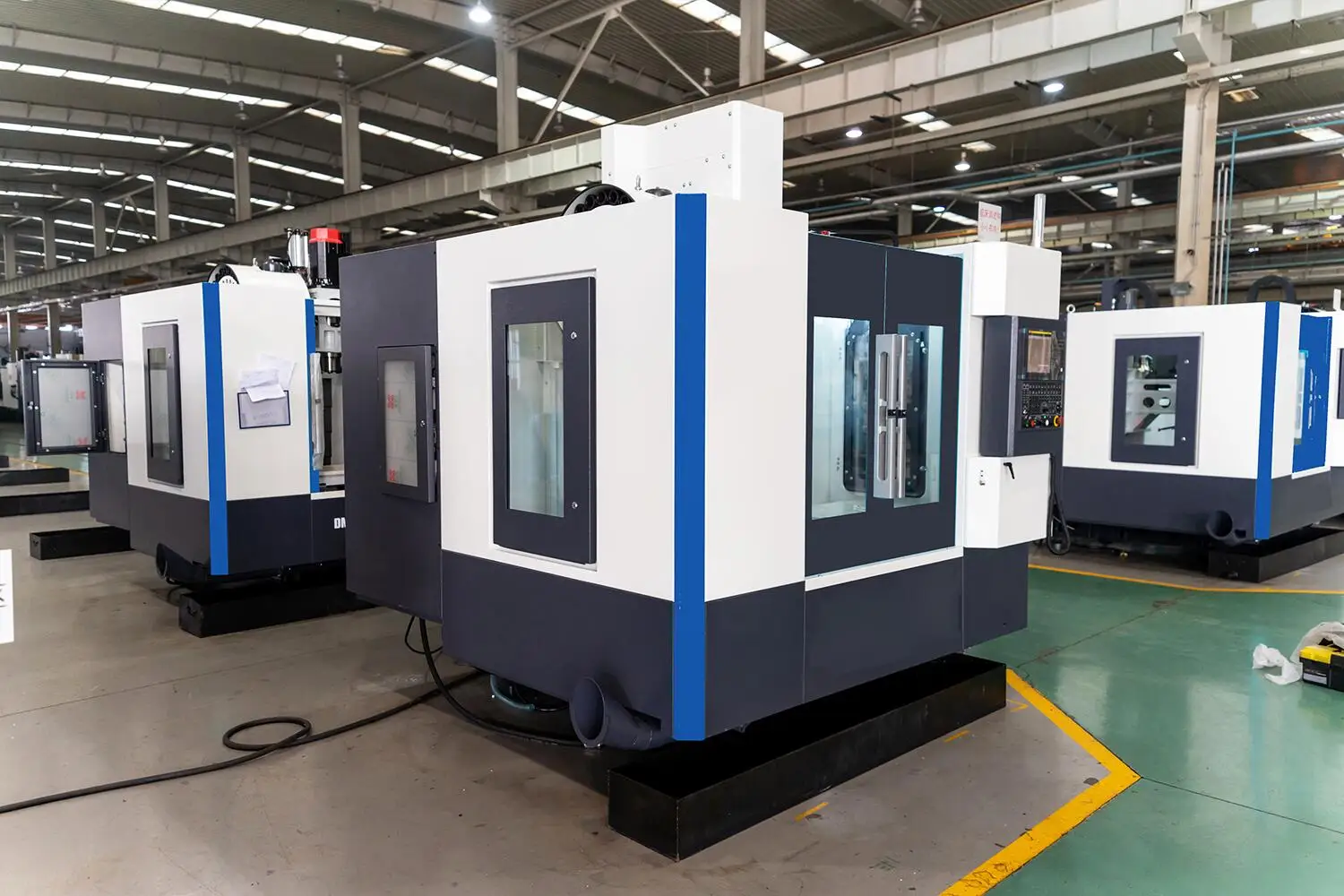

Workshop Overview
Packaging & Shipping
Why Choose Us

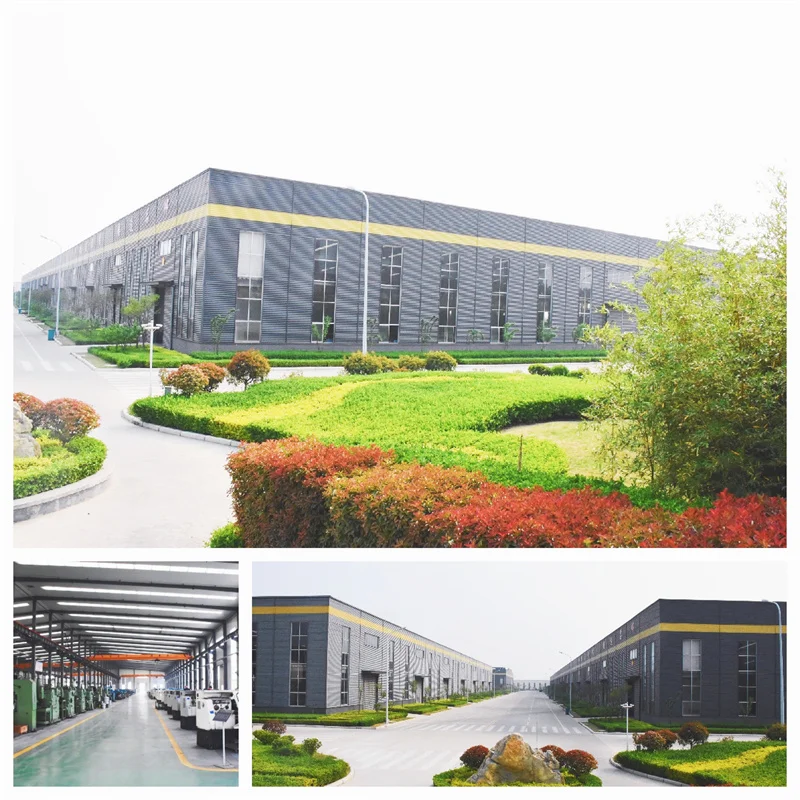

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
