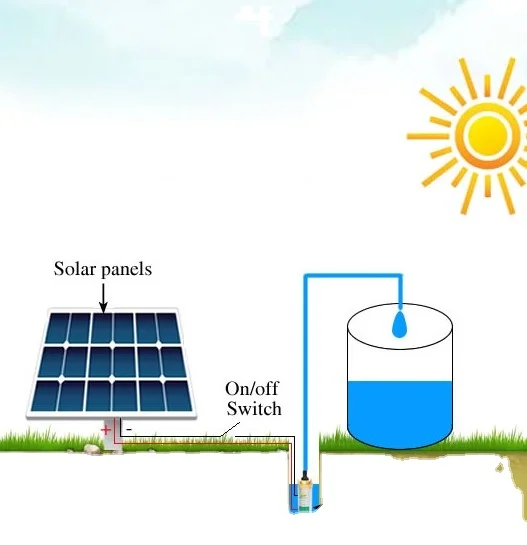

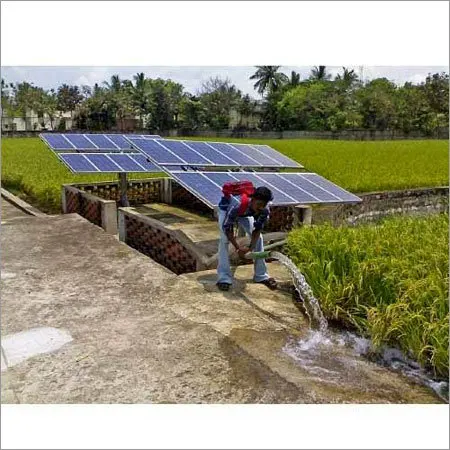

solar energy pumps 4 inch deep well pumps borehole submersible water pump for drip Irrigation
- Category: >>>
- Supplier: Hebei Chenming Pump Co. Ltd.
Share on (1600726889663):
Product Overview
Description
solar energy pumps 4 inch deep well pumps borehole submersible water pump for drip Irrigation
Model: 100QJ1.5-81
Flow: 1.5m3/h
Head: 81m
Power: 0.75kw
Speed: 2900rpm
Product Description

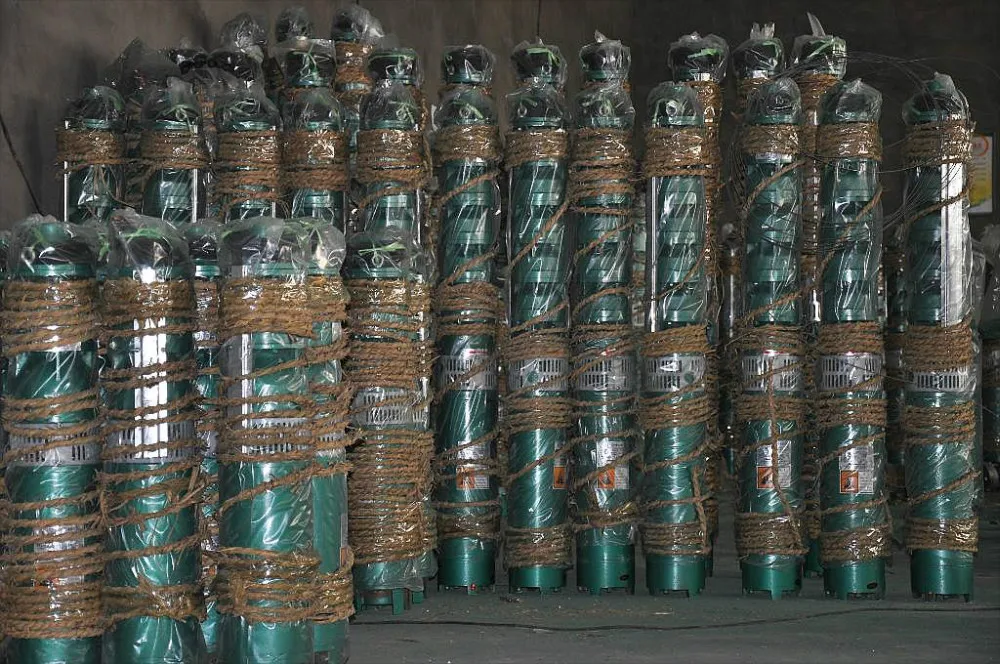

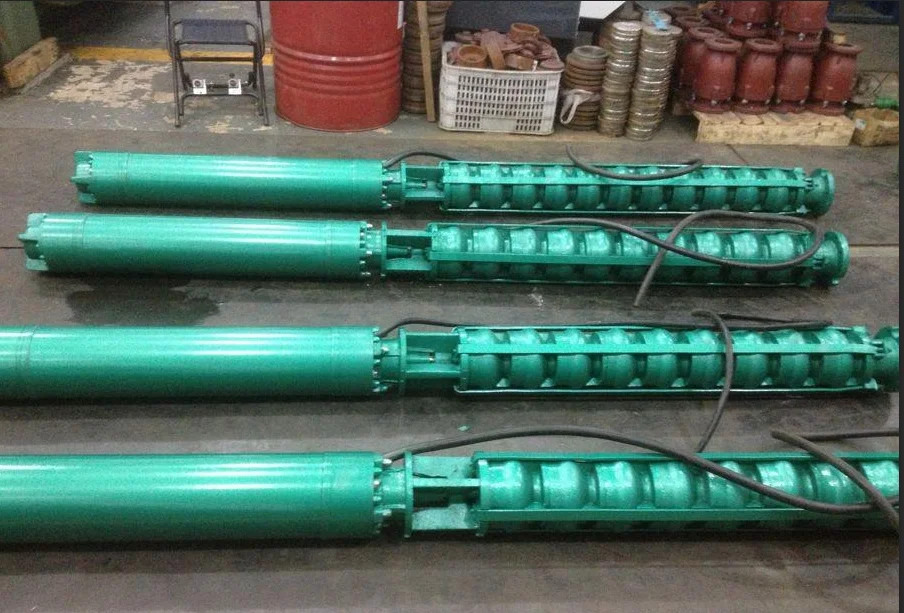

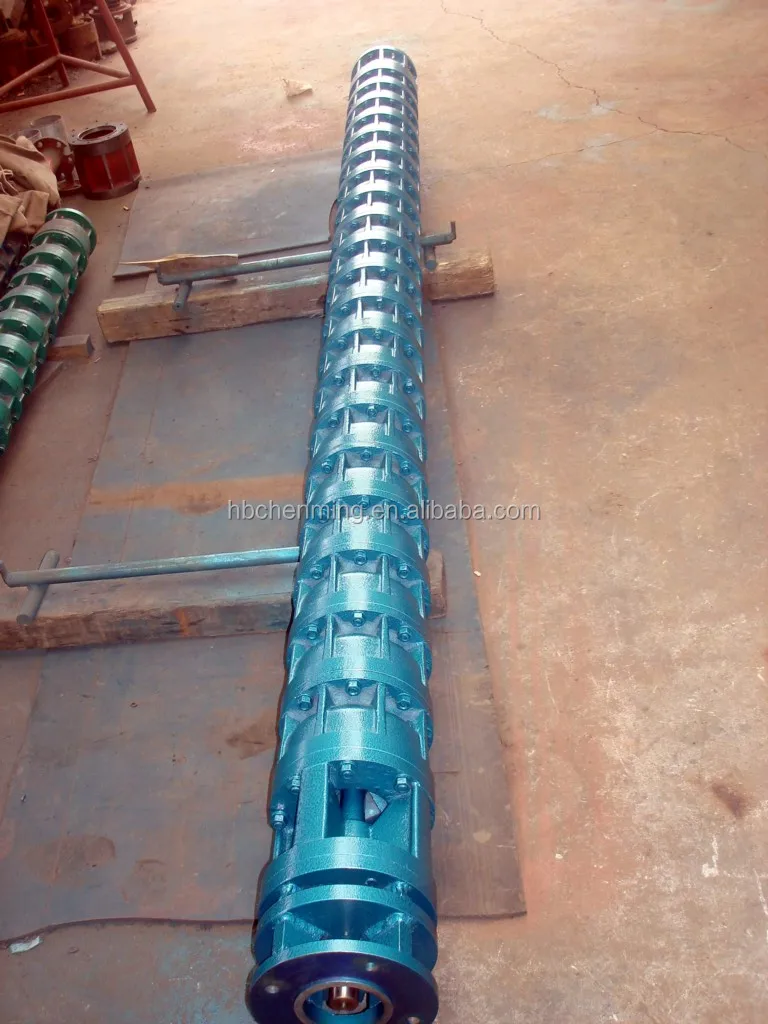

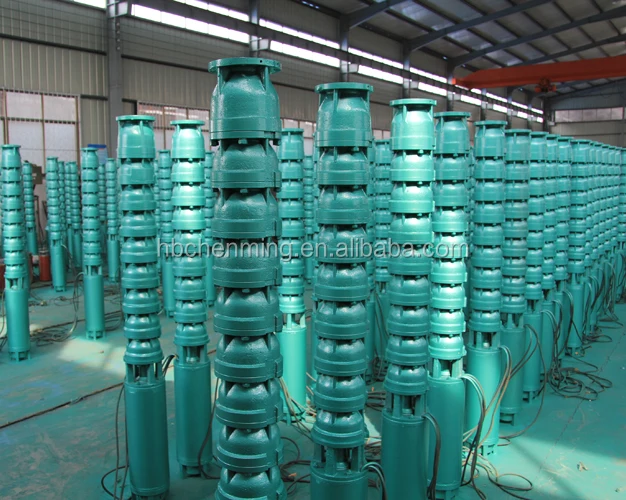

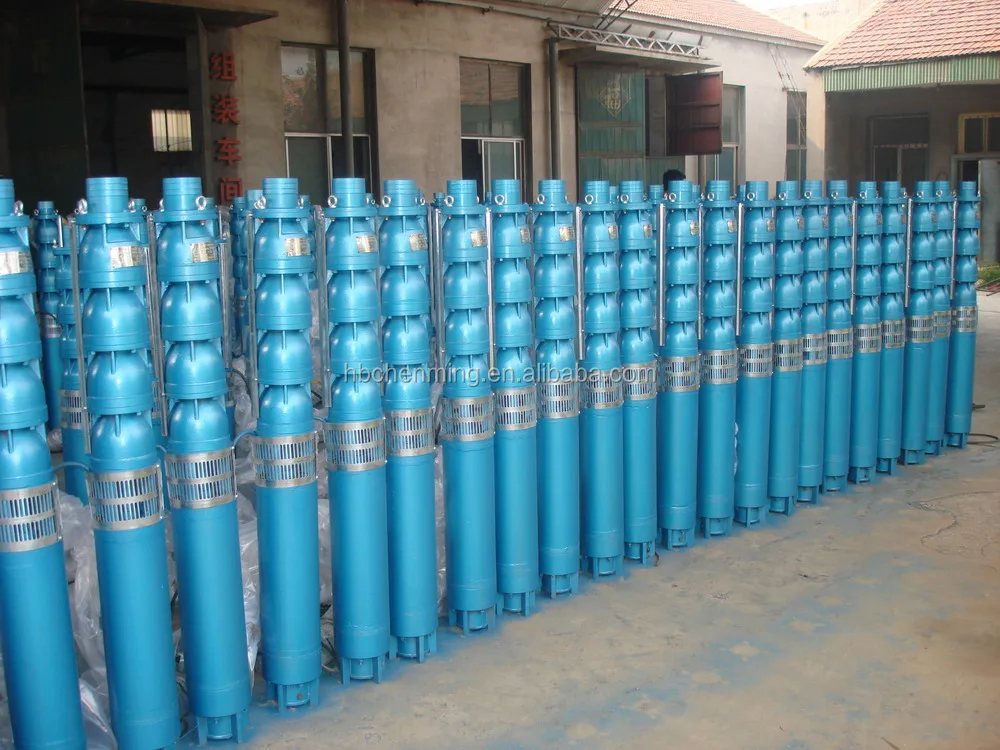

The QJ submersible water pump is multiple centrifugal pump. Impellers, vaned diffuser and socket sleeve are made of chemically resistant plastics ,Moreover, these plastics have high wear resistance to mechanical stress (sand in the well solution). The pump socket is reinforced by stainless barrel. Friction bearing (radial and thrust) are made of siliconized graphite. The pump can be equipped with adapter for connection with armor polyethylene hose group. The pump design provides its high maintainability, which allows consumers to undertake repairs.
Parameter:
| Item | Model | Capacity (m3/h) | Head(m) | Motor power(KW) | Current | Out-dia |
| 1 | 1OOQJ2-50/10 | 2 | 40 | 0.75 | 2.0 | 40 |
| 2 | 100QJ2-70/14 | 70 | 1.1 | 3.1 | ||
| 3 | 100QJ2-80/16 | 80 | 1.1 | 3.1 | ||
| 4 | 100QJ2-100/20 | 100 | 1.5 | 3.8 | ||
| 5 | 100QJ2-110/22 | 110 | 1.5 | 3.8 | ||
| 6 | 100QJ2-140/28 | 140 | 1.5 | 3.8 | ||
| 7 | 100QJ2-150/30 | 150 | 2.2 | 5.6 | ||
| 8 | 1OOOJ2-160/32 | 160 | 2.2 | 5.6 | ||
| 9 | 100QJ2-190/38 | 190 | 2.2 | 5.6 | ||
| 10 | 1OOOJ2-200/40 | 200 | 3.0 | 7.3 | ||
| 11 | 100QJ3.2-40/6 | 2.2 | 40 | 0.75 | 2.0 | 40 |
| 12 | 1OOOJ3.2-54/8 | 54 | 0.75 | 2.0 | ||
| 13 | 100QJ3.2.68/10 | 68 | 1.1 | 3.1 | ||
| 14 | 100QJ3.2-72/11 | 72 | 1.1 | 3.1 | ||
| 15 | 1OOQJ3.2-99/15 | 99 | 1.5 | 3.8 | ||
| 16 | 1OOQJ3.2-108/16 | 108 | 2.2 | 5.6 | ||
| 17 | 100QJ3.2-135/20 | 135 | 2.2 | 5.6 | ||
| 18 | 1OOQJ3.2-144/21 | 144 | 3.O | 7.3 | ||
| 19 | 100QJ3.2-170/25 | 170 | 3.0 | 7.3 | ||
| 20 | 100QJ3.2-230/34 | 230 | 4.0 | 10.26 |
| 21 | 100QJ5-24/6 | 5 | 24 | 0.75 | 2.0 | 40 |
| 22 | 100QJ5-36/9 | 36 | 1.1 | 3.1 | ||
| 23 | 100QJ5-48/12 | 48 | 1.5 | 3.8 | ||
| 24 | 100QJ5-64/16 | 64 | 2.2 | 5.6 | ||
| 25 | 100QJ5-72/18 | 72 | 2.2 | 5.6 | ||
| 26 | 100QJ5-88/22 | 88 | 3.0 | 7.3 | ||
| 27 | 100QJ5-96/24 | 96 | 3.0 | 7.3 | ||
| 28 | 1OOQJ5-108/27 | 108 | 3.0 | 7.3 | ||
| 29 | 100QJ5-128/32 | 128 | 4.0 | 10.26 | ||
| 30 | 100QJ5-164/41 | 164 | 5.5 | 13.74 | ||
| 31 | 100QJ5-220/55 | 220 | 7.5 | 18.5 |
| 32 | 1OOQJ8-15/3 | 8 | 15 | 0.75 | 2.0 | 50 |
| 33 | 1OOQJ8-20/4 | 20 | 1.1 | 3.1 | ||
| 34 | 1OOQJ8-30/6 | 30 | 1.5 | 3.8 | ||
| 35 | 1OOQJ8-40/8 | 40 | 2.2 | 5.6 | ||
| 36 | 1OOQJ8-50/10 | 50 | 3.0 | 7.3 | ||
| 37 | 1OOOJ8-60/12 | 60 | 3.O | 7.3 | ||
| 38 | 1OOQJ8-70/14 | 70 | 3.0 | 7.3 | ||
| 39 | 1OOQJ8-85/17 | 85 | 4.0 | 10.26 | ||
| 40 | 1OOQJ8-95/19 | 95 | 5.5 | 13.74 | ||
| 41 | 1OOQJ8-100/20 | 100 | 5.5 | 13.74 | ||
| 42 | 1OOQJ8-110/22 | 110 | 5.5 | 13.74 | ||
| 43 | 1OOOJ8-135/27 | 135 | 7.5 | 18.5 | ||
| 44 | 1OOQJ8-150/30 | 150 | 7.5 | 18.5 |
| 45 | 1OOQJ10-48/1o | 10 | 48 | 2.2 | 5.6 | 50 |
| 46 | 1OOQJ10-60/13 | 60 | 3.0 | 7.3 | ||
| 47 | 1OOQJ10-80/17 | 80 | 4.0 | 10.26 | ||
| 48 | 1OOQJ10-108/22 | 108 | 5.5 | 13.74 | ||
| 49 | 1OOQJ10-130/27 | 130 | 7.5 | 18.5 | ||
| 50 | 1OOQJ15-34/10 | 15 | 34 | 3.O | 7.3 | 50 |
| 51 | 100QJ15-52/14 | 52 | 4.0 | 10.26 | ||
| 52 | 1OOQJ15-58/18 | 58 | 5.5 | 13.74 | ||
| 53 | 1OOQJ15-82/24 | 82 | 7.5 | 18.5 |
| No. | Model | Flow Rate/Head | Flow Rate/Head | Flow Rate/Head | Power | Pump Diameter | Discharge Diameter |
| kw | mm | mm | |||||
| 1 | 100QJ2-52/10 | 1m3/h, 60m | 2m3/h, 52m | 3m3/h, 38m | 0.55 | 96 | 40 |
| 2 | 100QJ2-70/13 | 1m3/h, 79m | 2m3/h, 70m | 3m3/h, 50m | 0.75 | 96 | 40 |
| 3 | 100QJ2-98/19 | 1m3/h, 114m | 2m3/h, 98m | 3m3/h, 72m | 1.1 | 96 | 40 |
| 4 | 100QJ2-140/27 | 1m3/h, 162m | 2m3/h, 140m | 3m3/h, 102m | 1.5 | 96 | 40 |
| 5 | 100QJ3-30/8 | 2m3/h, 40m | 3m3/h, 30m | 4m3/h, 20m | 0.55 | 96 | 40 |
| 6 | 100QJ3-52/10 | 2m3/h, 62m | 3m3/h, 52m | 4m3/h, 36m | 0.75 | 96 | 40 |
| 7 | 100QJ3-72/14 | 2m3/h, 87m | 3m3/h, 72m | 4m3/h, 50m | 1.1 | 96 | 40 |
| 8 | 100QJ3-93/18 | 2m3/h, 112m | 3m3/h, 93m | 4m3/h, 65m | 1.5 | 96 | 40 |
| 9 | 100QJ3-134/26 | 2m3/h, 160m | 3m3/h, 134m | 4m3/h, 95m | 2.2 | 96 | 40 |
| 10 | 100QJ3-165/32 | 2m3/h, 200m | 3m3/h, 165m | 4m3/h, 116m | 3 | 96 | 40 |
| 11 | 100QJ3-227/44 | 2m3/h, 270m | 3m3/h, 227m | 4m3/h, 160m | 4 | 96 | 40 |
| 12 | 100QJ4-30/6 | 3m3/h, 35m | 4m3/h, 30m | 5m3/h, 20m | 0.55 | 96 | 40 |
| 13 | 100QJ4-40/8 | 3m3/h, 45m | 4m3/h, 40m | 5m3/h, 26m | 0.75 | 96 | 40 |
| 14 | 100QJ4-60/12 | 3m3/h, 67m | 4m3/h, 60m | 5m3/h, 40m | 1.1 | 96 | 40 |
| 15 | 100QJ4-80/16 | 3m3/h, 88m | 4m3/h, 80m | 5m3/h, 52m | 1.5 | 96 | 40 |
| 16 | 100QJ4-110/24 | 3m3/h, 130m | 4m3/h, 110m | 5m3/h, 80m | 2.2 | 96 | 40 |
| 17 | 100QJ4-140/30 | 3m3/h, 167m | 4m3/h, 140m | 5m3/h, 100m | 3 | 96 | 40 |
| 18 | 100QJ4-180/40 | 3m3/h, 200m | 4m3/h, 180m | 5m3/h, 130m | 4 | 96 | 40 |
| 19 | 100QJ4-250/55 | 3m3/h, 275m | 4m3/h, 250m | 5m3/h, 180m | 5.5 | 96 | 40 |
| 20 | 100QJ4-340/75 | 3m3/h, 375m | 4m3/h, 340m | 5m3/h, 240m | 7.5 | 96 | 40 |
| 21 | 100QJ6-26/7 | 4m3/h, 36m | 6m3/h, 26m | 7m3/h, 16m | 0.75 | 96 | 40 |
| 22 | 100QJ6-34/9 | 4m3/h, 46m | 6m3/h, 34m | 7m3/h, 20m | 1.1 | 96 | 40 |
| 23 | 100QJ6-50/13 | 4m3/h, 67m | 6m3/h, 50m | 7m3/h, 29m | 1.5 | 96 | 40 |
| 24 | 100QJ6-70/18 | 4m3/h, 100m | 6m3/h, 70m | 7m3/h, 41m | 2.2 | 96 | 40 |
| 25 | 100QJ6-110/26 | 4m3/h, 145m | 6m3/h, 110m | 7m3/h, 62m | 3 | 96 | 40 |
| 26 | 100QJ6-130/34 | 4m3/h, 180m | 6m3/h, 130m | 7m3/h, 81m | 4 | 96 | 40 |
| 27 | 100QJ6-166/42 | 4m3/h, 225m | 6m3/h, 166m | 7m3/h, 90m | 5.5 | 96 | 40 |
| 28 | 100QJ6-220/56 | 4m3/h, 300m | 6m3/h, 220m | 7m3/h, 120m | 7.5 | 96 | 40 |
| 29 | 100QJ8-41/8 | 6m3/h, 45m | 8m3/h, 41m | 10m3/h, 33m | 1.5 | 96 | 50 |
| 30 | 100QJ8-60/12 | 6m3/h, 68m | 8m3/h, 60m | 10m3/h, 50m | 2.2 | 96 | 50 |
| 31 | 100QJ8-76/15 | 6m3/h, 86m | 8m3/h, 76m | 10m3/h, 65m | 3 | 96 | 50 |
| 32 | 100QJ8-104/20 | 6m3/h, 114m | 8m3/h, 104m | 10m3/h, 80m | 4 | 96 | 50 |
| 33 | 100QJ8-115/23 | 6m3/h, 128m | 8m3/h, 115m | 10m3/h, 100m | 5.5 | 96 | 50 |
| 34 | 100QJ8-145/28 | 6m3/h, 160m | 8m3/h, 145m | 10m3/h, 120m | 7.5 | 96 | 50 |
| 35 | 100QJ10-48/10 | 8m3/h, 58m | 10m3/h, 48m | 14m3/h, 27m | 2.2 | 96 | 50 |
| 36 | 100QJ10-60/13 | 8m3/h, 72m | 10m3/h, 60m | 14m3/h, 36m | 3 | 96 | 50 |
| 37 | 100QJ10-80/17 | 8m3/h, 95m | 10m3/h, 80m | 14m3/h, 45m | 4 | 96 | 50 |
| 38 | 100QJ10-108/22 | 8m3/h, 125m | 10m3/h, 108m | 14m3/h, 57m | 5.5 | 96 | 50 |
| 39 | 100QJ10-130/27 | 8m3/h, 151m | 10m3/h, 130m | 14m3/h, 72m | 7.5 | 96 | 50 |
| 40 | 100QJ16-34/10 | 14m3/h, 37m | 16m3/h, 34m | 20m3/h, 26m | 3 | 96 | 50 |
| 41 | 100QJ16-48/14 | 14m3/h, 53m | 16m3/h, 48m | 20m3/h, 36m | 4 | 96 | 50 |
| 42 | 100QJ16-61/18 | 14m3/h, 65m | 16m3/h, 61m | 20m3/h, 47m | 5.5 | 96 | 50 |
| 43 | 100QJ16-81/24 | 14m3/h, 90m | 16m3/h, 81m | 20m3/h, 60m | 7.5 | 96 | 50 |
Feature:
1. Designed for chemically active water pumping from wells and for mining by underground leaching.
2. The unit consists of a pump and electric motor
3. Operating position of the unit is vertical
4. Working supply voltage - 380 V, frequency - 50 Hz.
