Best selling 300mm sawing band saw machine for wood cutting
- Category: >>>
- Supplier: Henan,rowdai,Machinery,Equipment,Co.,LTD
Share on:
Product Overview
Description
Product Overview

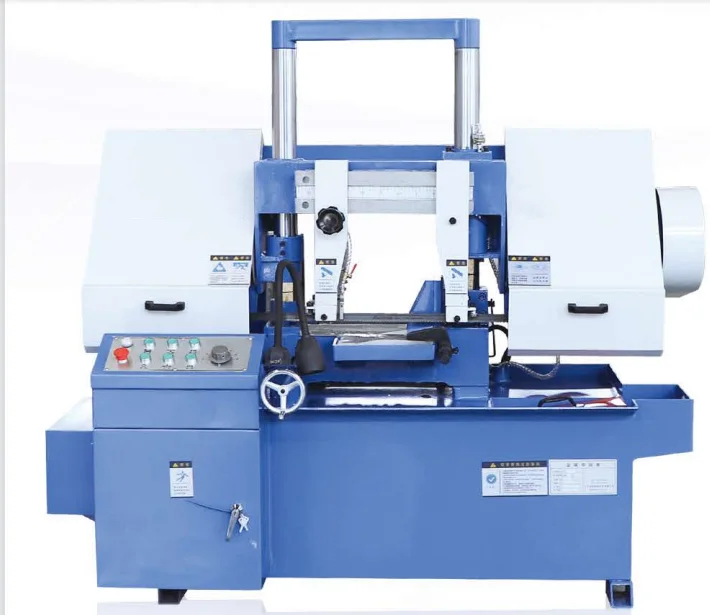

Semi-automatic double column
The machine is used for cutting various metal materials.Gantry double column structure is the best operation structure of horizontal sawing machine.It runs smoothly and greatly ensures the sawing accuracy. It can be sawed by a single hydraulic clamping to realize bundle sawing.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
PRODUCT SPECIFICATIONS
Specifications | GW4228 | GW4230 | GW4235 | GW4240 | GW4250 | ||||
Max.cutting(mm) | 280-280*280 | 300-300*300 | 350-350*350 | 400-400*400 | 500-500*500 | ||||
Saw blade speed(m/min) | 27/45/69 | 27/45/69 | 27/45/69 | 27/45/69 | 27/45/69 | ||||
Saw blade size(mm) | 3505*27*0.9 | 3705*27*0.9 | 4115*34*1.1 | 5000*41*1.3 | 5450*41*1.3 | ||||
Main motor(kw) | 2.2 | 2.2 | 3 | 4 | 5.5 | ||||
Working clamping mode | Hydraulic vice | Hydraulic vice | Hydraulic vice | Hydraulic vice | Hydraulic vice | ||||
Main transmission structure | Worm gear | ||||||||
Band saw blade tensioning method | Manual | Manual | Manual | Manual | Manual | ||||
Cleaning | Wire brush | ||||||||
Hydraulic motor power(kw) | 0.55 | 0.75 | 0.75 | 0.75 | 1.5 | ||||
cooling pump power(kw) | 0.04 | 0.04 | 0.04 | 0.09 | 0.125 | ||||
work bench height(mm) | 300 | 300 | 300 | 300 | 300 | ||||
overall dimension(cm) | 186*100*140 | 186*100*140 | 200*110*150 | 250*130*160 | 280*180*210 | ||||
packing size(cm) | 191*105*155 | 191*105*155 | 205*115*165 | 255*135*175 | 285*185*225 | ||||
weight(kw) | 650 | 700 | 1000 | 1400 | 2600 | ||||
SALES AND SERVICE NETWORK
FAQ
1. How long is the warranty?
A: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods. If needed ,we will provide free accessories
A: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods. If needed ,we will provide free accessories
2. Can I have my own customized product?
A: Yes, your customized requirements for color, logo, design, package, carton mark, etc. are welcome
3. How do I pay for my purchase order?
A: T/T, L/C at sight, Western Union, MoneyGram
4. What is your terms of payment?
A: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance
5. What is your terms of payment?
A: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance
A: Yes, your customized requirements for color, logo, design, package, carton mark, etc. are welcome
3. How do I pay for my purchase order?
A: T/T, L/C at sight, Western Union, MoneyGram
4. What is your terms of payment?
A: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance
5. What is your terms of payment?
A: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance
Certifications

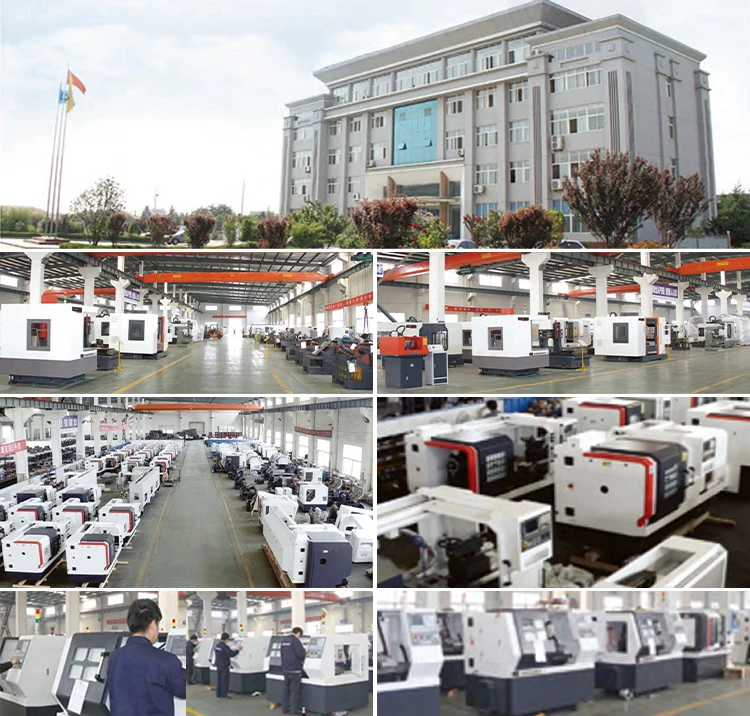

Company Profile
