Product Overview
Description

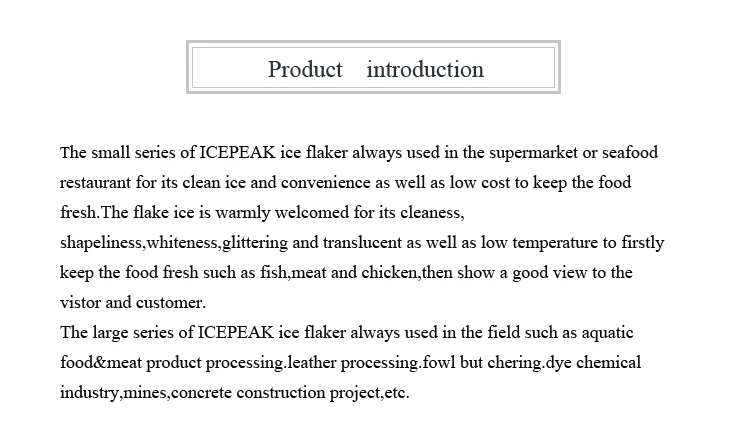

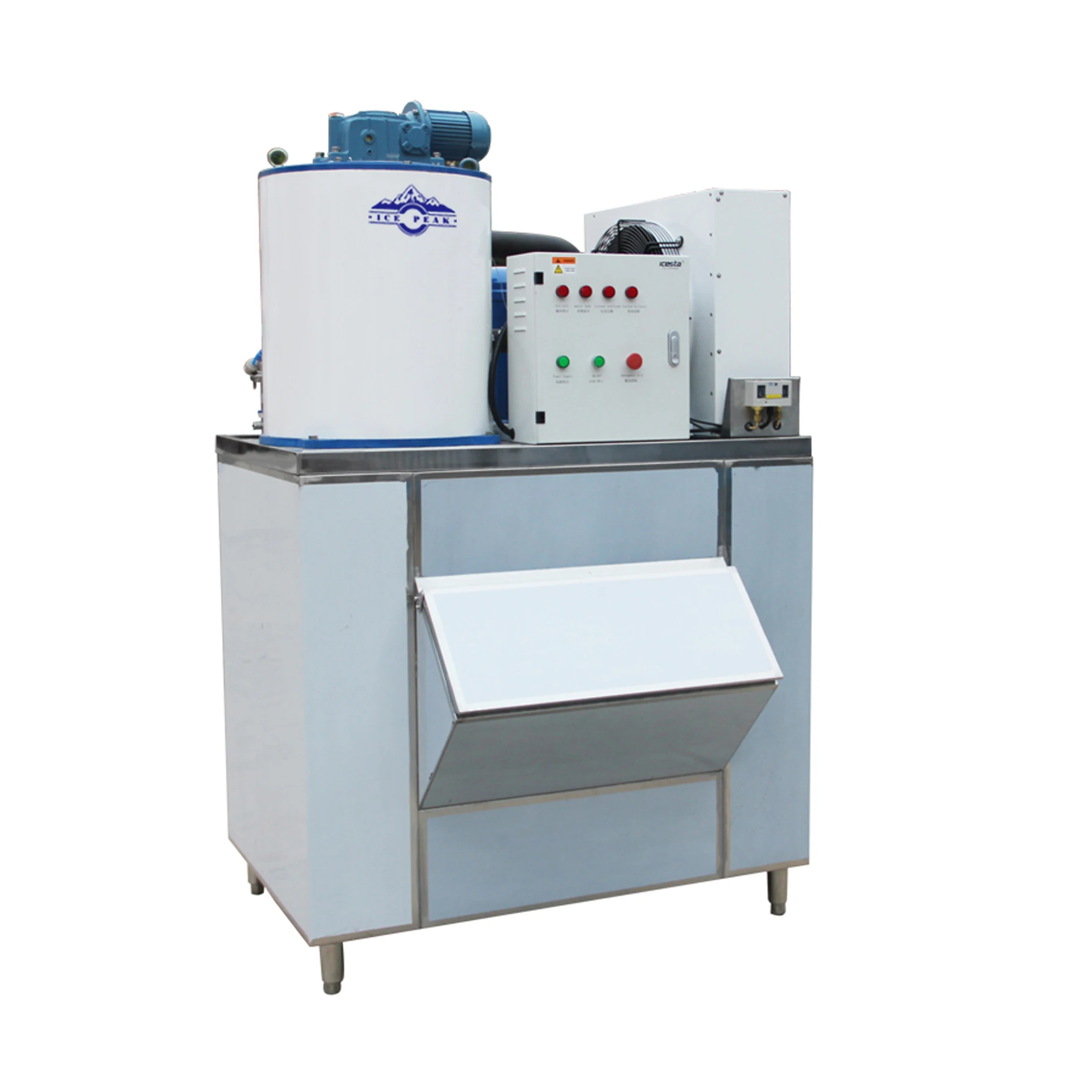

The small series of ICEPEAK ice flaker always used in the supermarket or seafood restaurant for its clean ice and convenience as well as low cost to keep the food fresh.The flake ice is warmly welcomed for its cleaness, shapeliness,whiteness,glittering and translucent as well as low temperature to firstly keep the food fresh such as fish,meat and chicken,then show a good view to the vistor and customer.

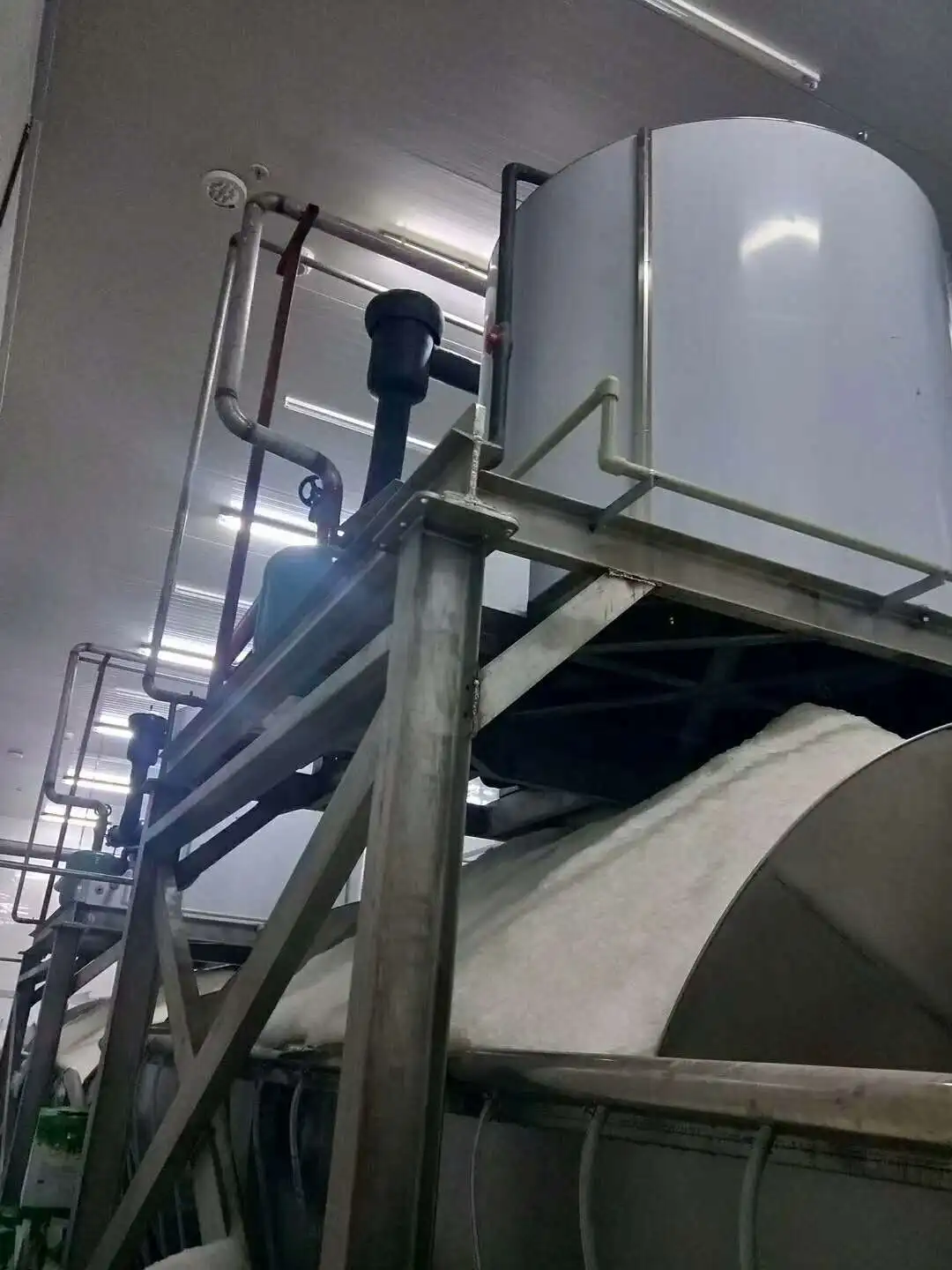

The large series of ICEPEAK ice flaker always used in the field such as aquatic food&meat product processing.leather processing.fowl but chering.dye chemical industry,mines,concrete construction project,etc.
The large series of ICEPEAK ice flaker always used in the field such as aquatic food&meat product processing.leather processing.fowl but chering.dye chemical industry,mines,concrete construction project,etc.
Basic product requirement
1. Evaporator material：inner wall：Q345 high efficiency alloy steel chrome plated, exterior surface：SUS 304; middle insulation layer: polyurethane;Upper and lower base: ZL301;
2. Water cooling type: fresh water to make ice and for condenser cooling;
3. Use Bitzer piston compressor (Type:4GE-23Y-40P)；
4. Standard power supply: 3P/380V/50HZ；R404A as refrigerant；
5. Ice storage room requirement: color stell material for both sides; panel thickness: 100mm; standard outlet size after assembling: 1900(L)*1900(W)*2000(H) mm;
2. Water cooling type: fresh water to make ice and for condenser cooling;
3. Use Bitzer piston compressor (Type:4GE-23Y-40P)；
4. Standard power supply: 3P/380V/50HZ；R404A as refrigerant；
5. Ice storage room requirement: color stell material for both sides; panel thickness: 100mm; standard outlet size after assembling: 1900(L)*1900(W)*2000(H) mm;
Model | IF05T-R4A | IF1T-R4A | IF1.2T-R4A | IF1.5T-R4A | IF2T-R4A |
Daily Output(Ton/24hrs) | 0.5t | 1t | 1.2t | 1.5t | 2t |
Cooling capacity(kw) | 3.3kW | 5.6kW | 6.6kW | 9.8kW | 11.6kW |
Dimension(mm) | 1280X800X800 | 1320X900X900 | 1320X900X900 | 1400X950X1080 | 1500X1100X1045 |
Weight(kg) | 300kg | 450kg | 460kg | 480kg | 500kg |
Model | IF3T-R4A | IF4T-R4A | IF5T-R4A | IF8T-R4W | IF10T-R2W |
Daily Output(Ton/24hrs) | 3t | 4t | 5t | 8t | 10t |
Cooling capacity(kw) | 17.2kW | 27kW | 35kW | 50.8kW | 75.5kW |
Dimension(mm) | 1640X1200X1250 | 2000X1600X1280 | 2000X1650X1360 | 2200X1900X1650 | 2800X1750X1750 |
Weight(kg) | 600kg | 790kg | 960kg | 1670kg | 2020kg |
Model | IF12T-R4W | IF15T-R4W | IF20T-R4W | IF25T-R4W | IF30T-R2W |
Daily Output(Ton/24hrs) | 12t | 15t | 20t | 25t | 30t |
Cooling capacity(kw) | 85.1kW | 85.1kW | 127.6kW | 152.1kW | 202kW |
Dimension(mm) | 2200X1900X1900 | 3400X2100X2040 | 4000X2100X2200 | 4000X2100X2500 | 3400X2100X2550 |
Weight(kg) | 2260kg | 3820kg | 4410kg | 4960kg | 5380kg |

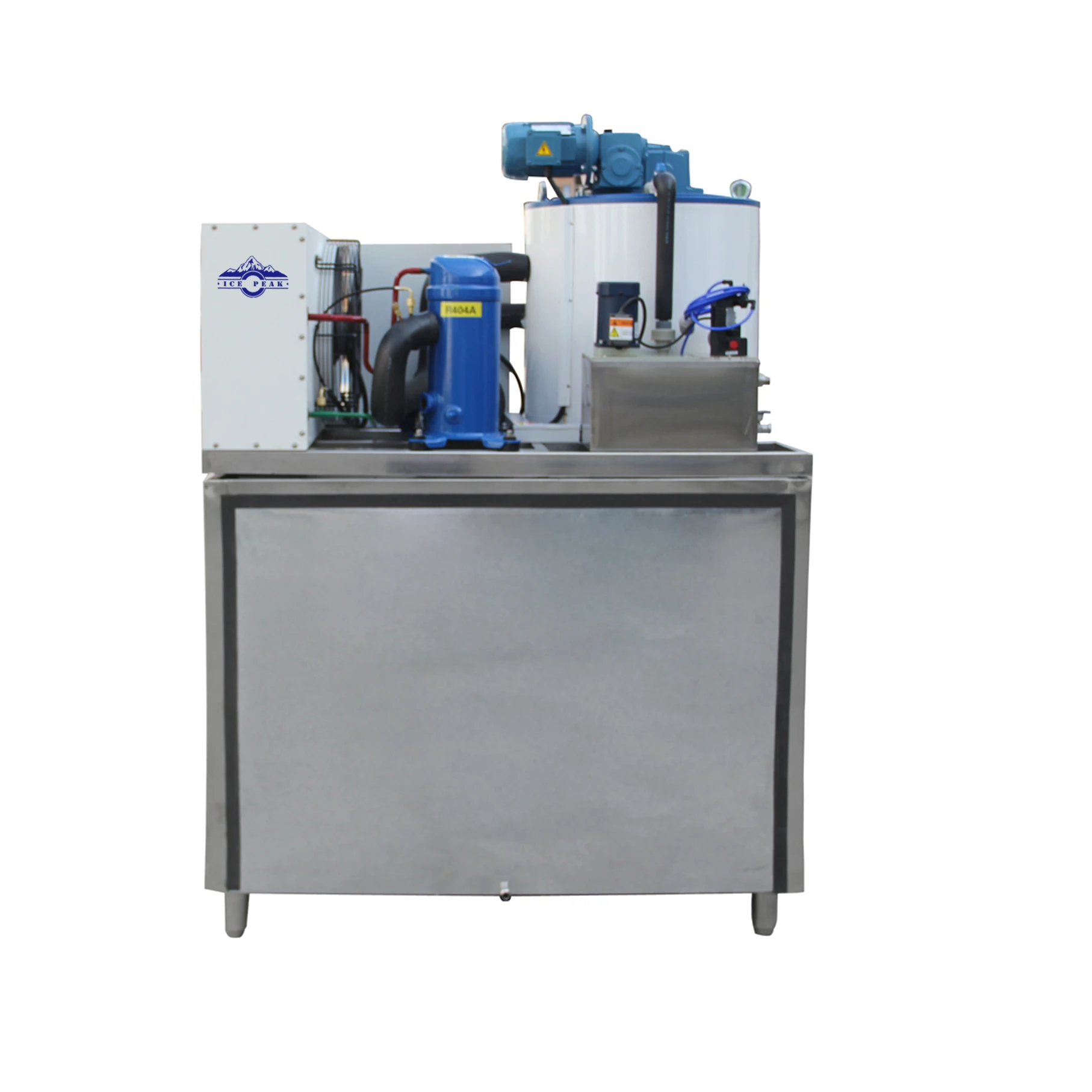

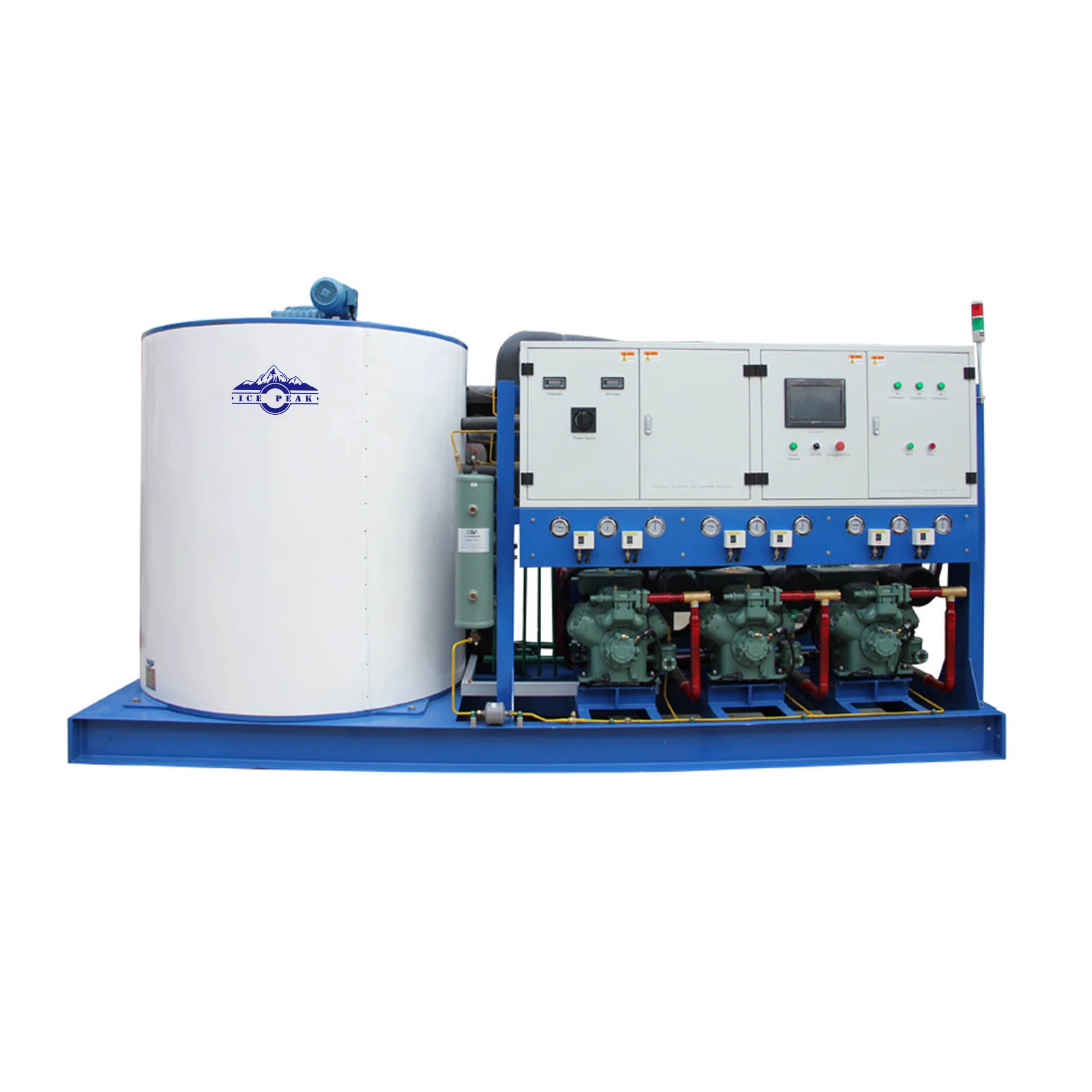

1TON FLAKE ICE MACHINE 8TON FLAKE ICE MACHINE 2TON FLAKE ICE MACHINE

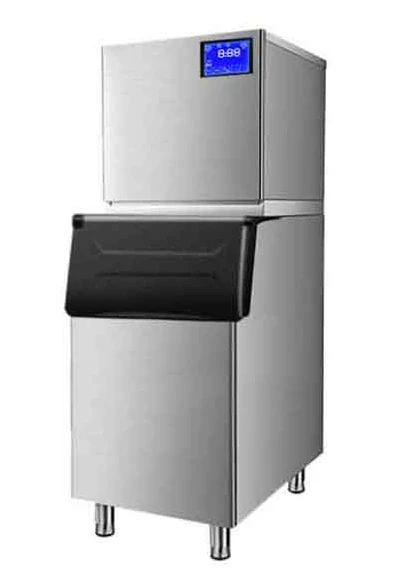

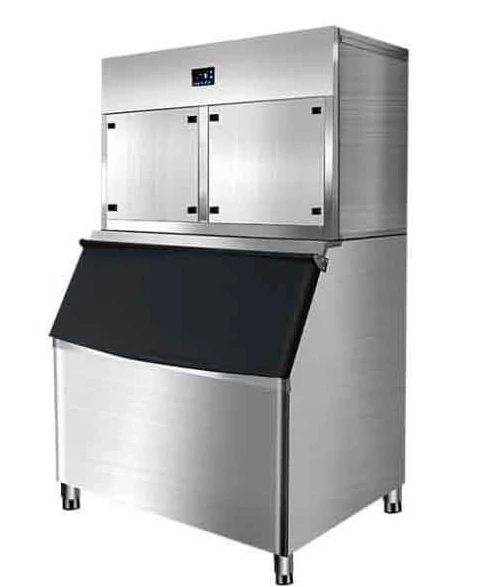

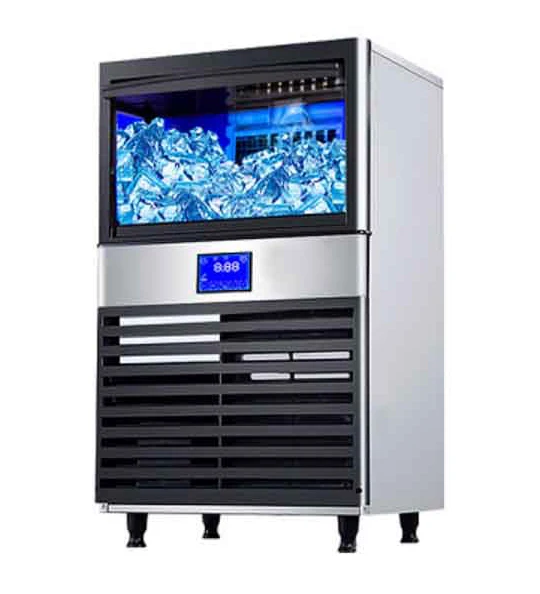

60KG Ice cube machine 1000KG ICE cube machine 500KG ICE cube machine
