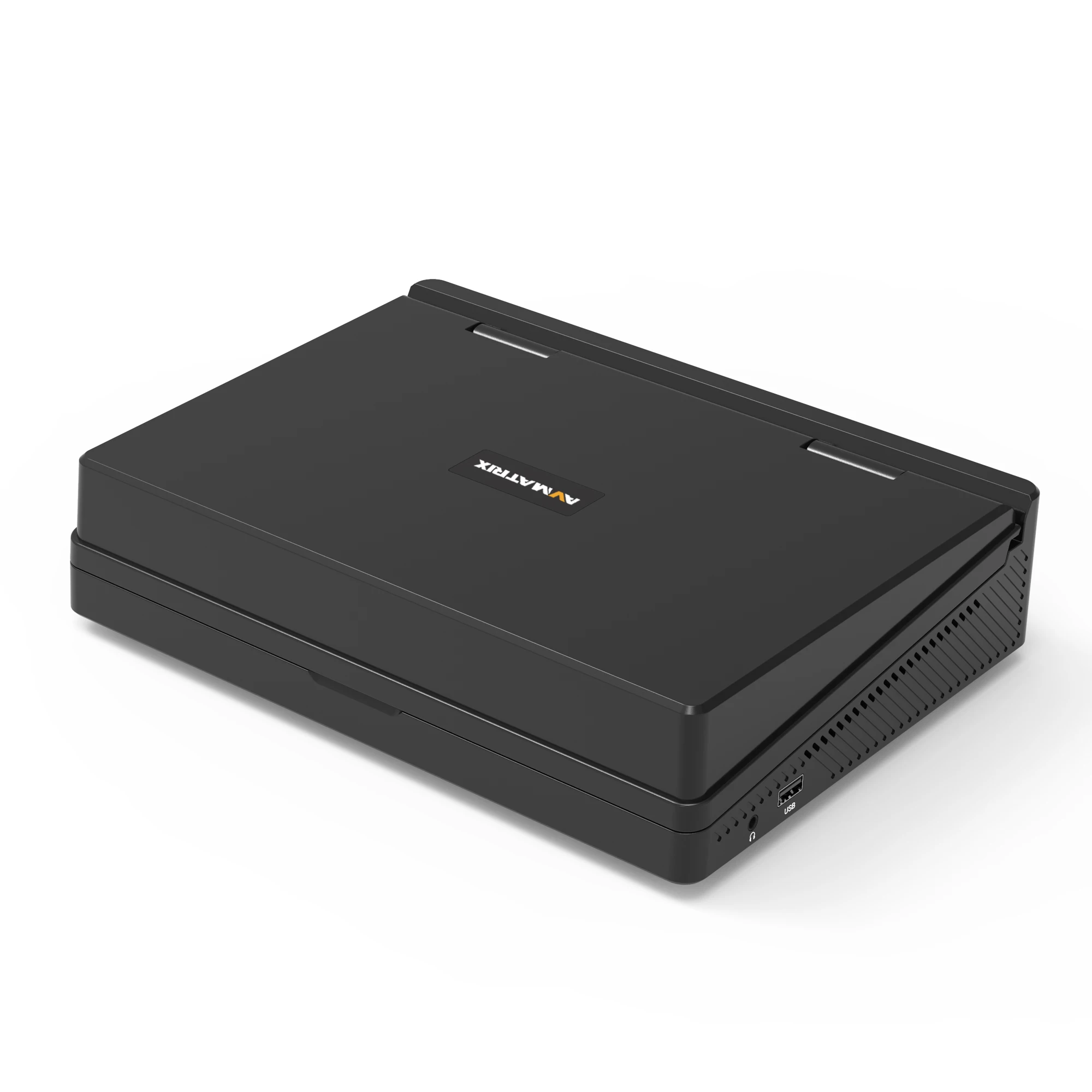

Portable 4 Ch Multi format Streaming Video Switcher
- Category: >>>
- Supplier: Zhangzhou Matrix Electronic Technology Co. Ltd.
Share on (1600726937962):
Product Overview
Description
Brief introduction:
PVS0403U
Micro 4 Channel SDI&HDMI Video Switcher

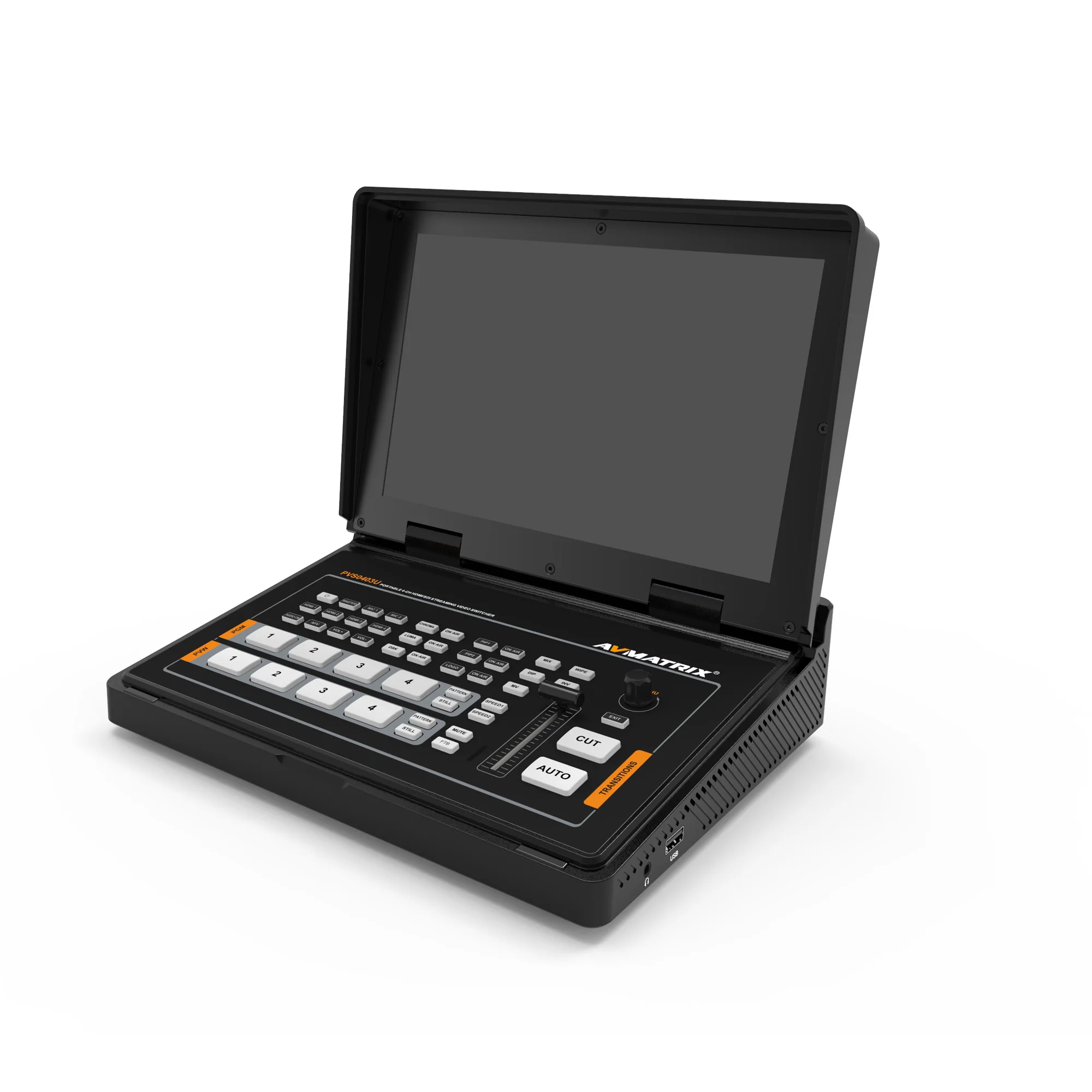

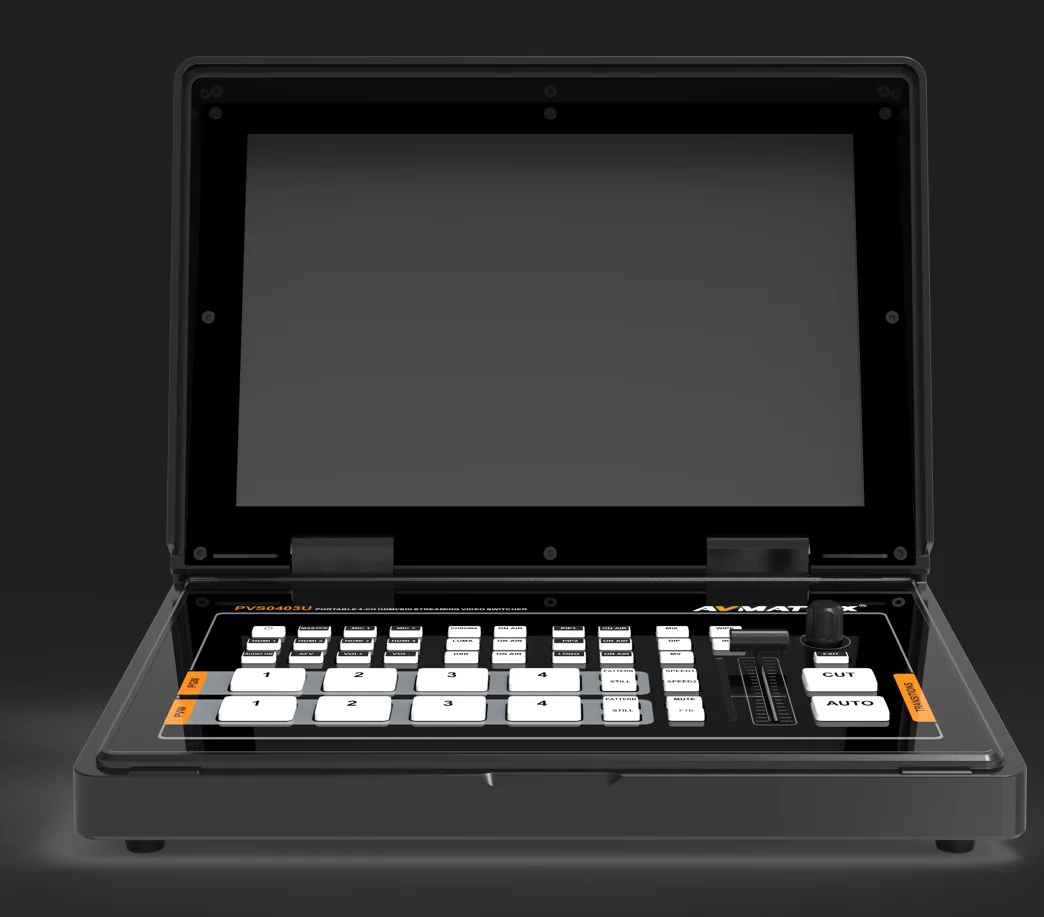

· Portable design with build-in 10.1'' FHD monitor

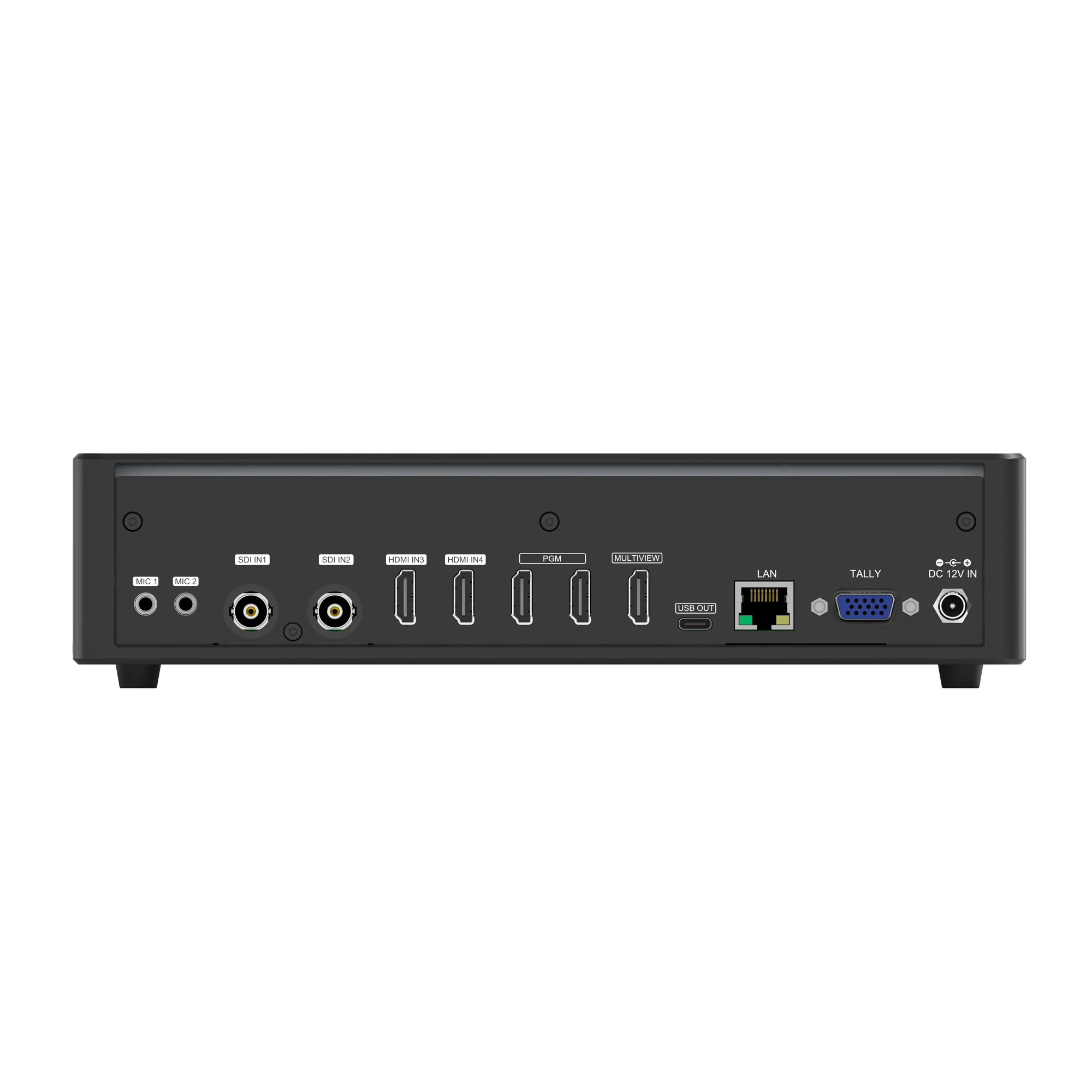

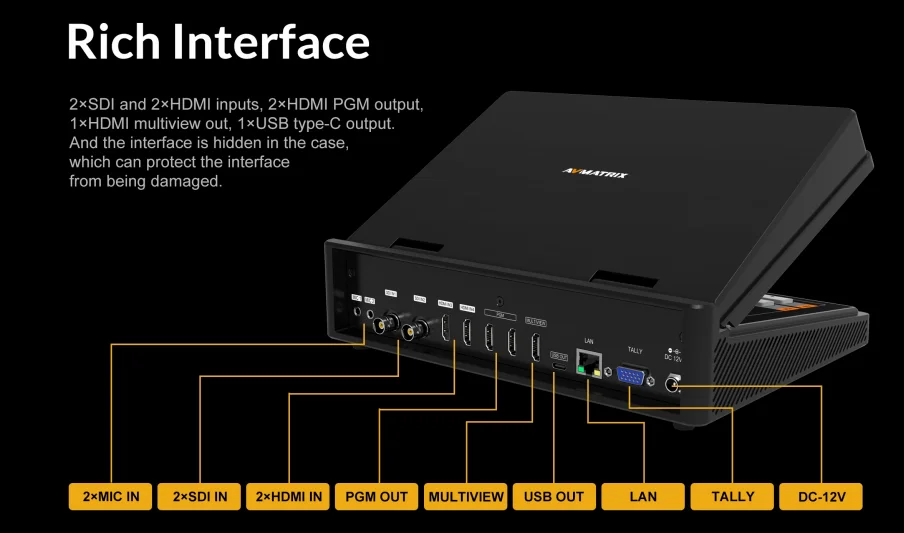

· 4 channel auto-detected inputs: 2HDMI+2SDI
· 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
· AUX output configurable and assignable
· USB for capturing and streaming on PC
· Upstream key: Luma key, Chroma key, PIP×2/ POP
· Downstream key and LOGO overlay
· T-bar/ Auto/ Cut; various effects: WIPE(9×2 patterns) / MIX/ DIP
· Audio mixer: HDMI embedded audio & 2-Ch MIC/line In; audio delay
· Media: 49 default patterns, 16 imported images, 16 captured images
· FTB/ MUTE/ STILL/ GPIO for tally/ PC software
Product Description
Product Description
PVS0403U is a 2-channel HDMI&SDI multi-format video Switcher with a 10.1 inch FHD IPS LCD monitor.
It supports various functions including video switching, audio mixing, PGM/ multiview/ Aux out, different
transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library, pattern and color
generator, etc. Inputs support multi-format, PGM output can be scaled, compatible with a variety of
equipment. The unit supports stream performances and presentations on PC through the USB-C port.
User can also customize different settings and import or export the configuration quickly for various
scenarios. It’s a powerful and professional video switcher for your choices

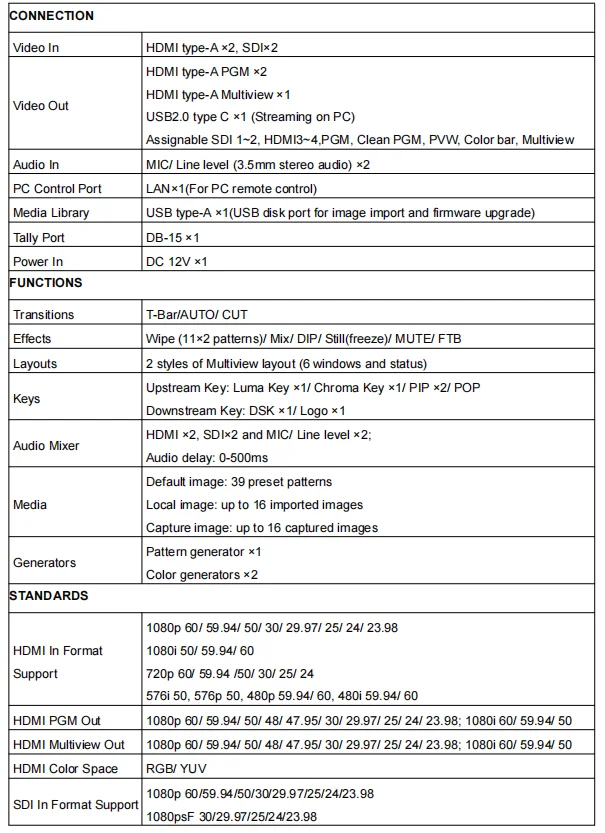

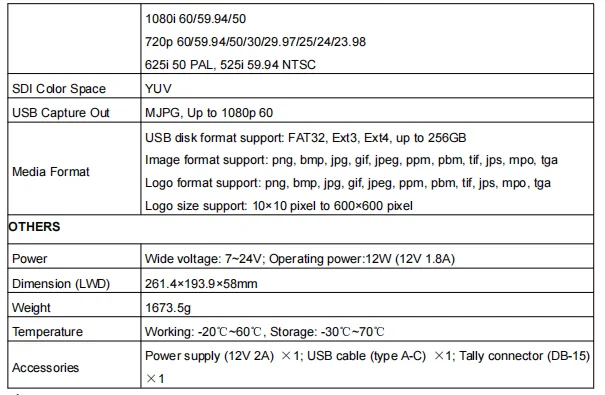

Techniacl Parameter
Techniacl Parameter
Our Service
Our Service
After-Sales Service
AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 2/3-year international warrnaty.
About AVMATRIX
AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
