Oem Odm Custom New Energy Quiet Operation Wifi Module R32 Heat Pump Air To Water Inverter 12kW Monoblock
- Category: >>>
- Supplier: Zhongshan Amitime Electric Co. Ltd.
Share on (1600726938720):
Product Overview
Description
Product Paramenters
Model | PAVH-12V1FBA | |||||
Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 - R32 | ||||
Energy class （35℃ SCOP） | A+++ | |||||
Max. Heating Capacity (1) | kW | 11.6 | ||||
C.O.P (1) | W/W | 4.3 | ||||
Heating Capacity Min./Max.(1) | kW | 5.5 / 11.6 | ||||
Heating Power Input Min./Max.(1) | W | 1107 / 2683 | ||||
C.O.P Min./Max.(1) | W/W | 4.3 / 4.9 | ||||
Max. Heating Capacity(2) | kW | 11.2 | ||||
C.O.P (2) | W/W | 3.45 | ||||
Heating Capacity Min./Max.(2) | kW | 4.9 / 11.2 | ||||
Heating power input Min./Max.(2) | W | 1401/ 3263 | ||||
C.O.P Min./Max.(2) | W/W | 3.3 / 3.5 | ||||
Max. Cooling Capacity (3) | kW | 9.8 | ||||
E.E.R (3) | W/W | 3.9 | ||||
Max. Cooling Capacity (4) | kW | 6.5 | ||||
E.E.R (4) | W/W | 2.7 | ||||
Cooling Capacity Min./Max.(4) | kW | 4.9/6.5 | ||||
Cooling Power Input Min./Max.(4) | W | 1358/2444 | ||||
E.E.R Min./Max.(4) | W/W | 2.6/3.5 | ||||
Noise Level (sound power) | dB(A) | 44/52 | ||||
Note: | ||||||
(1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; | ||||||
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; | ||||||
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB 35℃/WB 24℃; | ||||||
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB 35℃/WB 24℃; | ||||||
(5) The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | ||||||

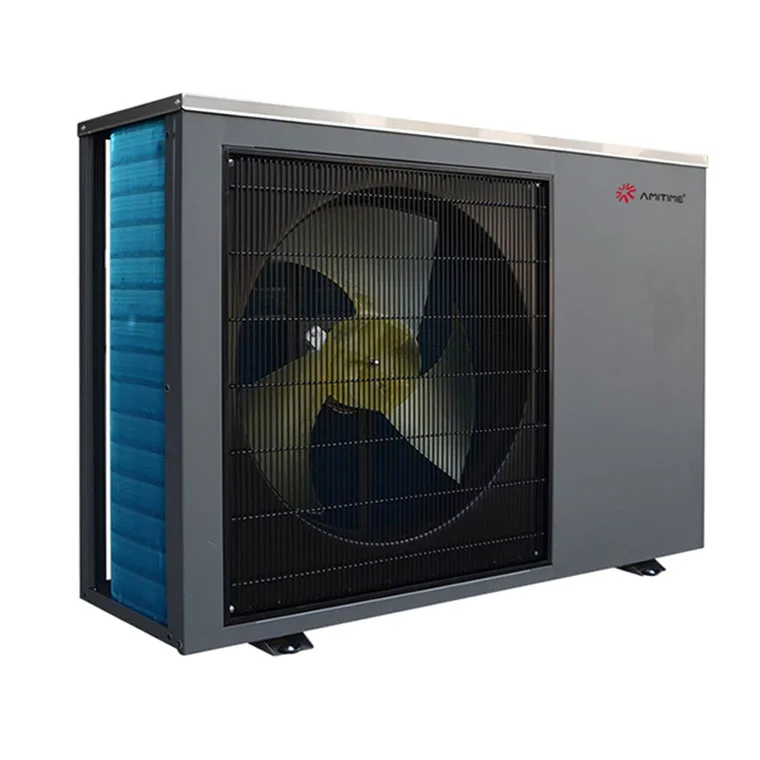

Details Images

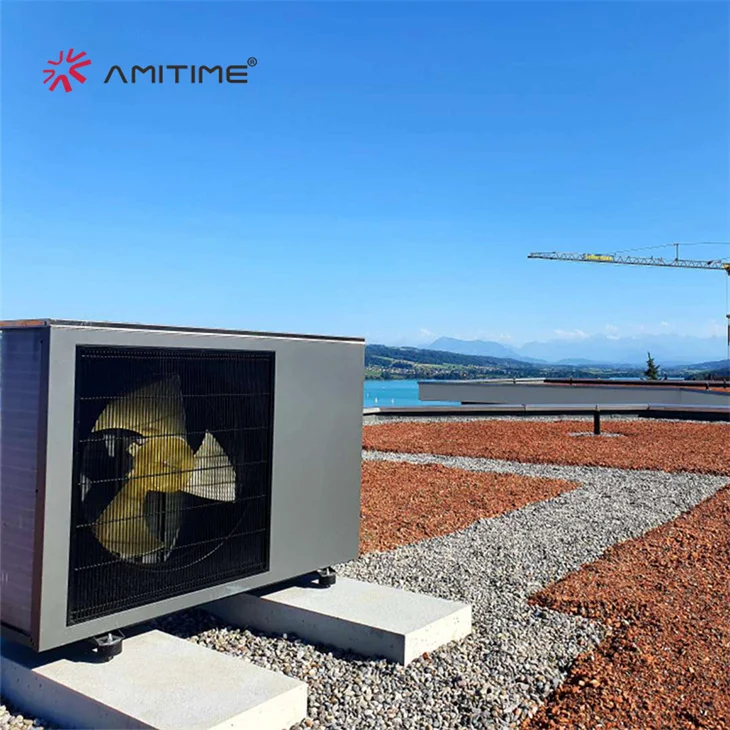

Project Cases
