GPT230 ceramic core 4~20mA air compressor pressure transducer sensor price
- Category: Pressure Sensors >>>
- Supplier: Xi'an,Gavin,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description

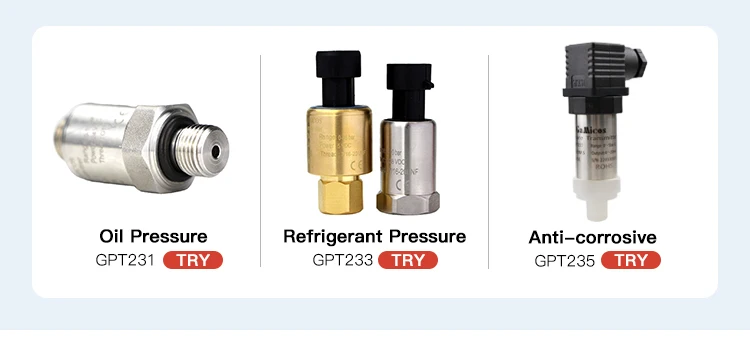

Recommend Products
Products Description
GPT230 series pressure transmitter have the characteristics of high quality, high stability, small size, low weight, compact structure, low cost and volume-production. It is widely used to measure pressure such as occasion of compressor, Auto, air condition etc. The product is made of stainless steel and well-known brand sensor. The special transmitter converting circuit can adjust the zero value and the full range expediently. It also has the intrinsically safe certificate, the explosion-proof certificate. The product is produced with military craft and has the characteristics of advanced design, perfect technology, strict production, superior device, superior management, perfect quality control system.
Product Details
Product Parameter
Pressure range | 0~200kPa...60MPa | ||
Pressure type | gauge (G ) | ||
Overload pressure | 150%FS | ||
Accuracy | 0.5%FS(typ.) ±1.0%F.S (max.) | ||
long-term stability | 0.5%FS/year(typ.) 1.0%FS/year(max.) | ||
temp.coefficient of zero | ±0.05%FS/°C(typ.) ±0.1%FS/°C(max.) | ||
temp.coefficient of span | ±0.05%FS/°C(typ.) ±0.1%FS/°C(max.) | ||
Operating temperature | -40°C~100°C | ||
compensate temperature | -10°C~80°C | ||
storage temperature range | -40°C~100°C | ||
Medium compatibility | All corrosive medium compatible with stainless steel | ||
Output signal | 4~20mA/0.5~4.5V | ||
Power supply | 10~30Vdc/5V(ratio) | ||
Load resistance | R≤(U-15)/0.02 (for 4/20mA), R>100kΩ(for votage output | ||
electrical interface | packard,DIN43650,plug connection,cable connection,waterproof outlet | ||
pressure interface | M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF (customer request) | ||
material of pressure membrane | ceramic | ||
response time(10%~90%) | ≤10ms | ||
shock/impact | 10gRMS,(20~2000)Hz / 100g,11ms | ||
protection | IP65 | ||
certification | CE ,Ex ,ROHS | ||
EMC | EMI:EN50081-1/-2, EMS: EN50082-2 | ||
Dimension
Ordering guidance

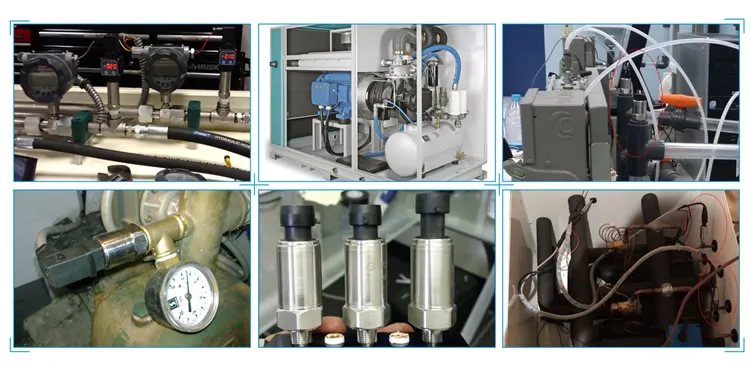

Application
