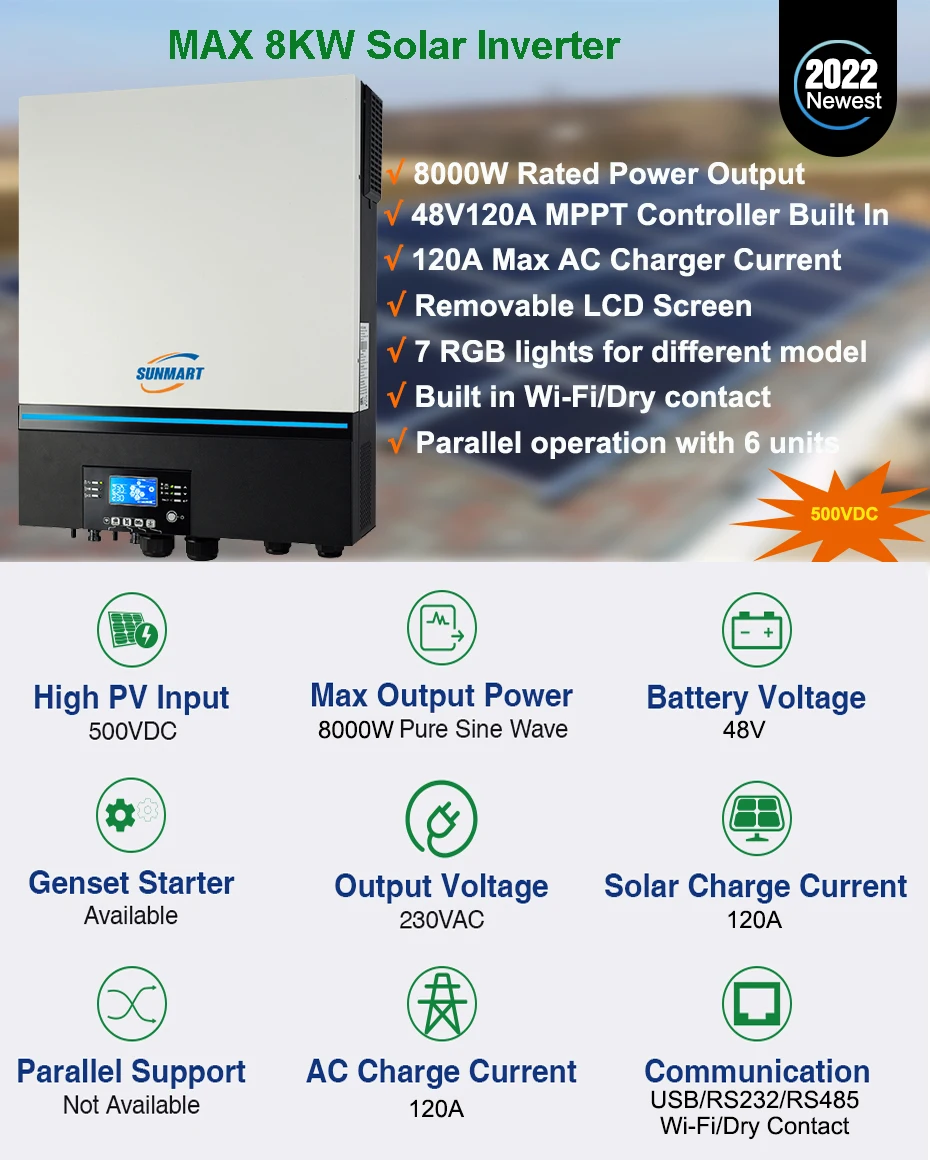

Home Application and Normal Specification 8kw 48V with 120A MPPT Charger with parallel and wifi solar inverter solar hybrid

Product Overview

Description

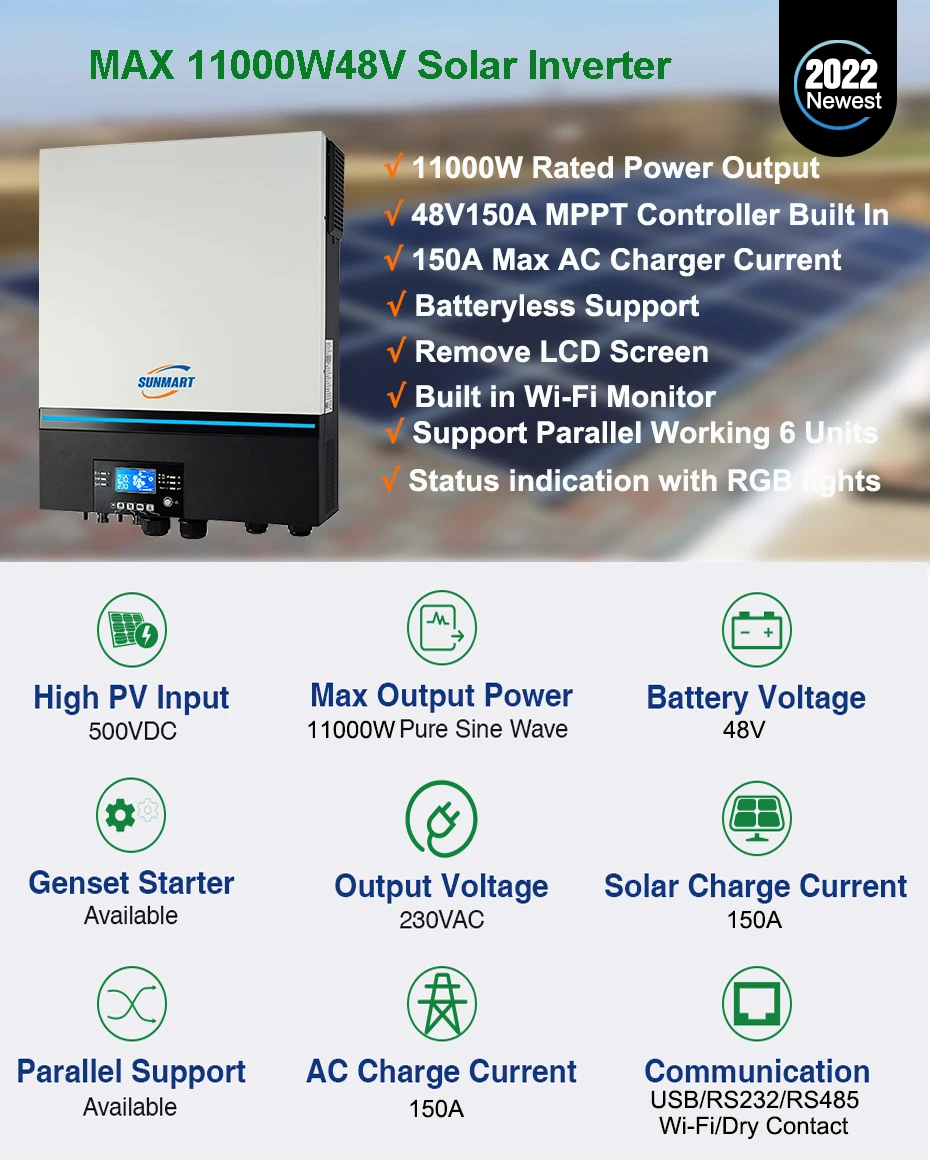

Off Grid 11000W Sunmart Solar Hybrid Power Inverter with dual MPPT 150A Charger

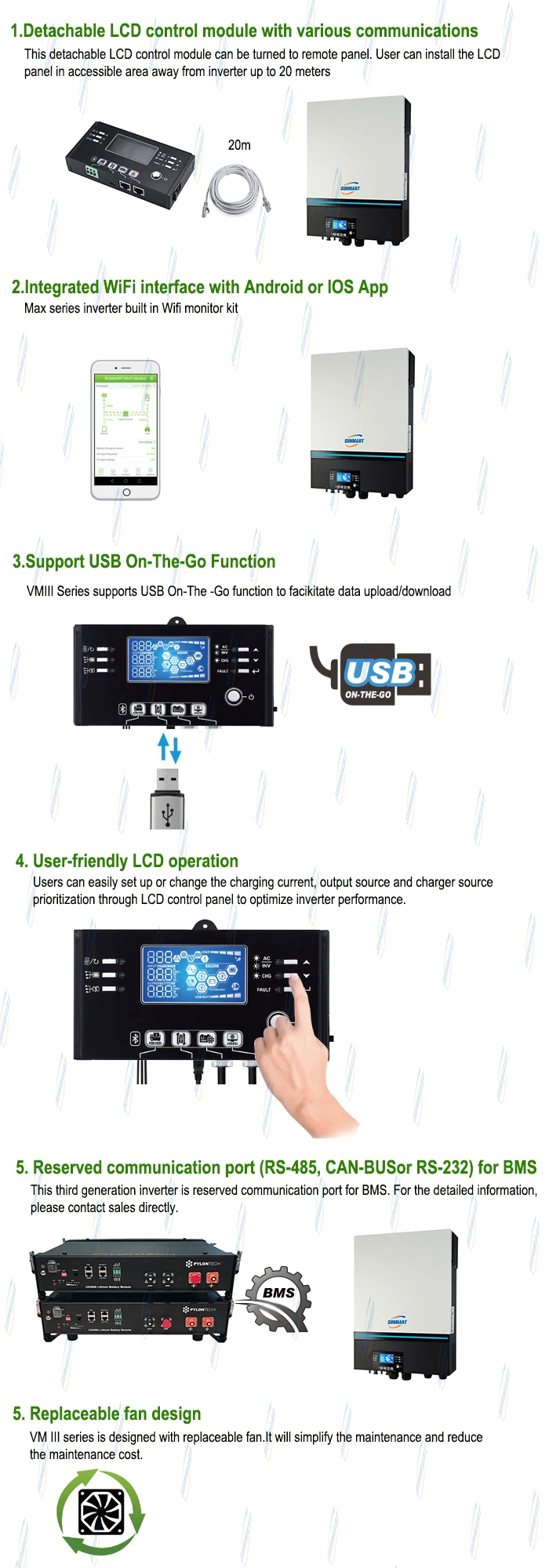

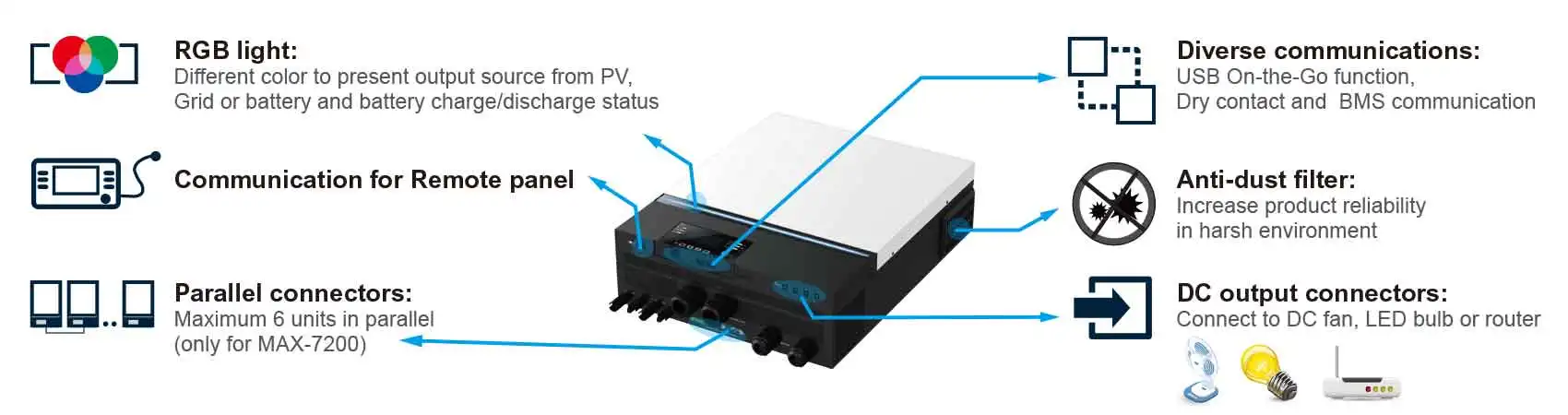

• Customizable status LED bar with RGB lights

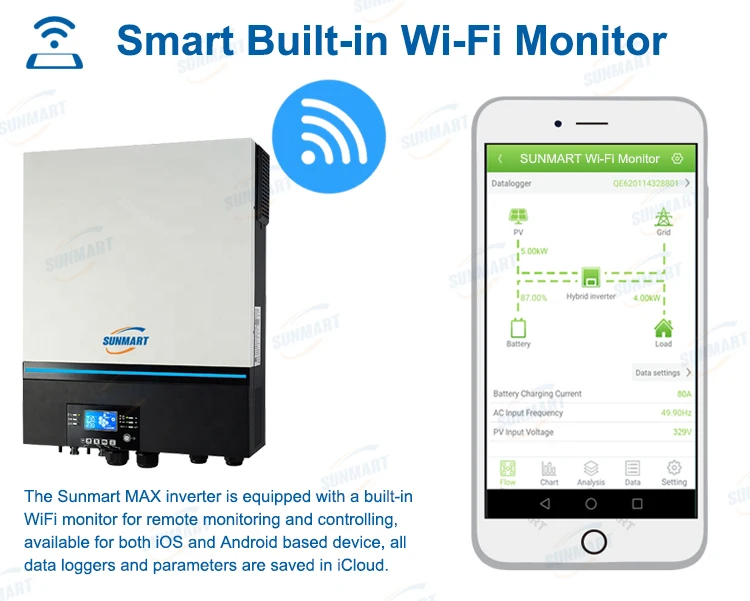

• Built-in wifi for mobile monitoring (Android/iOS Apps are available)
• Supports USB On-the-Go function

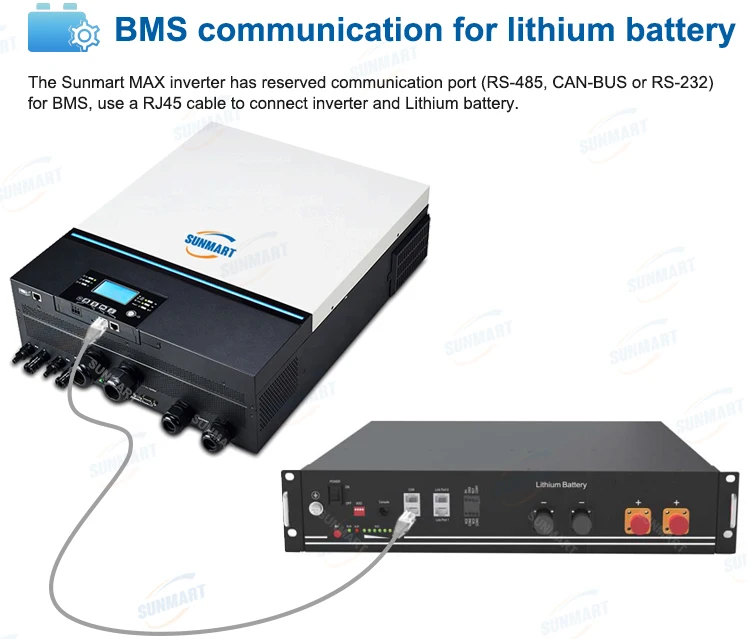

• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high power charging current
• S electable input voltage range for home appliances and personal computers
• Compatible to Utility Mains or generator input
• Built-in anti-dust kit
• Optional DC output for DC fan, LED bulb, router and so on
• Parallel operation up to 6 units

Specifications:

Model	MAX 11000-48
RATED POWER	11000VA/11000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	22000VA
Efficiency (Peak) PV to INT	93%
Efficiency(Peak)Battery to INT	93%
Transfer Time	15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC
Max. PV Array Power	11000W (5500W*2)
MPP Range @operating Voltage	90~450VDC
Max. Solar Charge Current	150A
Max. AC Charge Current	150A
Max. Charge Current	150 A
PHYSICAL
Dimension, D x W x H (mm)	147.4 x 432.5 x 553.6
Net Weight (kgs)	18.4

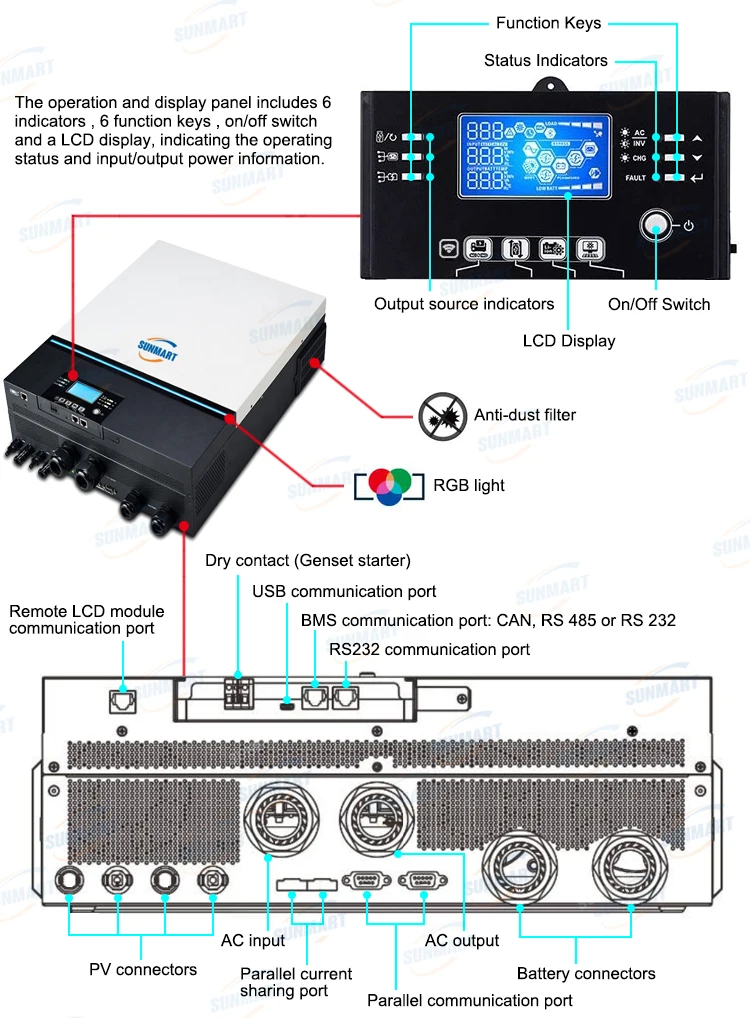

Communication Interface	USB/RS232/RS485/Wifi/Dry-contact
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

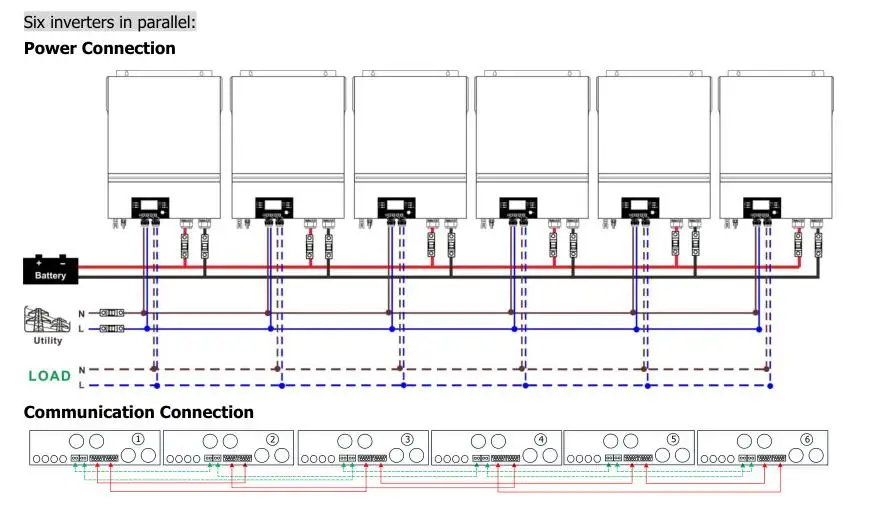

Parallel in Single phase :

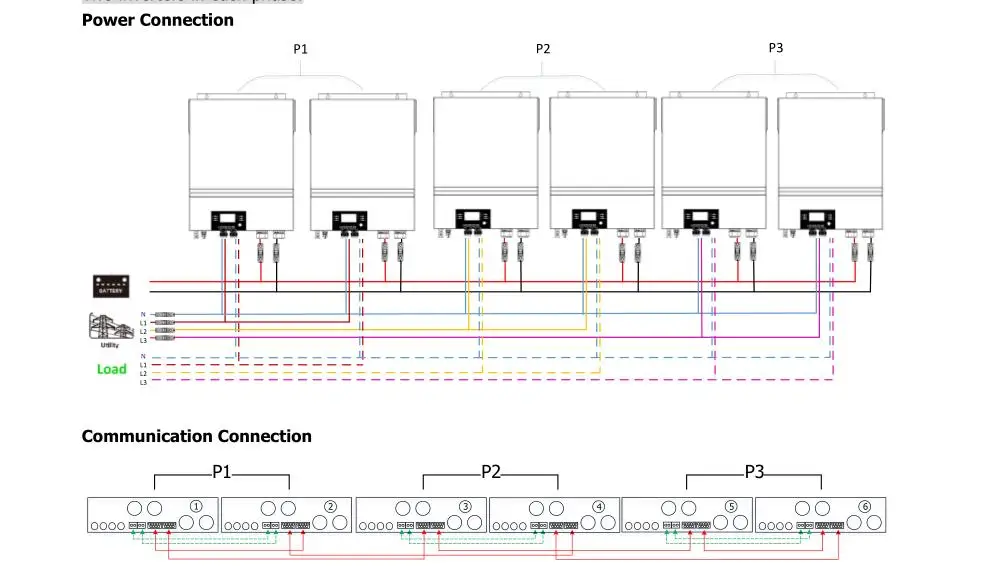

 Parallel in three phase :













Why choose us ?



1 Rich experienced.

 We have over 10 years experience in production and installation of solar power system and wind power system products and our products are sold to more than twenty countries in the world. We can send installation team engineers to your location and instruct the system installation.



2 Strong technical support

 We have advanced R&D team to customize the system configuration and make sure our product is in stable performance, including solar panel , solar inverter , charge controller etc. Only if you have problem, we will provide professional technical support and solve it by the fastest speed.



3 Good quality, steady operation

 Quality and Service are our Culture! With over 10 years new energy experience with two factories (which produce solar panel, inverter and battery), introduced advanced production equipment and specialized production line, adopt international standard management and strict quality control to ensure the stable-performance and high-quality.



4 Competitive price

 We are professional manufacturer. We will not guarantee you the cheapest price in China, but we will guarantee you the advantaged competitive product .We will do our best to support our customers to open the market and reach a win-win situation in the end.



5 Fast delivery time.

 "Time is gold" We have high-efficiency supply chain and long-term cooperation with shipping company, thus rapid production and fast delivery are assured.
