High Pressure Dn150 Gas Turbine flow meter 4 20mA Oxygen Nitrogen Natural gas Turbine flow meter
- Category: >>>
- Supplier: Kaifeng Kamboda Industrial Instrument Co. Ltd.
Share on (1600726985545):
Product Overview
Description
Product Description
LWGQ series turbine flowmeter
The operation of the International Gas Turbine Meter is based on the measurement of the velocity of gas The flowing gas is accelerated and conditioned by the meters straightening section. The turbine wheel is mounted on the main shaft, with special high precision, low friction ball bearings. The turbine wheel has helical blades that have a known angle relative to the gas flow. The conditioned and accelerated gas drives the turbine wheel with an angular velocity that is proportional with the gas velocity.
NO1: a self-researched and developed temperature, pressure, flow sensor and intelligent flow totalizer that has absorbed the advanced technology of domestic and foreign flow instruments.
NO2: designed, and integrated the theories of aerodynamics, flow mechanics, and electromagnetics.
To request the medium with clean, better to install the filter 180 degrees rotatable head, and easy installation and maintenance
Temperature and pressure compensation available
nitrogen,
compressed air and other medium
low flow rate gases
Specification
Executive standard | GB/T8940-2003 |
Caliber and connection | 25/3250/65/80/100/150/200/250/300/ Flange connection 25/40/50/Can be threaded |
Accuracy | ±1.5%R（±1%Roptional） |
Turndown ratio | 1：10 1：20 1：30 |
Instrument material | Body: 304 stainless steel |
Impeller: high-quality aluminum alloy | |
Converter: cast aluminum | |
Conditions of Use | Medium temperature: -20-80 |
Ambient temperature: -30-60 | |
Relative humidity: 5%-90% | |
Whole machine power consumption | External power supply≤1W |
Internal power supply: average power consumption ≤1W can be used continuously for more than three years | |
Signal output | Pulse signal/4-20mA current signal/control signal |
Communication output | RS485 |
Real-time recording | Start and stop records/daily records/fixed time interval records |
Explosion-proof grade | Exd II BT6 or Exia II CT4 |
Protection level | IP65 |
Product details

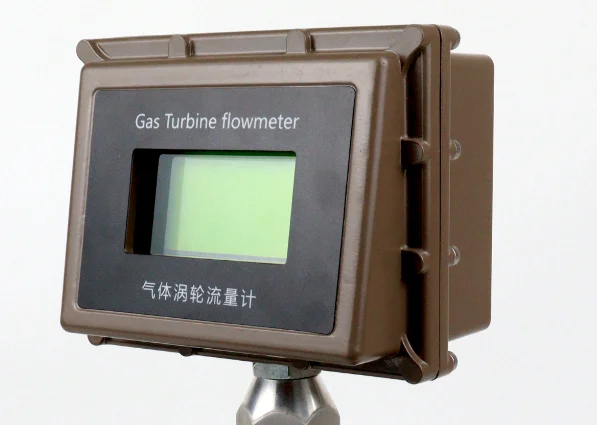

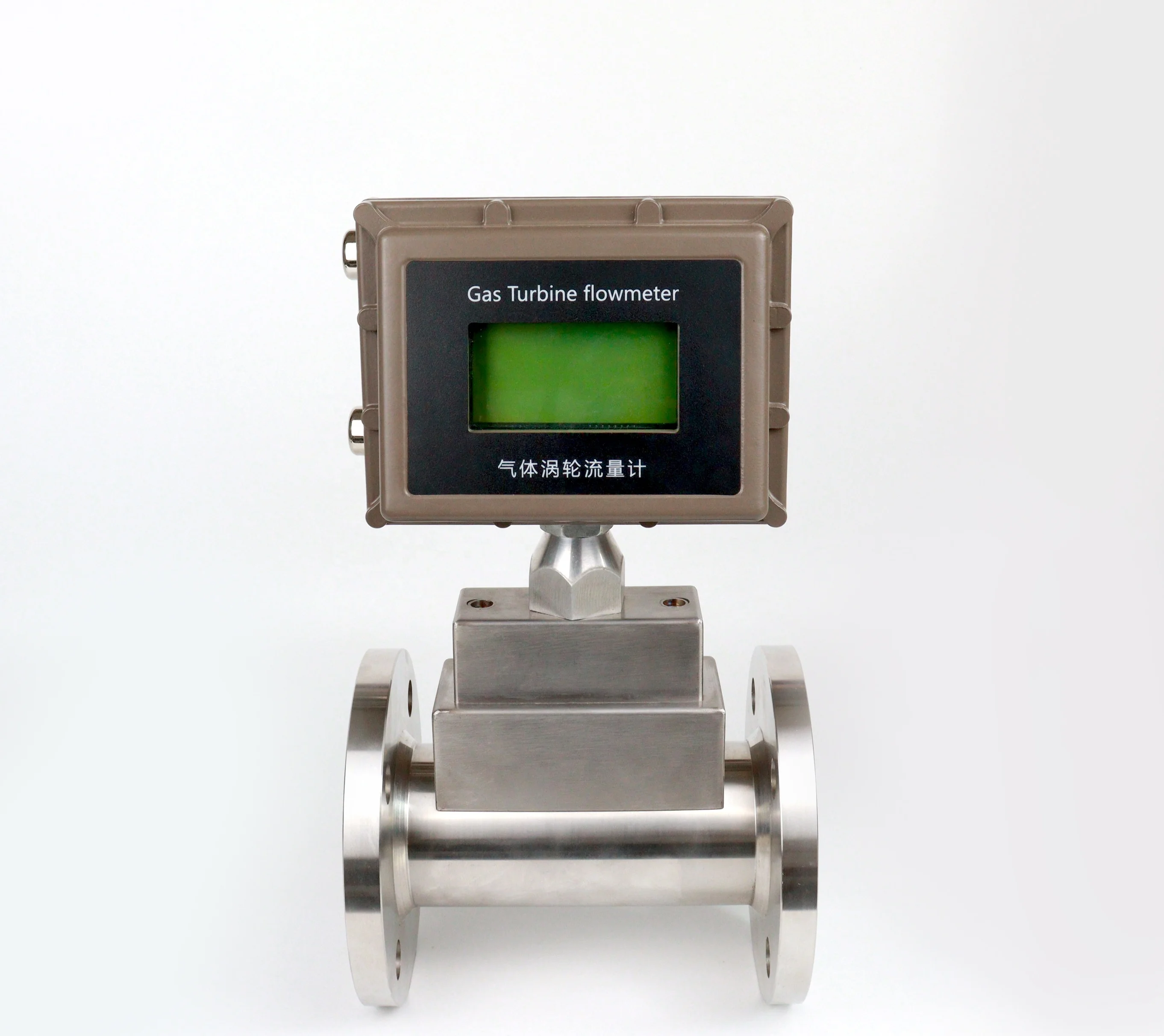

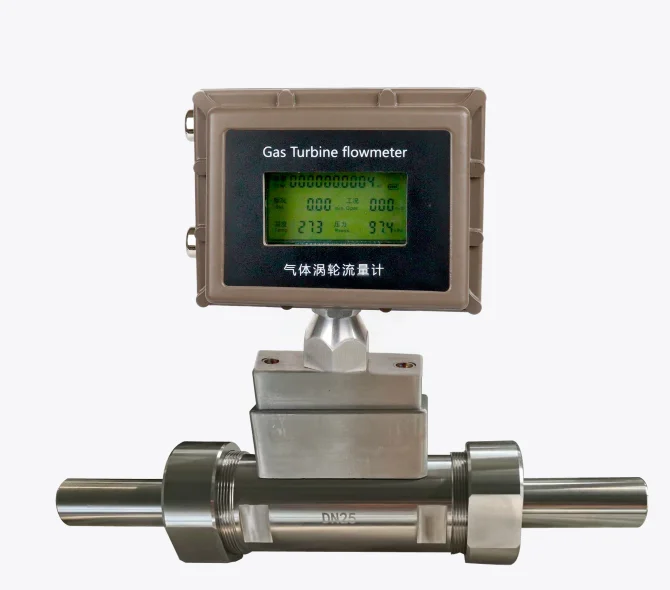

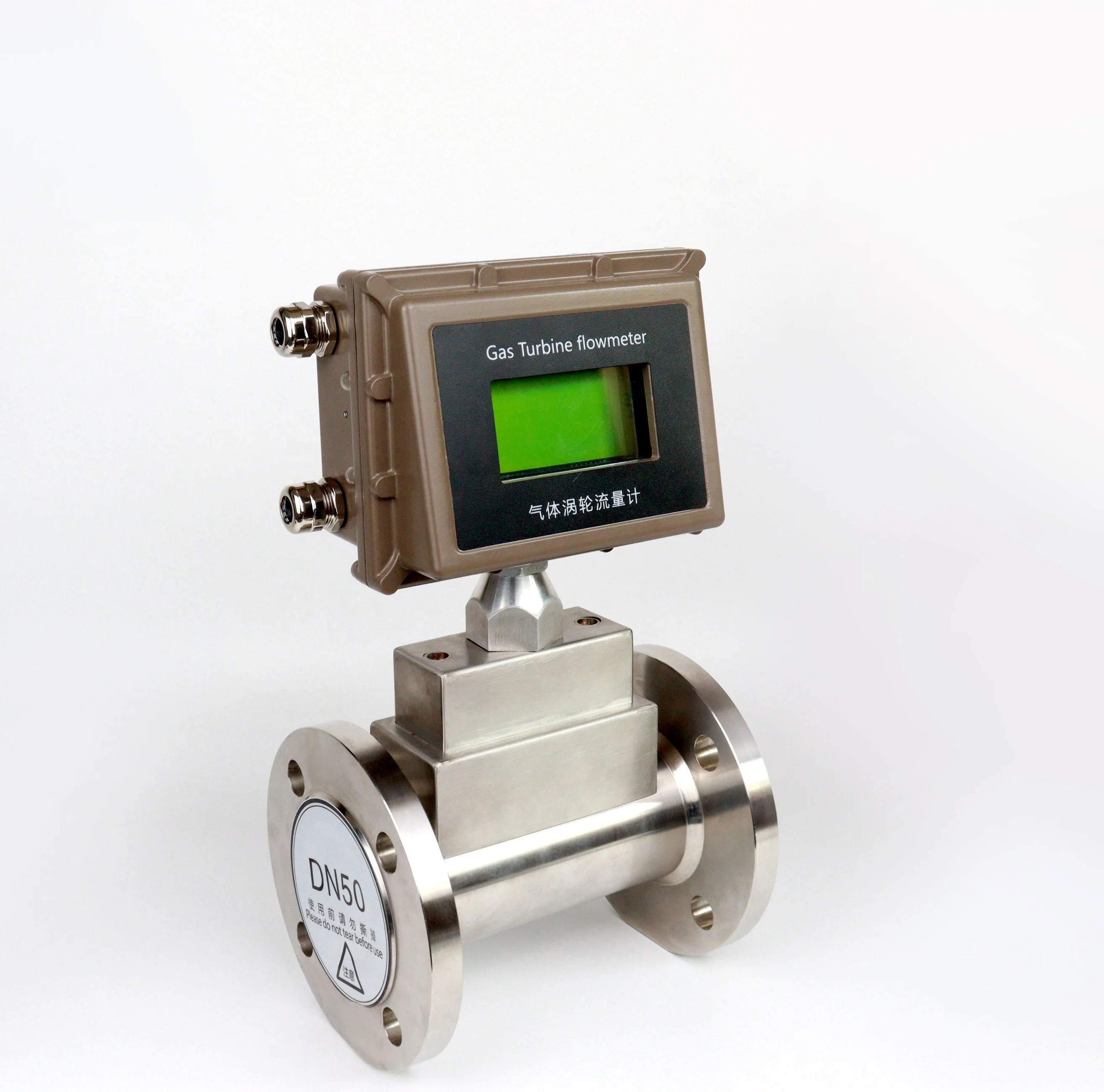

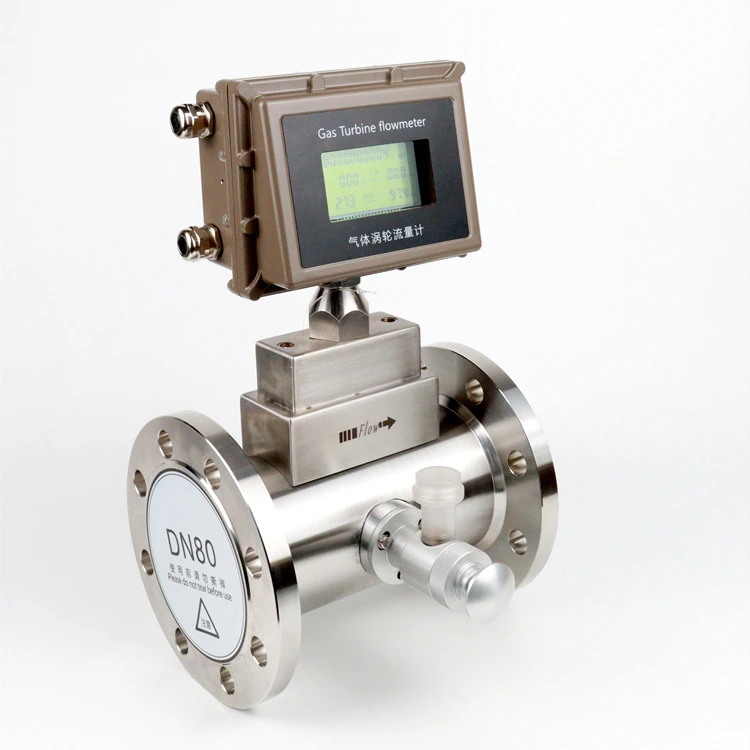

Display the temperature, pressure and flow rate of the measured gas

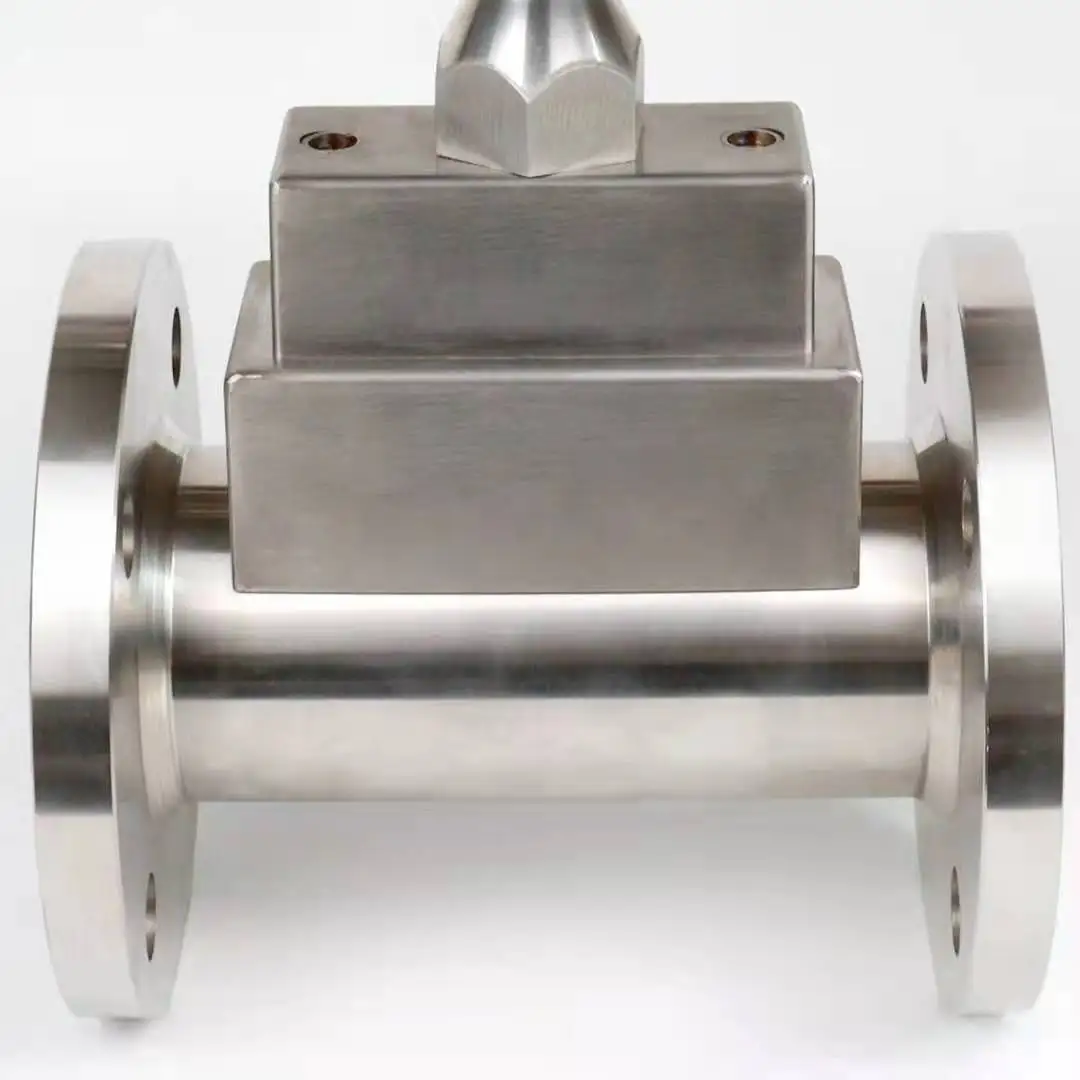

Material:
304 stainless steel

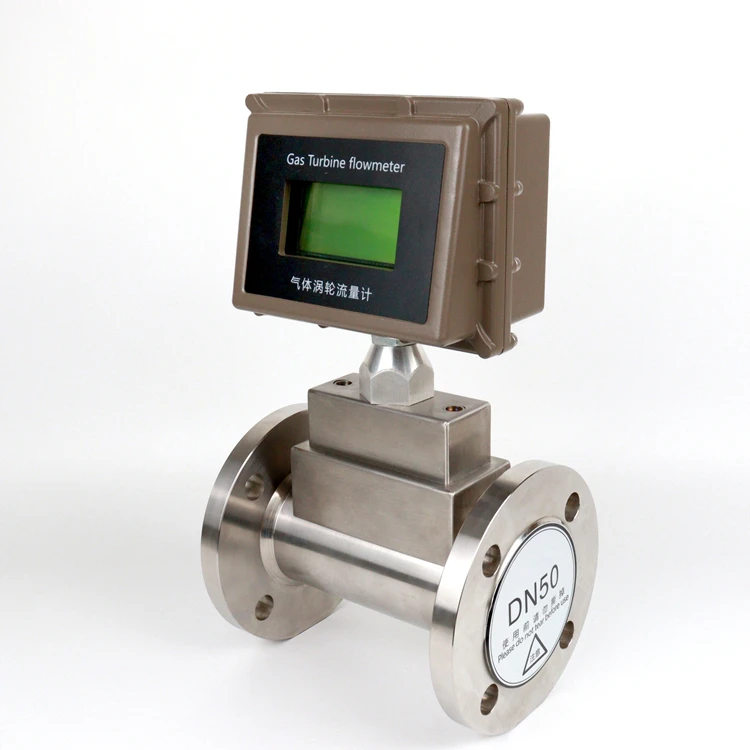

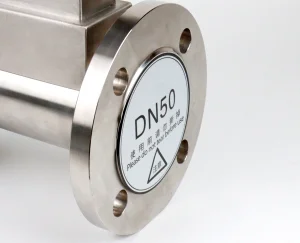

connection:
DN50 flange connection
craftsmanship:
fine workmanshipdurable and not easy to rust
performance:
Good flow performance
good reliability
long service life
measurement range and working pressure:
Nominal diameter (mm) | Flow range (m³/h) | Pressure level (Mpa) | Installation method | ||
DN25 | S | 2.5-25 | 1.6 | Flange (thread) | |
DN40 | S | 5-50 | |||
DN50 | S1 | 6-65 | Flange | ||
S2 | 10-100 | ||||
DN65 | S | 15-200 | |||
DN80 | S1 | 13-250 | |||
S2 | 20-400 | ||||
DN100 | S1 | 20-400 | |||
S2 | 32-650 | ||||
DN125 | S | 25-700 | |||
DN150 | S1 | 32-650 | |||
S2 | 50-1000 | ||||
DN200 | S1 | 80-1600 | |||
S2 | 130-2500 | ||||
DN250 | S1 | 130-2500 | |||
S2 | 200-4000 | ||||
DN300 | S | 200-4000 | |||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Company

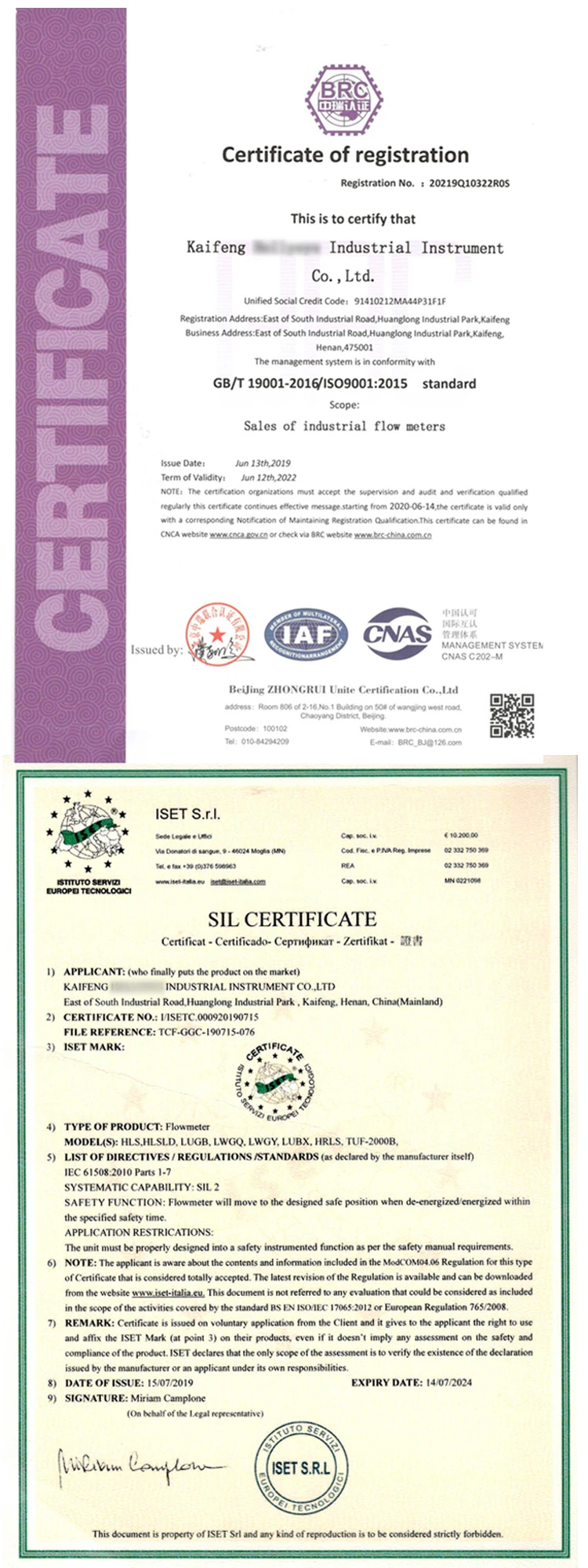

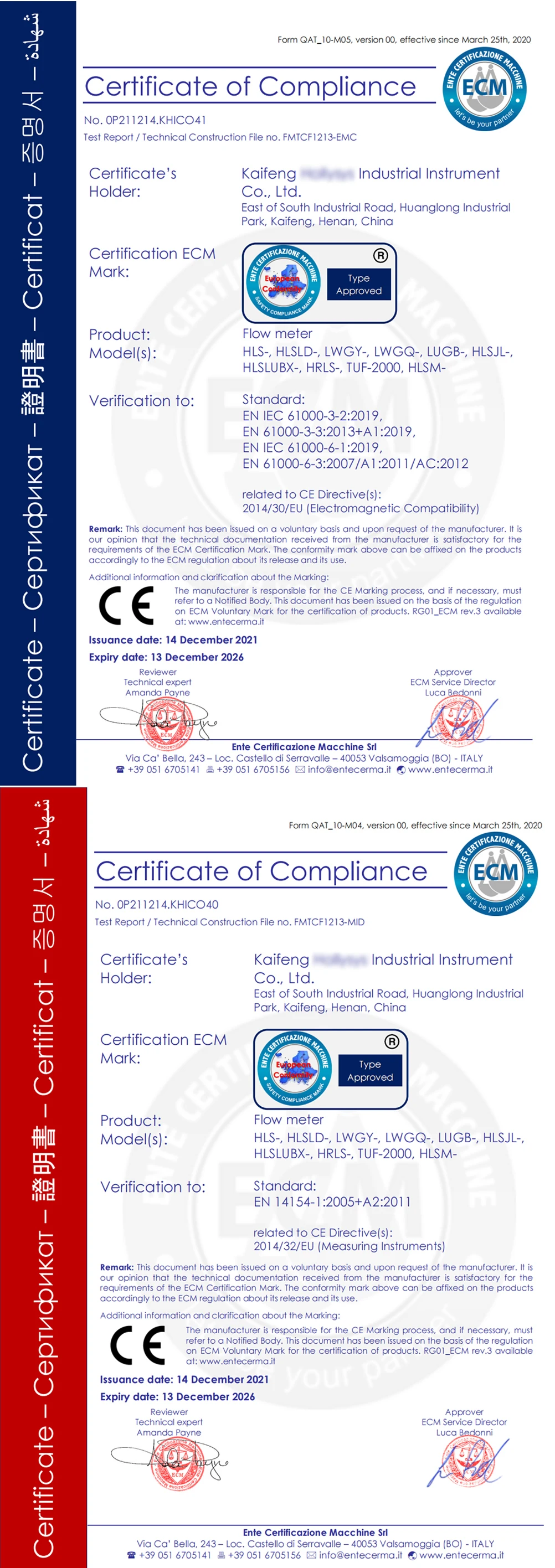

Certification
Contact US
FAQ
Q1: what is your business scope?

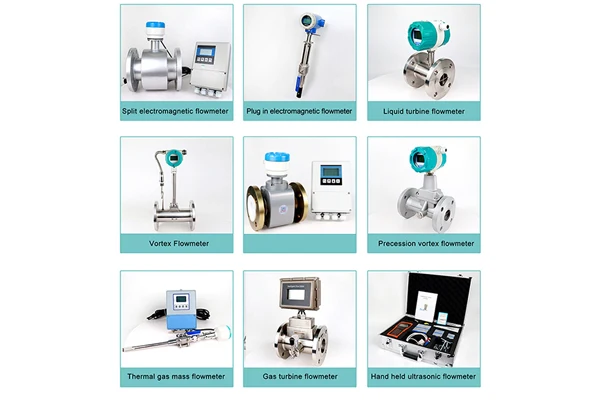

A: we produce all kinds of gas and liquid flowmeters.
