Lake blue plastic roof sheet honeycomb hollow pc sheet for outdoor decoration
- Category: Sun Sheets & PC Embossed Sheets >>>
- Supplier: Baoding,Yishengda,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

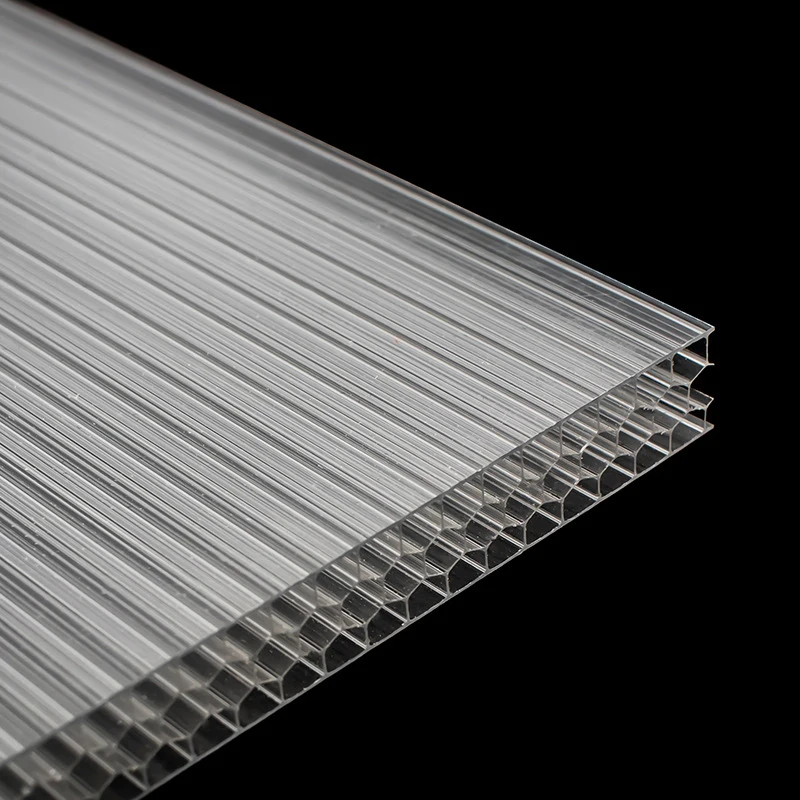

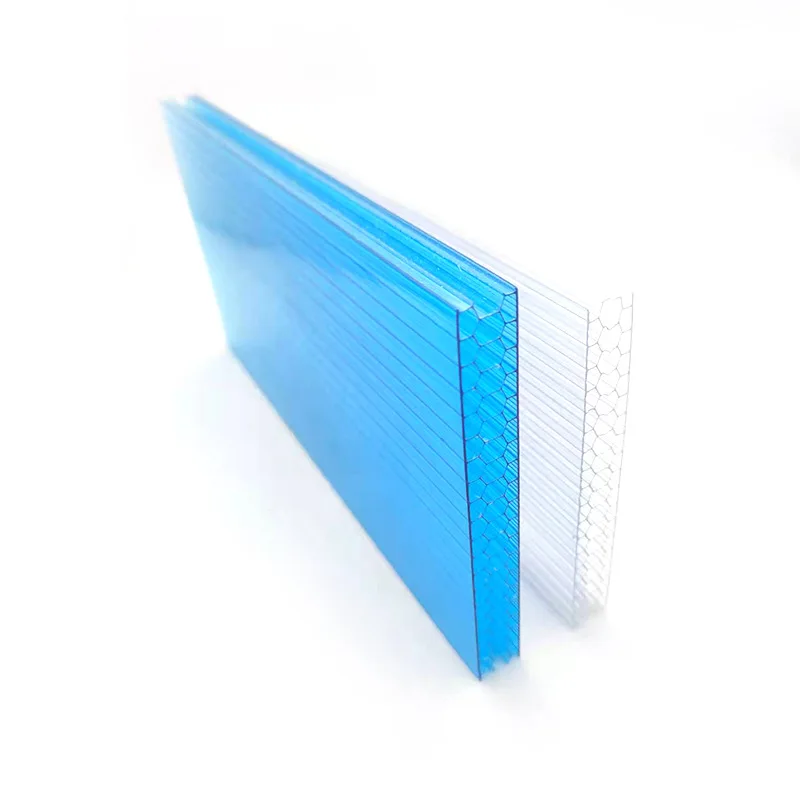

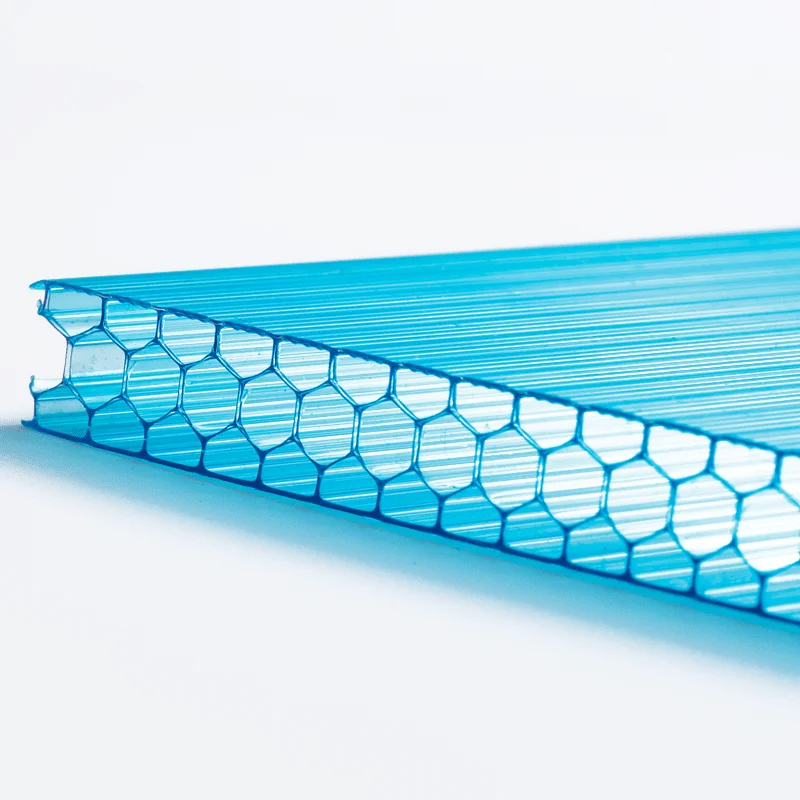

Honeycomb Hollow Polycarbonate Sheet
Different from solid polycarbonate sheet, hollow polycarbonate sheet is much light of weight with the same thickness. According to its structure, there are twin wall pc sheet, triple wall pc sheet, four wall polycarbonate sheet, honeycomb polycarbonate panel and other multiwall polycarbonate panel and plug pattern polycarbonate sheet. Thickness can range from 2.8mm to 50mm for different structures. Honeycomb polycarbonate sheet is named because of its structure. And it is much stronger for roof compared with twin wall and triple wall polycarbonate sheet. It is widely used for roofing sheet, greenhouse, decoration and others.
Double Wall Polycarbonate Sheet with High Transmittance | ||||||||
Thickness(mm) | Weight(kgs/sqm) | K Value(W/m2.k) | Transmittance(%) | Min Bending Radius | ||||
6 | 1.50 | 2.96 | 59 | 1050 | ||||
8 | 1.80 | 2.58 | 58 | 1400 | ||||
10 | 2.00 | 2.16 | 57 | 1750 | ||||
12 | 2.20 | 1.98 | 56 | 2100 | ||||
14 | 2.40 | 1.74 | 55 | 2450 | ||||
16 | 2.60 | 1.56 | 53 | 2800 | ||||
Honeycomb Hollow Polycarbonate Sheet for Roofs Panel | |||||||
Material | 100% virgin polycarbonate resin (Sabic, Bayer, Luxi and other brands for your customized.) | ||||||
Thickness | 6.0mm~16mm | ||||||
Width | 1.22m, 2.1m, Max 2.17m, and others cut to size polycarbonate sheet | ||||||
Length | 2.44m, 5.8m, 11.8m and other customized. | ||||||
Color | clear, bronze, opal, smoke, gray, blue, grass green, red and other customized colors. | ||||||
UV coating | one side, double sides UV coated, 50um | ||||||
Weight | can be adjusted according to customer requirements. | ||||||
Package | PE film on both sides, PE film can be customer logo, and other packages can be negotiated. | ||||||
Delivery time | within 2-3 days for one 40ft HQ container. | ||||||
Raw Material Polycarbonate Resin
We have build long term and good relationship with Sabic Bayer raw materials supplier. We make sure the performance of raw materials.
Our recycled materials are the scraps of virgin materials sheets. We do not use recycled materials bought from CD, water pipe or others. Therefore, we can make sure our sheet stable.
About the UV coating.
Yishengdan polycarbonate sheet factory can do UV coating for double sides. To make it really reach 50um. And the UV can be averagely coated on sheets, which to make sure the sheets better to anti ultroviolet. You can also adjust the thickness of UV coating according to your demands.
About the color of polycarbonate sheet
YIshengda use color master bath, not color powder, which help the color last long time. For example, use color powder, the color will fade in 1 year. But with color master granules, the color will face after 3 years.

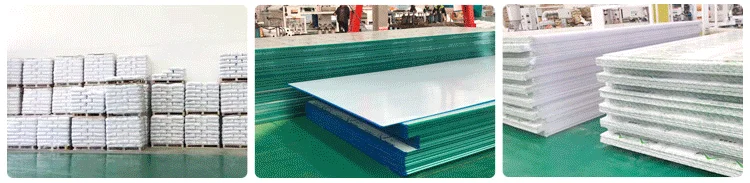

Polycarbonate sheet Delivery & Shipment
Your goods will be better protected in our warehouse, will not be rained. With several years export experience, we understand well how to load more sheets and also make it tidy, which help you to reduce cost.
Features
1.Energy saving and cold bending
2.Weather and flame resistance
3.Wind resistance and non-opaque
4.Anti-gelling and sound insulation
5.Light weight and high wind resistance
6.Impact resisitance
7.Wide range of temperature

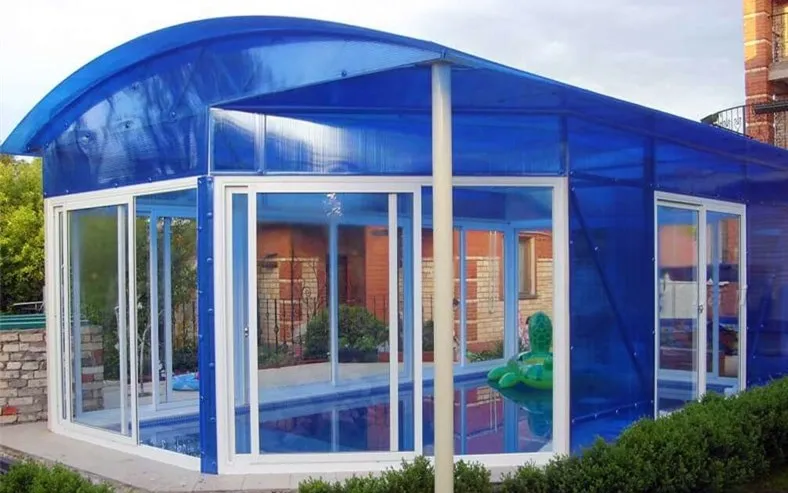

1. Landscape ,exotic decoration and lounge hall
2. Interior and exterior decoration of commercial building ,the curtain wall of modern city building
3. Agricultural greenhouse and breeding greenhouse
4. Company and community bike shelter, patio awning and lounge roof
5. Office building, department store ,hotels ,villas,schools ,stadiums,entertainment center and public facilities skylight
Package & Shipment
Hollow Polycarbonate Sheet package: Both sides with PE film. PE film can be customized logo if the quantity meet two 40HQ containers. Other packages such as pallet, film wrapped, and corner protection can be customized.
Hollow polycarbonate panel loading capacity | |||||||
Thickness | Size | 20ft container | 40ft HQcontainer | ||||
4mm | 2.1m x 5.8m | 584 sheets | 1364 sheets | ||||
6mm | 2.1m x 5.8m | 395 sheets | 915 sheets | ||||
8mm | 2.1m x 5.8m | 295 sheets | 690 sheets | ||||
10mm | 2.1m x 5.8m | 236 sheets | 552 sheets | ||||
12mm | 2.1m x 5.8m | 197sheets | 462 sheets | ||||
Company Profiles
About Yishengda
Baoding Yishengda Company is registered in Baoding city in 2016, with registered capital 10 million RMB. Yishengda mainly produce hollow polycarbonate sheet, solid polycarbonate sheet, and corrugated polycarbonate sheet. In order to meet customers’ demands, Yishengda does research & develops deep processed polycarbonate products, such as polycarbonate carport, polycarbonate awning, polycarbonate patio and polycarbonate sheet garden greenhouse. We also do OEM orders according to customers’ drawing pictures.
With 6 production lines, Yishengda can better to make sure the delivery time and full items. Meanwhile, we introduced laser print lines to cut solid PC sheet in different shapes. Our polycarbonate carport, polycarbonate garden greenhouse and awning are mainly sold to abroad market and trading company in domestic market. New products are designed continuously to meet customer demands.
Our products have been exported to USA, Canada, Brazil, Italy, Roma, Columbia and other countries and regions. Due to the good quality of products and honest people, the company has won more reputations and old customers. We sincerely welcome all costumers around the world to contact us for business relationship.
With professional experience, friendly attitude, good products, we believe that Yishengda will become your reliable and honest supplier in China.
With 6 production lines, Yishengda can better to make sure the delivery time and full items. Meanwhile, we introduced laser print lines to cut solid PC sheet in different shapes. Our polycarbonate carport, polycarbonate garden greenhouse and awning are mainly sold to abroad market and trading company in domestic market. New products are designed continuously to meet customer demands.
Our products have been exported to USA, Canada, Brazil, Italy, Roma, Columbia and other countries and regions. Due to the good quality of products and honest people, the company has won more reputations and old customers. We sincerely welcome all costumers around the world to contact us for business relationship.
With professional experience, friendly attitude, good products, we believe that Yishengda will become your reliable and honest supplier in China.
FAQ
1. Can I get samples?
A: Yes, we can send you samples for free.
A: Yes, we can send you samples for free.
2. How many days can you ship the goods?
A: For some specifications, there are stock in our factory. And for large quantity, if one 40ft HQ container, the production time only need 1 day. There are also another one days to make production schedule. Therefore, the fastest delivery time is only two days.
3. Could you ship the goods to our country? And how much is the freight?
A: we can ship the goods to any place in the world and even your warehouse in China. About the freight, it is according to the quantity and also the busy season or off season. We will help you to find the most competitive freight.
4. Can you accept L/C?
A: Yes, we can do irrevocable L/C at sight.
5. Can you cut and engrave the sheet as our design?
A: Yes, for the solid sheet, we have laser cutting machine, which can cut and engrave the sheet fast and accurate. And for the finished products, such as polycarbonate carport and patio, we can produce according to your design.
