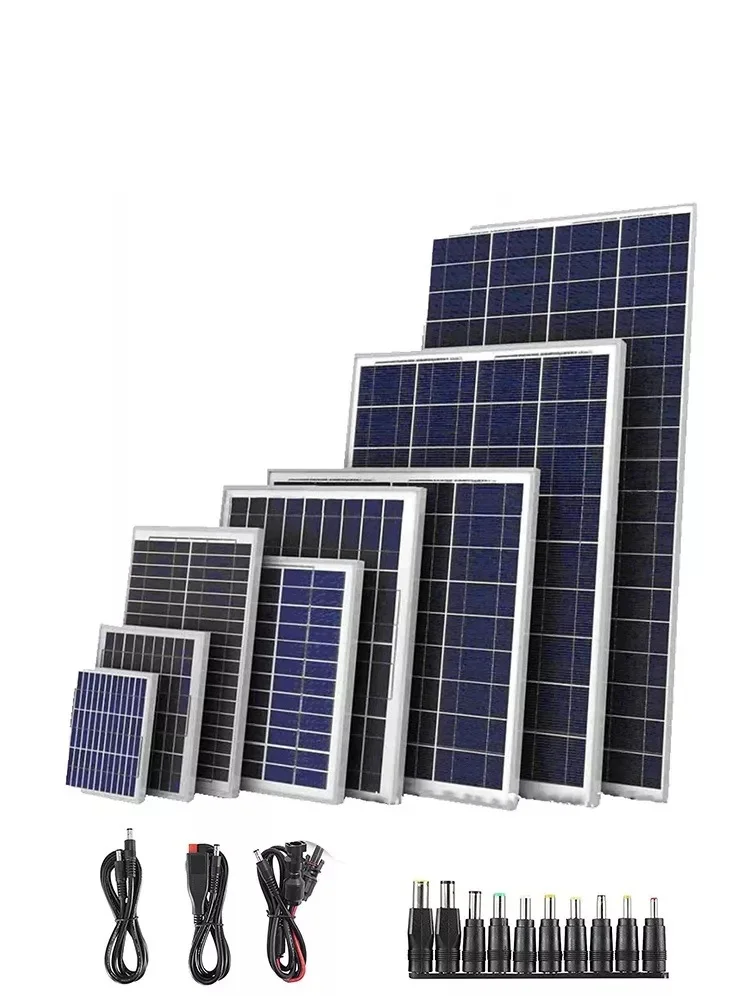

Aluminum Frame 5W 10W 20W 30W 50W Glass Solar Panel Kit 12V System Power Output Monocrystalline Solar Cell 12V Battery Charger
- Category: >>>
- Supplier: Shenzhen Winxu Energy Technology Co. Ltd.
Share on (1600726987658):
Product Overview
Description
Product Description
Specification:

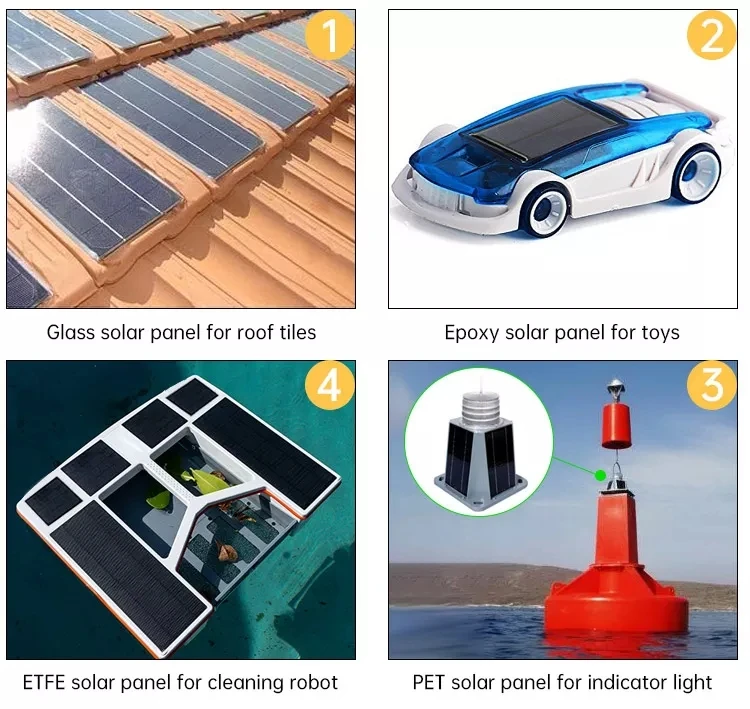

All Epoxy, PET, ETFE, Glass solar cells are based on client requirement, please tell me your detailed requirement.Ideal for Solar Toys, Solar Led Lights ,Solar Roof Tiles and other small solar projects(Powering small devices).
* 2 years warranty, any failure panels can be replaced free of charge within 2 years.
* Sample is available before mass production.
* OEM , any shape, any size, any voltage.
Please provide the detailed requirements as below:
1. Voltage?
2. Size or power you want?
3. Mono or polycrystalline solar cells you prefer?
4. Applications?
5. Quantity?
Then we will give you our CAD design and quotation, thanks.
Solar cell cutting by Laser
All Epoxy, PET, ETFE, Glass solar cells are based on client requirement, please tell me your detailed requirement.Ideal for Solar Toys, Solar Led Lights ,Solar Roof Tiles and other small solar projects(Powering small devices).
* 2 years warranty, any failure panels can be replaced free of charge within 2 years.
* Sample is available before mass production.
* OEM , any shape, any size, any voltage.
Please provide the detailed requirements as below:
1. Voltage?
2. Size or power you want?
3. Mono or polycrystalline solar cells you prefer?
4. Applications?
5. Quantity?
Then we will give you our CAD design and quotation, thanks.
Solar cell cutting by Laser
Product Description:
- Highly transparent glass
- Durable and durable, long service life, corrosion resistance
- Can be used in harsh environmental conditions
- Waterproof and scratch-resistant
- UV protection
- Good performance under low light conditions
- Rimless solar panels
- Highly transparent glass
- Durable and durable, long service life, corrosion resistance
- Can be used in harsh environmental conditions
- Waterproof and scratch-resistant
- UV protection
- Good performance under low light conditions
- Rimless solar panels
Characteristics | WX-5 | WX-10 | WX-20 | WX-30 | WX-40 | WX-50 | WX-60 | WX-80 | |||||
Maximum Power (Pmax) | 5Wp | 10Wp | 20Wp | 30Wp | 40Wp | 50Wp | 60Wp | 80Wp | |||||
Optimum Operating Voltage/Vmp | 18.0V | 18.0V | 18.0V | 18.0V | 18.0V | 18.0V | 18.0V | 18.0V | |||||
Optimum Operating Current/Imp | 0.27A | 0.56A | 1.11A | 1.67A | 2.22A | 2.78A | 3.33A | 4.44A | |||||
Open Circuit Voltage /Voc | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V | |||||
Short Circuit Current /Isc | 0.3A | 0.66A | 1.21A | 1.87A | 2.42A | 2.98A | 3.52A | 4.64A | |||||
Module Efficiency | 13.32% | 14.37% | 15.33% | 16.70% | 17.80% | 17.42% | 18.21% | 18.61% | |||||
Weight | 1Kg | 1.7Kg | 2.3Kg | 2.8Kg | 3.2Kg | 4.0Kg | 5.2Kg | 6Kg | |||||
Numbers of cells | 36(2*18) | 36(2*18) | 36(2*18) | 36(2*18) | 36(3*12) | 36(3*12) | 36(4*9) | 36(4*9) | |||||
Cell dimension(mm) | 78*10.4 | 156*10.4 | 156*22.3 | 156*31.2 | 156*39 | 156*52 | 156*62.4 | 156*78 | |||||

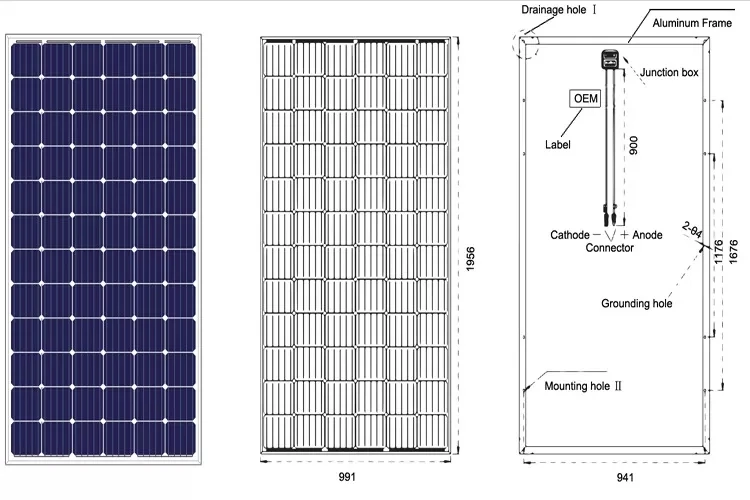

Dimensions(mm) | 255*190*18 | 345*255*18 | 470*345*25 | 635*345*25 | 530*510*25 | 680*510*30 | 670*630*30 | 765*670*30 | |||||
Standard test condition | Irradiance 1000W/m²,Module temperature 25℃, AM=1.5 | ||||||||||||
Q1. Can I have a sample order for solar light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 2-5 days, mass production time needs 15- 30 days
Q3. Do you have any MOQ limit for solar light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for solar light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on solar light product?
A: Yes, we could print logo on some solar light. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
