Product Description

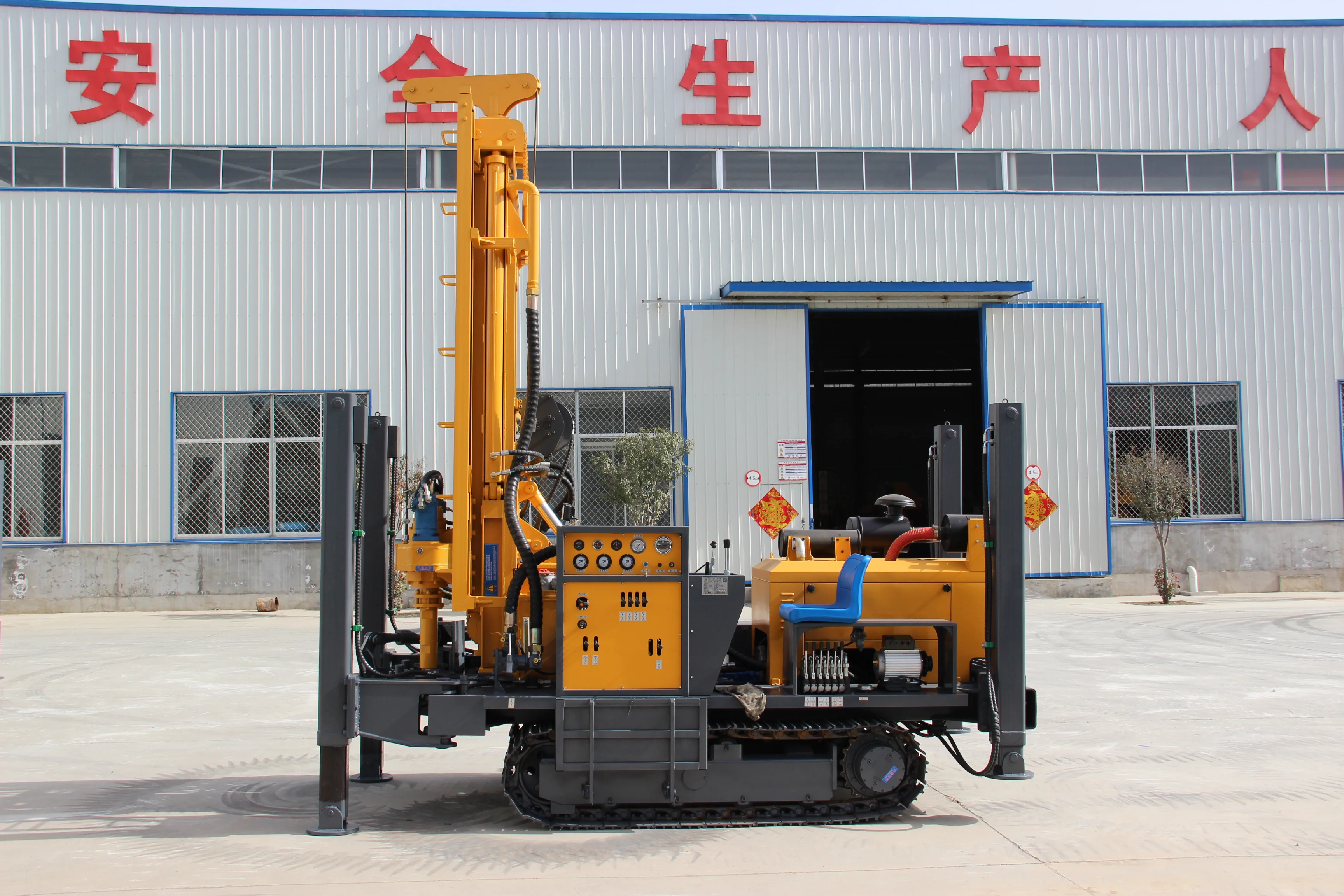

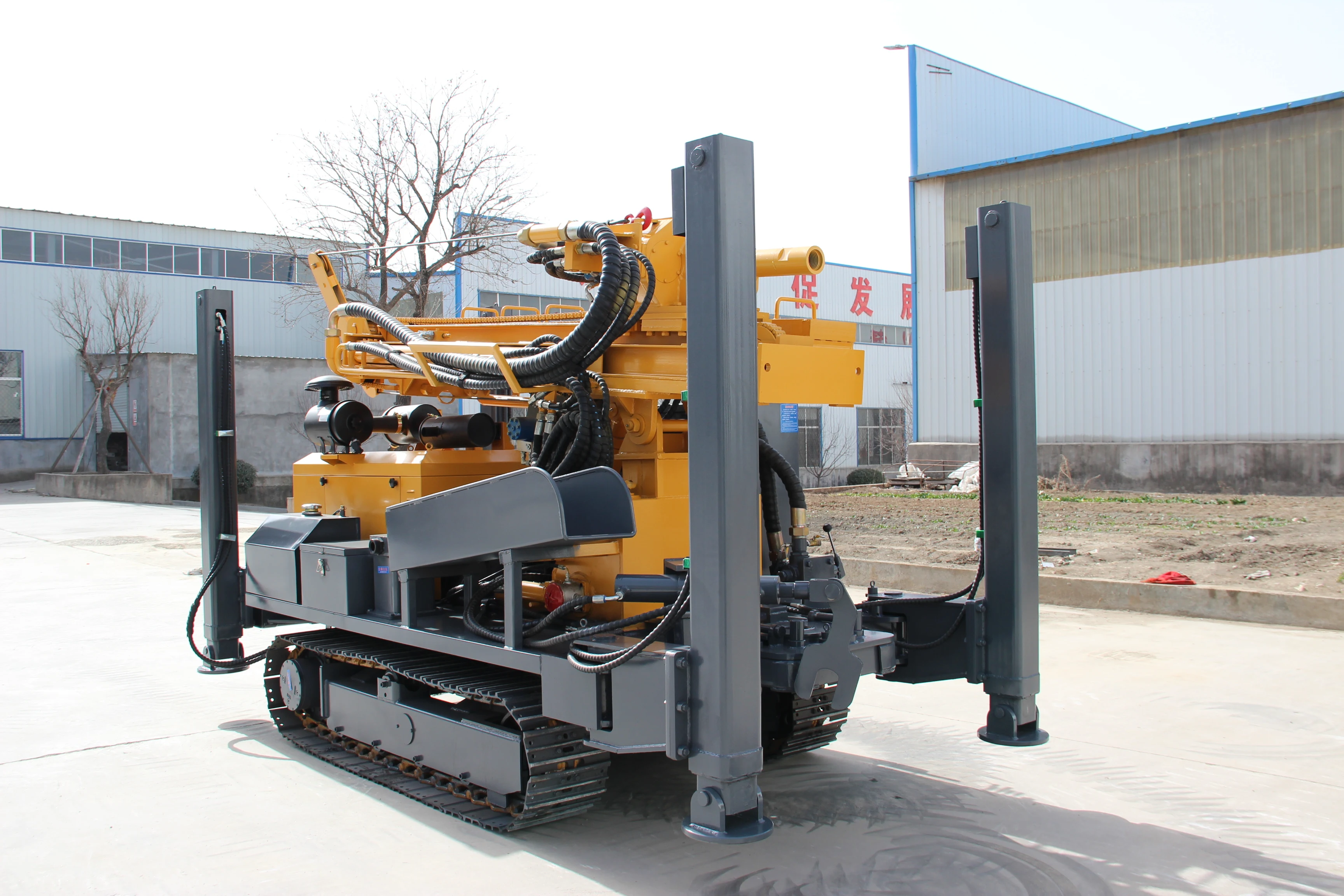

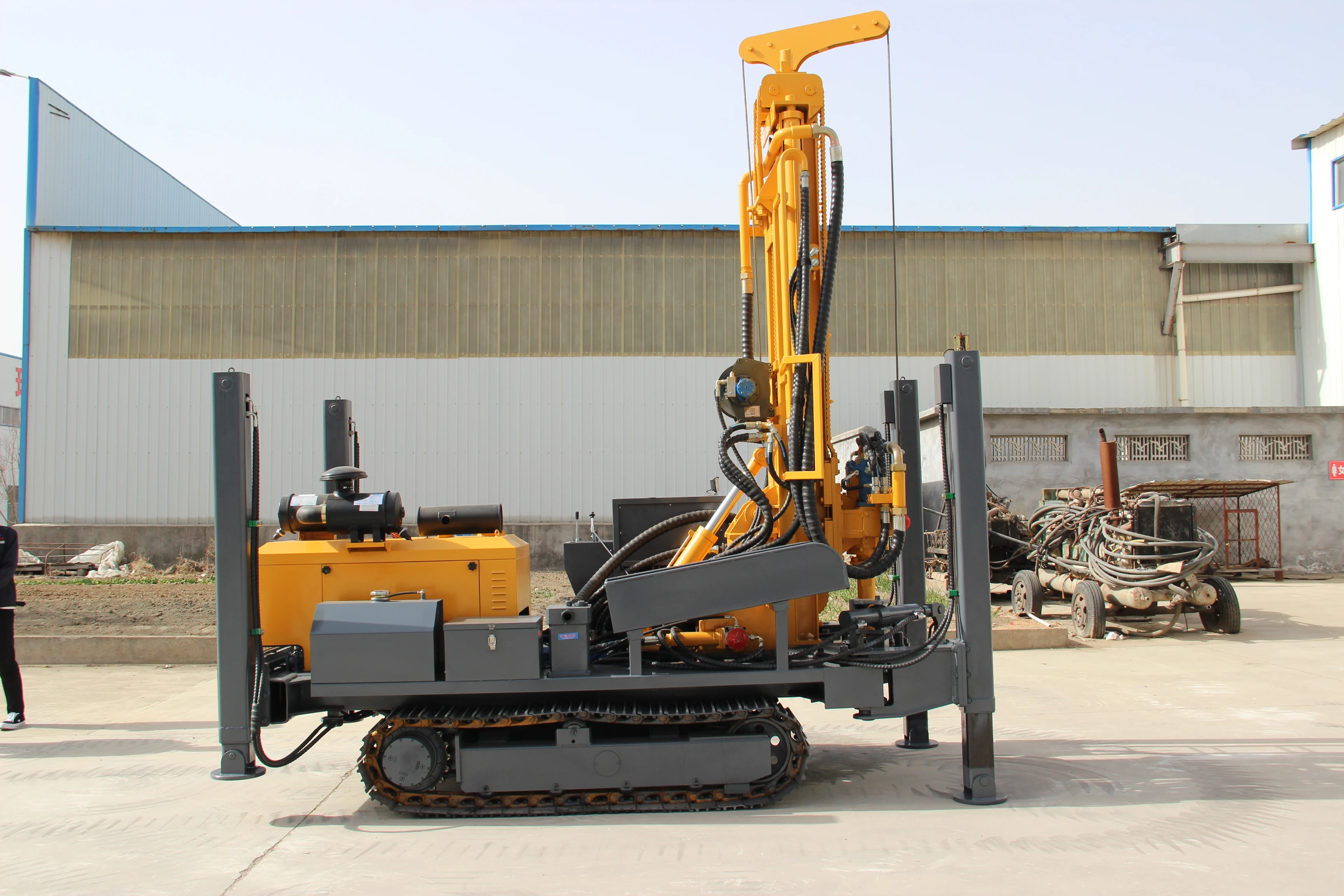

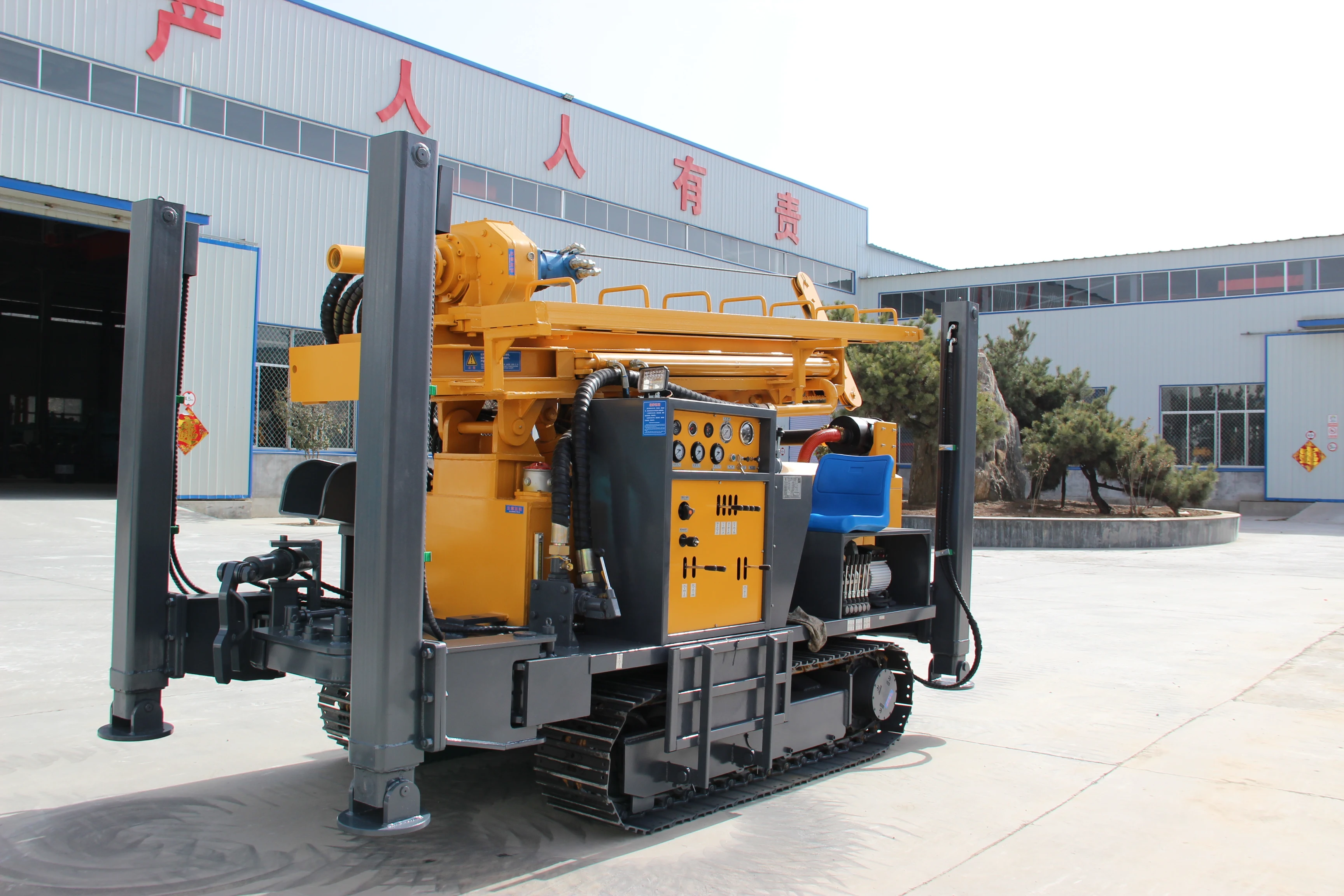

FY series deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Adopt steel tracked chassis，Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling,meeting the demands of well-drilling in different terrain strata.






Water well drilling rig features:
1. Equipped with brand-name engine, strong power and long service life
2. Patented design compound boom, double oil cylinder lifting, strengthened tower
3. The drilling diameter is large, the drilling depth is deep, and the advancing speed is fast

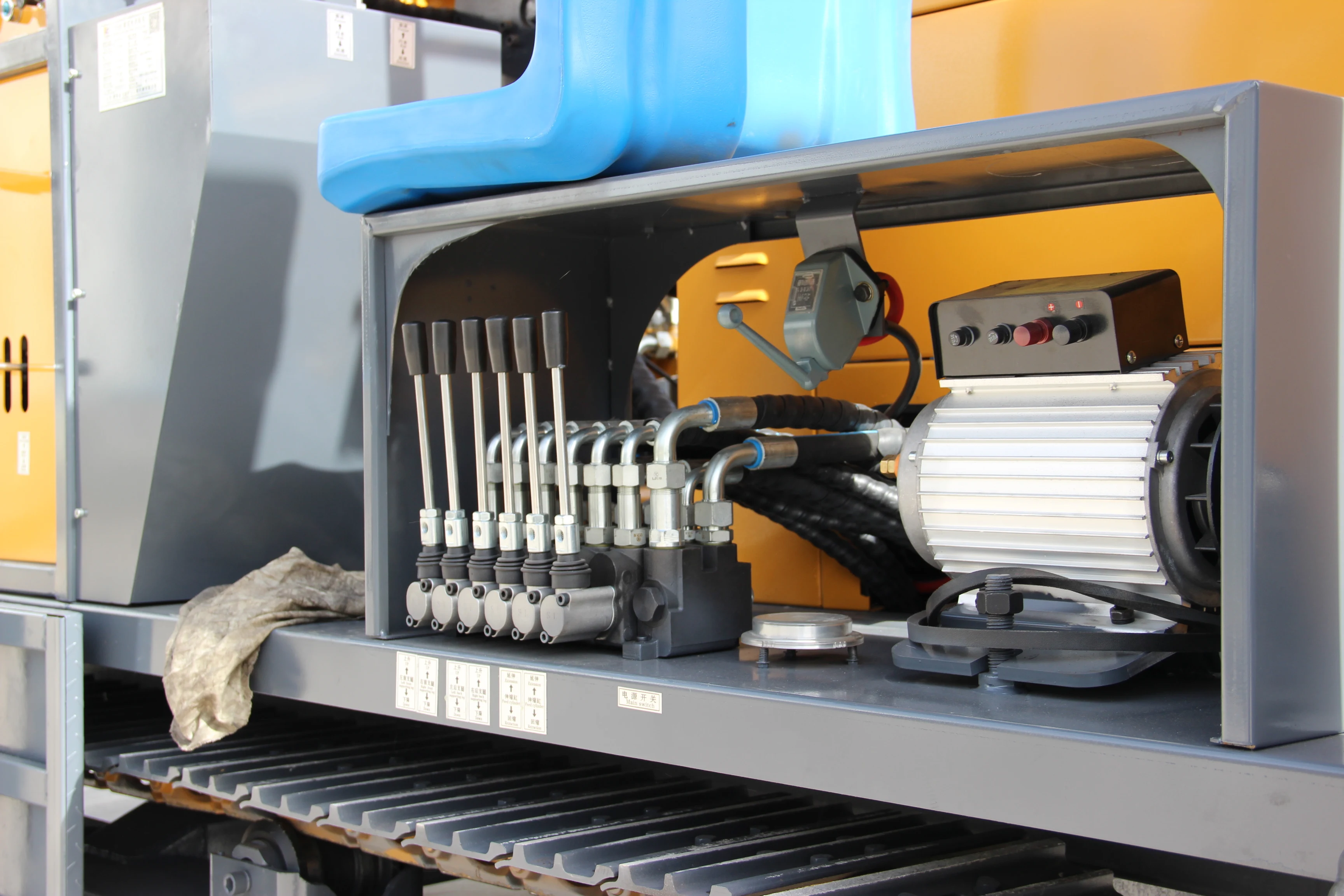

4. (Oil pump imported from Italy) 3-way oil pump, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder








Specification


                                                  Factory direct sales of various water well drilling rigs
Model
FYX180
FY260
FY280
FY350
FY580
The weight(T)
4.5
6.5
7.6
8.6
12
Drill pipe diameter(mm)
76/89
76/89
76/89
89/102
102/108/114
The hole diameter(mm)
140-254
140-305
140-305
140-325
140-350
Drill pipe lenght(m)
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m/6.0m
1.5m/2.0m/3.0m/
6.0m
Drilling depth(m)
180
260
280
350
600
Rig lifting force(T)
12
15
17
22
28
One-tine advance length(m)
3.3
3.3
6.6
6.6
6.6
Equipped capacitor(kw)
Cummins 60 kW engine
Xi chai 70KW
YU chai 75KW
Cummins 93 kW engine
Cummins 132 kW
engine
Hoisting force of winch(T)
1.5
1.5
2
2
2
Swing torque(N.m)
3200-4600
4000-5300
4500-6000
6200-8500
8500-11000
Dimension(mm)
3950*1630*2250
4000*1850*2300
5900*1850*2360
6000*2000*2550
6200*2200*2650
Swing speed(rpm)
45-70
45-70
40-70
66-135
45-140
The penetration effciency(m/h)
10-35
10-35
15-35
15-35
15-35
Rapid rise speed(m/min)
20
24
25
18
20
Walking speed(km/h)
2.5
2.5
2.5
2.5
2.5
Fast feeding speed(m/min)
40
28
30
33
40


Detail Introduction




Application


The following are feedback pictures from customers of water well drilling rigs, which are suitable for various working conditions




Packing & Delivery






Warehouse to show


Real photos of Feida drilling rig factory






Company Profile




FAQ


1. why should you buy from us not from other suppliers?
Feida Mining Machinery Co., Ltd. has been researching and producing water well drilling rig, DTH drilling rig and supporting equipment for 20 years.FY series products have the characteristics of high drilling speed, economy and low failure rate
2.what can you buy from us?
Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor
3. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
4.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
5.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in ShanDong,China.
6.Do you have any certificates for your machine?
All of our products coming with the certificates of CE,ISO9001.
7. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
