HS3 KA3 L7 K7 Liquid Cooling Plate Block Water Cold Cooling Plate Liquid System Heating Cooling Kits Heatsink
- Category: >>>
- Supplier: Shenzhen Dream Power Technology Co. Ltd.
Share on (1600727100048):
Product Overview
Description
About this item
1. Due to the different water-cooling plates matched with various models of the server, please consult customer service before
placing an order.（We support customizing the water-cooled plates of all servers）
2. It is recommended to use the LIANLI overclocking power supply to achieve overclocking. Use the original 4000W power supply. If
the power cannot be satisfied, overclocking will easily damage the machine.
3. Before powering on, please run the water cycle to check that there is no overflow, and then run the machine. The initial
installation should be observed for a period of time.
placing an order.（We support customizing the water-cooled plates of all servers）
2. It is recommended to use the LIANLI overclocking power supply to achieve overclocking. Use the original 4000W power supply. If
the power cannot be satisfied, overclocking will easily damage the machine.
3. Before powering on, please run the water cycle to check that there is no overflow, and then run the machine. The initial
installation should be observed for a period of time.
About this item
4. This set of plans is not equipped with external inlet and outlet water pipes/trachea pipes. If you need to customize, you can
consult customer service.
5. For detailed installation videos and pictures, please consult customer service.
6.There are many sellers of water-cooled plates (water blocks) on the market, and the quality is uneven. LIANLI regardless of the
drilling process of the aluminum plate, the selection of the interface, the metal material used for the interface, and the highest
level of thermal grease with a coefficient of 5.0 (w/m-k). They are better and safer than those produced by other factories
consult customer service.
5. For detailed installation videos and pictures, please consult customer service.
6.There are many sellers of water-cooled plates (water blocks) on the market, and the quality is uneven. LIANLI regardless of the
drilling process of the aluminum plate, the selection of the interface, the metal material used for the interface, and the highest
level of thermal grease with a coefficient of 5.0 (w/m-k). They are better and safer than those produced by other factories
Recommended use environment：
In an environment where water is convenient to obtain around rivers and ravines or the cost of water is low, the method of entering cold water into hot water and discharging it can be used directly! If it is used in buildings such as workshops and computer rooms, it needs to be equipped with water cooling towers or refrigerators for water cooling. The freezing prevention
pipes in alpine areas can use ethylene glycol liquids with different concentrations to replace water according to the temperature!
In an environment where water is convenient to obtain around rivers and ravines or the cost of water is low, the method of entering cold water into hot water and discharging it can be used directly! If it is used in buildings such as workshops and computer rooms, it needs to be equipped with water cooling towers or refrigerators for water cooling. The freezing prevention
pipes in alpine areas can use ethylene glycol liquids with different concentrations to replace water according to the temperature!

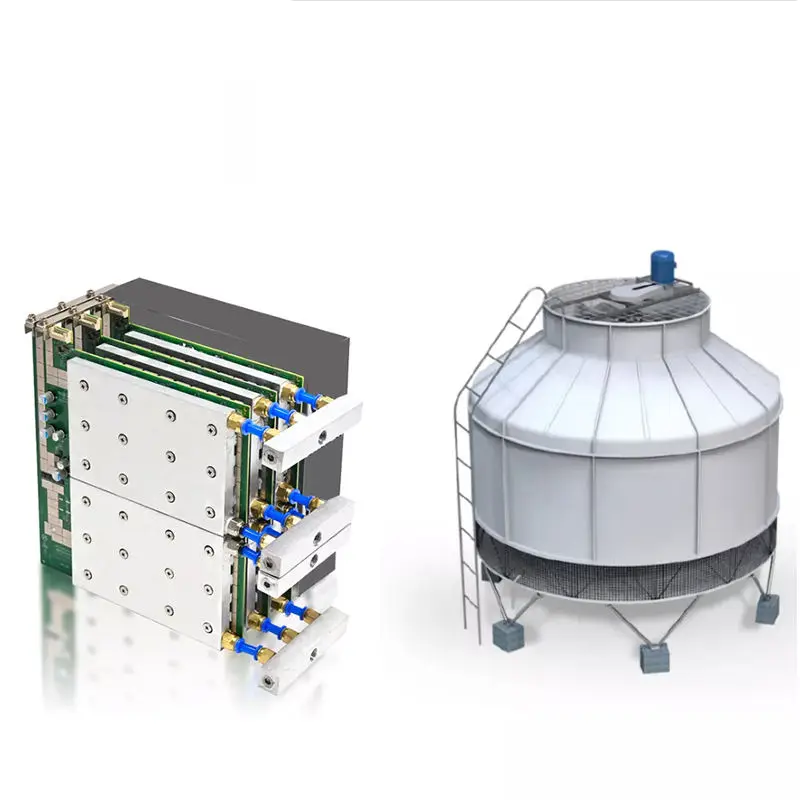

Recommended cooling tower selection
The heat dissipation of a single server overclocked to 7000W is about 1600W, and the required cooling capacity is about 3600W.According to the parameters provided by the manufacturer as shown in the figure below, the parameters of each manufacturer have a small deviation. For example, the cooling capacity of a 10T tower is 58k÷3.6kw=16.2. The heat dissipation is less than the cooling capacity, so 20% of the heat dissipation should be reserved, 16.2-16.2×20%=13 units, that is, a 10T cooling tower can
bring 13 units. Combined with other specifications of cooling towers, the water tower per tonnage can be calculated. The number of machines that can be brought is 1.3 units
The heat dissipation of a single server overclocked to 7000W is about 1600W, and the required cooling capacity is about 3600W.According to the parameters provided by the manufacturer as shown in the figure below, the parameters of each manufacturer have a small deviation. For example, the cooling capacity of a 10T tower is 58k÷3.6kw=16.2. The heat dissipation is less than the cooling capacity, so 20% of the heat dissipation should be reserved, 16.2-16.2×20%=13 units, that is, a 10T cooling tower can
bring 13 units. Combined with other specifications of cooling towers, the water tower per tonnage can be calculated. The number of machines that can be brought is 1.3 units
Pump selection
The water cooling plate adopts the inlet and outlet pipes of 12mm. According to the calculation, the 12mm pipe is calculated as 1
ton per hour, the number of machines × 1 ton/hour = the flow rate of the pump
water cooling plate size: Package weight 5KG
The water cooling plate adopts the inlet and outlet pipes of 12mm. According to the calculation, the 12mm pipe is calculated as 1
ton per hour, the number of machines × 1 ton/hour = the flow rate of the pump
water cooling plate size: Package weight 5KG
Package dimensions:300*212*152MM
Product Description
Product Specifications | ||||||||
Can improve server performance by 30-70%, effectively solving the problem of chip heat dissipation | ||||||||

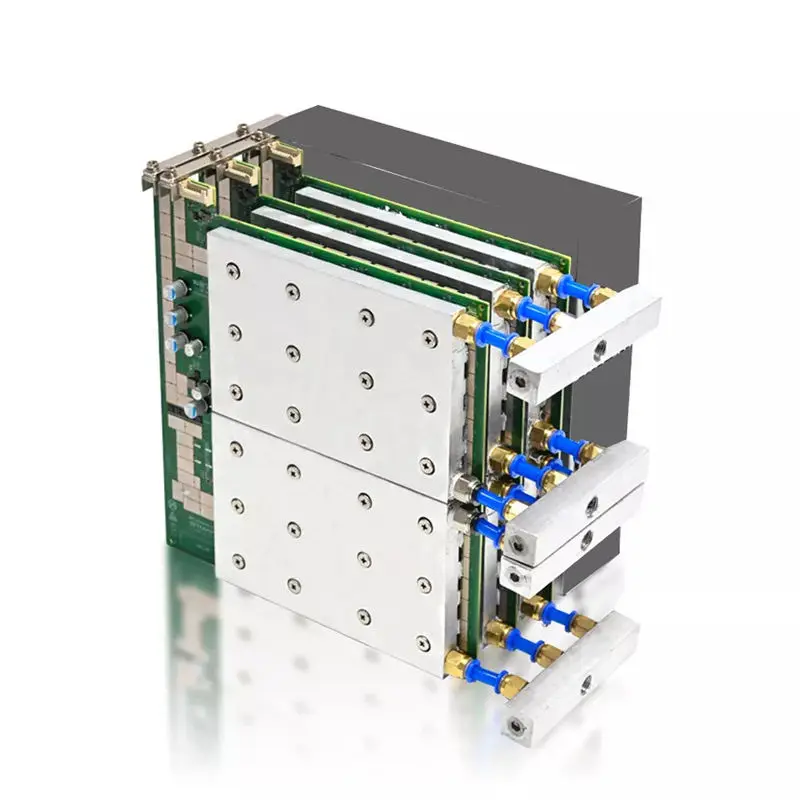

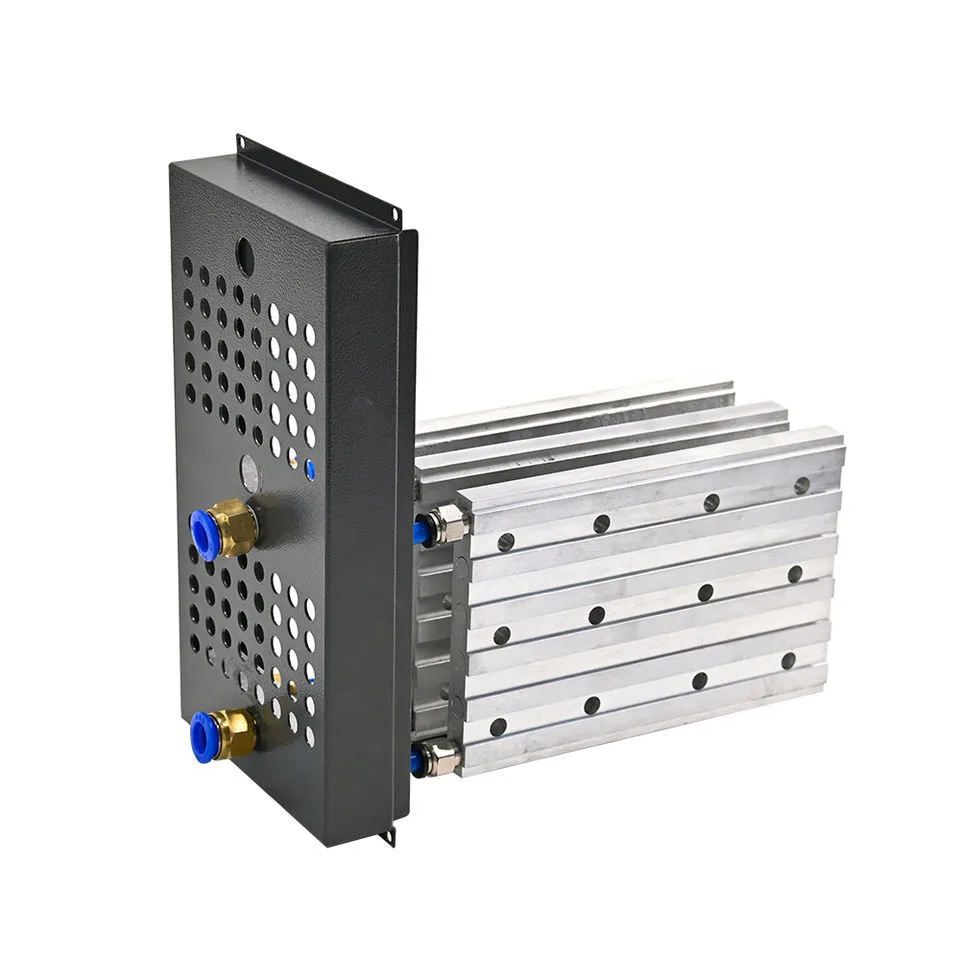

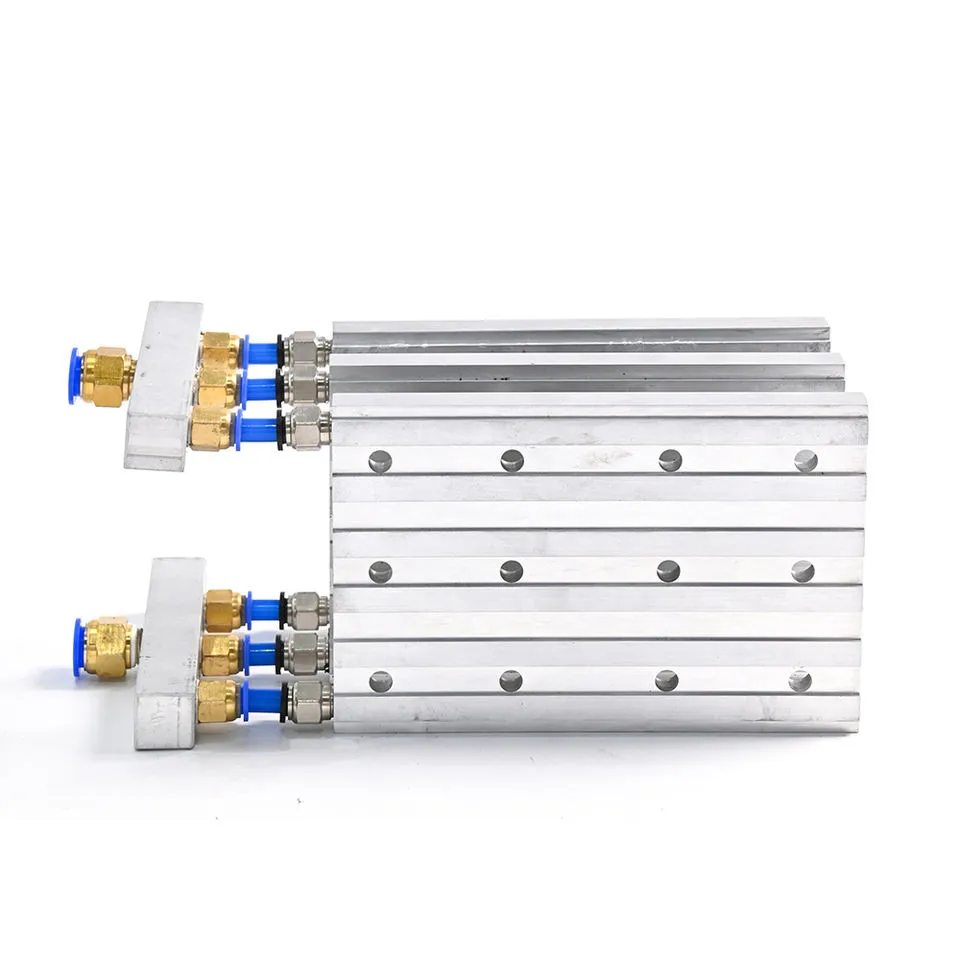

water cooling plate | Specification： | 118*178*14.5mm | quantity： | 6 pcs + manifold*4 | ||||
pipe connector | Specification： | 1CM*0.8CM | quantity： | 24 pcs(installed on manifold and water cooling plate) | ||||
pipe connector | Specification： | 2CM*1.2CM | quantity： | 4 pcs (installed on the manifold) | ||||
pipe | Specification： | 0.8CM | quantity： | 1 meter | ||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
As a professional manufacture including 6 product development labs,with over the 15 years industry expertise and a strong team with over 30 skilled&experienced engineers,we are capable to carry
out all industrial production process design,tooling,moulding,PCB assembly and housing development,which is definitely time saving for you to respond the market.
We commit to working together with our customers and offering world class designed products.
out all industrial production process design,tooling,moulding,PCB assembly and housing development,which is definitely time saving for you to respond the market.
We commit to working together with our customers and offering world class designed products.
