Product Overview
Description
Brief introduction:
HVS0401E
4-Ch HDMI Multi-format Streaming Video Switcher
· Inputs 1-3: HDMI, Input 4: HDMI/ DP
· Outputs: HDMI PGMx2,HDMI multiview x1,USB type-Cx1, LANx1
· LAN port for RTMP streaming and upgrading
· USB type C for Video capturing on PC
· USB Disk/ SD card for PGM recording

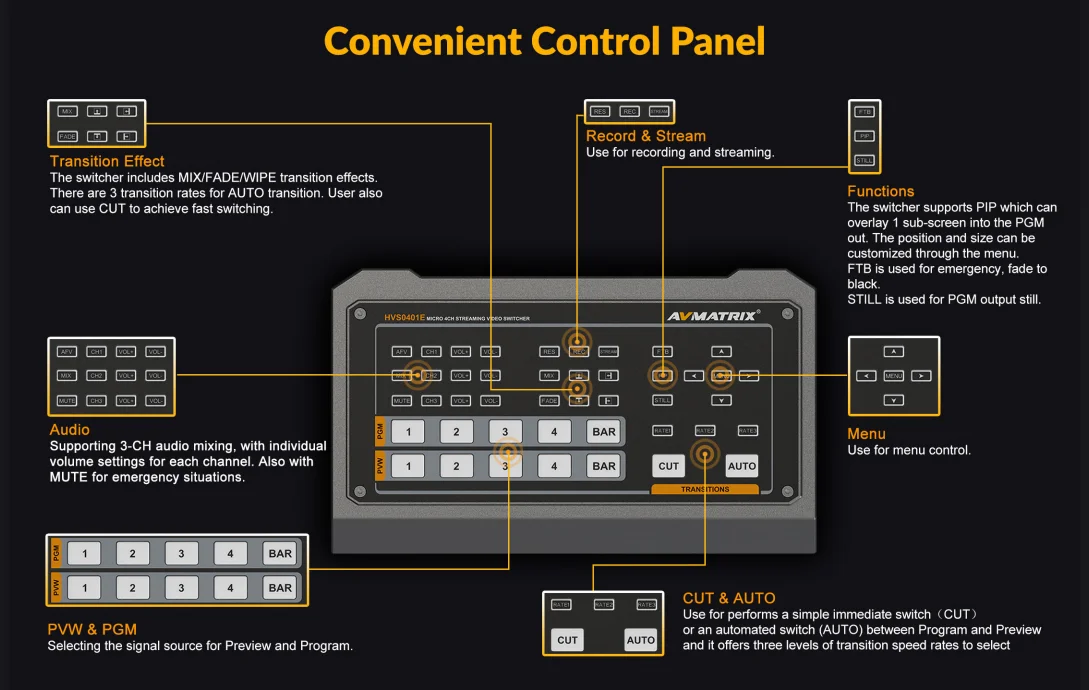

· Audio mixer, PIP, FTB, Image Still, Tally, etc.
Product Description
Product Description

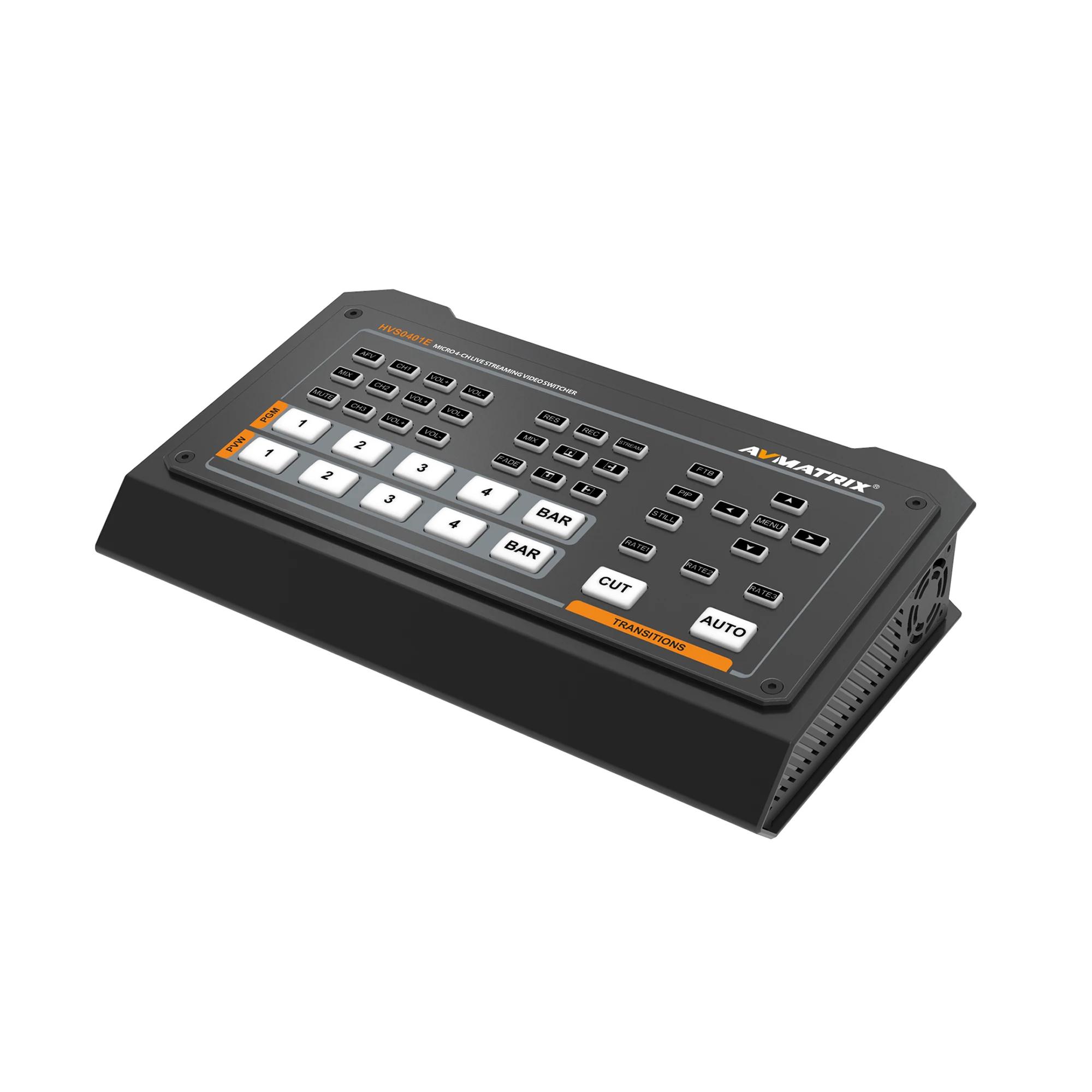

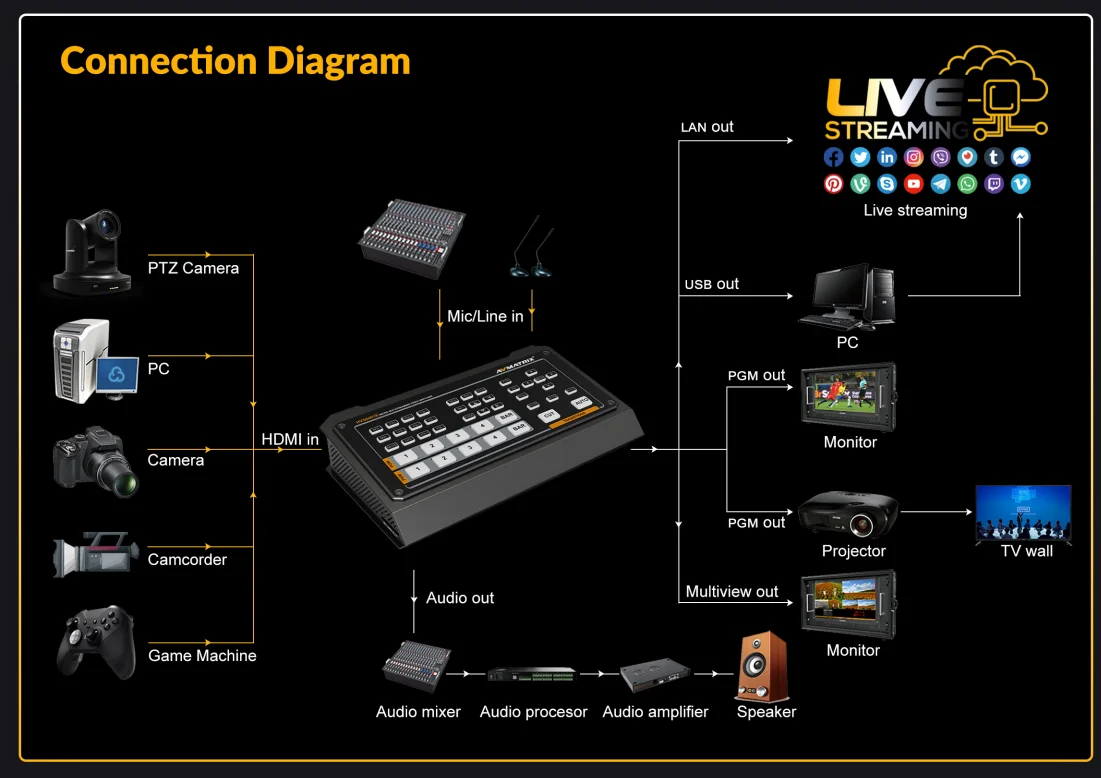

HVS0401E is a 4-channel HDMI/DP multi-format video switcher with a compact and rugged metal
housing design that allows for video switching, audio mixing and different transition effects.Inputs support
multi-format, PGM output can be scaled, compatible with a variety of equipment. The switcher supports
capture to a PC for performance and presentation via the USB Type-C port and can be directly pushed for
streaming via the LAN port. A built-in video recorder allows direct recording via USB disk and SD card.
User can also customize different settings and import or export the configuration quickly for various
scenarios. It’s a powerful and professional video switcher for your choices.

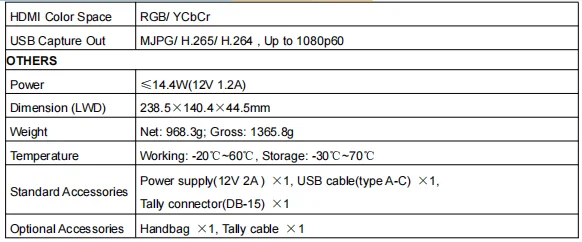

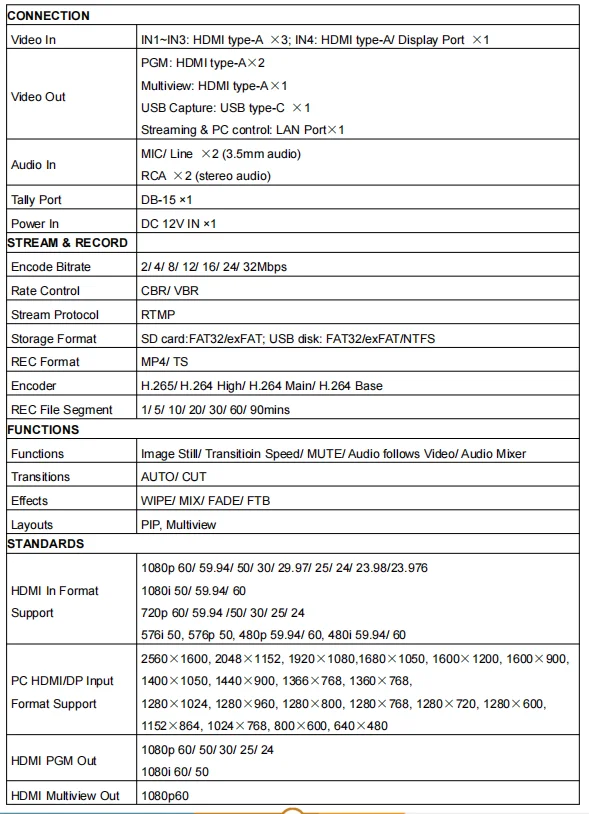

Techniacl Parameter
Techniacl Parameter
