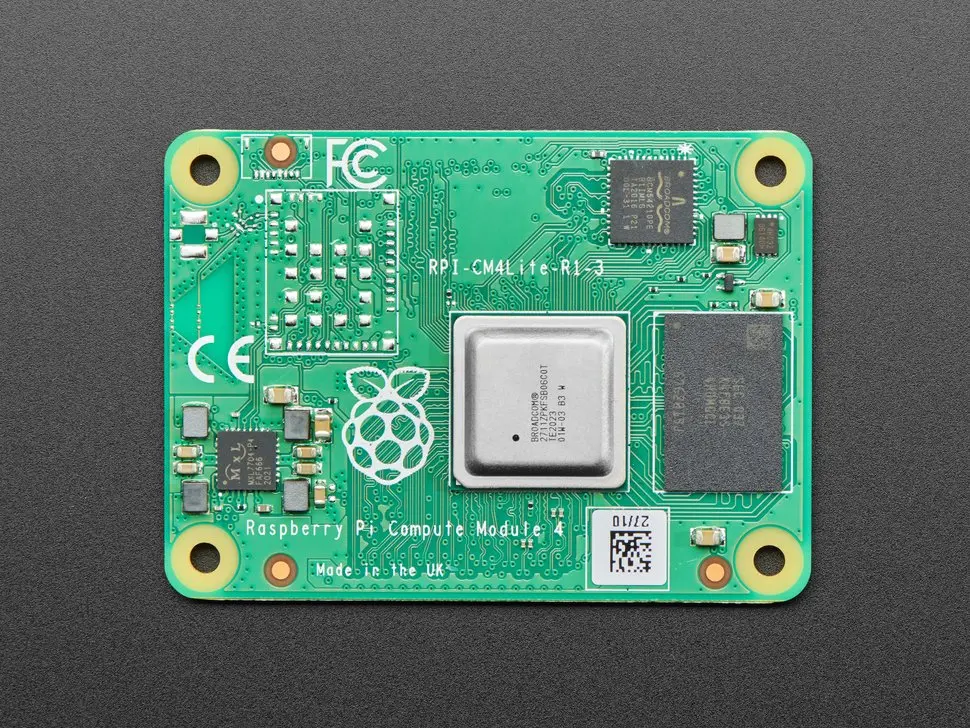

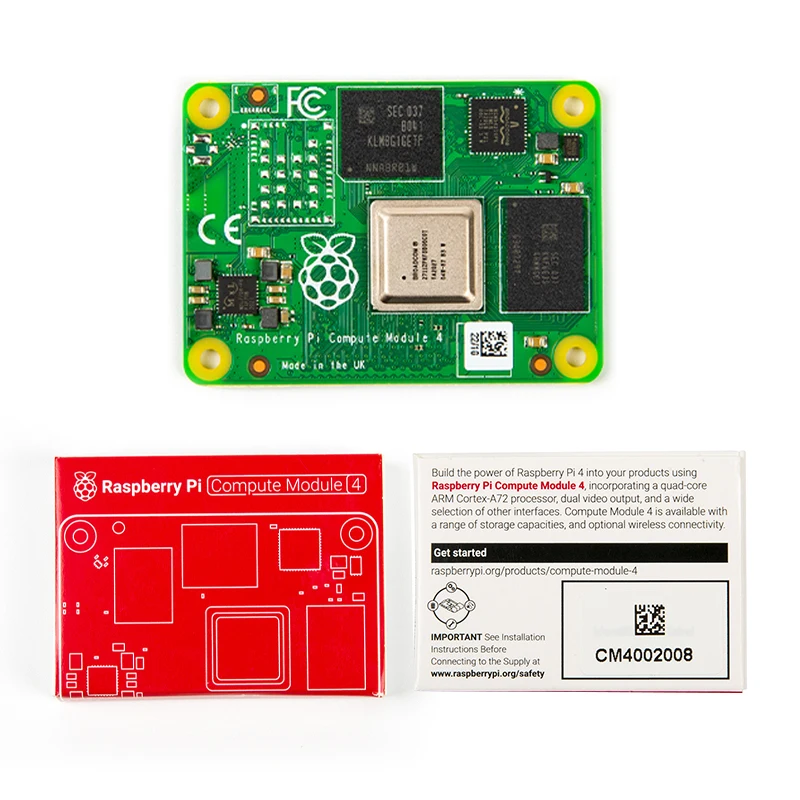

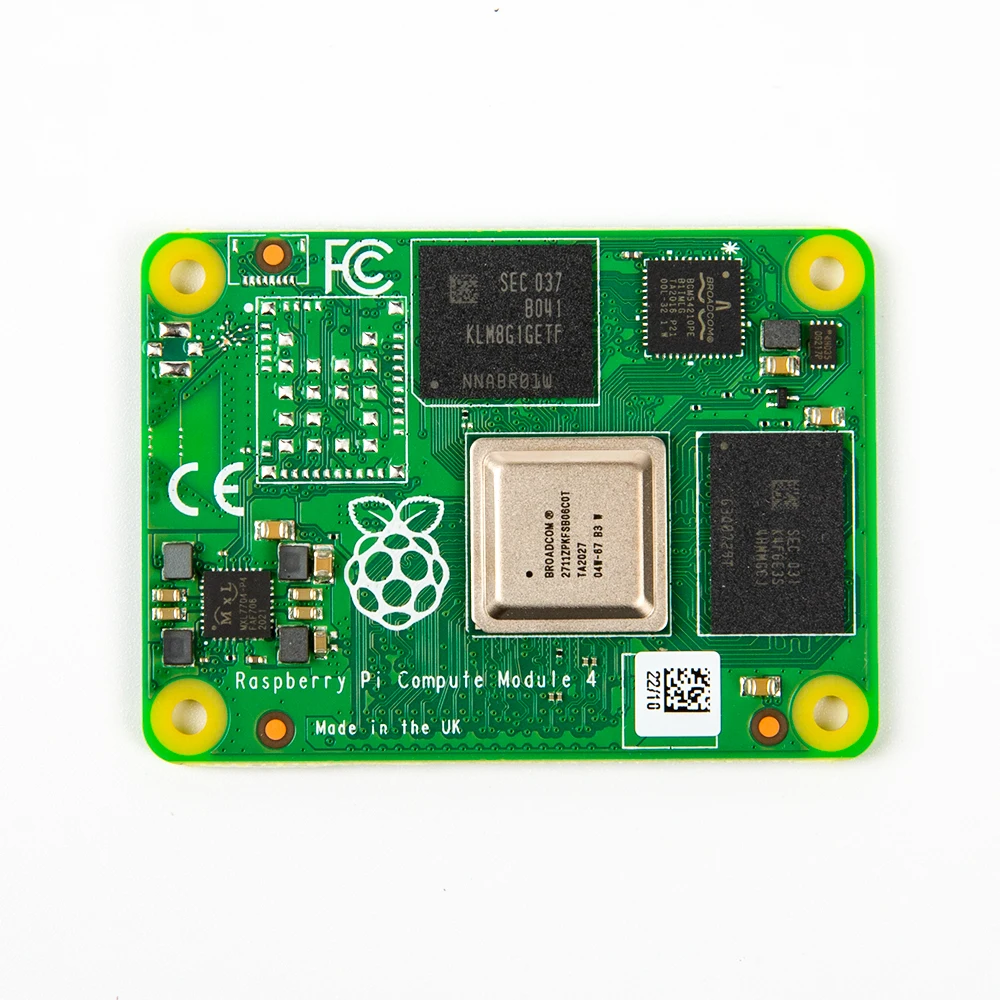

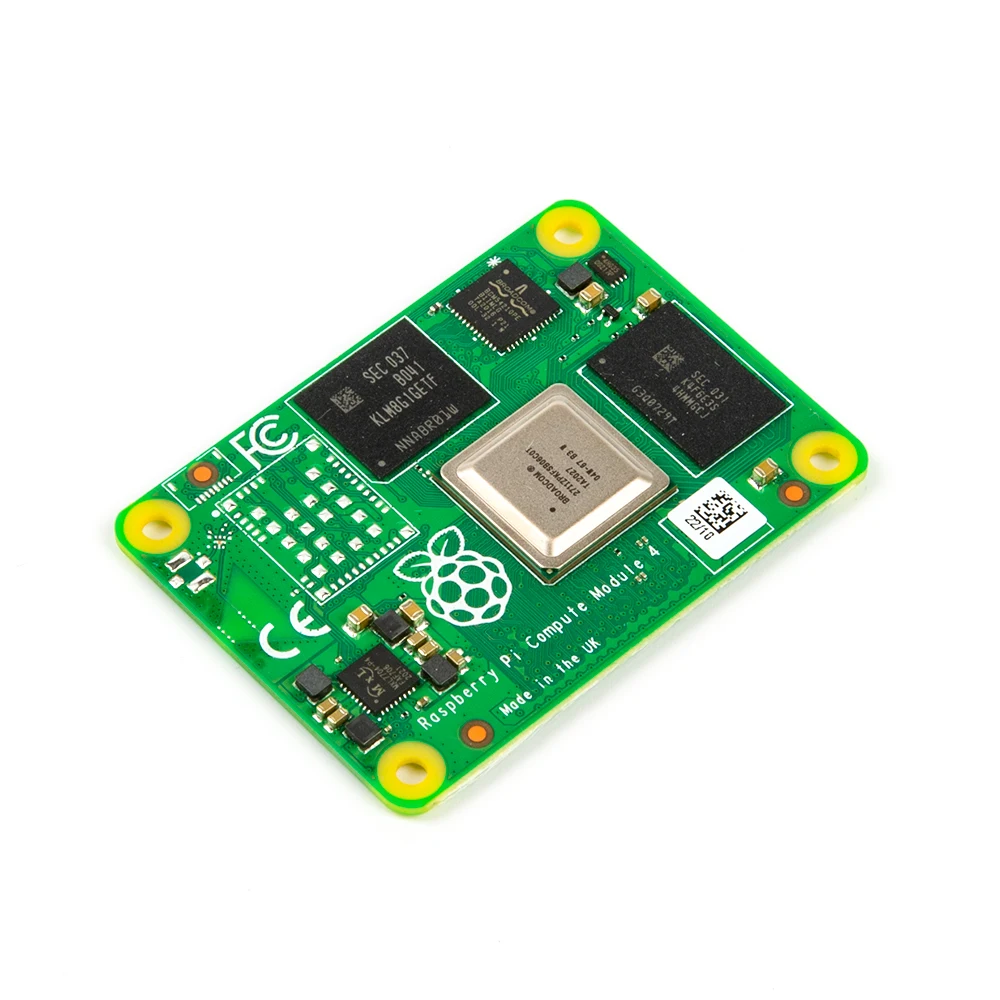

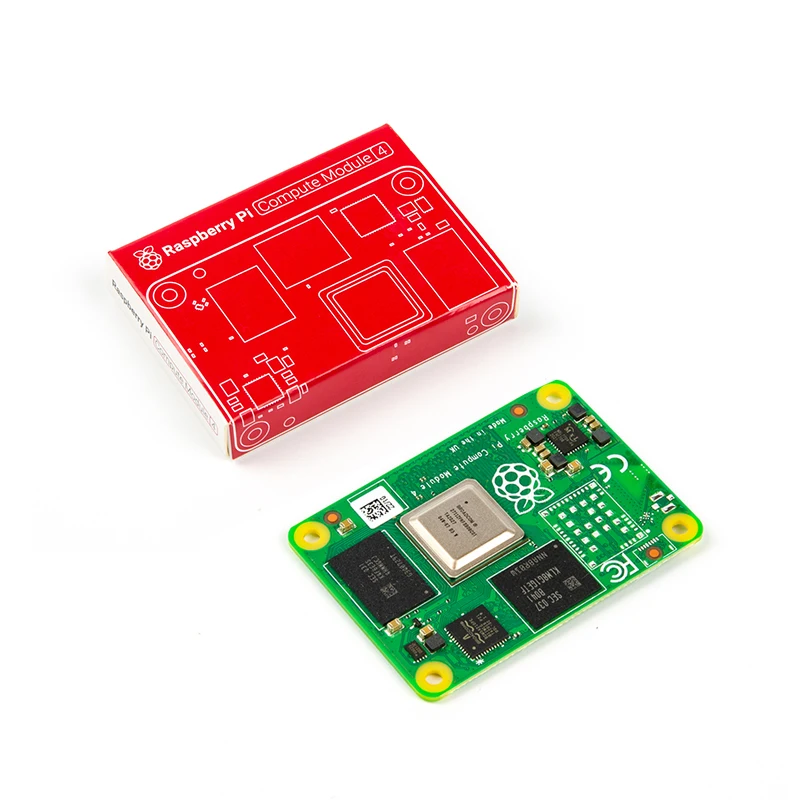

Raspberry Pi Compute Module 4 CM4 Blue tooth 5.0 EMMC Flash Memory CM4102008/4104032 Raspberry Pi Cm4
- Category: >>>
- Supplier: Shenzhen Huawin Industrial Co. Ltd.
Share on (1600727197220):
Product Overview
Description
Product Description

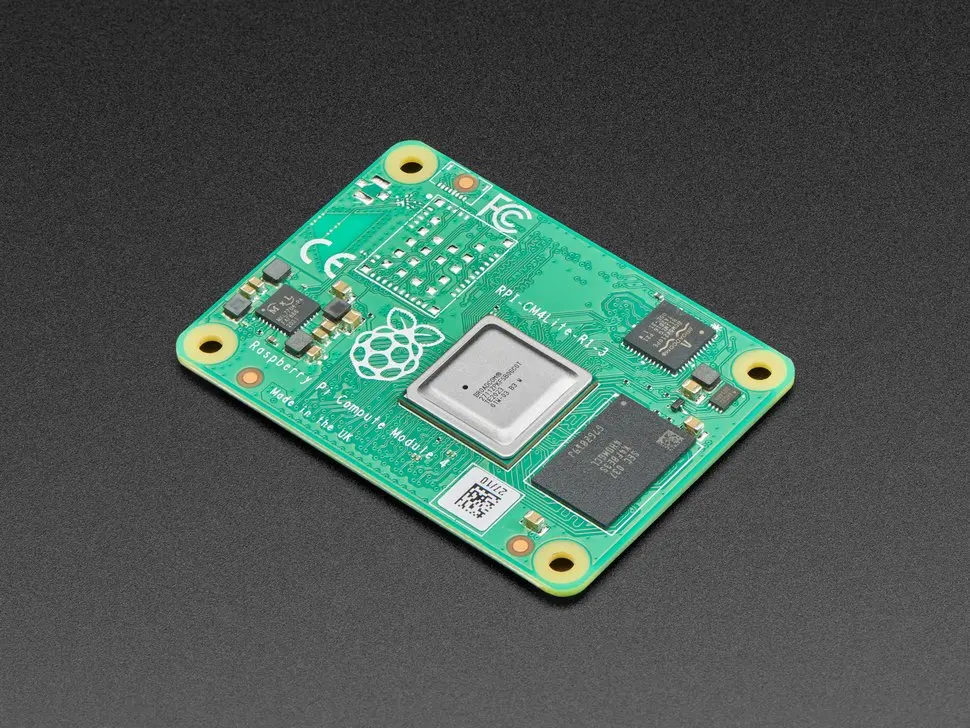

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications.
Built on the same 64-bit quad-core BCM2711 application processor as Raspberry Pi 4, the Compute Module 4 delivers a step change in
performance over its predecessors: faster CPU cores, better multimedia, more interfacing capabilities, and, for the first time, a
choice of RAM densities and a wireless connectivity option.
The Raspberry Pi Compute Module 4 IO Board is an invaluable development tool. Exposing every interface from Compute Module 4, the
IO Board provides a development platform and reference base-board design for the most powerful Compute Module yet, and is also
designed for integration into end products.
* 1.5GHz quad-core 64-bit ARM Cortex-A72 CPU
* VideoCore VI graphics, supporting OpenGL ES 3.x
* 4Kp60 hardware decode of H.265 (HEVC) video
* 1080p60 hardware decode, and 1080p30 hardware encode of H.264 (AVC) video
* Dual HDMI interfaces, at resolutions up to 4K
* Single-lane PCI Express 2.0 interface
* Dual MIPI DSI display, and dual MIPI CSI-2 camera interfaces

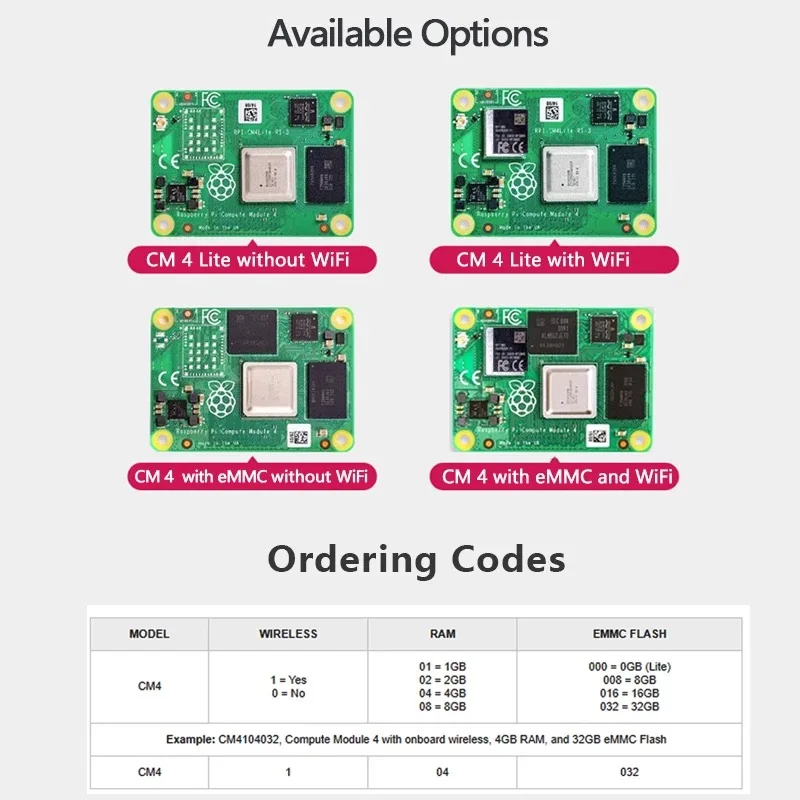

* 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM
* Optional 8GB, 16GB or 32GB eMMC Flash storage
* Optional 2.4GHz and 5GHz IEEE 802.11b/g/n/ac wireless LAN and Bluetooth 5.0
* Gigabit Ethernet PHY with IEEE 1588 support
* 28 GPIO pins, with up to 6 × UART, 6 × I2C and 5 × SPI
The Raspberry Pi Compute Module 4 Antenna Kit is certified for use with Raspberry Pi Compute Module 4.
Specification
Certifications
Company Profile
O-Leading strives to be your one stop solution partner in EMS supply chain, including PCB design ,PCB fabrication and PCB assembly (PCBA).We provide some of the most advanced PCBtechnology, including HDI PCBs,multilayer PCBs, Rigid-Flexible PCBs. We can support from quick turnprototype to medium& mass Production. In general, our global customers are very impressed with our services:rapidresponse, competitive price and qualitycommitment.Providing more valuable technical service and overall solution is the way O-leading forward. Looking to the future, O-leading will concentrate on the innovation and development of electronics
manufacturing technology as always, and make persistent efforts on PCB & PCBAne-stop service to provide first-class services and
create more value for our customers.
