100T Hydraulic press machine deep drawing machine for cookware
- Category: >>>
- Supplier: Hebei Pikasa Jinchukou Trading Co. Ltd.
Share on (1600727540922):
Product Overview
Description
Product Overview

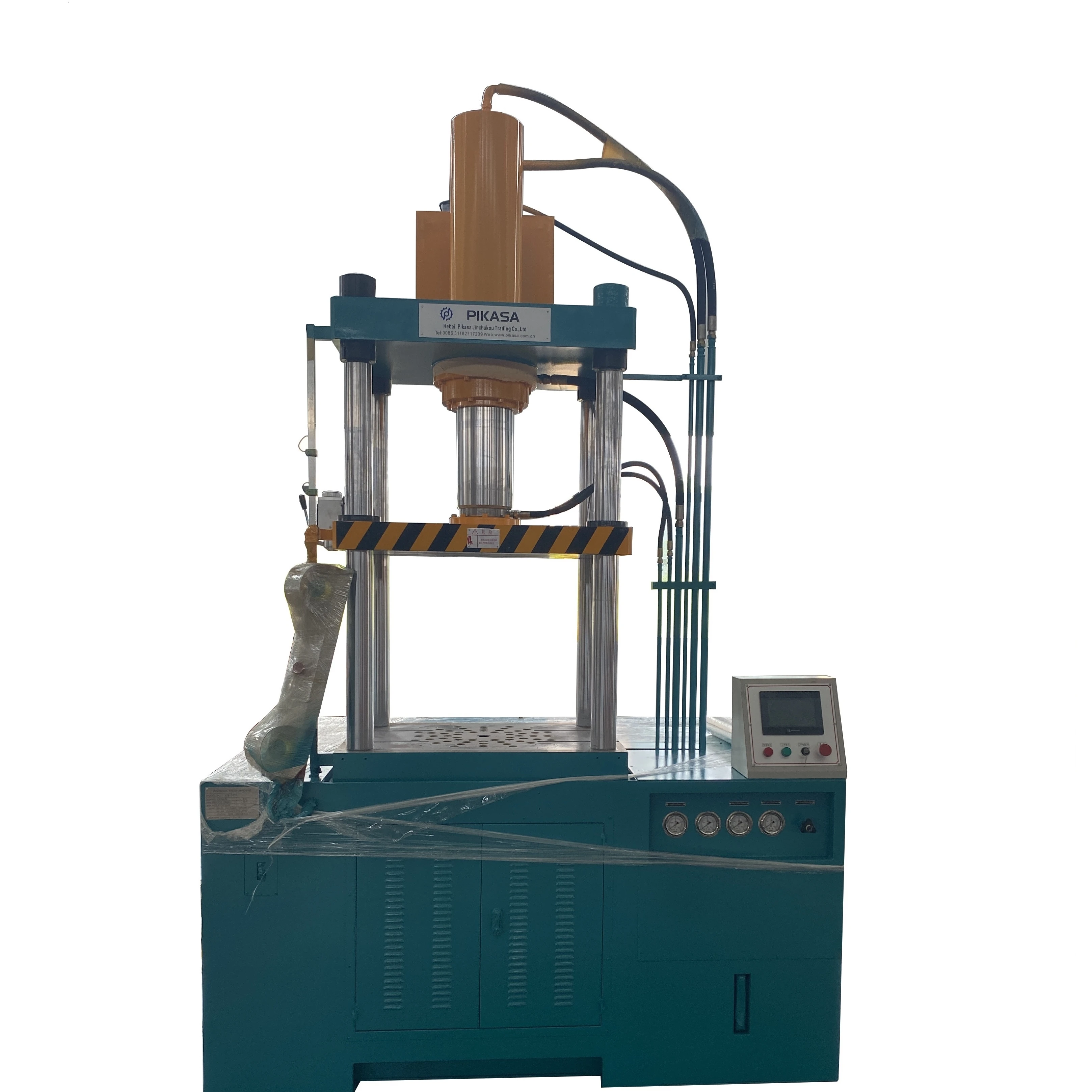

Hydraulic Deep Drawing Press Machine
Functions:
-- 3-Beam 4-Column Hydraulic deep drawing press;
-- Specialize for aluminum, mild steel & stainless steel products;
-- Suitable for cookwares, motor casings, water tanks and other deep drawing press parts.
FEATURES AT A GLANCE
Features:
- Low noise and energy consumption, high efficiency;
- 2 Mode speed control ram:
fast unloaded, lower forming speed;
- Light curtain protection, descending/ascendig limitation;
- PLC control, buttons operation, capacity adjustable.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Main cylinder pressure capacity | 650 KN |
2 | Working pressure | 20 MPa |
3 | Max. Blank holder pressure | 350 KN |
4 | Max. stroke of the ram | 400 mm |
5 | Max. ejection stroke | 300mm |
6 | Open height | Min.300mm - Max. 700mm |
L-R (Column): 550mm | ||
F-B (Rim): 600mm | ||
8 | Motor | 11 KW |
Package

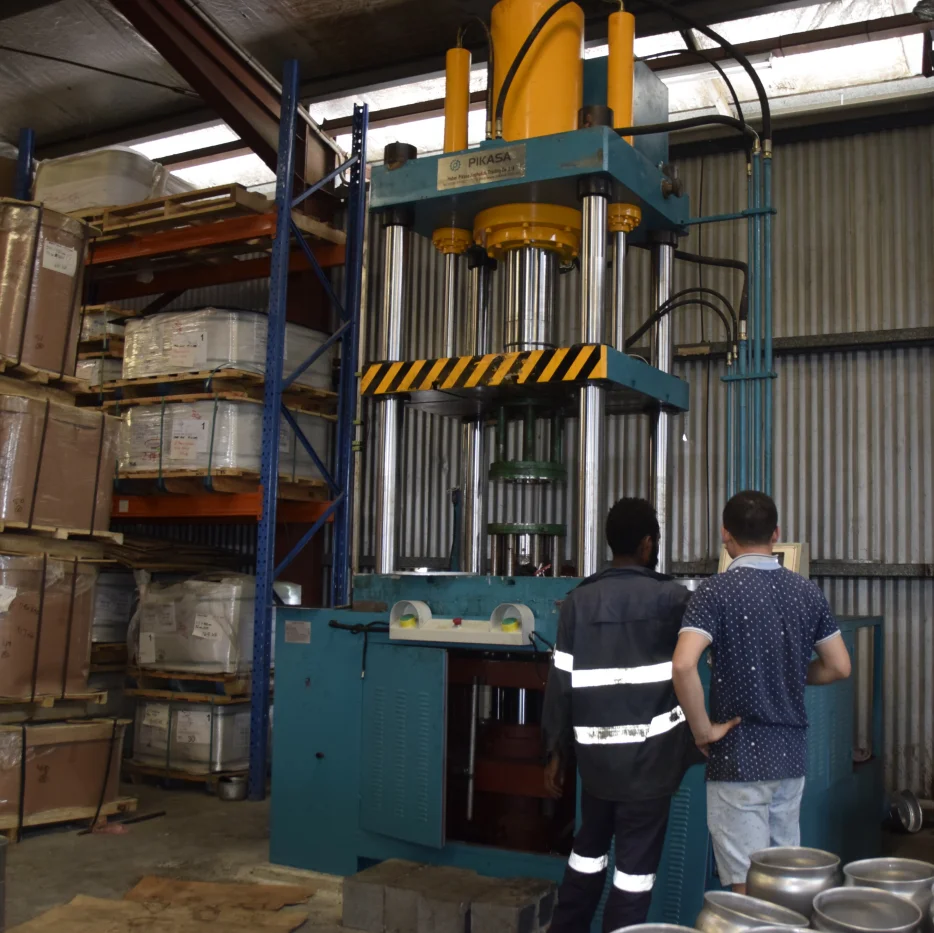

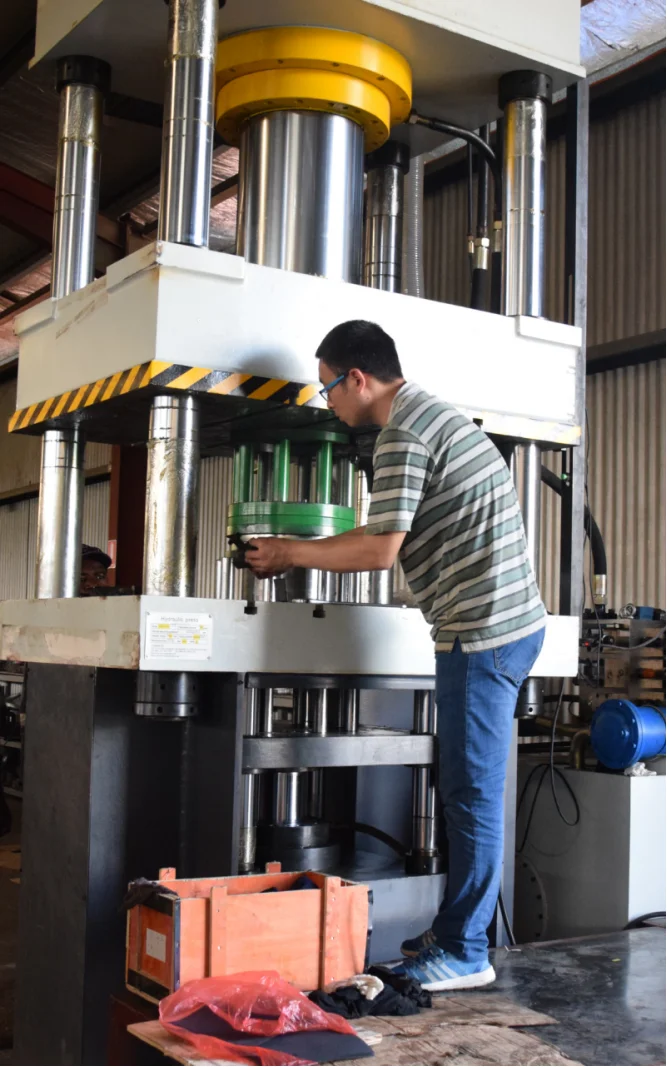

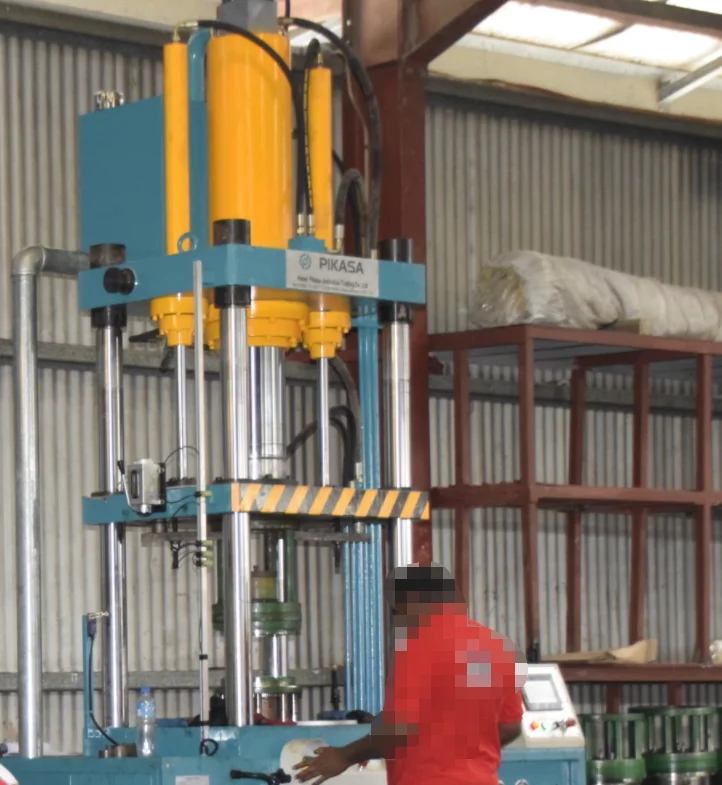

Successful Project
Hydraulic press machines
Punching machines

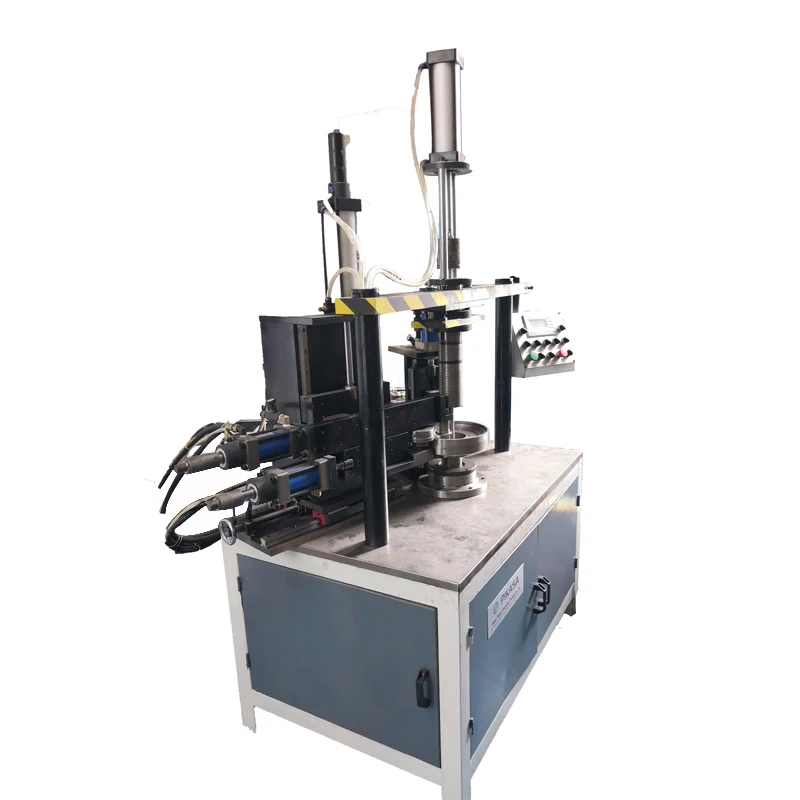

Edge trimming machines
