Hot sale 5 tons heavy equipment front end loader SL50WN
- Category: >>>
- Supplier: Evangel,Industrial,(Shanghai),Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Item | Parameter | Unit | ||||
Rated load | 5 | t | ||||
Bucket capacity | 3 | m3 | ||||
Dumping height | 3090 | mm | ||||
Dumping distance | 1130 | mm | ||||
Max.drawing force | 170 | kN | ||||
Max. traction | 5 | kN | ||||
Dimension | 85×3000×3465 | mm | ||||
Operating weight | 17200 | kg | ||||
Boom lifting time | ≤6.0 | ≤6.0 | ||||
Total time of three devices | 11 | s | ||||
Wheelbase | 3300 | s | ||||
Min. turning radius (bucket outer) | 6910 | mm | ||||
Rated power | 162 | kW | ||||
Travel speed | I Gear (Forward/Backward) | 0-15/16.5 | km/h | |||
II Gear (Forward) | 0-38 | km/h | ||||
Long boom parameter | ||||||
Item | Standard bucket | Coal bucket | ||||
Bucket capacity | 2.7m³ | 3.5 | ||||
Rated load | 4.5t | 4.0t | ||||
Dumping height | 3710mm | 3550mm | ||||
Dumping distance | 1180mm | 1300mm | ||||
Dimension | 8870×3000×3350 | 8870×3000×3465 | ||||
Attachment parameter | ||||||
Attachment parameter—snow plow | ||||||
Pushing snow width | 3800 | mm | ||||
Horizontal rotary angle | ±38 | ° | ||||
Vibrating angle | ±6 | ° | ||||
Obstacle crossing height | 0~150 | mm | ||||
Rated power | 162 | KW | ||||
Attachment parameter-clamp | ||||||
Dumping height | 3241 | mm | ||||
Dumping distance | 1902 | mm | ||||
Basic model | 800×1990 | |||||
IV model | 430×2000 | |||||
Attachment parameter-Side dumping | ||||||
Bucket width | 3000 | mm | ||||
Dimension | 8310×3040×3465 | mm | ||||
Dumping height(straight/side) dumping | 2960/45 | mm | ||||
Dumping distance(straight/side) dumping | 1272/5 | mm | ||||
Lifting height(straight/side) dumping | 5407/6830 | mm | ||||
Product Features
SHANTUI 5 ton LONKING mini hydraulic wheel loader SL50WN with 3m3 bucket front end loader
Efficient and powerful performance

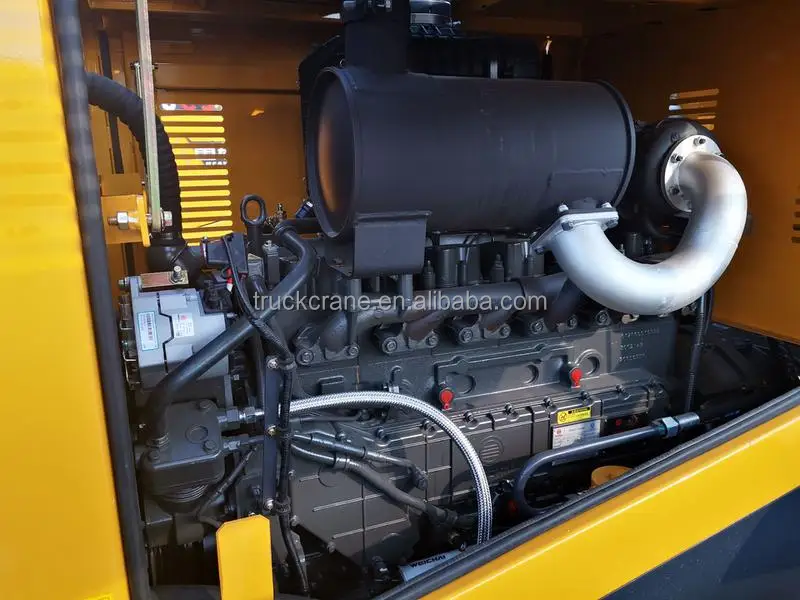

(1)New generation Blue Engine II energy-saving engine can save the fuel by >10%.
(2)Shantui’s original twin-turbine torque converter, planetary transmission, and drive axle feature good power matching, high
drive efficiency, strong overload capacity, high quality, and long life.
(3)The working device is design optimized to promote the lifting force of whole machine by 7%.
(4)The working hydraulic system is design optimized to reduce the total cycle time by 7.5% to 10.6s.
More reliable electric system
New digitalized instruments, high quality electric units, and upgraded and optimized harnesses
(1)The stepping motor type combination dashboard is adopted, of which the most outstanding characteristic is the modular
functions.
(2)New dashboard features the instrument malfunction self-examination and system malfunction alarm functions.
(3)The wire diameters, orientations, and the lengths of the loader harnesses and the fixing mode of the frame are adjusted.
More scientific arrangement
(1)The structural arrangement of the whole machine is optimized to achieve more reasonable axle load distribution, with the fuel
tank arranged on the rear.
(2)The new ladder design makes more convenient and safer to get on and off the machine.
More driving comfort
The low speed engine, new cab, and added sound insulation material for the engine hood reduce the noise to 85dB.
More convenient maintenances
The integral engine hood, the increased opening space for uplifting side doors, and the outgoing hinge lubricating pipelines make
the repairs and maintenances easier.
Multiple working devices
Multiple working devices, including timber grab, bale grab, coal bucket, side dumping bucket, and quartering hammer, are at your
choice to adapt to different working conditions.
(1)New generation Blue Engine II energy-saving engine can save the fuel by >10%.
(2)Shantui’s original twin-turbine torque converter, planetary transmission, and drive axle feature good power matching, high
drive efficiency, strong overload capacity, high quality, and long life.
(3)The working device is design optimized to promote the lifting force of whole machine by 7%.
(4)The working hydraulic system is design optimized to reduce the total cycle time by 7.5% to 10.6s.
More reliable electric system
New digitalized instruments, high quality electric units, and upgraded and optimized harnesses
(1)The stepping motor type combination dashboard is adopted, of which the most outstanding characteristic is the modular
functions.
(2)New dashboard features the instrument malfunction self-examination and system malfunction alarm functions.
(3)The wire diameters, orientations, and the lengths of the loader harnesses and the fixing mode of the frame are adjusted.
More scientific arrangement
(1)The structural arrangement of the whole machine is optimized to achieve more reasonable axle load distribution, with the fuel
tank arranged on the rear.
(2)The new ladder design makes more convenient and safer to get on and off the machine.
More driving comfort
The low speed engine, new cab, and added sound insulation material for the engine hood reduce the noise to 85dB.
More convenient maintenances
The integral engine hood, the increased opening space for uplifting side doors, and the outgoing hinge lubricating pipelines make
the repairs and maintenances easier.
Multiple working devices
Multiple working devices, including timber grab, bale grab, coal bucket, side dumping bucket, and quartering hammer, are at your
choice to adapt to different working conditions.

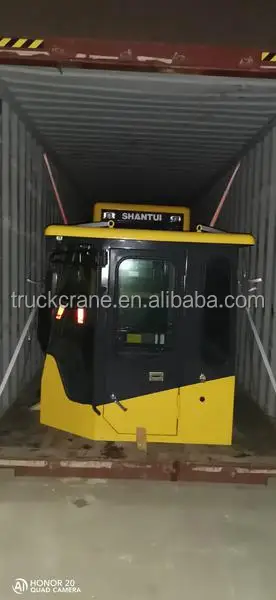

Packing & Delivery
