We have been done this paper making machine line for 34 years,we sold paper machine lines to 60 countries in the world.Due to machines business,we know many goods friends from all over the world,due to machine business,our company are more closed to the world.Thanks for the support of old and new customer,thanks for the great era. Meanwhile welcome more friends to visit our factory.



<Reason 02.>
We have been done paper machine line since 1988,the first named Shunfu.32 years later,we build a second factory named Huatuo.We are all in growing in paper machine business,and always provide high quality products and service for your paper business. (Two factories:Shunfu company since 1988,Huotuo company since 2020)

<Reason 03.>

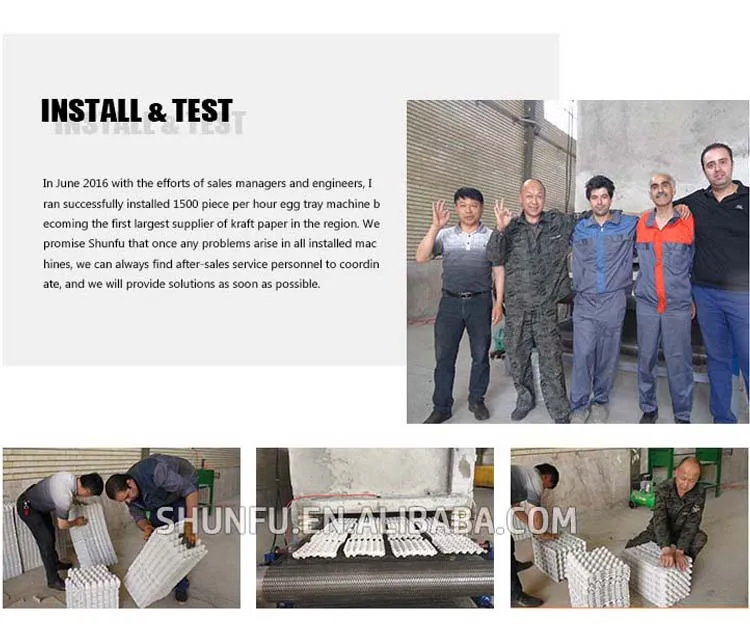

For our engineers team is the biggest support for all paper machine customers.They are the professional engineers team are in this line for 30 years,and be good at installing all kinds of paper machine line,till now,they have served 1000 pieces for 60 countries.

They will go to your place to install machine when you get machines ,they not only install machine but also train your staff to operate machine,until the paper are produced by machine successfully

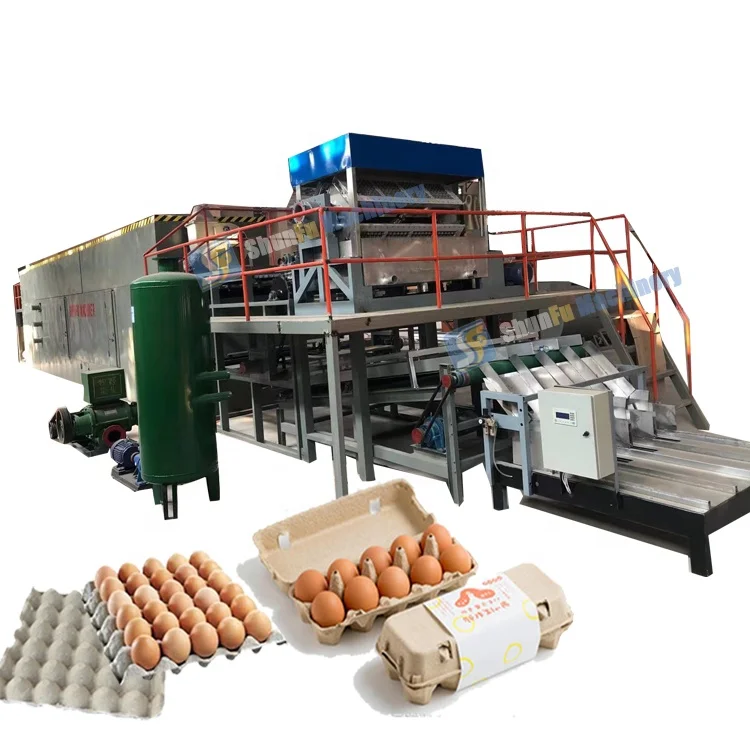

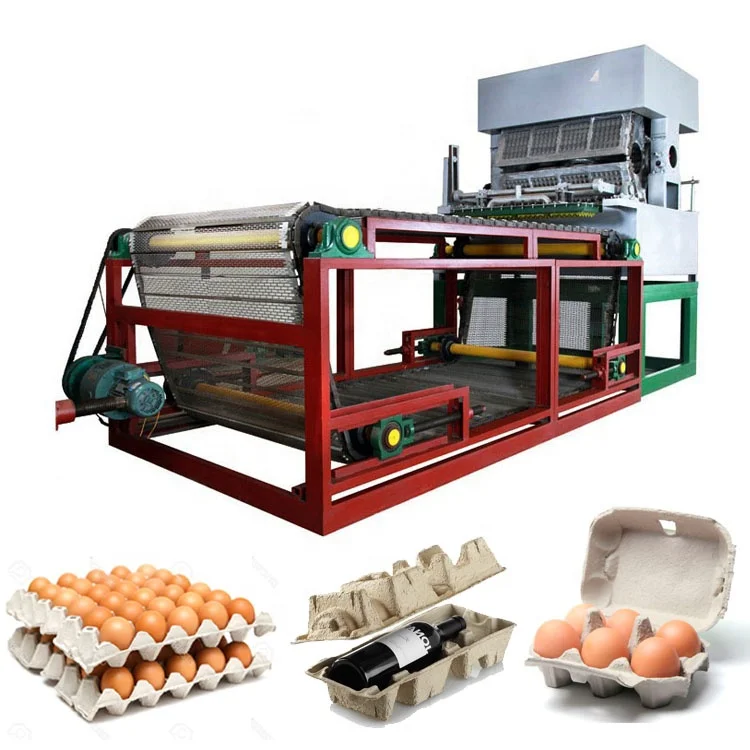

PART 01. EGG TRAY CARTON MACHINE INTRODUCTION
The Whole egg tray carton production line include pulping system, egg tray forming system, egg tray drying system,egg tray packing system.Raw material is all kinds of waste paper, final product can be egg trays, egg cartons, egg box ,apple tray,cup tray,bottle tray and so on. For dry system we 3 types: natural sun dry, brick dryer line, metal dryer line, customer can choose it according to your local condition and your budget.

PART 02. EGG TRAY CARTON MACHINE CONFIGURATION
| Model |
Production capacity (Pcs/H) | Consumption
| Total Power (Kw) |
Raw Materials (Kg/H) |
workshop Area | Worker Number (Pcs) | |||
Water (Kg/H) | Electricity (Kw/H) | Gas (M/H) | Oil (L/H) | ||||||
| SF-4 | 2000-3000 | 362 | 80 | 60 | 60 | 179.95 | 173 | 65m*18m*4.5m | 6 |
| SF-3 | 3000-4000 | 500 | 90 | 75 | 75 | 187.65 | 250 | 65m*18m*4.5m | 6 |
| SF-2 | 5000-5500 | 746 | 60 | 120 | 90-140 | 305 | 280 | 65m*18m*4.5m | 6 |
| SF-1 | 1100 | 240 | 180 | 45 | 55 | 128.85 | 120 | 39m*18m | 5 |
PART 03.EGG TRAY CARTON MACHINE ADVANTAGE

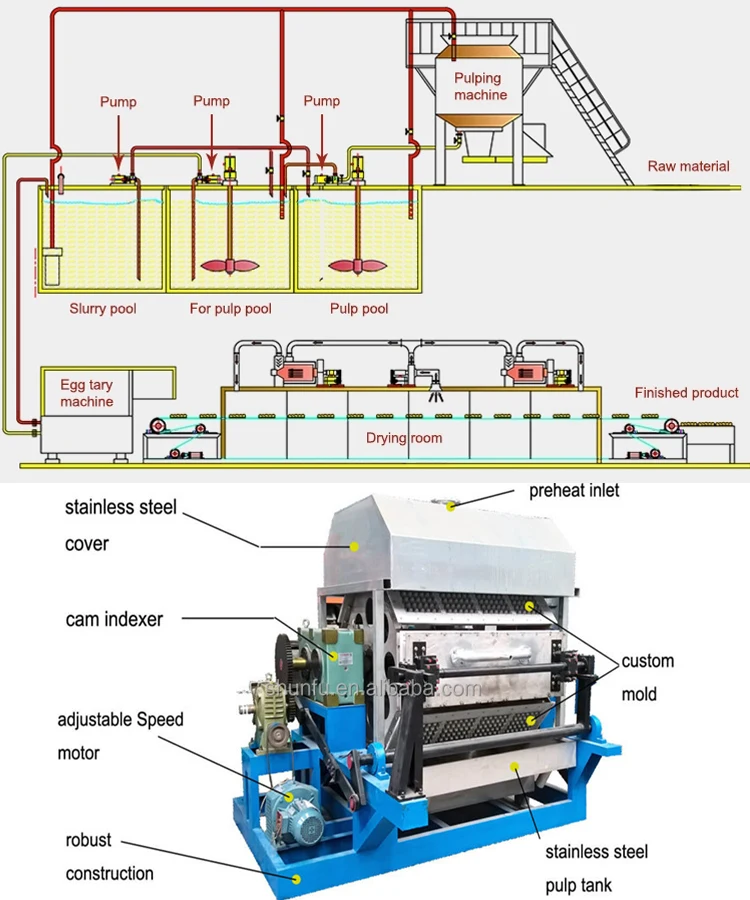

PART 01.EGG TRAY CARTON MACHINE WORKING PROCESSING
PART 02. RAW MATERIALS
Any kind of waste paper ,such as old newspaper,magazines,carton,books etc,it is easy to get. The raw material is made into paper pulp by pulping equipment of egg tray machine,the paper pulp is ready for next step forming.

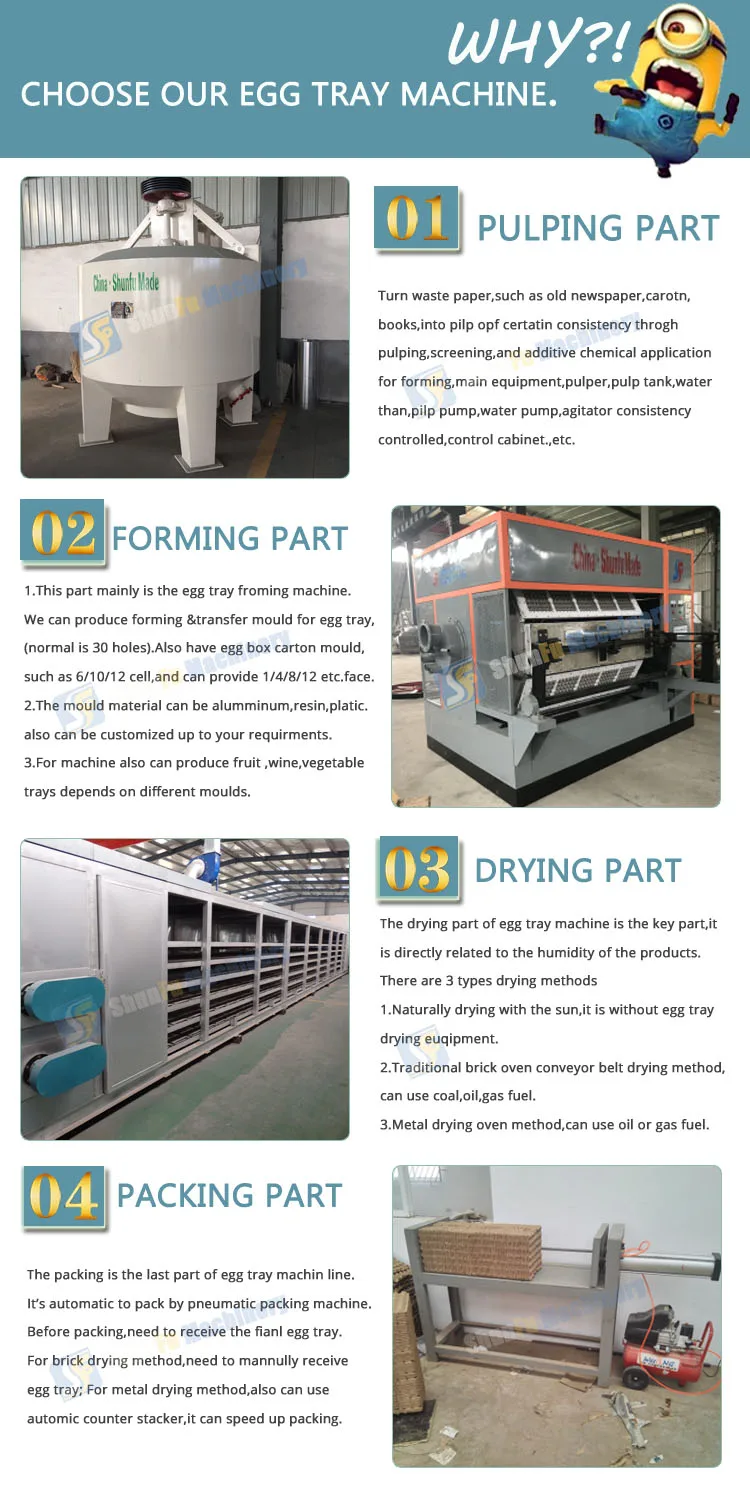

PART 03.EGG TRAY CARTON MACHINE DETAILS

PART 04.EGG TRAY CARTON MACHINE DRYING TYPE CHOICES

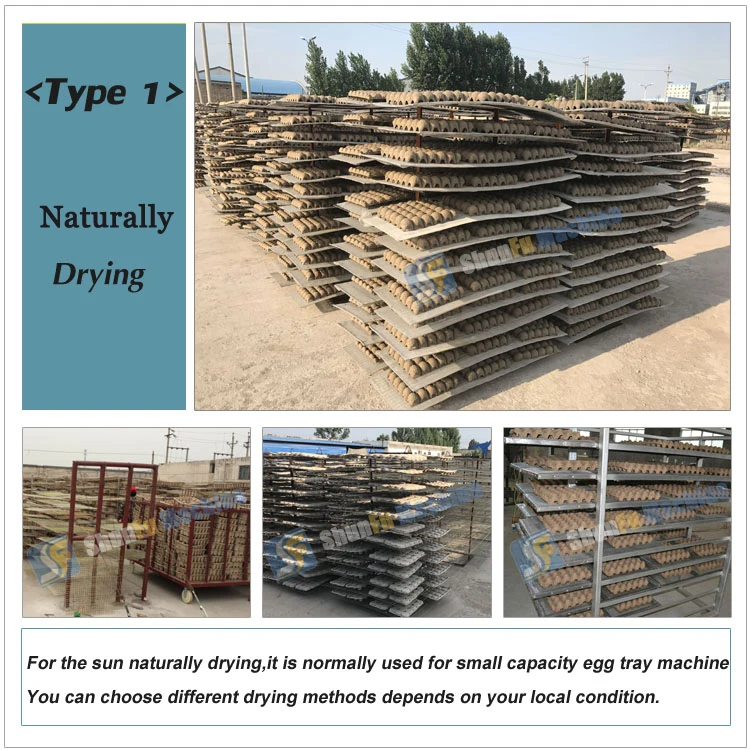

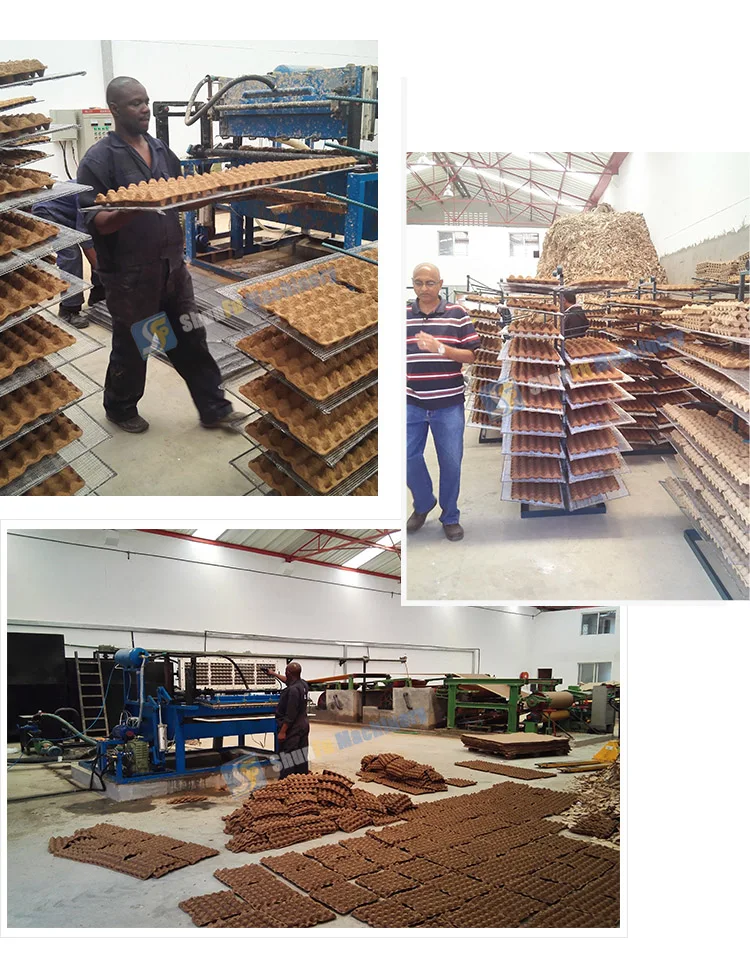

(1)Type 1: Naturally drying way
If the sun in your country is strong,and the egg tray machine capacity is small,can choose naturally drying

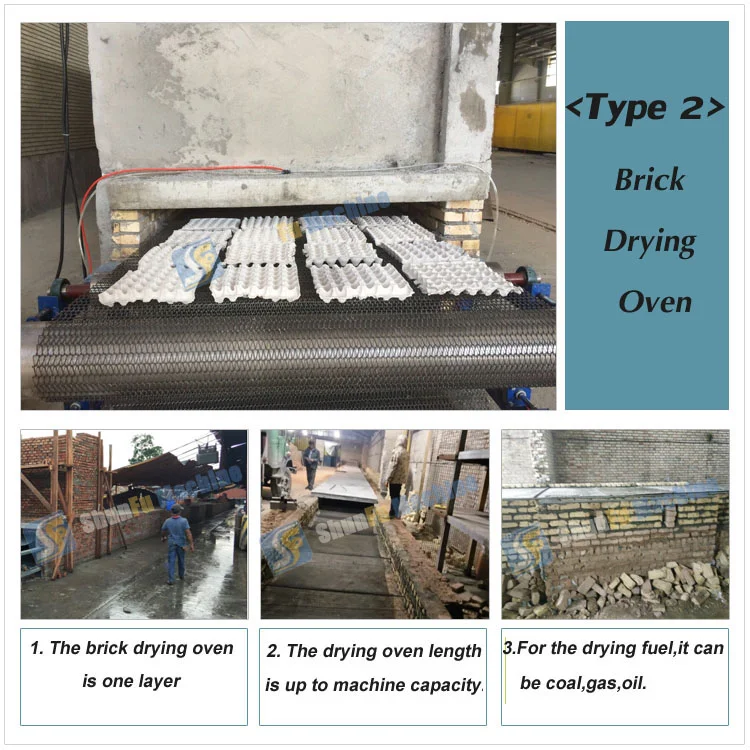

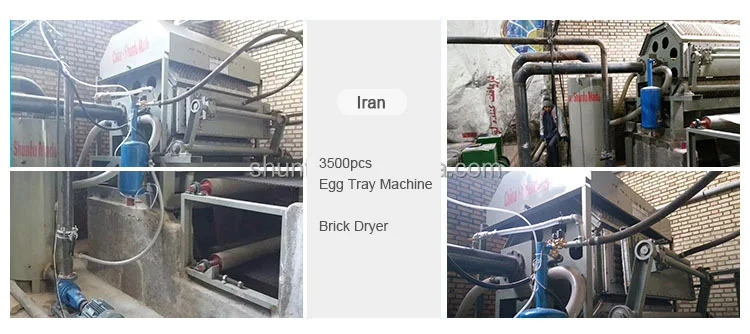

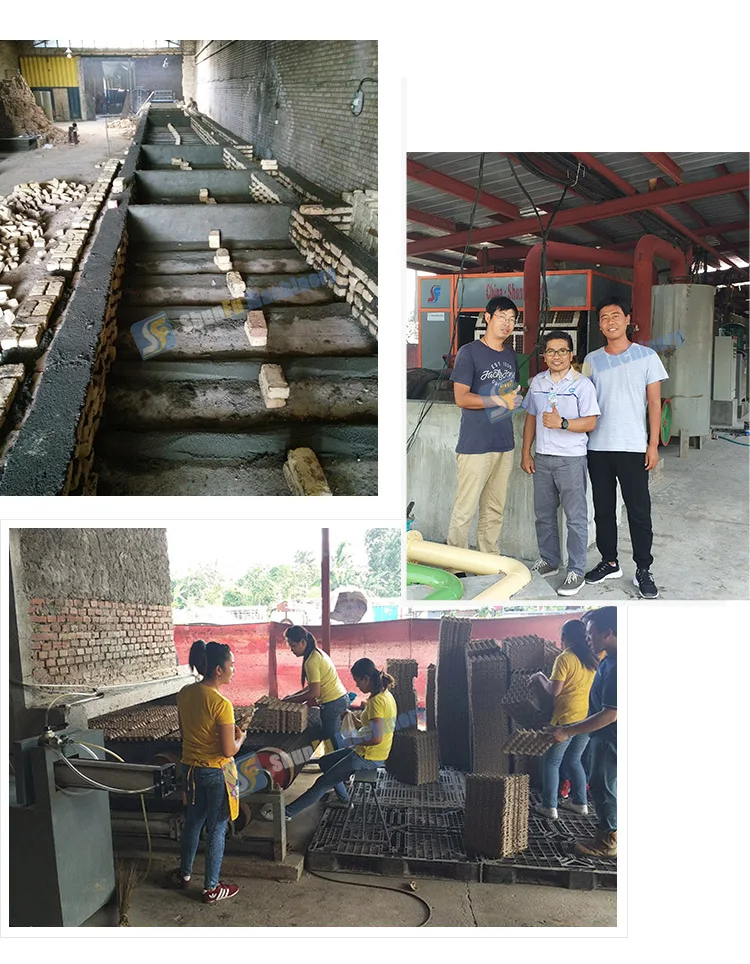

(2)Type 2: Brick drying Oven
If egg tray machine capacity is bigger, and factory place is enough big,you can choose brick drying.

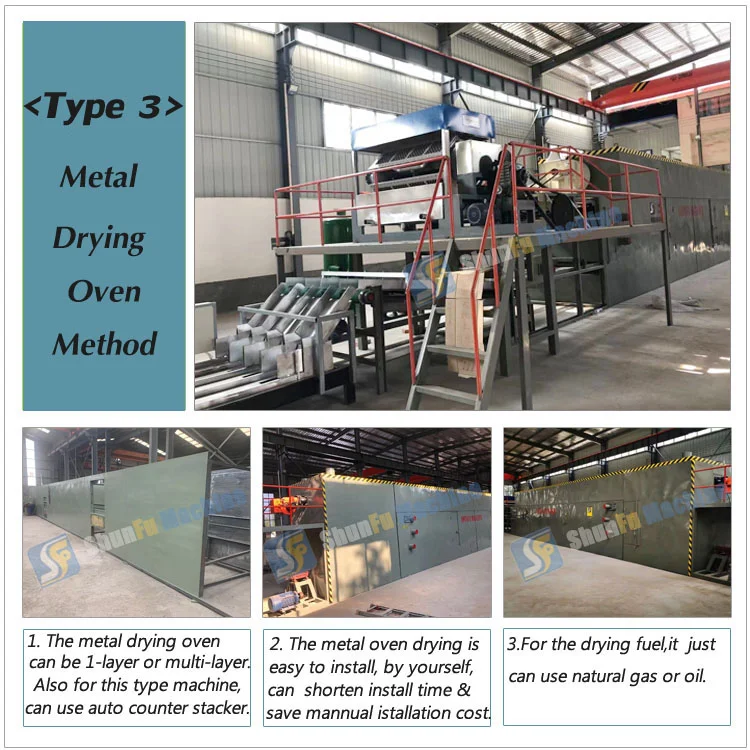

(3)Type 3: Metal drying Oven
If egg tray capacity is bigger,you do not want to build brick by yourself either,you can choose metal drying oven.
It is easy to install by customer yourself instead of our factory engineer to install.It not only can save more anual installation cost,but aslo can shorten install time to make machine produce soon.Meanwhile it can save more space than brick dryer oven based the same capacity machine.

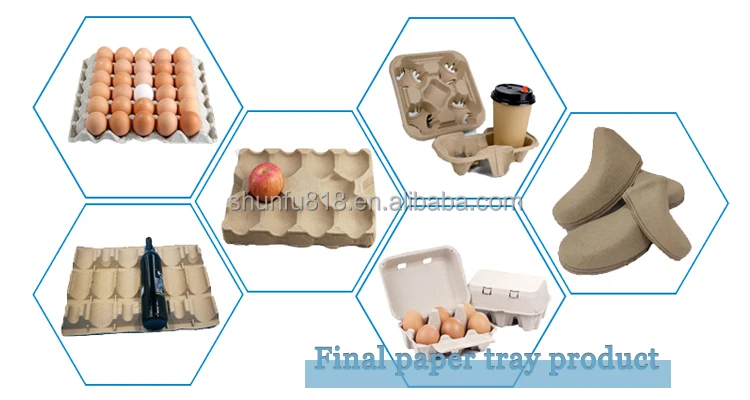

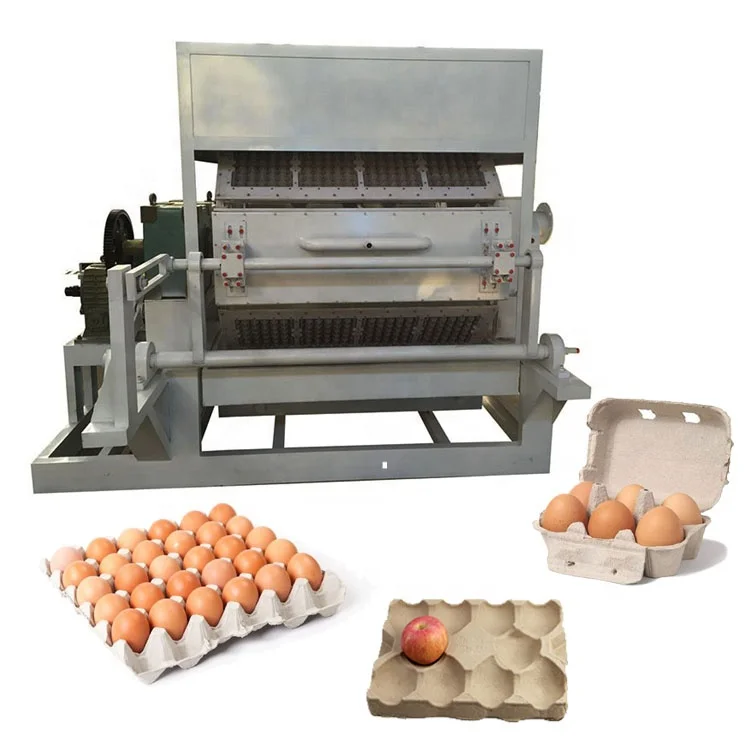

PART 05.FINISHED TRAY CARTON PRODUCT OF MACHINE

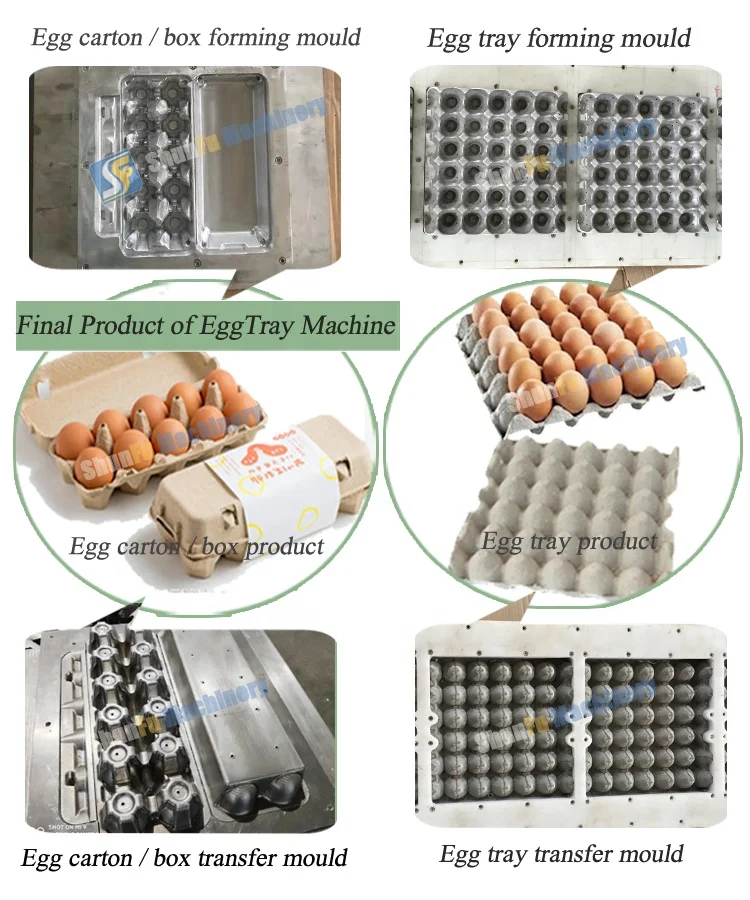

The final product of egg tray machine can be different,it is up to the mould.It it normal the 30 holes egg tray ,also can do the egg carton/box.For other paper tray,such as fruit tray,wine tray,cup tray,electric product inner package tray,small machine packing tray etc.,it also can be done.

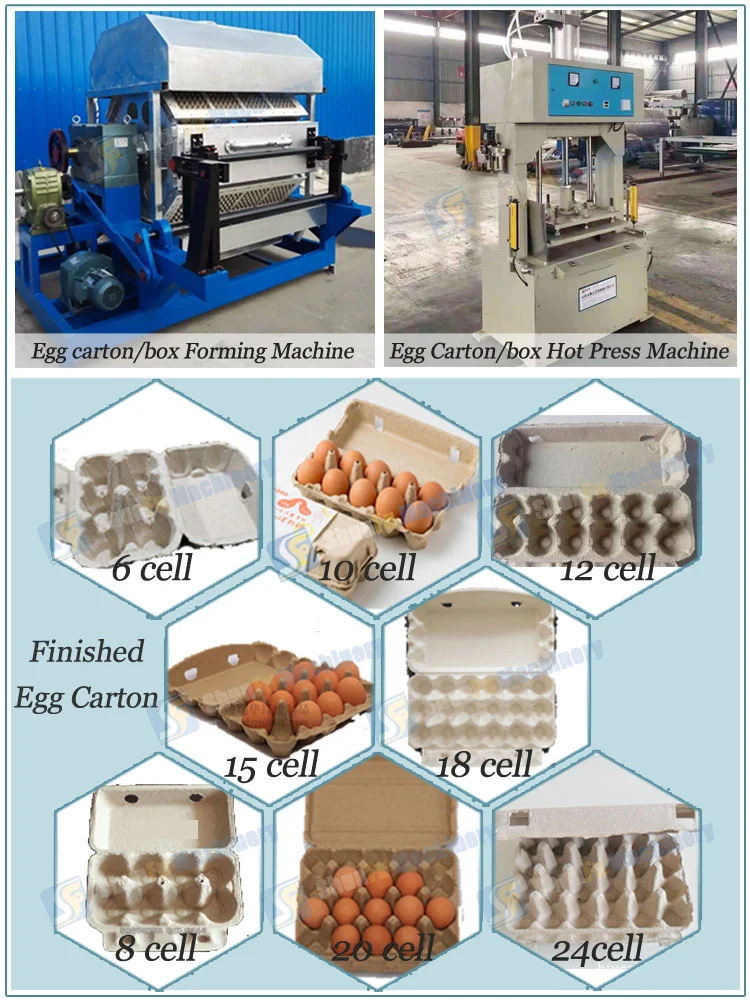

PS: If you want to final product egg carton/box,it needs egg carton box mould to do.When the egg carton is done by egg tray forming machine,then need use hot press machine to trim.There are these carton boxes:6 cell,8 cell,10 cell,12 cell,15 cell,18 cell,20 cell,24 cell egg carotn/box and so on.

PART 01. ABOUT SHUNFU
Qinyang Shunfu Paper Making Machinery Co.,Ltd located in Qinyang city, Henan province, China. is a leading professional paper machine manufacturer in China with best quality and perfect service&good reputation for 30+ years.


PART 02. BUSINESS SCOPE
Series 1: Toilet Paper Machine: Jumbo roll tissue paper machine → toilet tissue paper processing machine
Series 2: Kraft Paper Machine: jumbo roll kraft paper machine → kraft paper processing-paper tube machine
Series 3: Other Paper Machine: paperboard machine, egg tray machine, paper machine spare part, paperpulp making machine and so on.
PART 03. COMPANY DEVELOPMENT HISTORY
PART 04. EXHIBITION

PART 05. SHUNFU COMPANY LOCATION

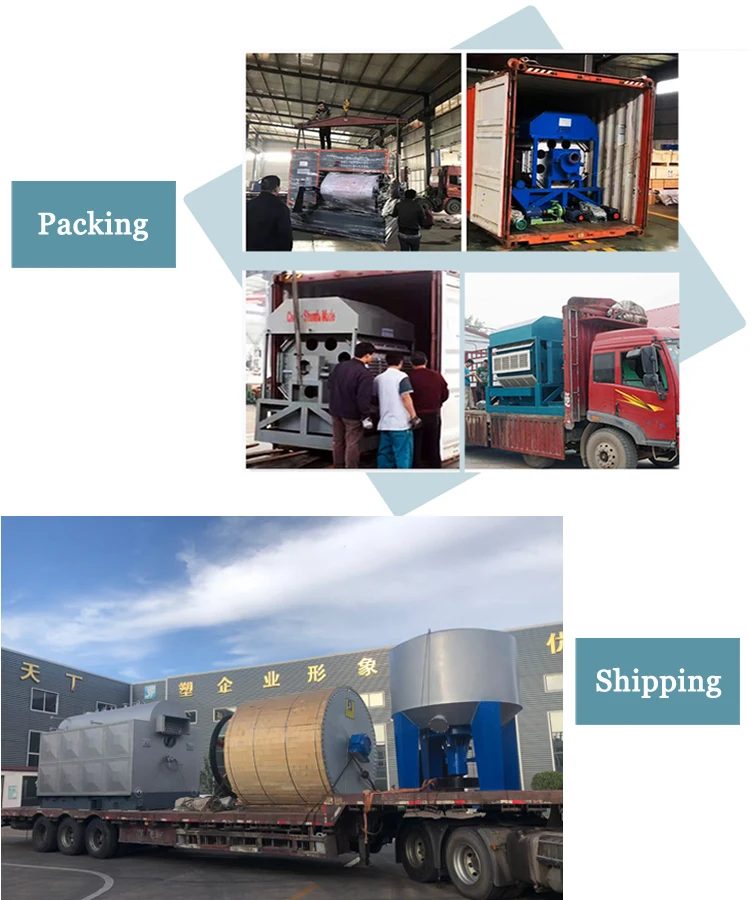

PACKAGING &SHIPPING DETAILS
Egg tray making machine will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.
