HULK - 2000l 4 Vessel Beer Brewery Equipment Brewing Beer
Product Description
4 Vessel Beer Brewing Equipment
If you brew three or four batches per day, we suggest you can choose the 2000l brewing system to brew more better beer.
* 2000l 4 vessel brewhouse with 2000l or 4000L fermentation tanks
All configurations will be matched according to your brewing technology.
No. | Beer brewing system | Mark |
1 | Crushing system | 800kg/h malt miller (Hopper, flex auger, miller) |
2 | Mashing system | 4 Vessel (Mash, lauter, kettle,whirlpool) A separate Hot water tank |
3 | Fermenting system | Fermenters/unitanks, brite beer tank |
4 | Cooling system | Glycol water tank, chiller and glycol water pump Cold water tank, and cold water pump |
5 | Control system | PLC control system |
6 | CIP system | Cleaning tank(cart) |
Specification
Mashing system
Our comment confugurations is macthed steam heating method (Gas or oil steam boiler), thus each tank are equipped with Steam heating jackets, which can achieve customers' different brewing technology.

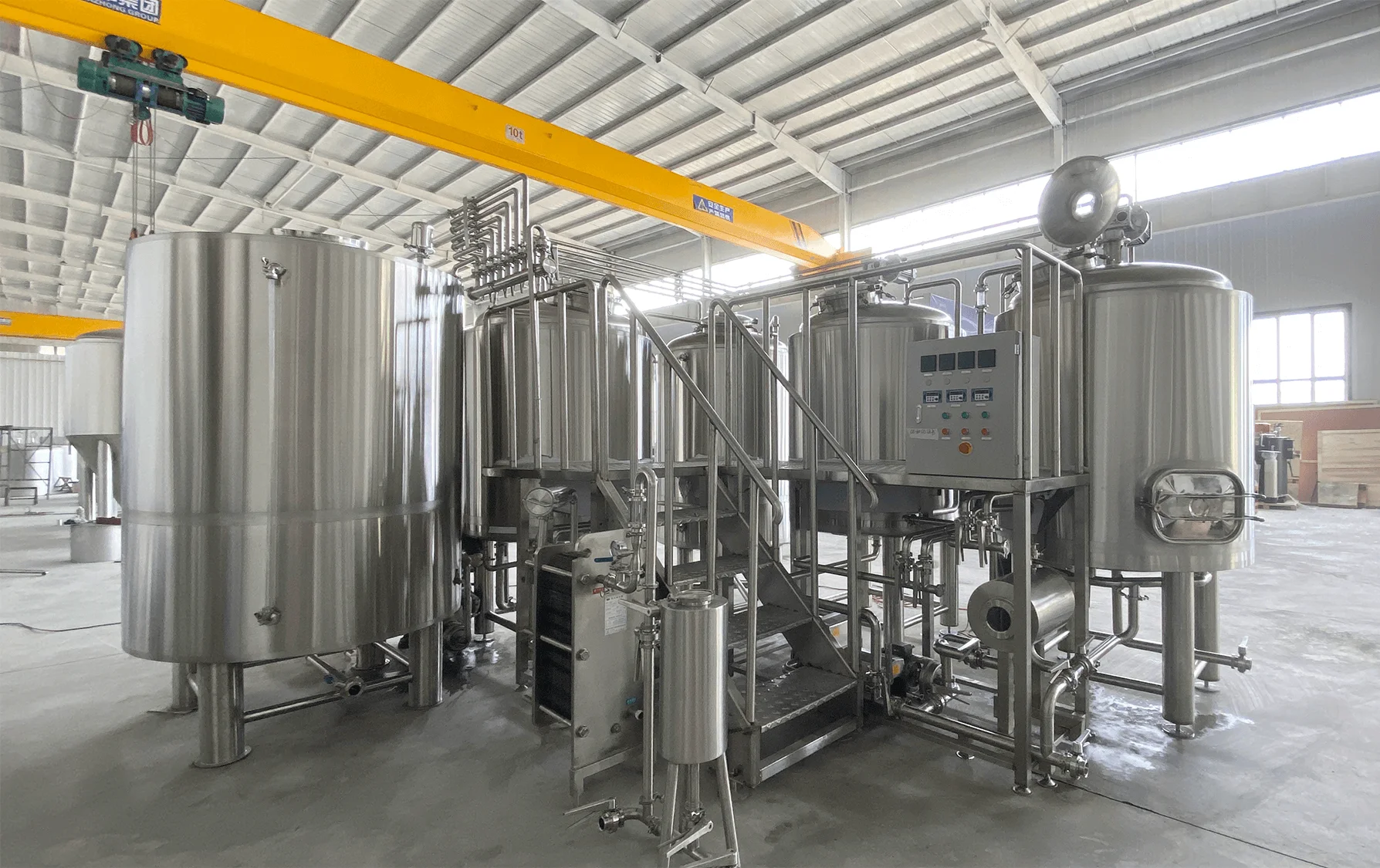

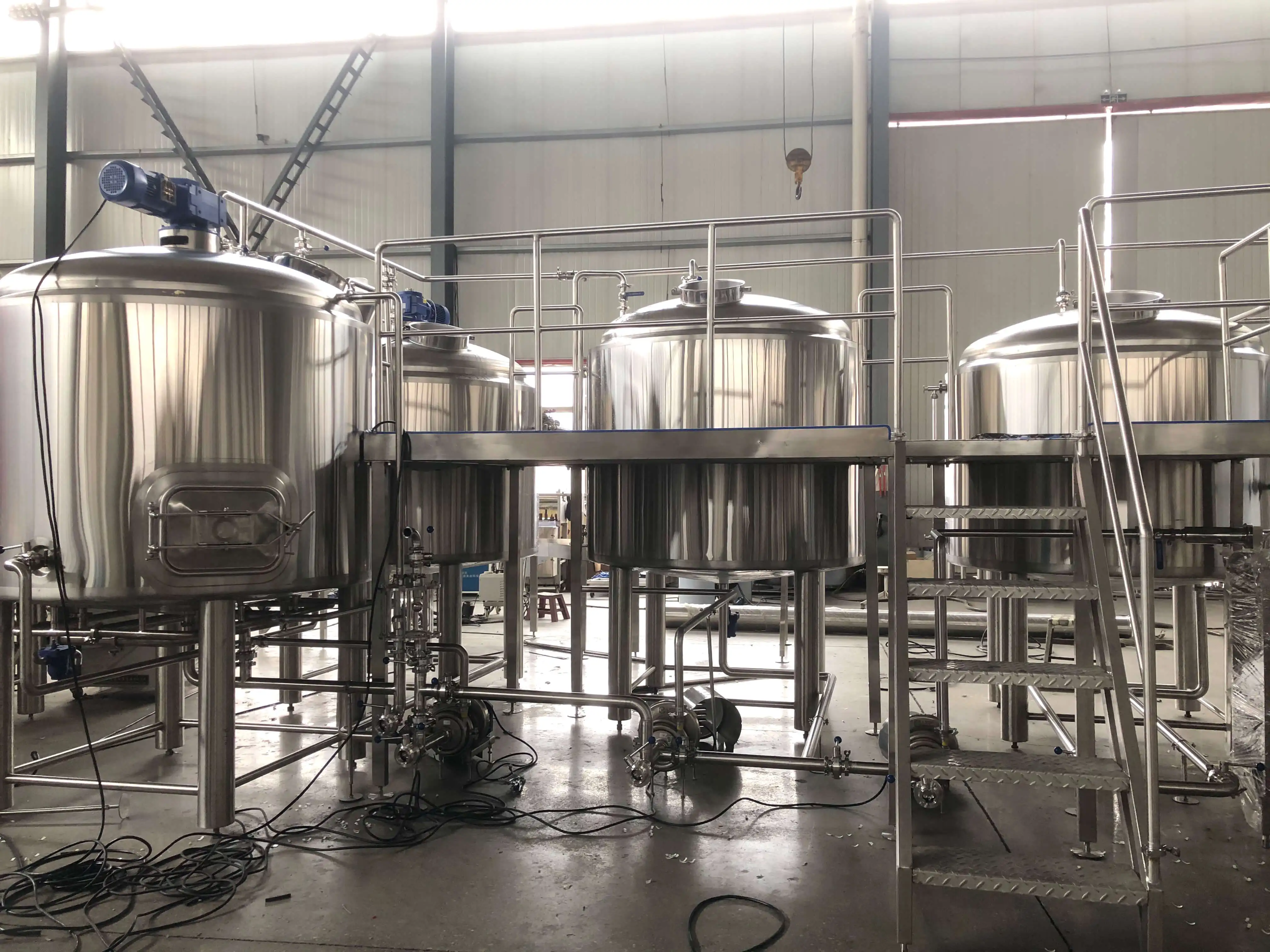

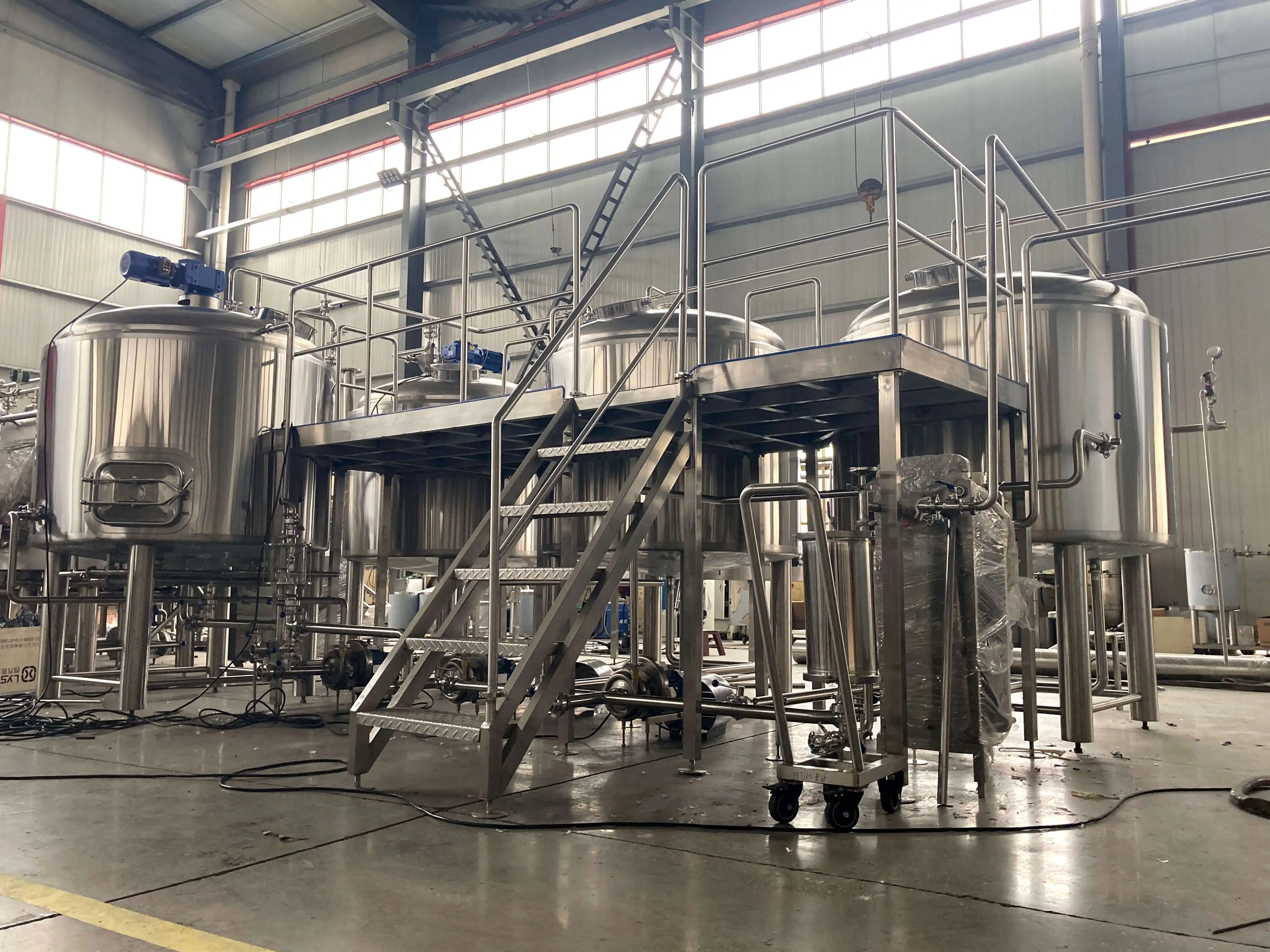

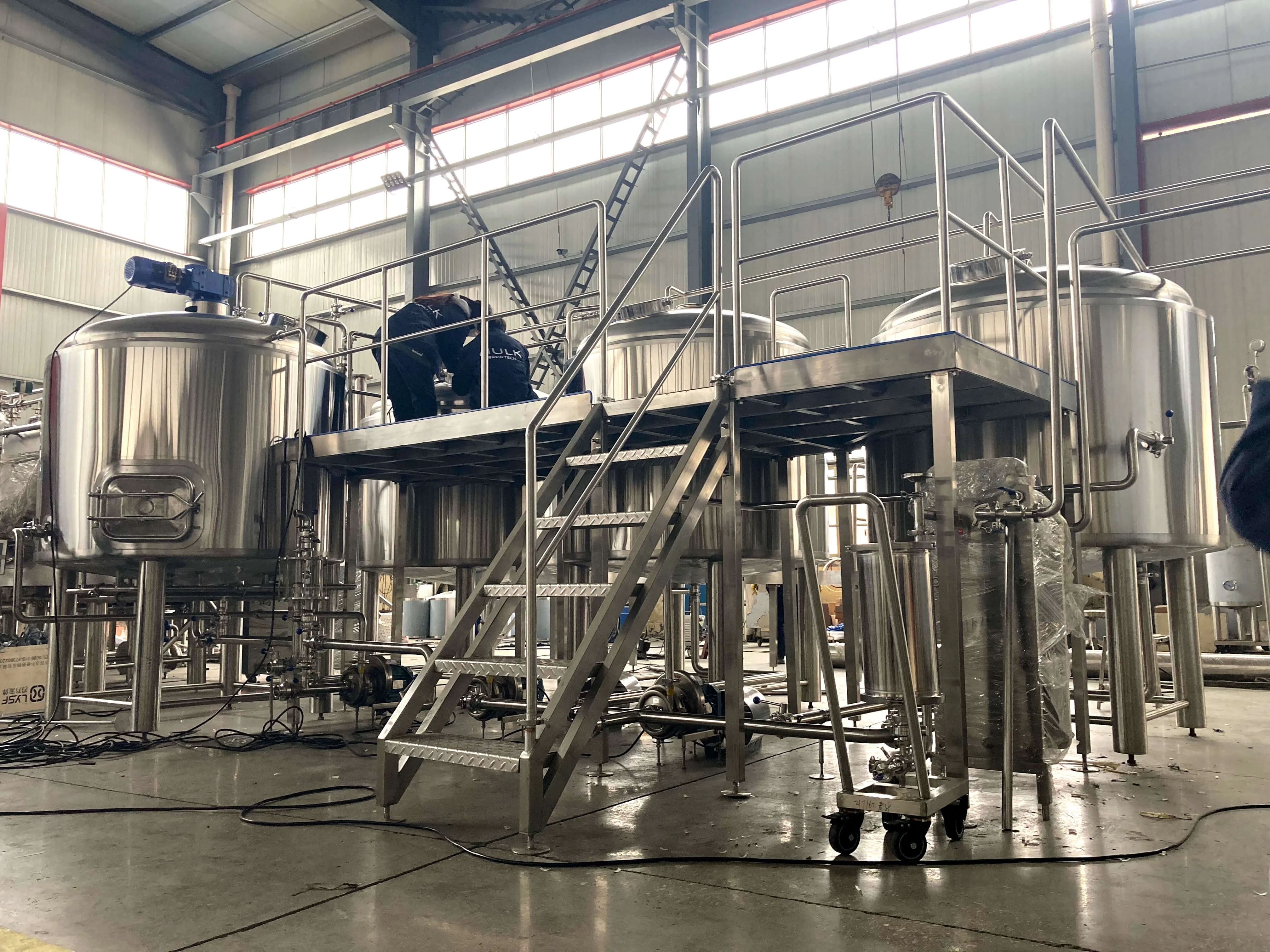

4 vessel Brewery System
Can be use for 2,3 and 4 batches brew per day.
Yeast adding tank
The yeast in the tank to the fermenter with wort
Hop filler & Hop back
Filter the hop
Raker With VFD Motor
For mixing in Mash tun
Multihole wort collect ring & Anti-rinser
The Multihole wort collect ring have three sight glass, we can observe the wort clarity.
Anti-rinser is used to grain washing to get the clear wort
Anti-rinser is used to grain washing to get the clear wort
Raker with VFD Motor
It is used to filtration that make grain full agitator.( Use for Separating wort and impurities.)
Unterclockwise Rotation Clockwise Rotation
Balance tank
The balance tank for wort lauter checking and milling false bottom protection,
Easy clean and detachable sparging spray ring
VFD Motor
False bottom
Upgrading Configurations
.
Hop Baffle
Two outlet in whirlpool tank
With hope baffle design to make you get clear wort
Automatic Grain Outlet Device
In Lauter pot to help you pull out speat grains easily
Saving much brewing time
LYSF Wort And Hot Water Pump
Brewing system has long service life
With 2000L Brewhouse, you can brew three batches to fill a 6000l fermenter/unitank.

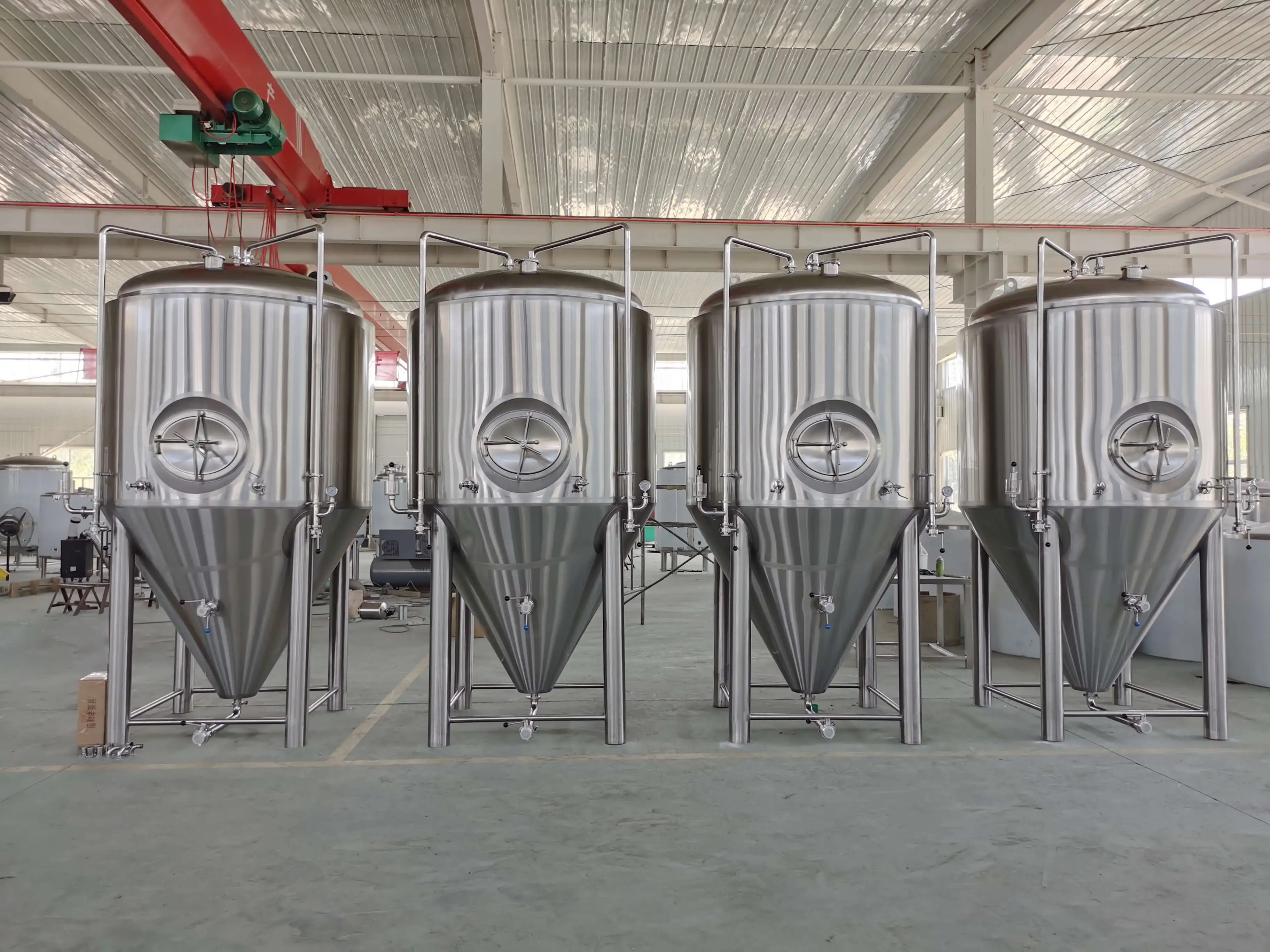

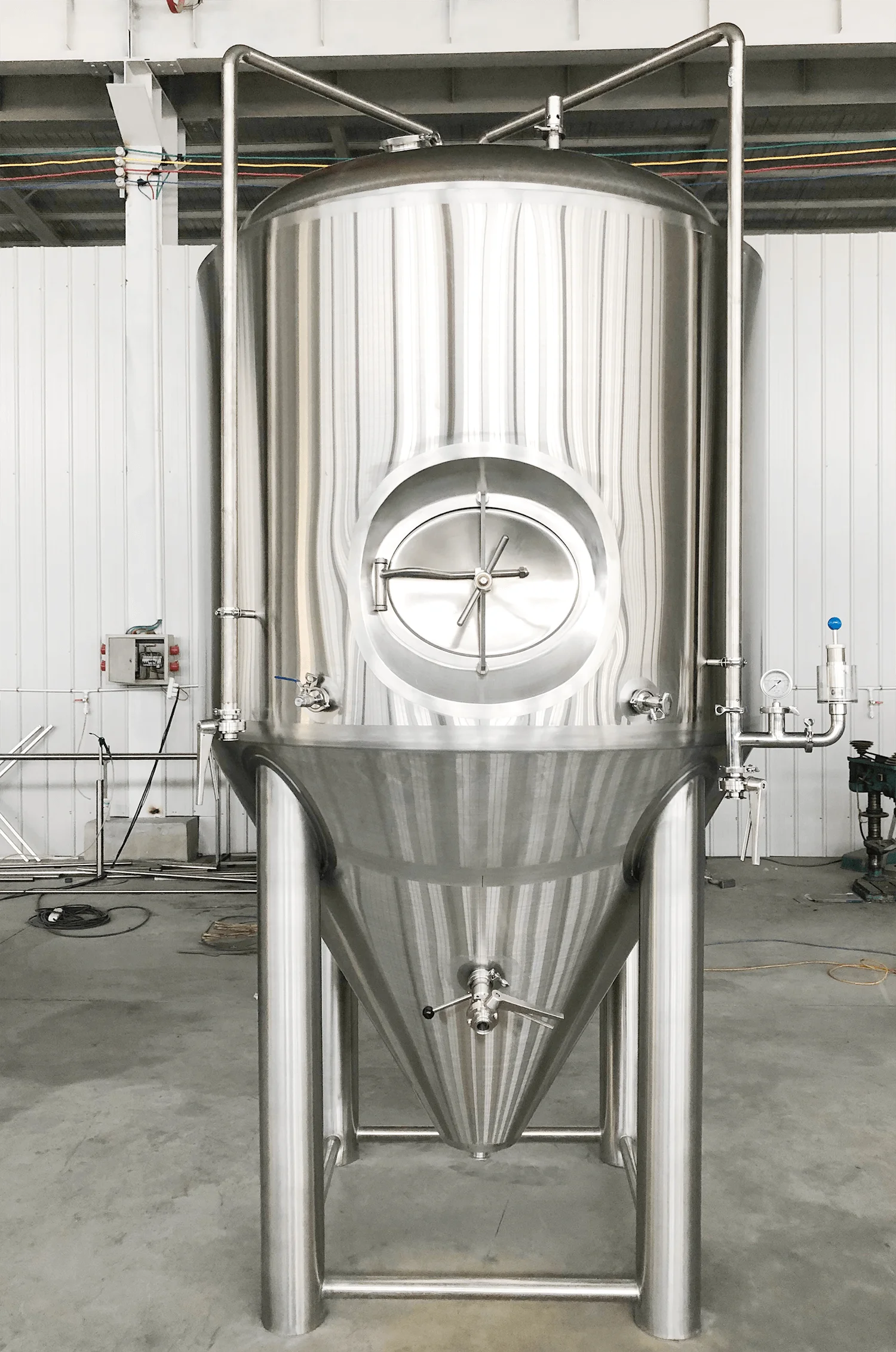

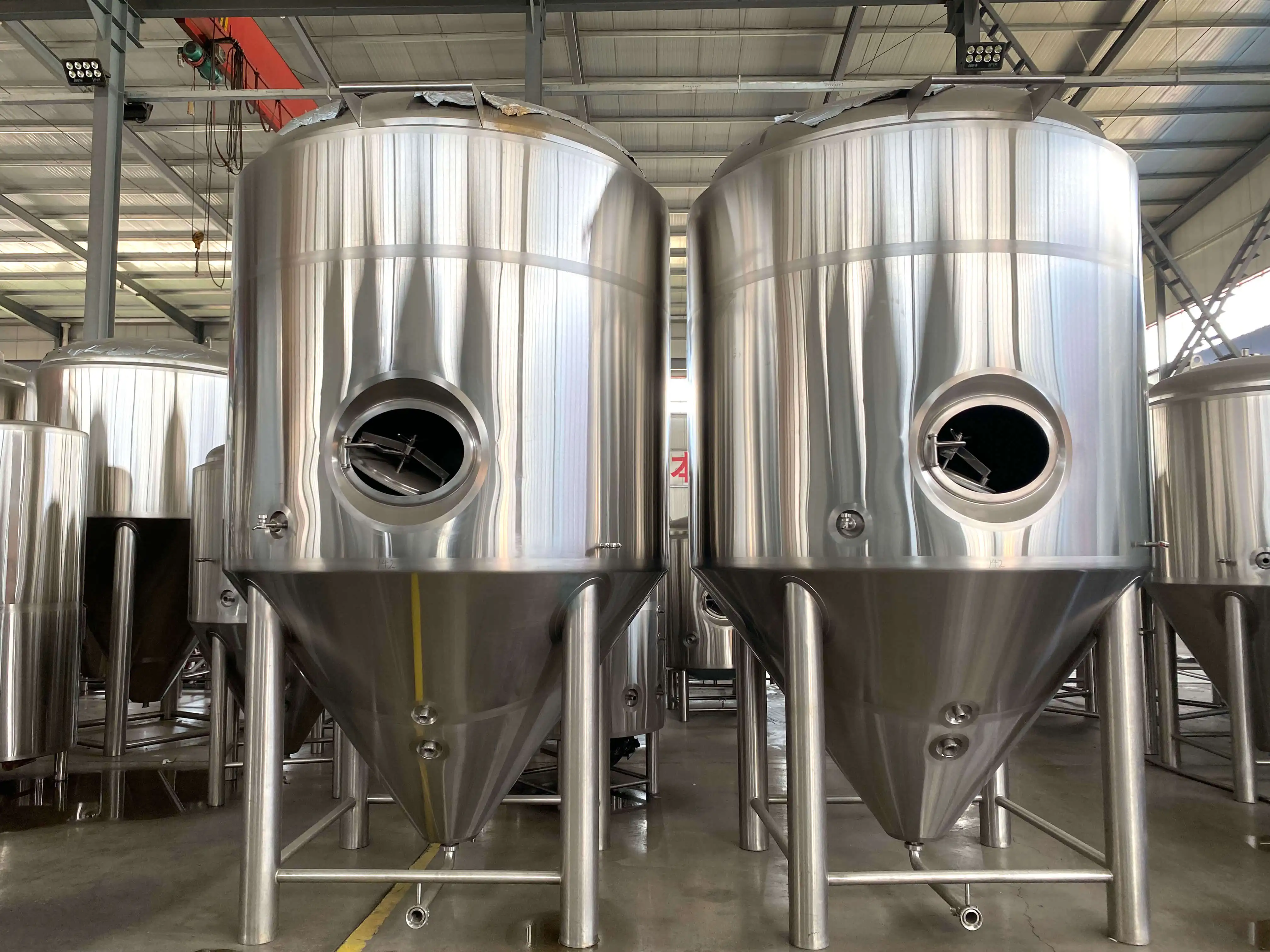

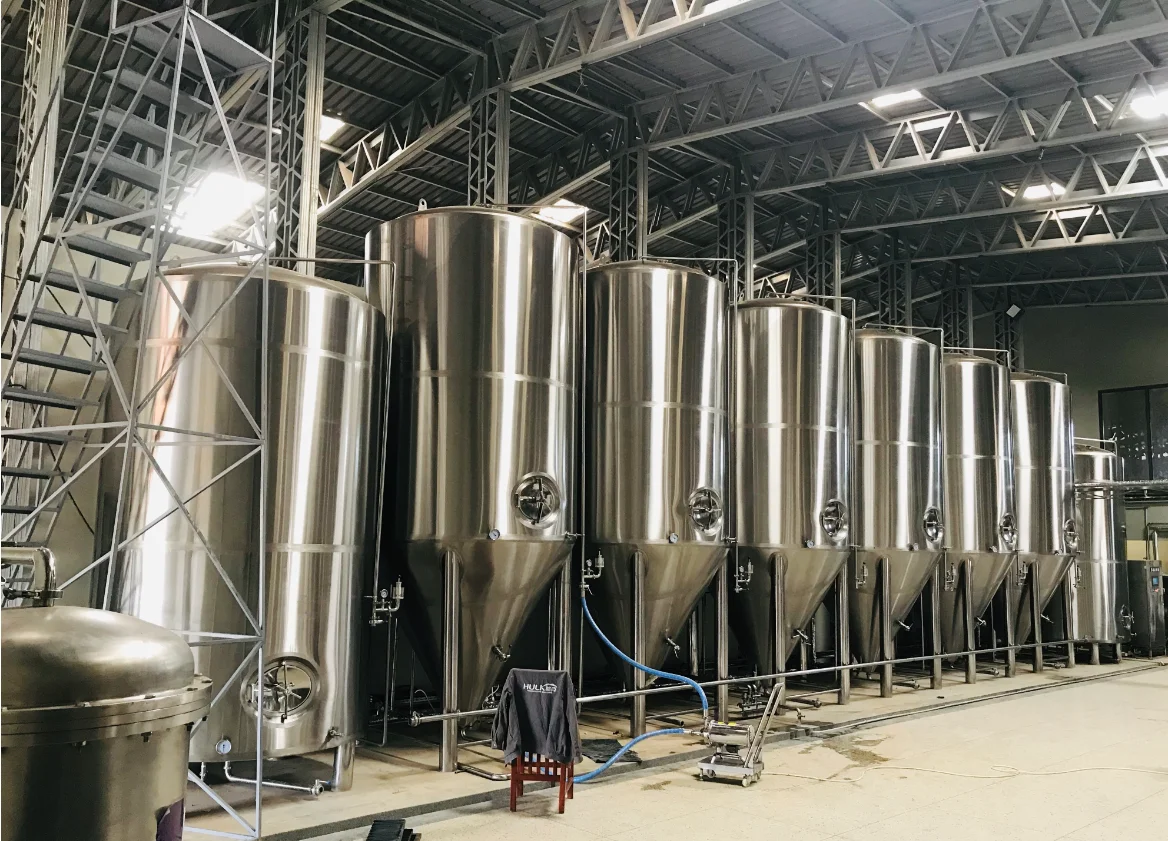

Fermentation tank
BBT (Bright beer tank)
Specifications:
Dish head, side shadowless manway, Breath valve, CIP arm, cleaning ball, pressure relief valve, pressure gauge, sampling, beer outlet, rotating raking arm (only for fermenters), drain outlet, thermometer, dimple plate jacket on the side and bottom of the tank, 60° cone bottom for fermenters, 160° cone bottom for brite tanks, and so on.
Dish head, side shadowless manway, Breath valve, CIP arm, cleaning ball, pressure relief valve, pressure gauge, sampling, beer outlet, rotating raking arm (only for fermenters), drain outlet, thermometer, dimple plate jacket on the side and bottom of the tank, 60° cone bottom for fermenters, 160° cone bottom for brite tanks, and so on.

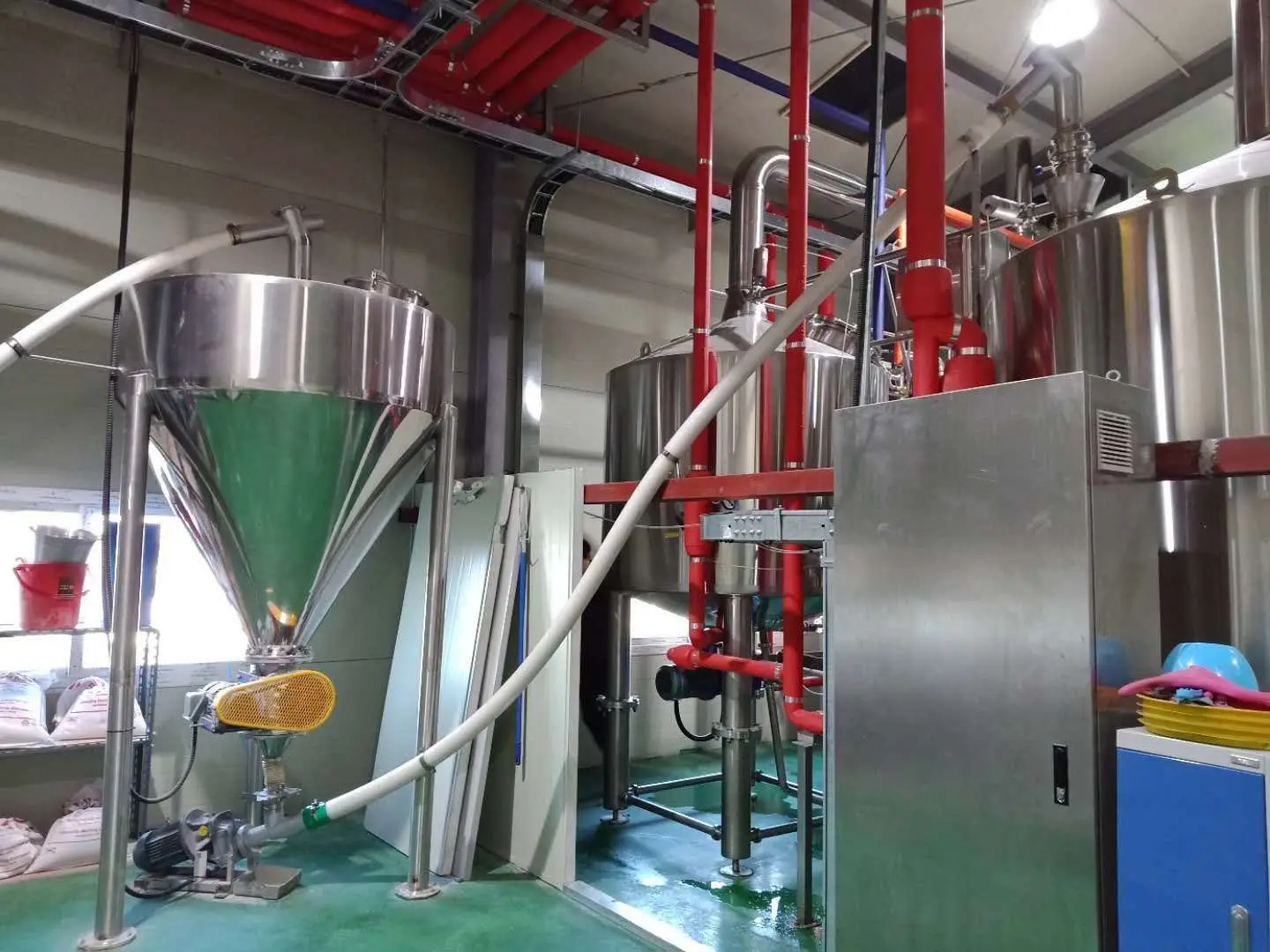

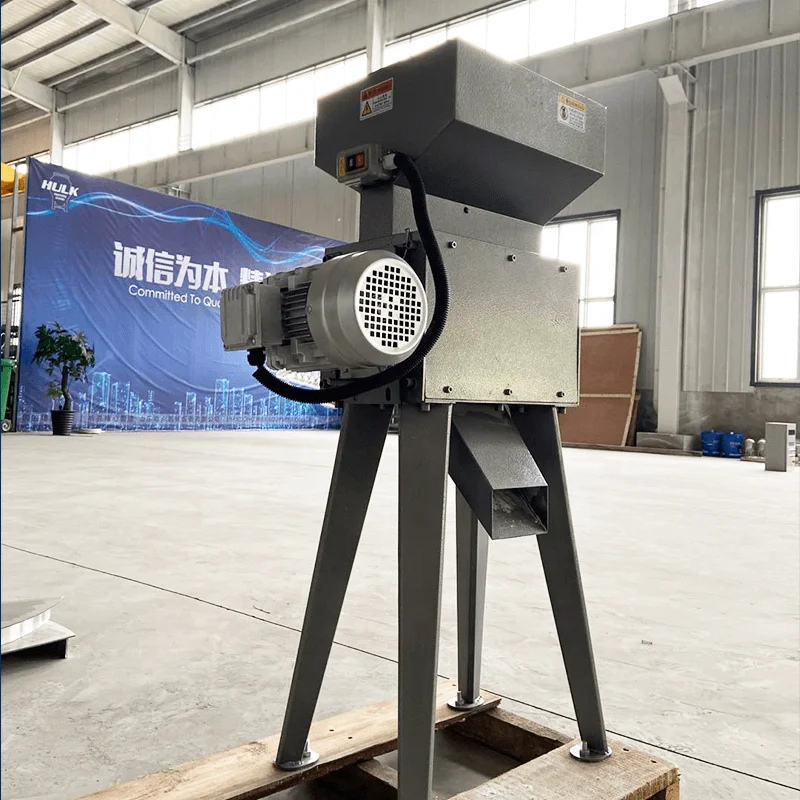

Crushing system
Hopper, flex auger, miller
Crushing ability: 500kg/h Double rollers
Flex auger: transfer the grains from miller to grist on top of the mash tun
Flex auger: transfer the grains from miller to grist on top of the mash tun
Grist case (optional) & Hydrator (optional): Grist is the container of grains collecting from flex auger, and usually equipped with a hydrator in it.

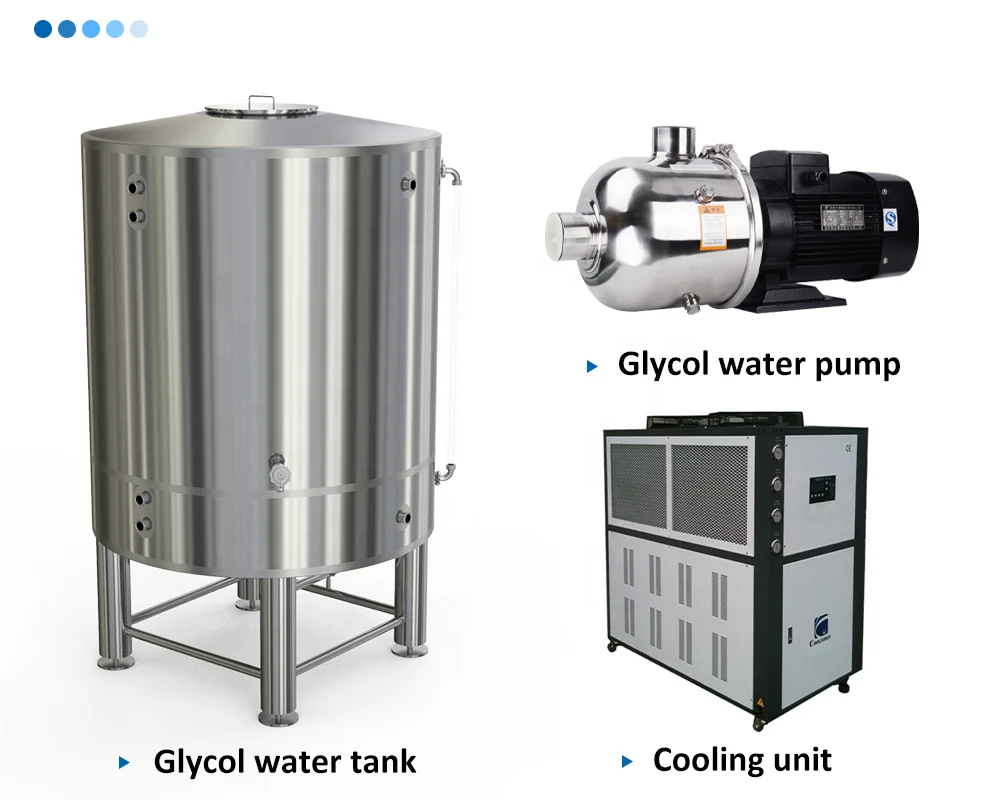

Cooling system
Composition:
* KANSA Chiller*2 (Can be adjusted according to different temperatures in customers' local place.)
* Glycol water tank and cold water tank (Using cold water to cool wort to save much energy while brewing)
* KANSA Chiller*2 (Can be adjusted according to different temperatures in customers' local place.)
* Glycol water pump and cold water pump
Cleaning system

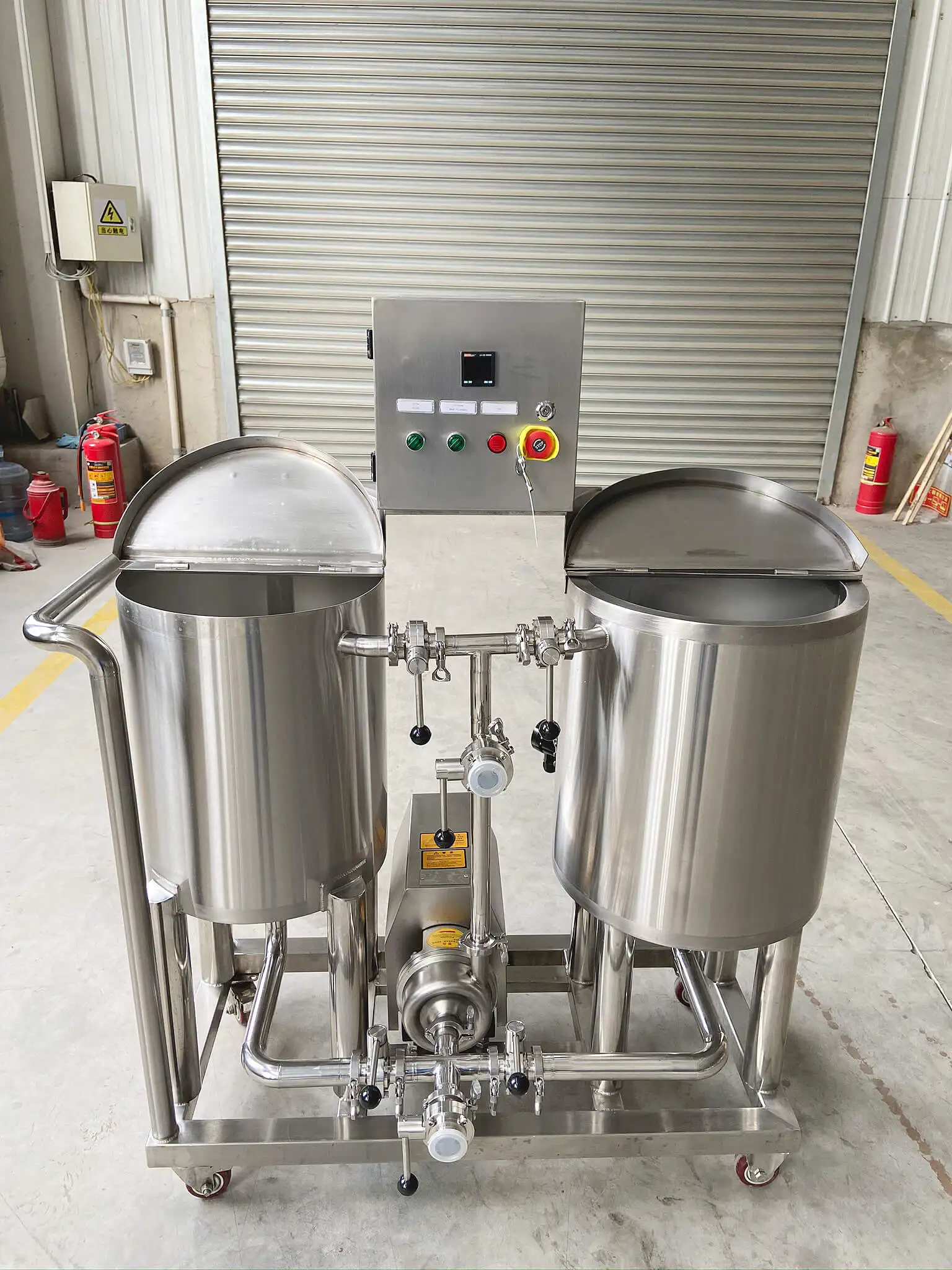

CIP system
Alkali liquor tank
Hydrogen peroxide disinfectant tank
Cleaning pump
Hydrogen peroxide disinfectant tank
Cleaning pump
PID Control system
Higher automatic PLC Control system
Touch Screen
With pneumatic butterfly valves on the brewhouse
With pneumatic butterfly valves on the brewhouse
Pneumatic Butterfly Valves
Pneumatic butterfly valves will be designed on brewhouse pipelines, you can control all on PLC control system.
This is ok even if you brew beer yourself with commercial 2000l 4 vessel brewery system
Pneumatic Butterfly Valves
Other machines
Details Images

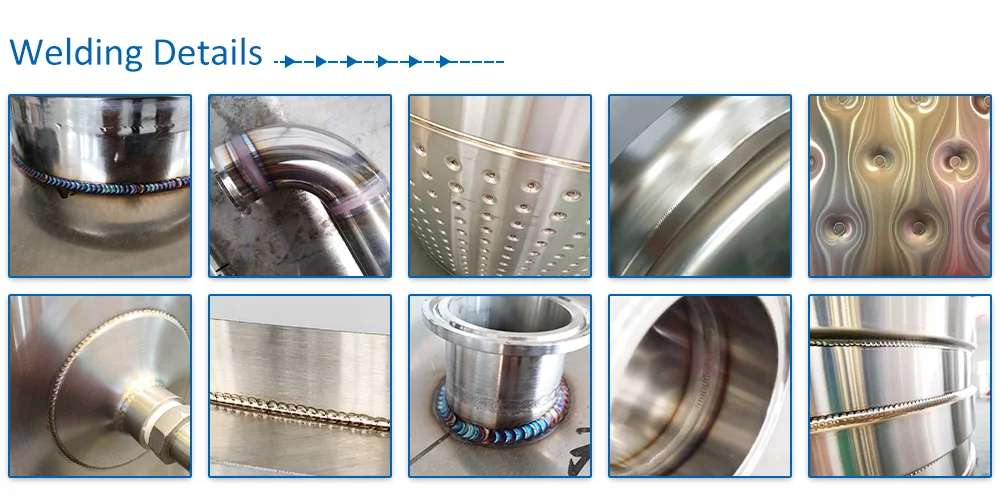

Tank inside pickling and passivating, tank outside hairline polishing.
To make tanks become tidy and smooth, beautiful and durable.
To make tanks become tidy and smooth, beautiful and durable.
All the use of argon arc welding method, fight the seam with argon arc welding gun welding method, the nozzle to take argon way single-sided welding double-sided forming.
Why Choose HULK
We develop relationships that make a positive difference in our customer's life!
We create new and unexpected possibilities, providing innovative solutions for your future!

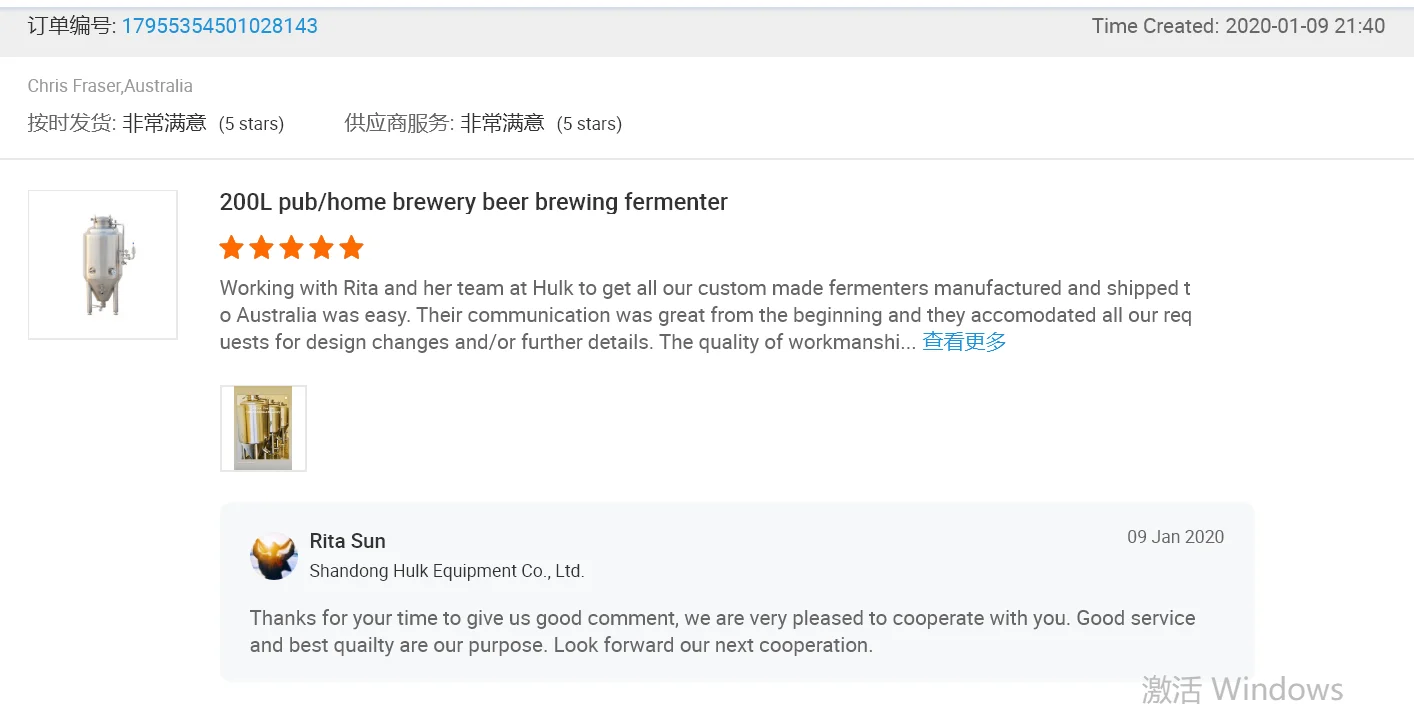

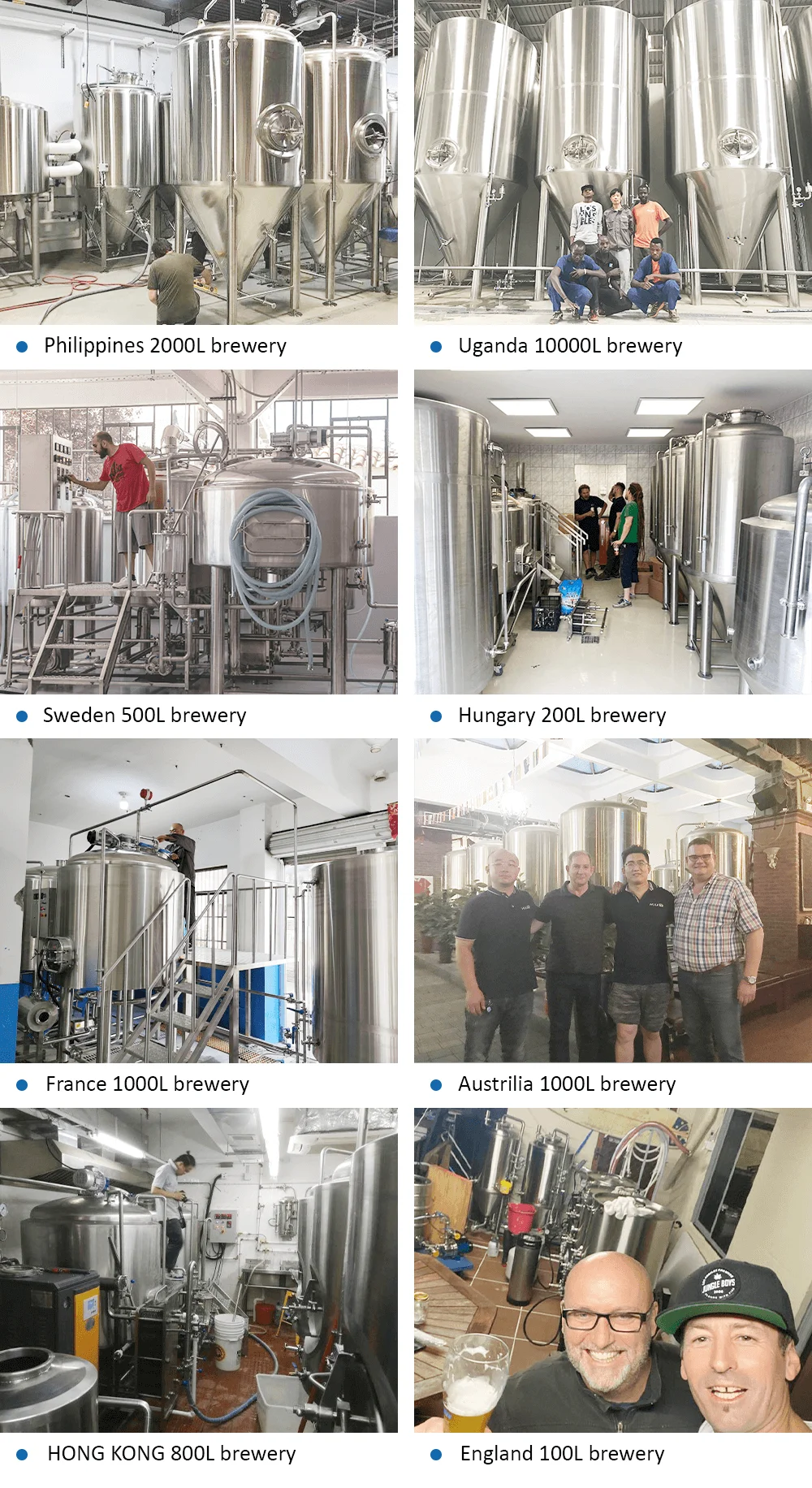

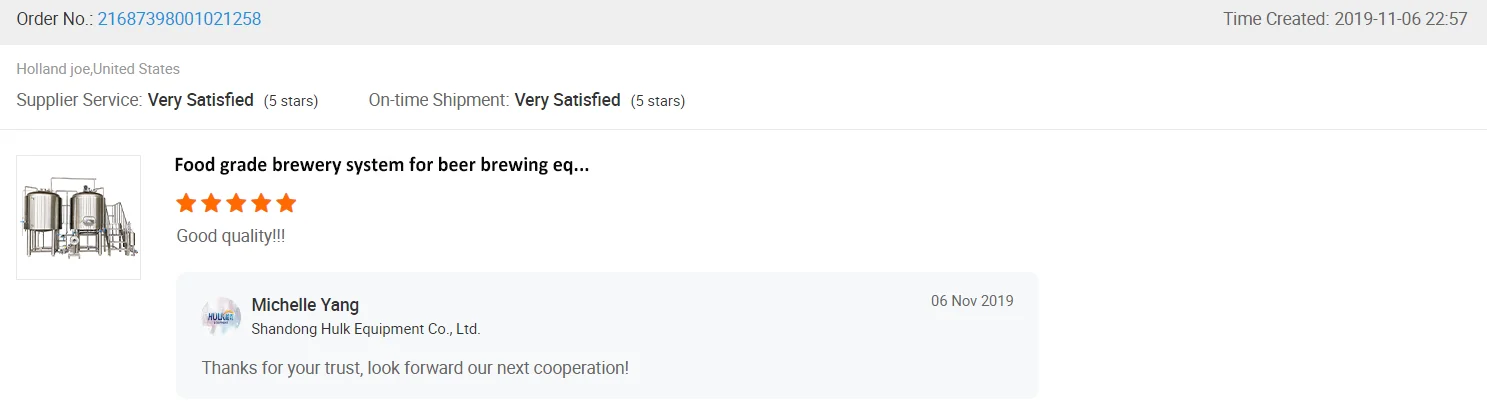

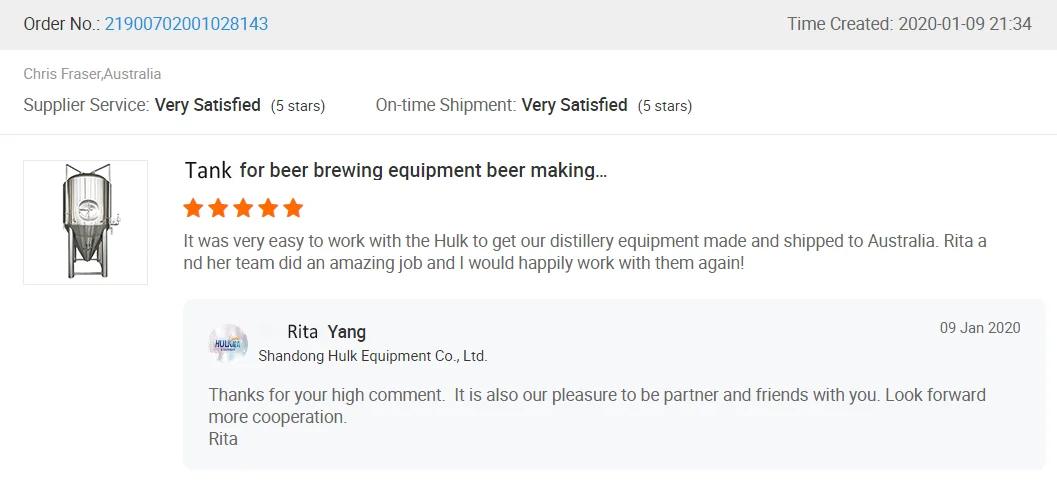

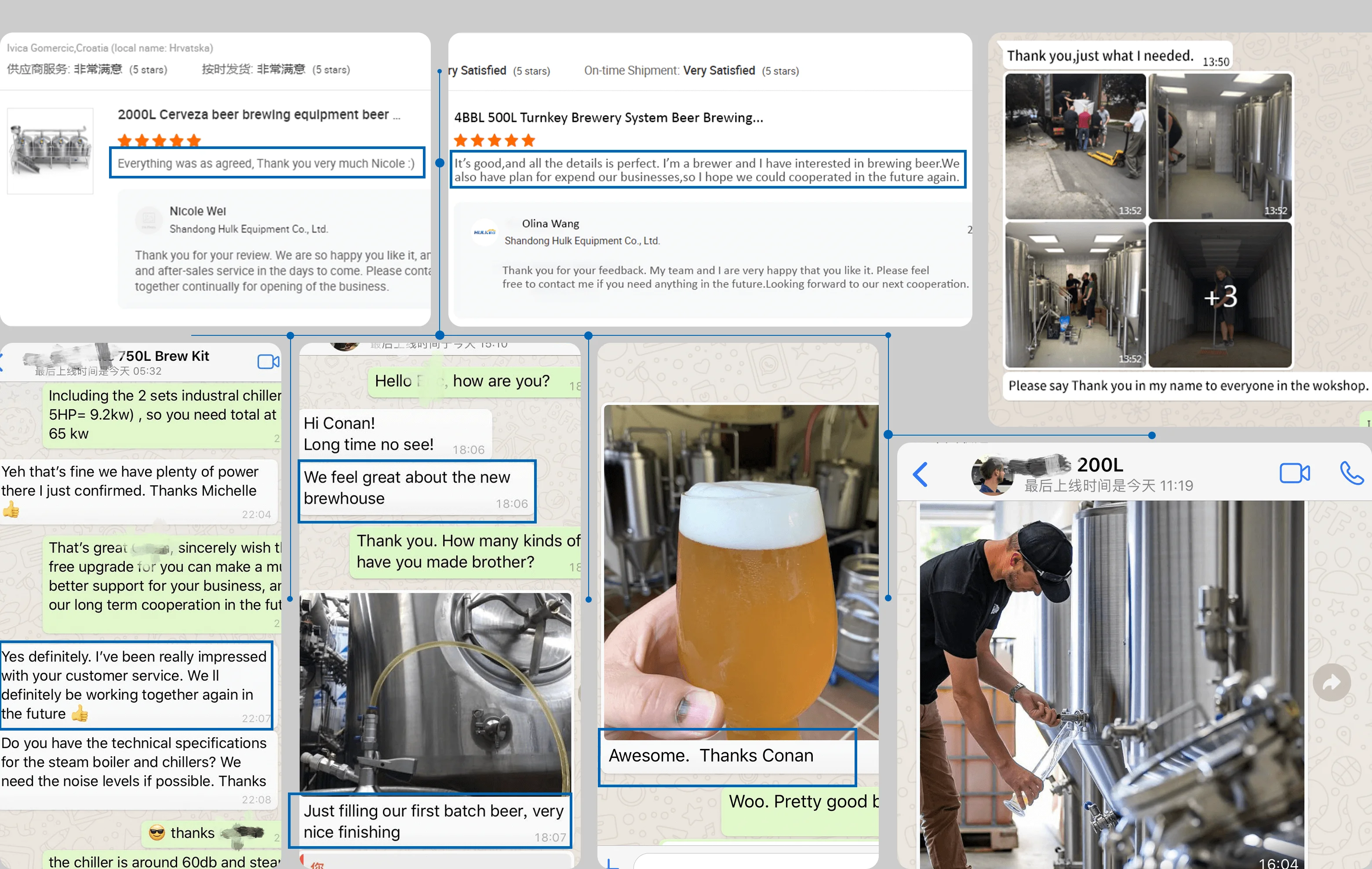

See below to know how customers evaluate HULK.
We create new and unexpected possibilities, providing innovative solutions for your future!
See below to know how customers evaluate HULK.
Packing & Delivery
1. LCL/FCL ( 20GP/40GP/40HQ )
2. Packed with plastic film in fumigation free wooden case or fixed with iron frame
3. Up to export standard, Suitable for delivery.
4. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
5. Customers' requirements of the packages are available, Please tell us in advance.
2. Packed with plastic film in fumigation free wooden case or fixed with iron frame
3. Up to export standard, Suitable for delivery.
4. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
5. Customers' requirements of the packages are available, Please tell us in advance.

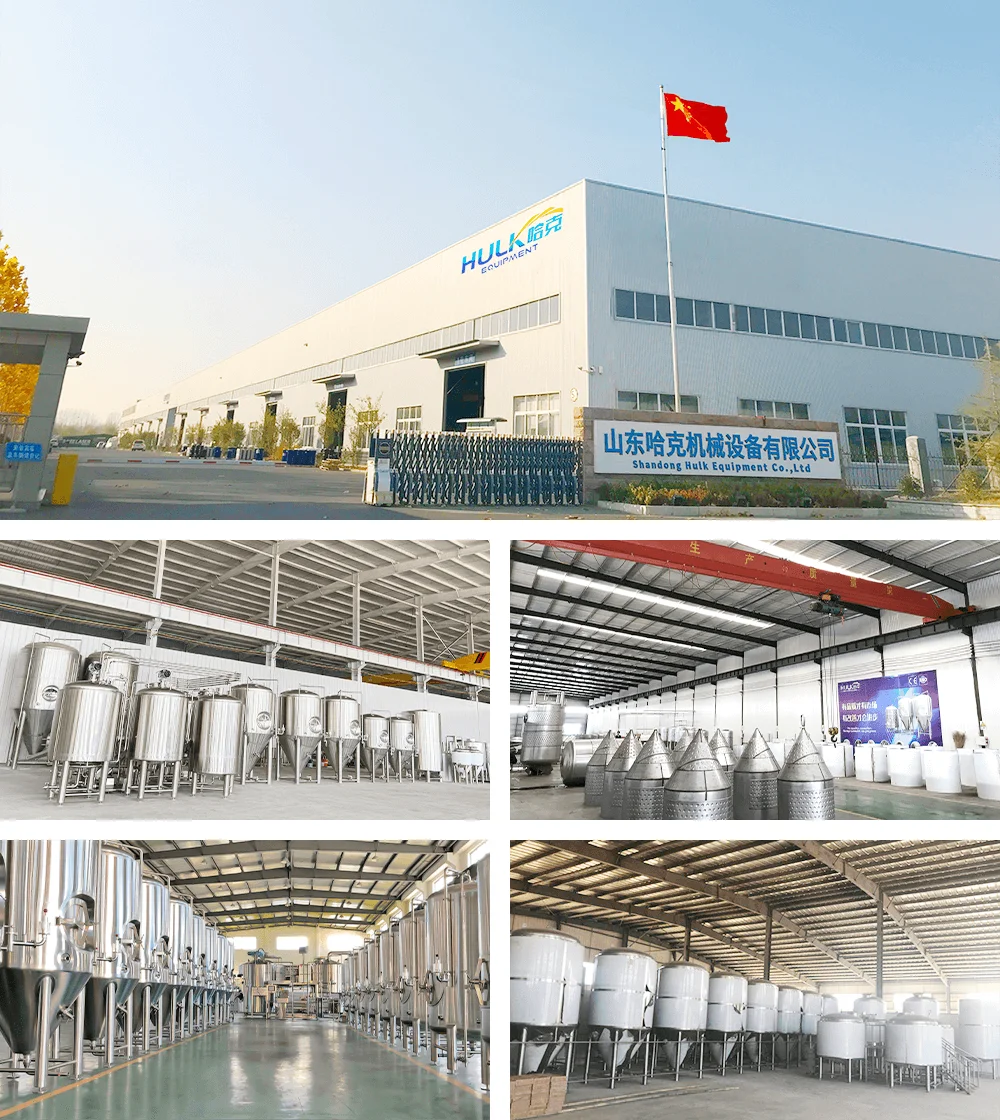

Our Company
HULK Company
Hulk brewery equipment company, with over 10 years sales and R&D experience, desire to provide comprehensive brewing business solutions for you. We are happy to deal with OEM & Customized orders from customers all over the world. Keep developing, improving, listening, and learning from our customers, a long-term cooperation is the bone of hulk.
