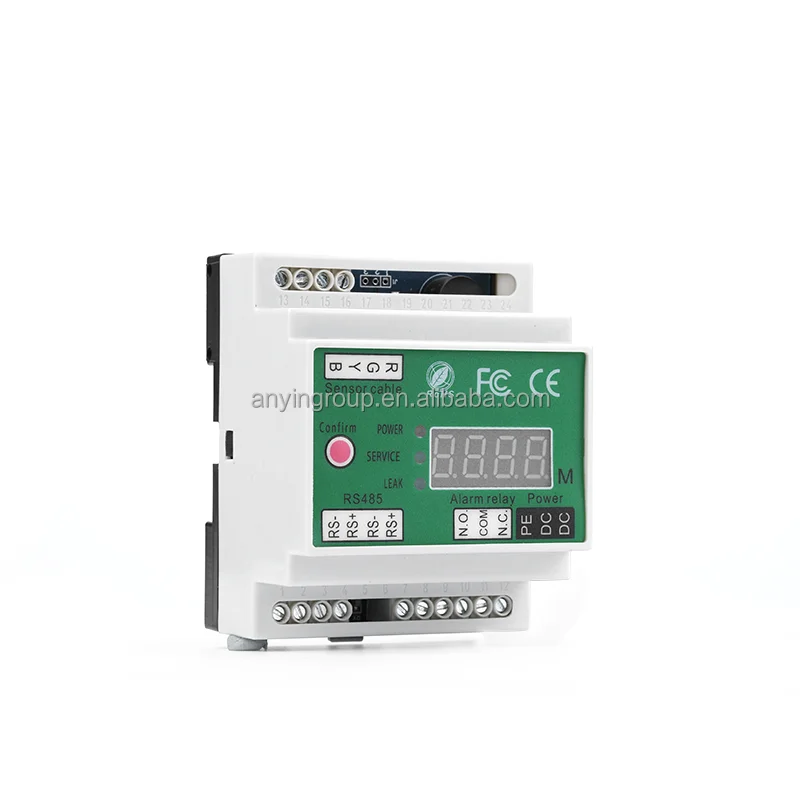

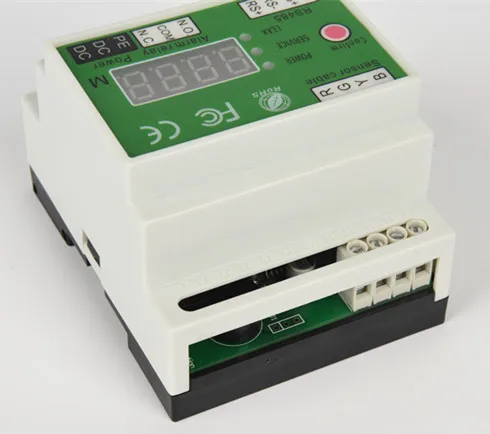

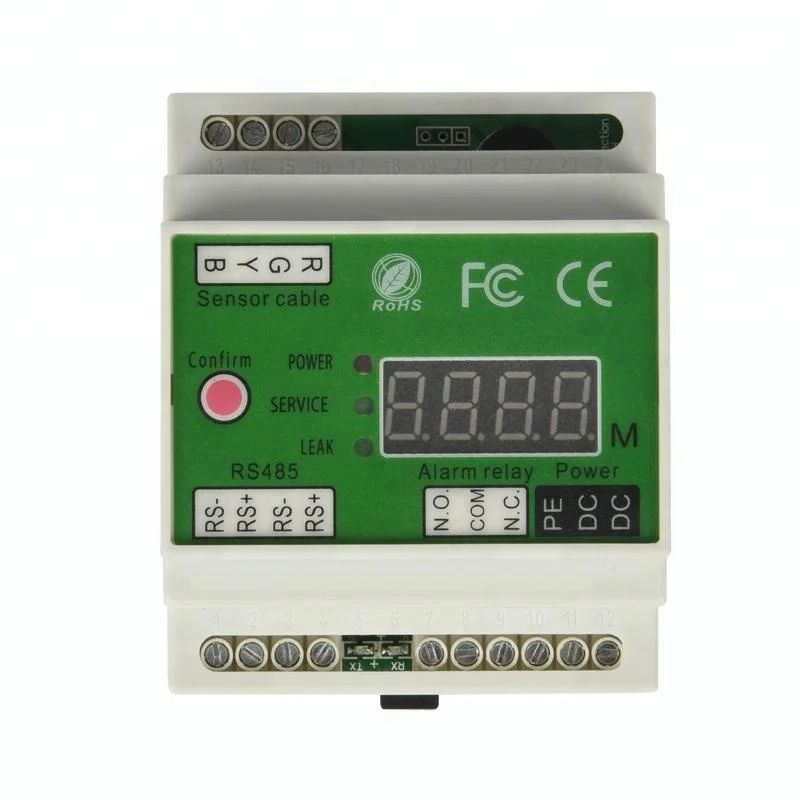

Location water leak controller A-LLM1
* AC/DC 9~24V power supply
* Easy guide rail installation
* 32 leakage records can be kept
* Relay outputting and NO/NC can be choose

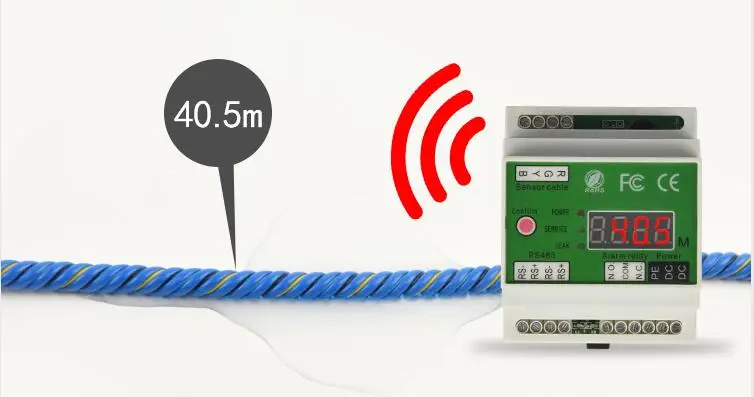

* Leakage point and cable error will display on the nixie tube
* Baud rate and module can be set on the software, no switch
* Super anti-static, anti-lighting and anti-surge to make sure the operation
* Twisted-paired cable with RS-485 serial communication, standard modbus protocol, the furthest communication can reach 1200m
* Power, leakage, the cable error and communication status display on the LCD screen


Product Paramenters


Basic characteristics
Sensor compatibility
A-LLW1000 sensing cable、TraceTek domestic same type leakage sensing cabl
Maximum length of the cable
1500m
Accuracy
Sensor cable’s length of 0.5%±0.5m
Environmental rating
Storage temperature
-40 ℃~60 ℃（0 ℉~140 ℉）
Working temperature
20 ℃~50 ℃（32 ℉~122 ℉）
Humidity
5% - 95%(no condensation)
Power supply
Sensor compatibility
AC/DC 9~24V, 3W
Serial interface
Network configuration
RS-485 double wire net work, the baud rate can be set，the factory default value is 9600, choose-able address is from 0 to 255, default address is 0

Communication protocol
MODBUS RTU
Relay contactor
Function
NO, NC can be choose; leakage alarm or sensor error alarm
Rating
AC125V，0.5A，DC24V，1A


Details Images




Relevant Products

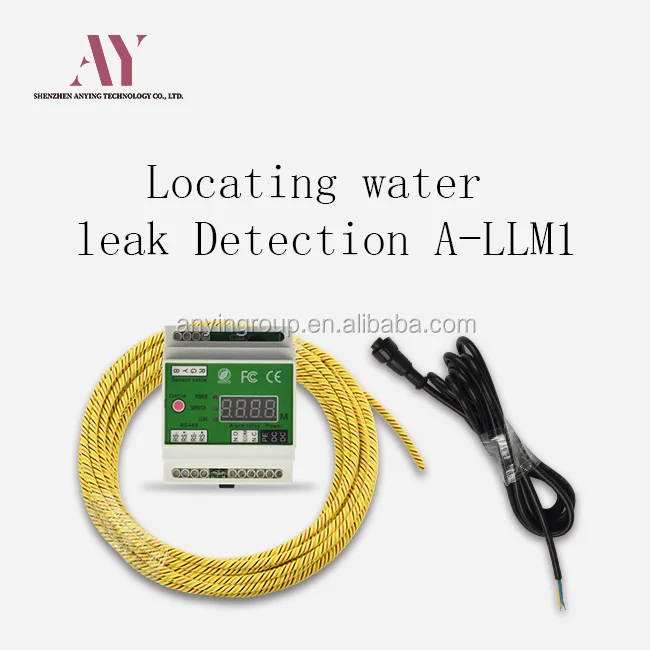

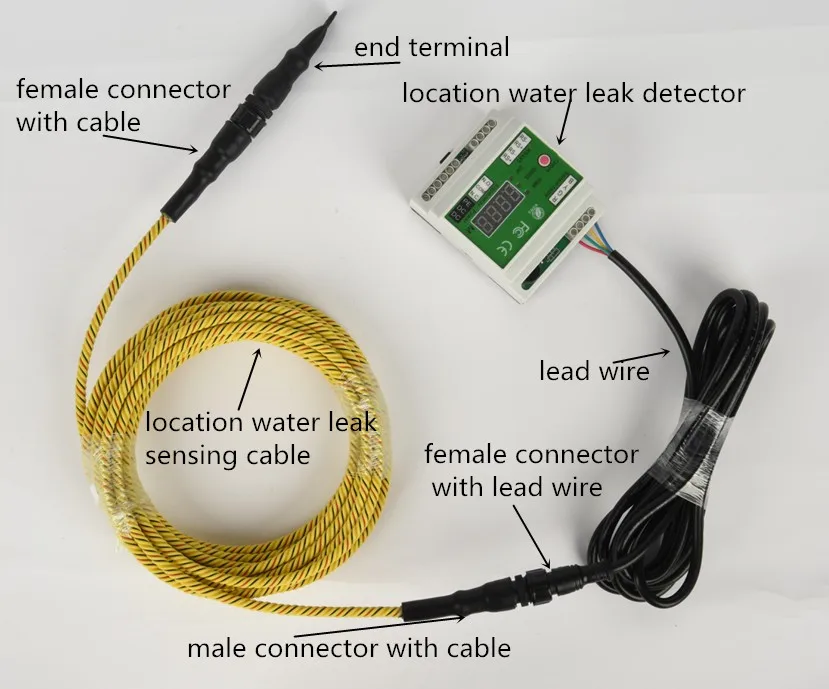

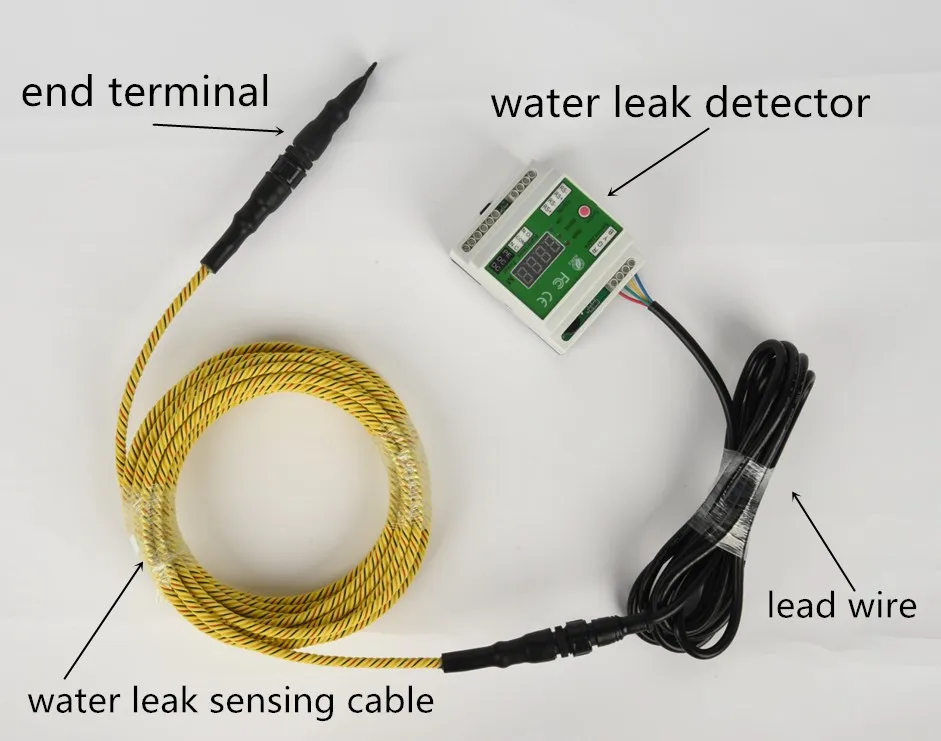

A set of Location water leak detection products:
Location water leak controller A-LLM1
Lead wire A-LLW58
Location water leak cable A-LLW1000
End terminal A-ET
