Product Overview
Description
PRODUCT DESCRIPTION

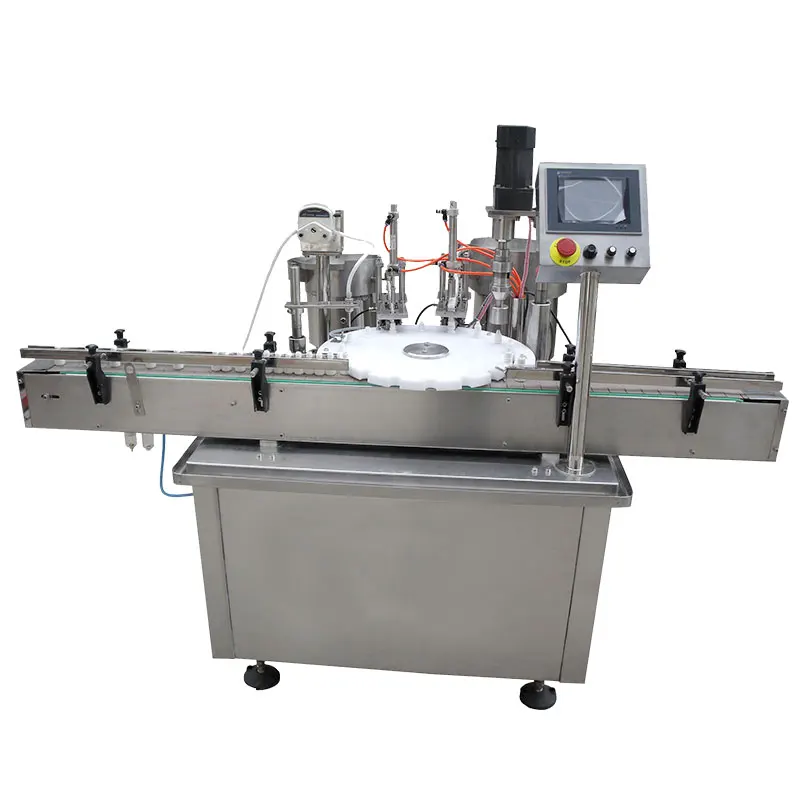

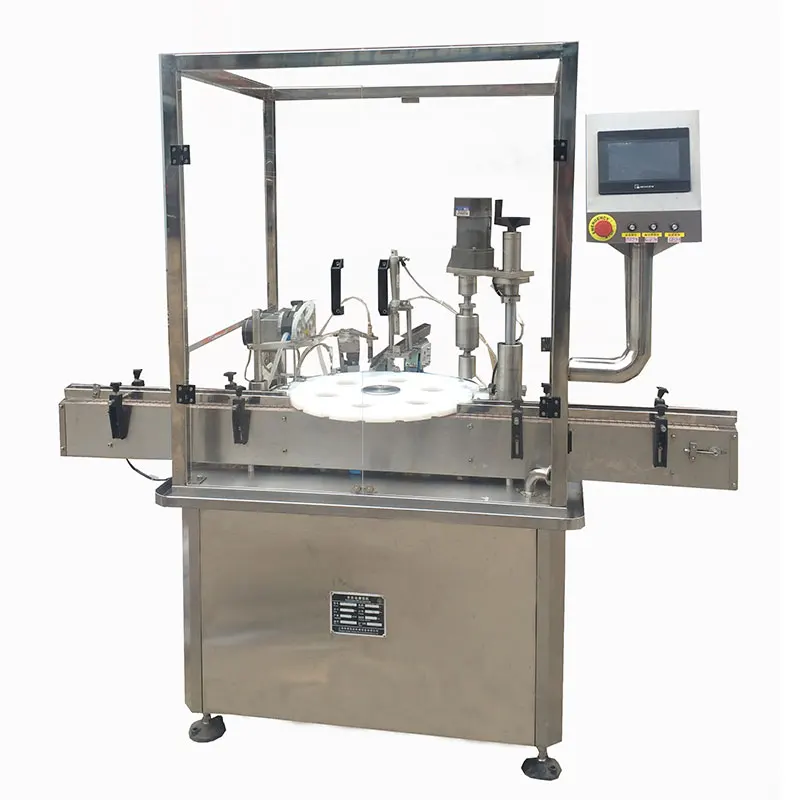

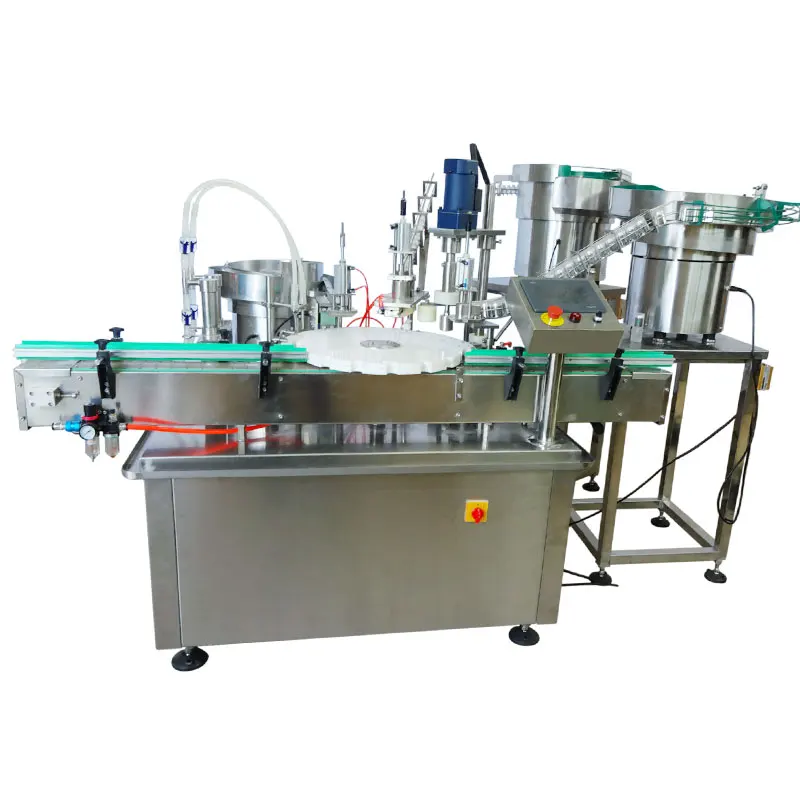

GMP Requirement Automatic Vaccine Vial Bottle Filling and Capping Machine
The filling and capping machine is a new generation utility product, developed from the most advanced technology to suit market demand, the machine adopts an SS304 volumetric injection pump, auto cap orienting, and capping together. With the economic utility and low plant cover, the machine is widely applied to liquid packing in the market of pharmaceuticals, pesticides, chemicals, foodstuffs, cosmetics, etc, to meet the requirement of GMP.
SPECIFICATIONS
Parameters | Number Reference | ||
Model | HTGX-20 | HT-NC-2, HT-KC-2 | |
Productivity | 30-50BPM | 60-80BPM | |
Filling Head | 1 Head | 2 Heads | |
Filling Volume | 5-50ml (replace filling pump) | ||
Filling Accuracy | ±1% | ||
Control System | Touch Screen + PLC Control | ||
Gas Consumption | 0.6m³/min | ||
Power | 3KW | ||
Voltage | AC380V/220V, 50Hz/60Hz | ||
Machine Dimension | 2500*1450*1650mm (for reference only) | ||
Machine Weight | 600KG (for reference only) | ||
FEATURES AT A GLANCE
Working Process:

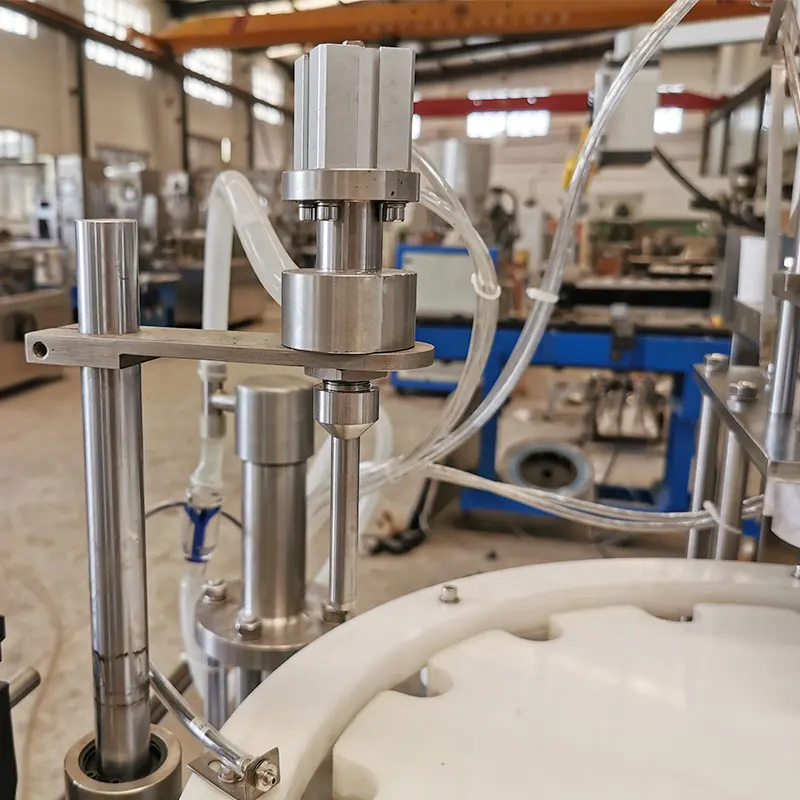

1. Filling: via a conveyor belt to carry the bottom of the bottle to the filling head and the bottle was blocked by the dial to
step forward, this time-synchronous filling heads into the bottom of the bottle and completed filling by a quantitative piston
pump.
2. Put Cover: caps vibrate through an electromagnetic oscillator, so cover up the delivery chute, through the bottle fell to the
track, and then was pressed by press head.

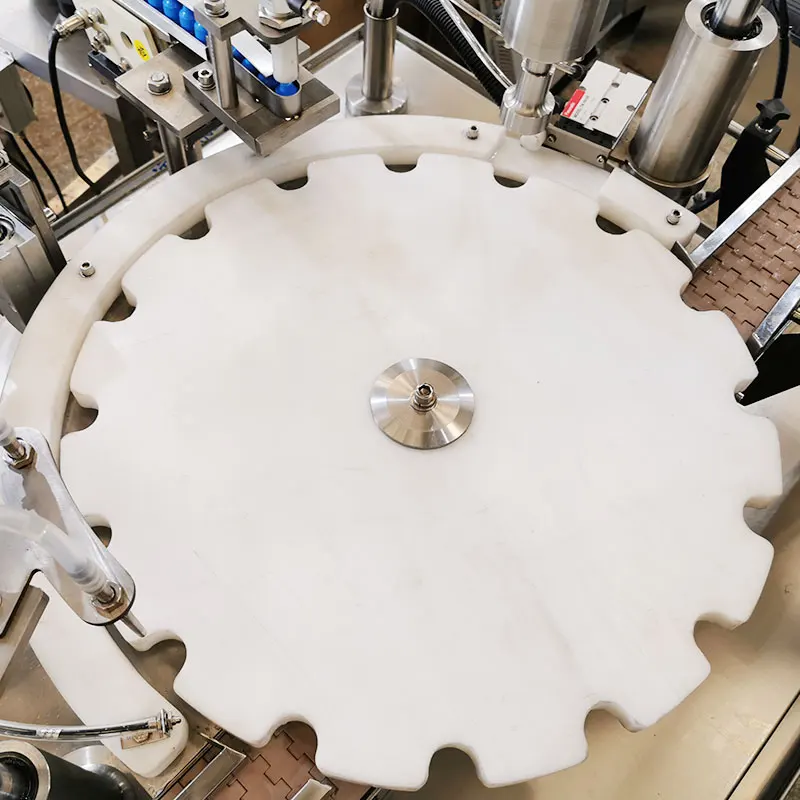

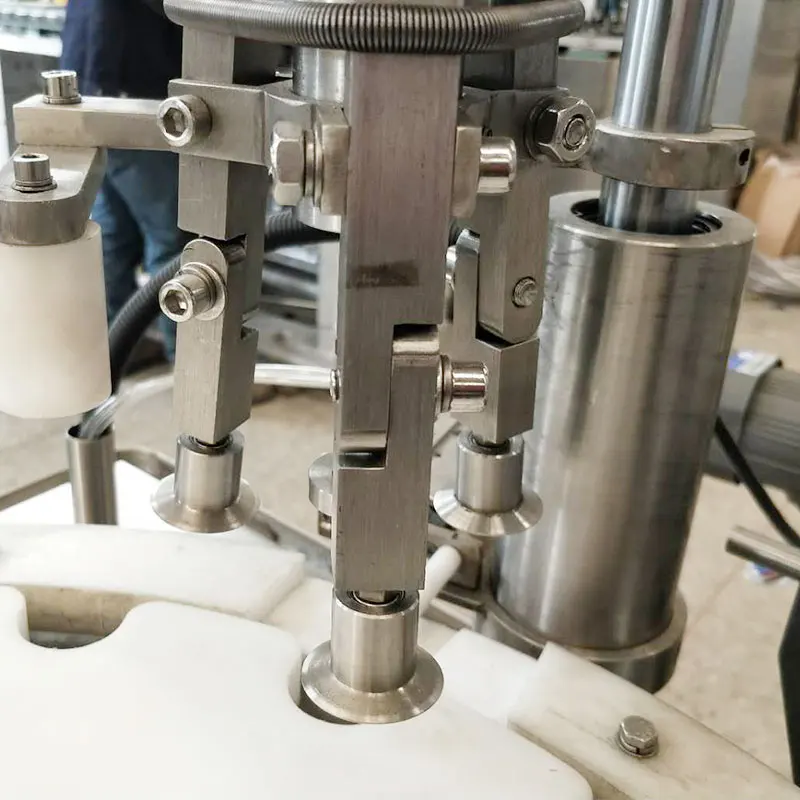

3. Capping: filling finished bottle-fed by a conveyor belt on the turntable, the turntable through the sheave box for intermittent
operation. When a bottle with a cap carries to the bottle caper housing for intermittently pauses, the capping head will be
pressed lower by a cam and rotate clockwise, thus boosting the cap tightened.
step forward, this time-synchronous filling heads into the bottom of the bottle and completed filling by a quantitative piston
pump.
2. Put Cover: caps vibrate through an electromagnetic oscillator, so cover up the delivery chute, through the bottle fell to the
track, and then was pressed by press head.
3. Capping: filling finished bottle-fed by a conveyor belt on the turntable, the turntable through the sheave box for intermittent
operation. When a bottle with a cap carries to the bottle caper housing for intermittently pauses, the capping head will be
pressed lower by a cam and rotate clockwise, thus boosting the cap tightened.
