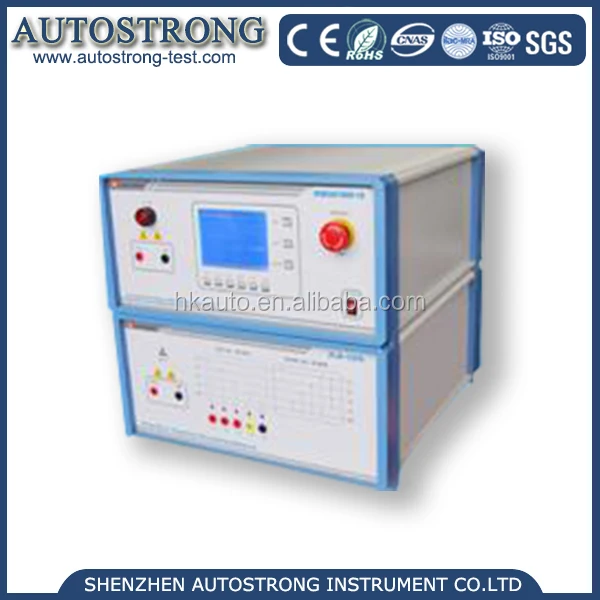

Electronic Test IEC61000-4-12 Standard EMC/EMI Test Equipment
Product Description
EMI Test Receiver is the test equipment in conformity to IEC(the International Electro technical Commission) standard IEC61000-4-12, EN61000-4-12, ANSI-C62-41 .
This instrument is used for the simulative electrical network, the power supply of the reactive load and the control line switch, as well as sensing the ring wave of the low voltage cables terminal equipment caused by the disconnection of the power circuit, fault and insulation breakdown or lightning stroke.The RWG61000-12 series products have LCD display in both English and Chinese.
Specification:
Output Voltage | 0~4KV | 0~6KV | ||
Voltage/Current Wave | Open circuit voltage wave: frontier: 0.5μs±20%. Short circuit current wave: frontier: ≤1μs. Oscillation frequency: 100kHz±10% | |||
Polarity | Positive, Negative or Positive/Negative automatic | |||
Phase Shift | Asynchronous, Synchronization 0°~360° or Specific Angle | |||
Output Impedance | 12Ω, 30Ω, 50Ω ± 20% | |||
Coupling/Decoupling Network (CDN) | Includes a 16A single phase | Includes a 20A 3phases/5wires | Includes a 16A single phase | Includes a 20A 3phases/5wires |
Working Power | AC220V(Option 110V)±10%, 50/60Hz | |||
Dimension (DxWxH) | 44x45x20cm 44x45x20cm(CDN) | 44x45x20cm 44x45x35cm(CDN) | 44x45x30cm 44x45x20cm(CDN) | 44x45x30cm 44x45x35cm(CDN) |
Gross Weight | About 42kg | About 46kg | About 45kg | About 48kg |
