Defond toggle switches 6a 125vac 3a 250vac DTW 1206 YR 04R SPDT ON OFF toggle switch 3 PIN

Share on (1600727892272):


Price:

Quantity:


Product Overview

Description





Product Description

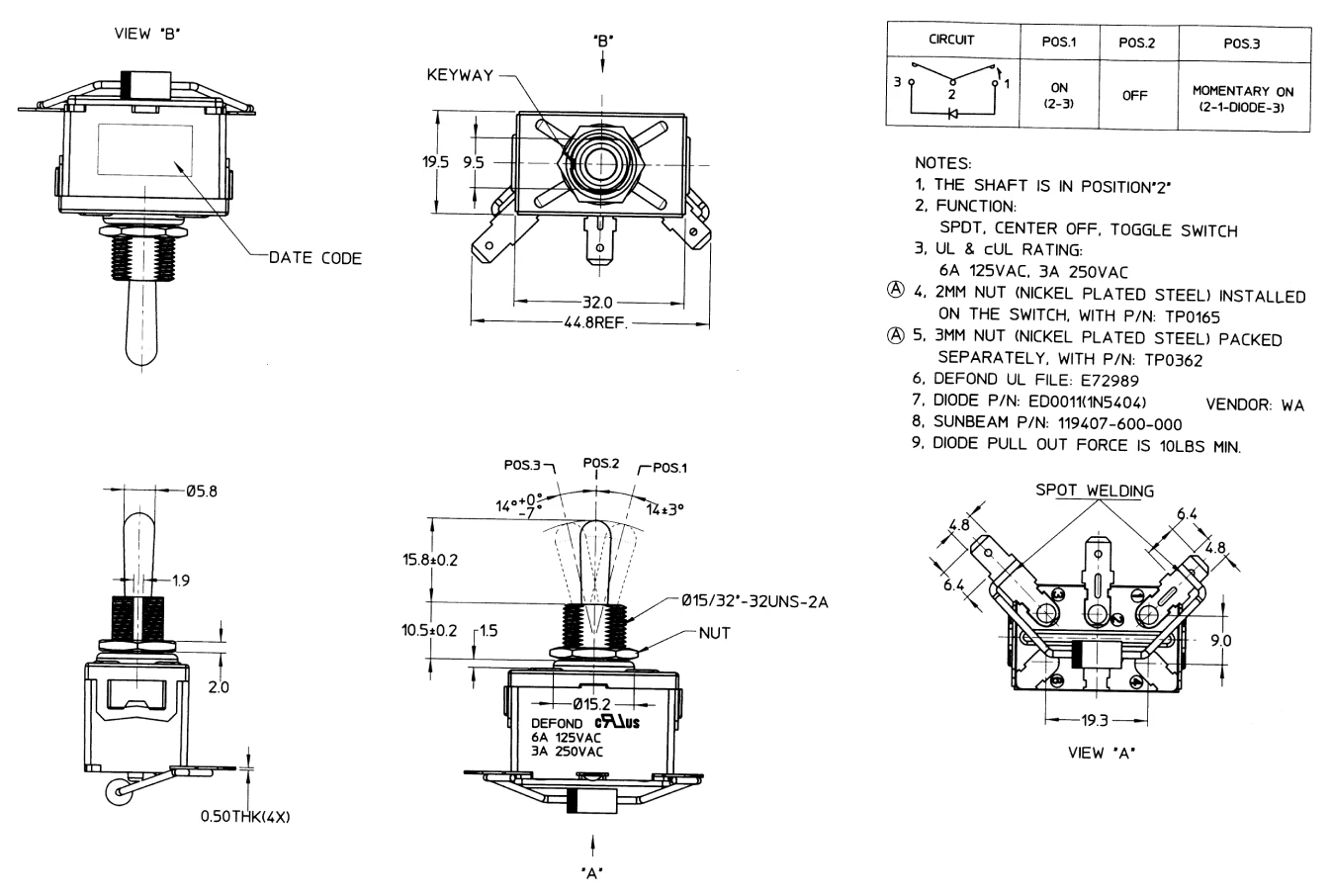

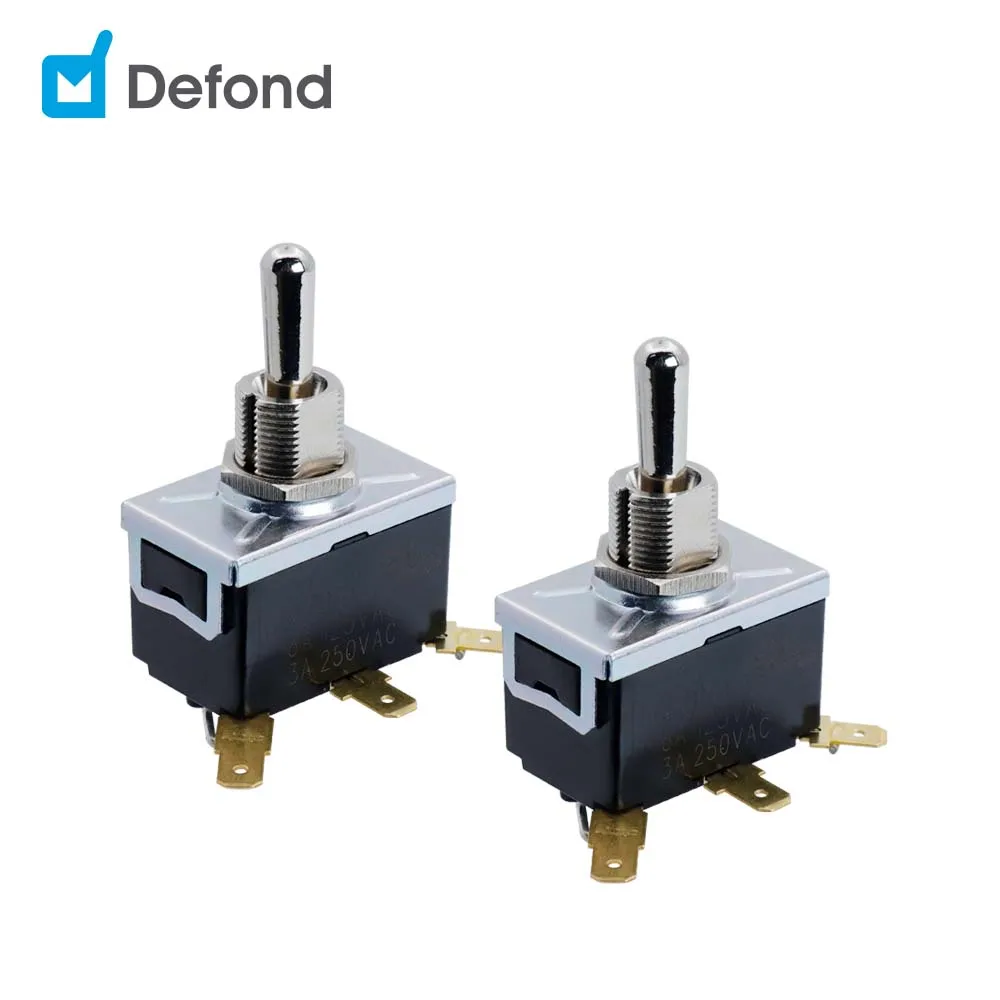

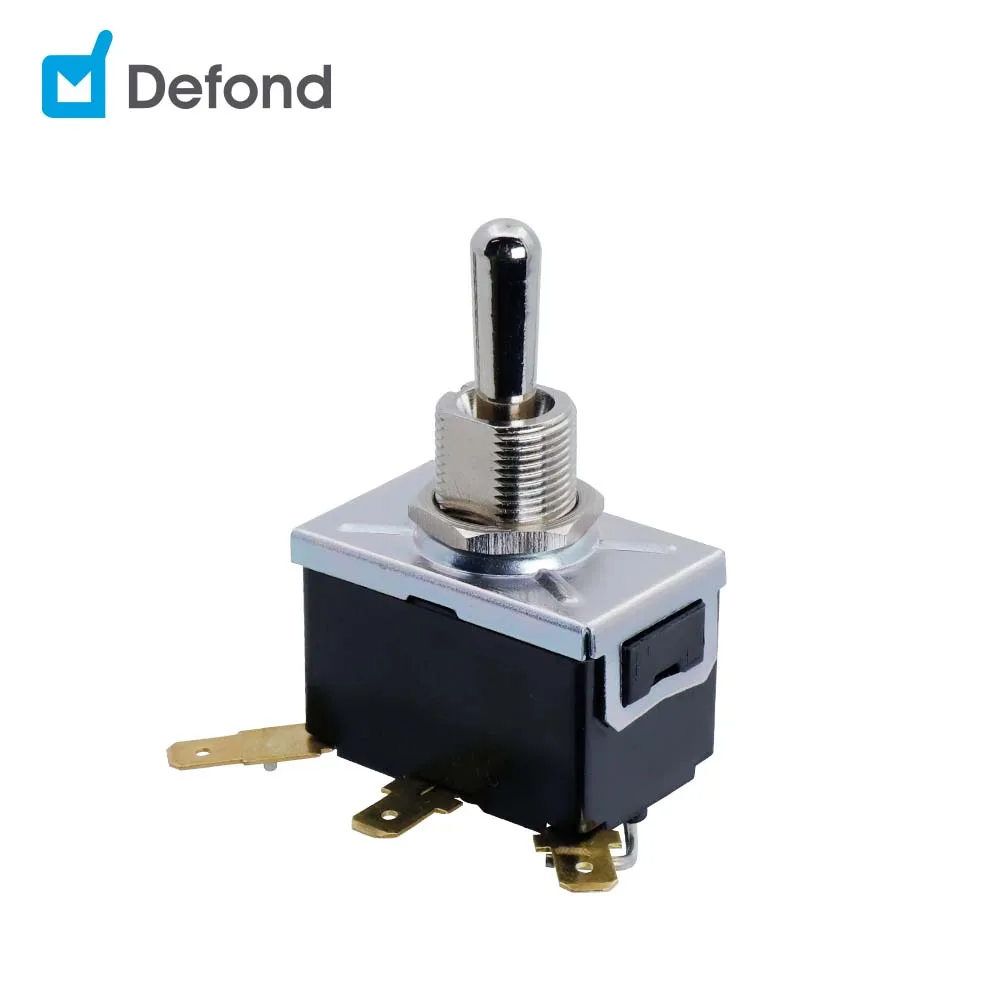

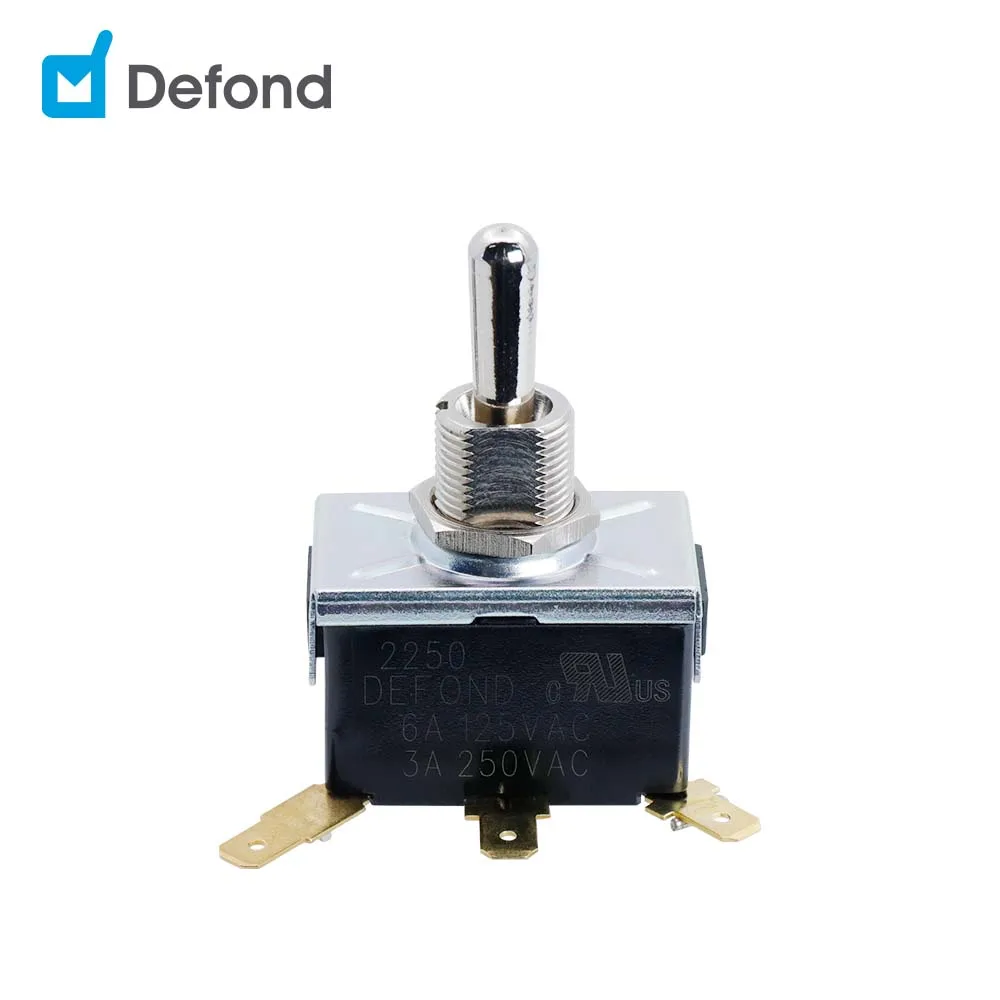

Defond toggle switches 6a 125vac 3a 250vac DTW-1206-YR-04R SPDT ON OFF toggle switch 3 PIN




Large of operating force,Quick action, Long life, High reliability, A variety of circuits and settings
available.




















































































Item


Value


Certification


UL1054


Place of Origin


China


Brand Name


Defond


Model Number


DTW-1206-YR-04R


Protection Level


IP30


Max. Current


6A, 3A,


Max. Voltage


125VAC, 250VAC


LED


No


Environmental Temperature


0-65℃


Conductive Material


Silver alloy


Electrical Life


6000cycles


Size


32.0mmx19.5mmx21.5mm


Operating Force (range)


0.5 – 5.5 1bf /2.5 – 8 1bf


Pre-travel (range)


/


Insulation Resistance


50M ohm Min.


Contact Resistance


50m Ohm Max.


Pole


1


Throw


2

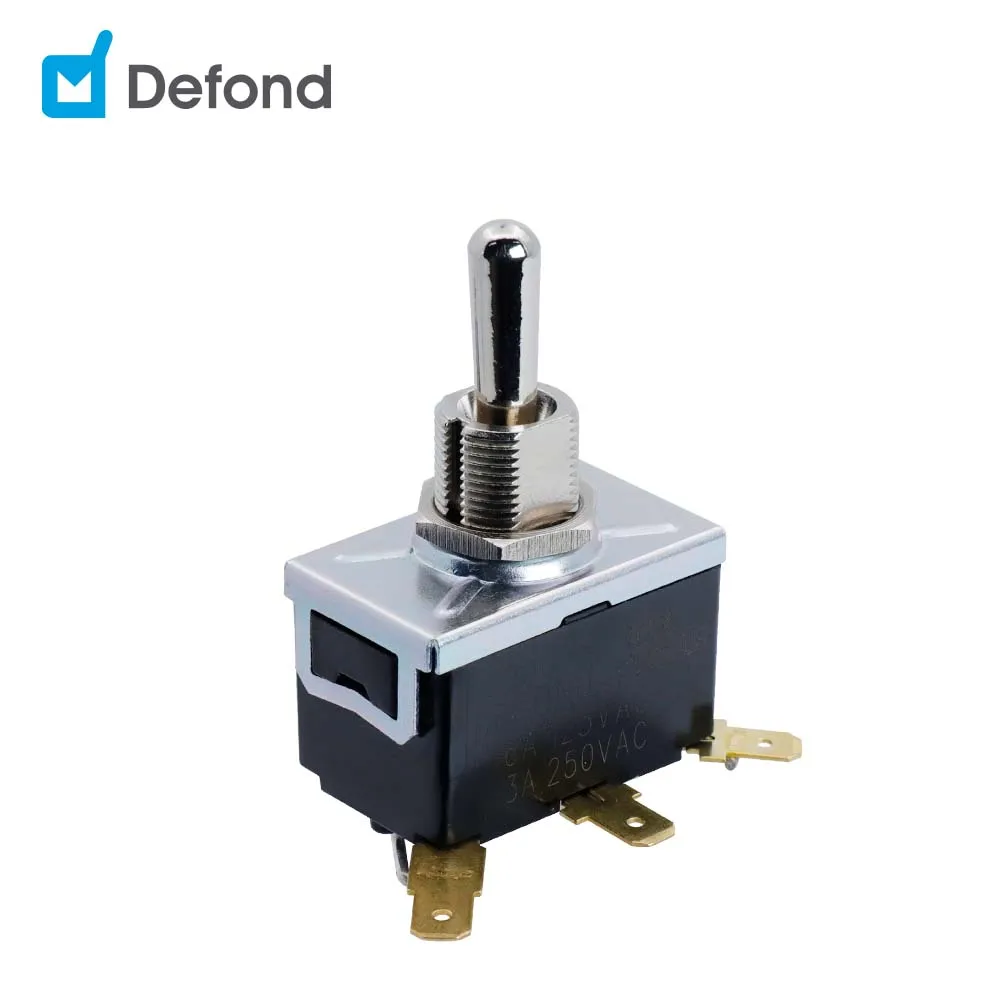

DTW-1206-YR-04R-1





828.DTW-1206-YR-04R

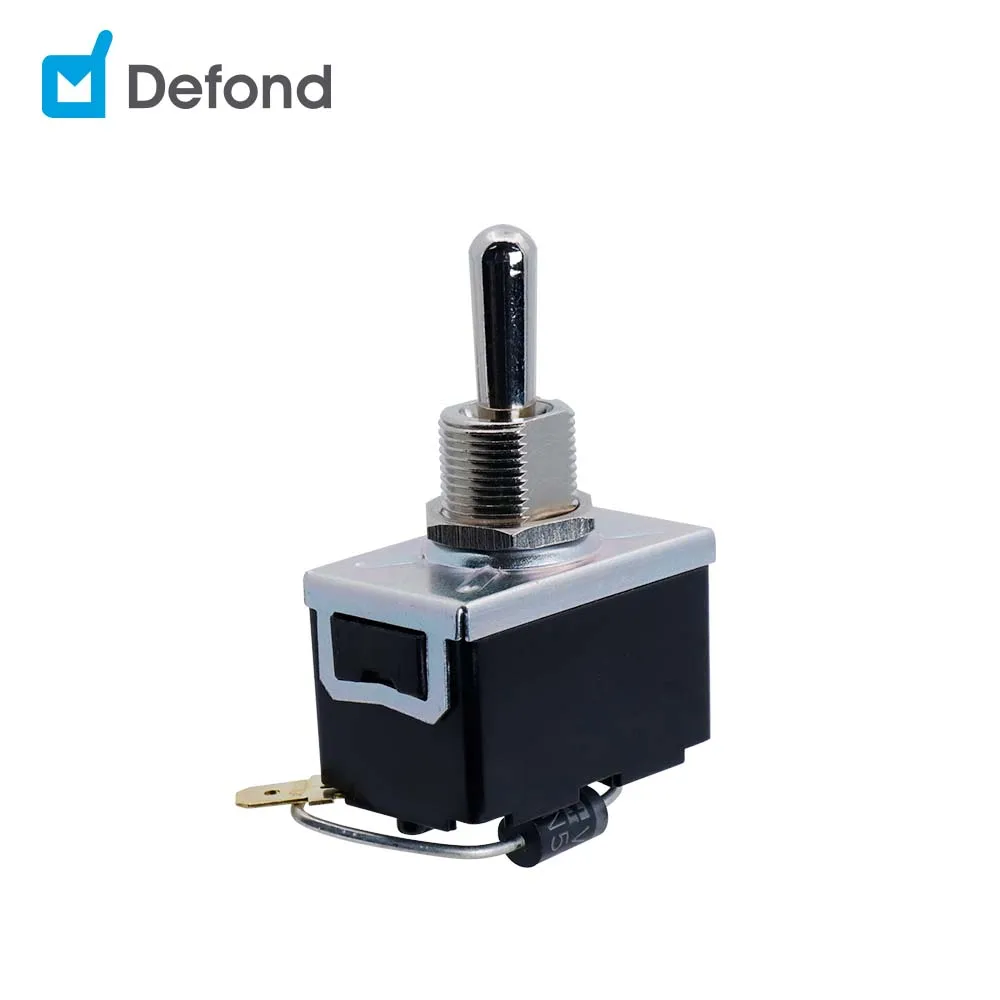

DTW-1206-YR-04R-4

DTW-1206-YR-04R-5




Company Profile
















Founded in 1978



Our parent company was founded in 1978 as a switch manufacturer in Hong Kong, the Defond brand has achieved global recognition in various sectors.
Over four decades later, we continue to facilitate our customers’ innovation and production across the world with a wide range of integration solutions, enabling our customers to keep ahead of the competition.









What we do



Engineering expertise, flexible approach and solid financial position.
Provide customers with total solution from initial design to manufacturing. We offer original design, co-development and manufacturing services of specialized switch and sensor based components and modules with top-notch engineering support, rapid prototyping and efficient manufacturing with superior quality and much more.
