Automatic Copper Foil Winder Transformer Making Equipment Foil Winding Machine
Introduction

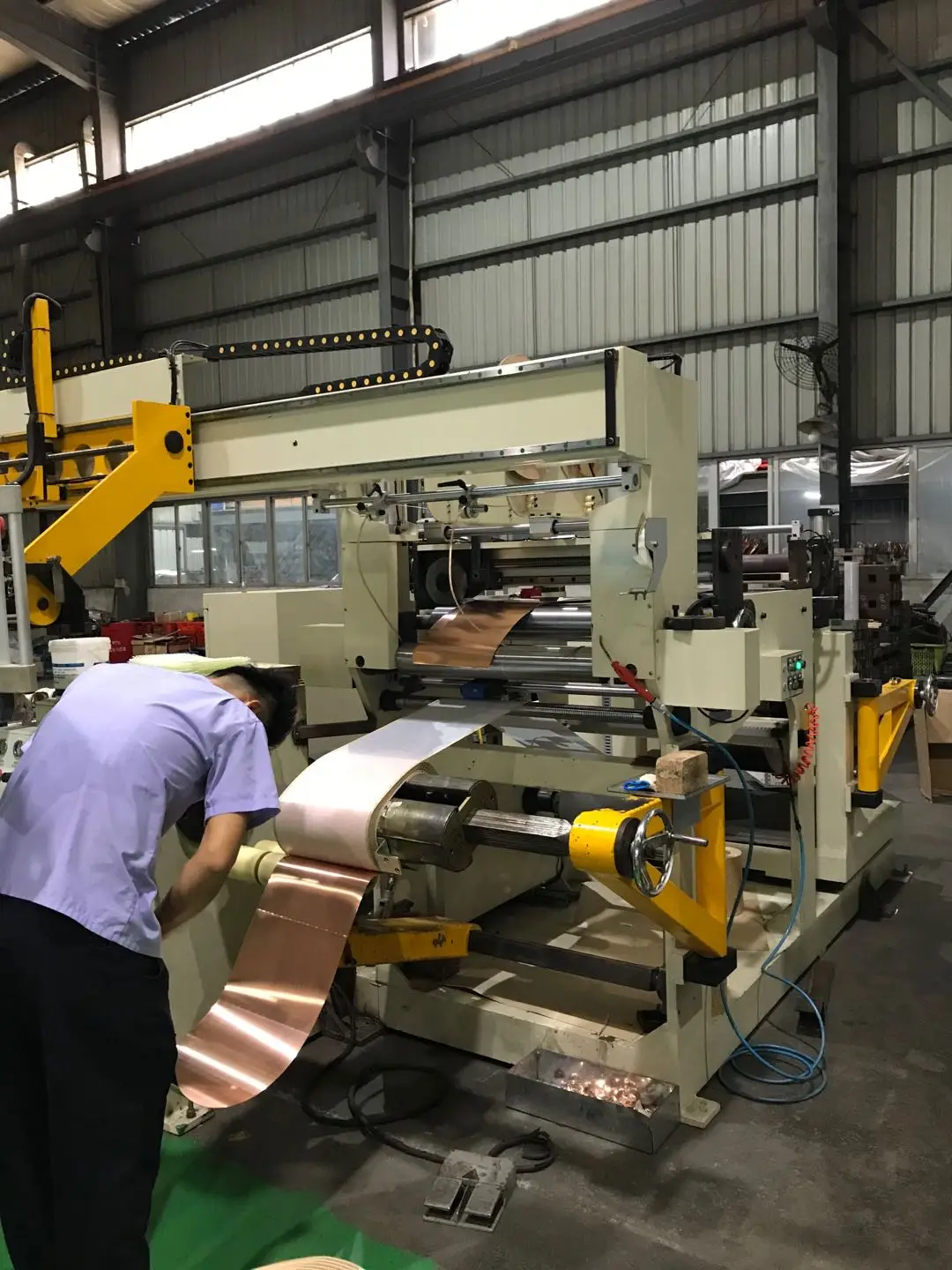

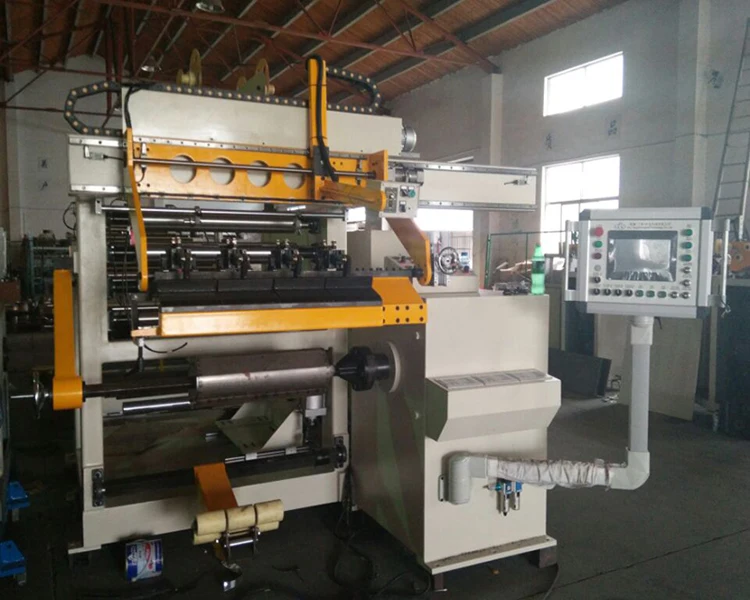

Automatic transformer foil winding machine BRJ800-2 is a dedicated equipment for winding transformer coils and other similar products. This foil winding machine can handle one or two layers of foil conductor and one or two layers of insulation paper. With PLC based control system, the foil winding machine features high automation and easy operation.
Main Components
1. Main frame
2. Winding unit

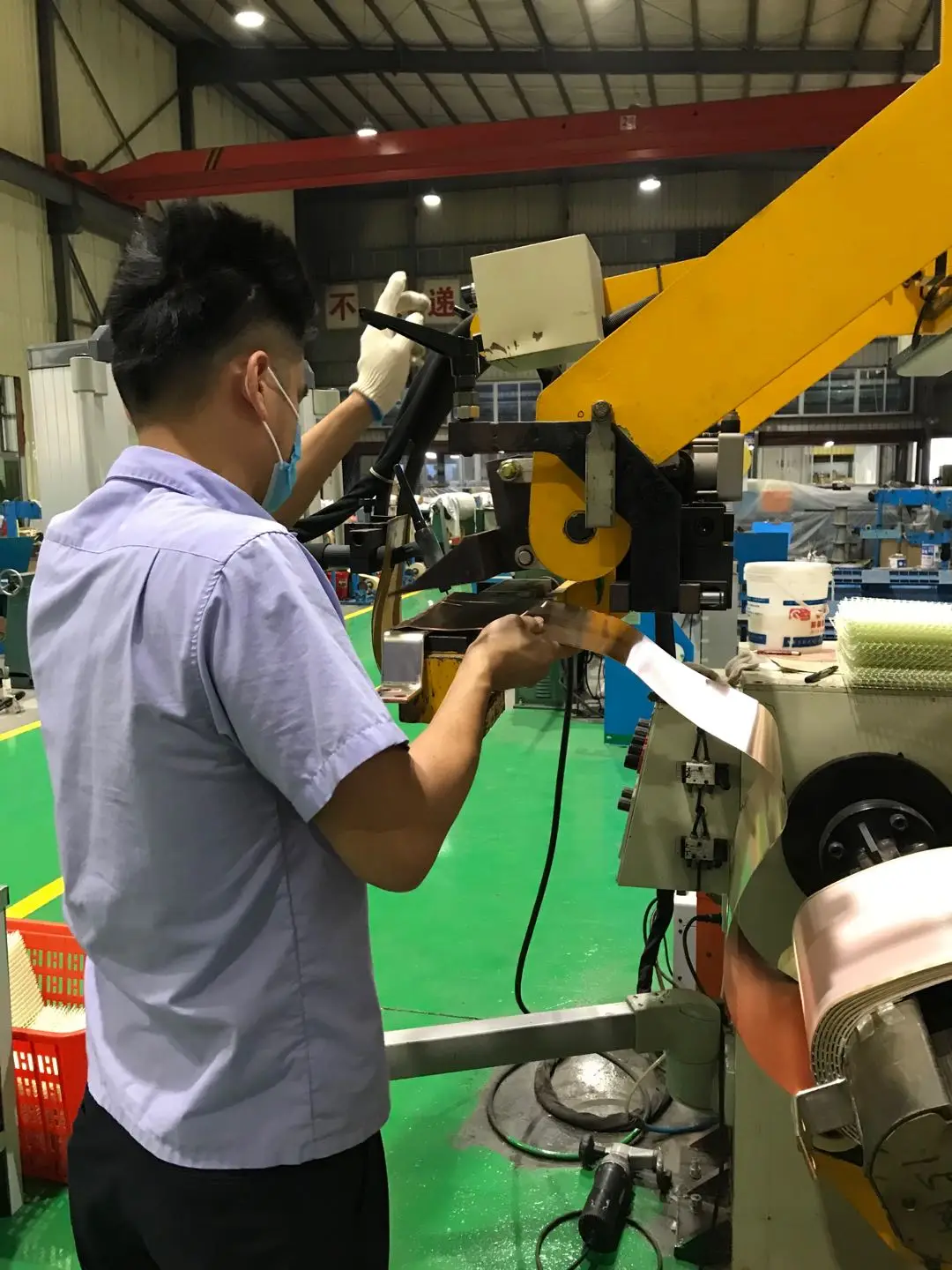

3. Automatic TIG welding unit

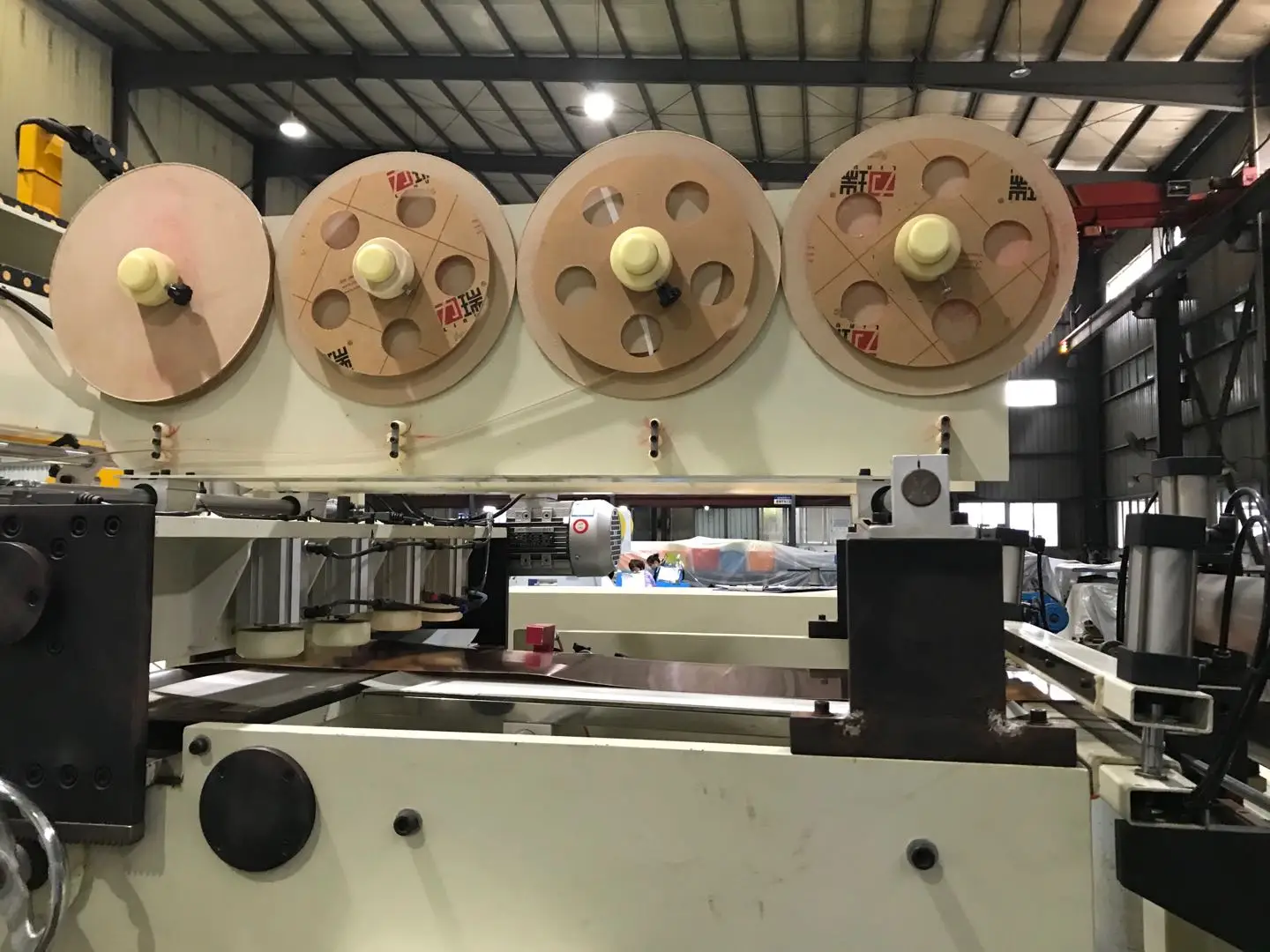

4. Insulation decoiler

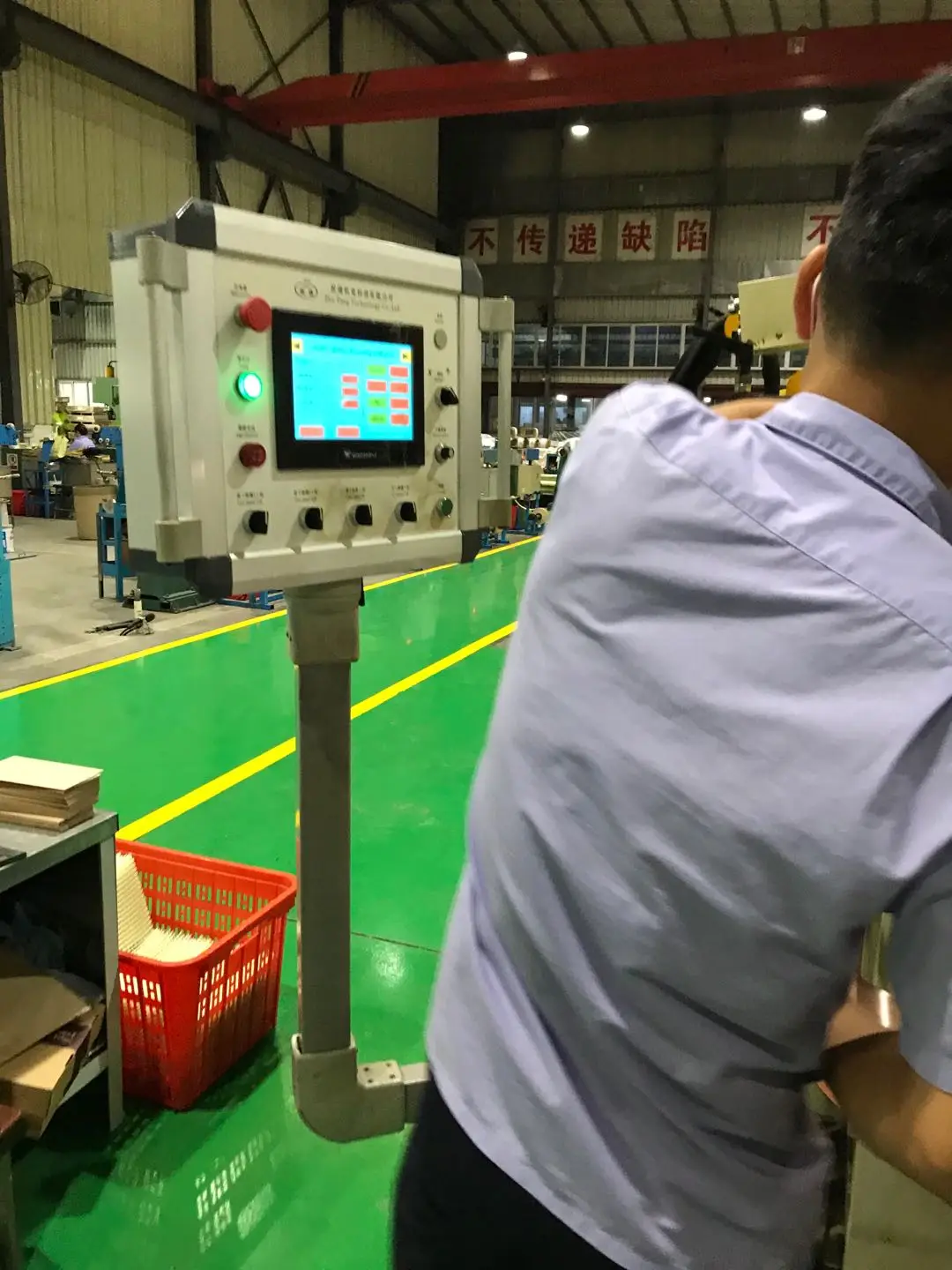

5. Electronic control system
6. Pneumatic system
Technical Parameters
Typical standard specifications of BRJ800-2 are shown below, however the machine can also be manufacutured as requested.
| Center height | 900mm |
| Max. foil width | 800mm |
| Winding power | 15kw |
| Winding speed | 0 ~ 20rpm |
| Speed regulation | stepless |
| Cu foil thickness | 0.2 ~ 2.0mm |
| Al foil thickness | 0.3 ~ 3.0mm |
| Max. finished foil coil OD | 800mm |
| Max. capacity | 1500kg |
| Warranty period | 12months |
Similar Products
Company Information
FAQ
1) Q: Are you manufacturer or trading company?
A: We are both manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service oversea?
A:We provide both technical support online and on-site services
A:We provide both technical support online and on-site services
4) Q: How does your factory control product quality?
A:Besides we strictly control each production chain, all machines have to be tested before loading.
5) Q: How can I know the machines is OK before loading?
A: We can record the testing video for your reference if you need, or you can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture customized machines as requested.
