Disc drum lathe T8470 for car repair cutting machine
US $2580-$2850
CE certificate Car Brake Disc and Drum Maintenance Lathe Brake Drum Disc Skimming Machine C9335A
- Category: Other Vehicle Equipment >>>
- Supplier: Jinan,Quality,CNC,Machinery,&,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

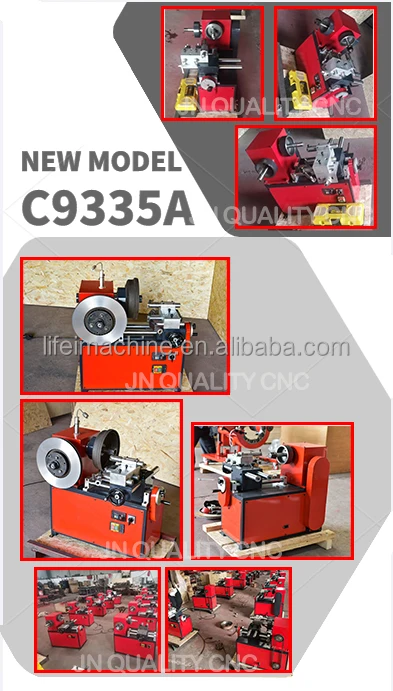

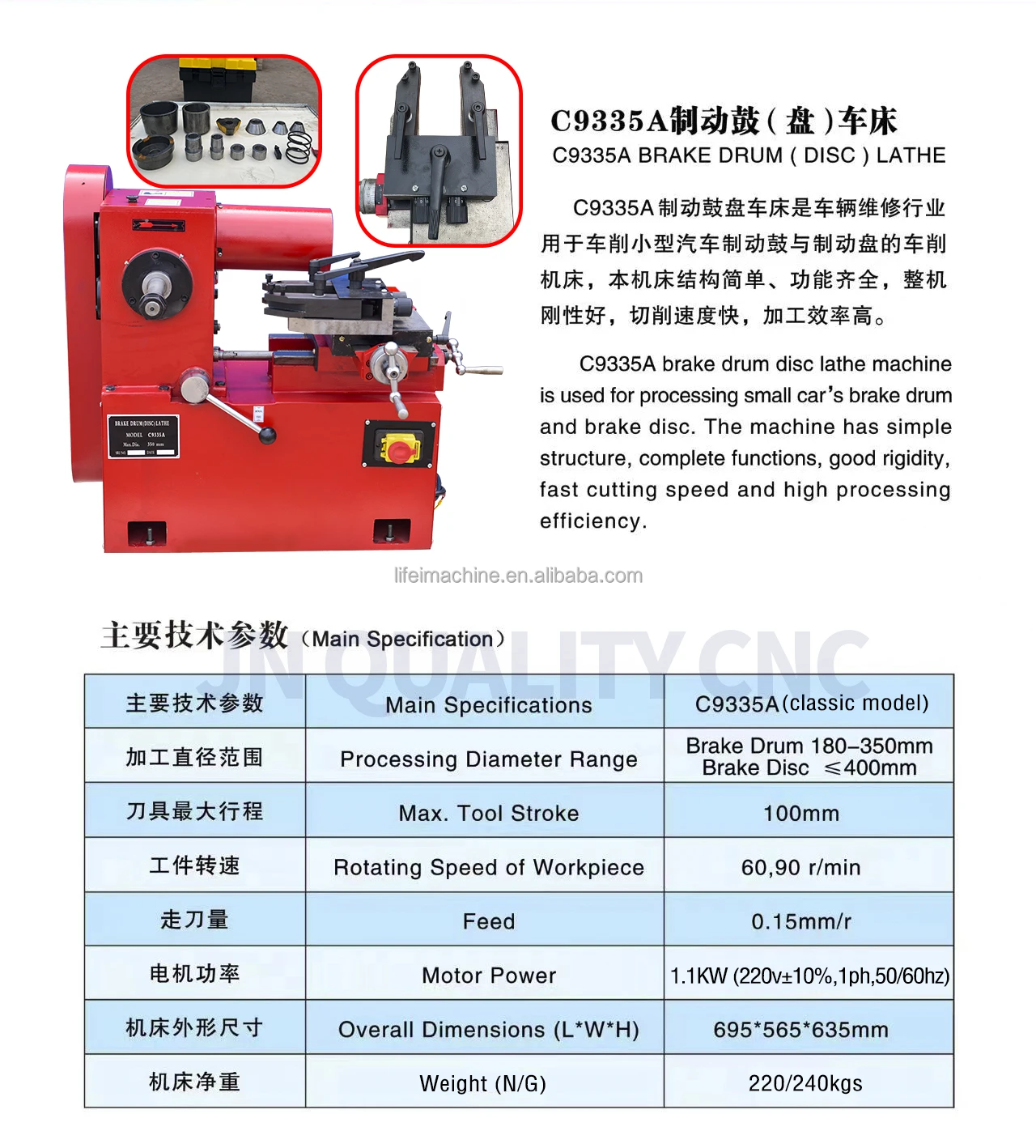

CE certificate Car Brake Disc and Drum Maintenance Lathe Brake Drum Disc Skimming Machine C9335A
Introduction of CE certificate Car Brake Disc and Drum Maintenance Lathe Brake Drum Disc Skimming Machine C9335A:

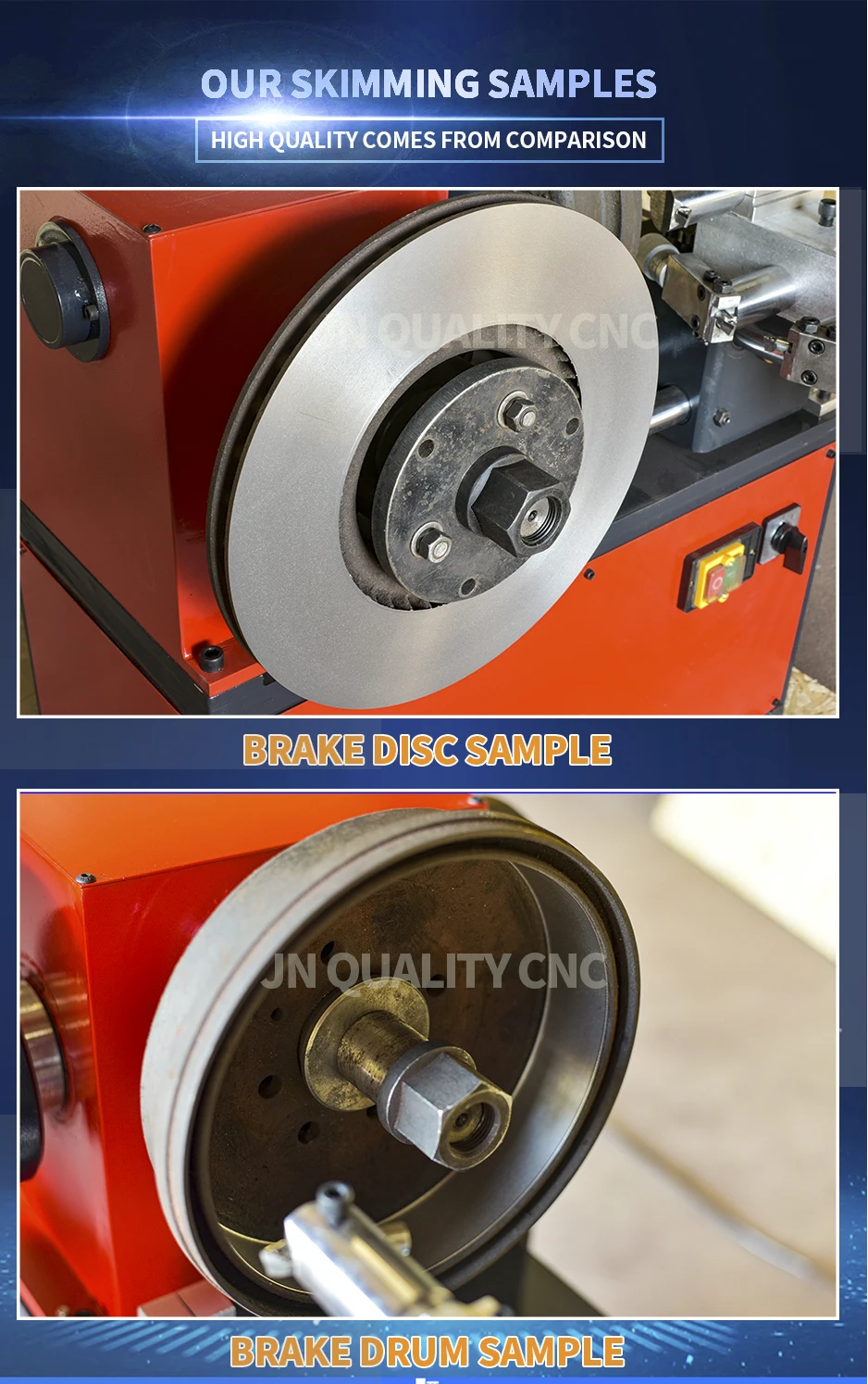

1. This brake disc and brake drum lathe machine C9335A is suitable for grinding, repairing, skimming and cutting the brake discs and brake drums for almost all cars and mini trucks;
2. This brake disc and brake drum lathe machine C9335A has positive ( forward ) and negative ( backward ) automatic tool feeding;
3.We remove the brake disc / brake drum from the car or mini truck, then fix the brake disc or brake drum on the lathe machine by using the screws and fixtures directly, with convenient installation, high processing precision and one-time processing.
2. This brake disc and brake drum lathe machine C9335A has positive ( forward ) and negative ( backward ) automatic tool feeding;
3.We remove the brake disc / brake drum from the car or mini truck, then fix the brake disc or brake drum on the lathe machine by using the screws and fixtures directly, with convenient installation, high processing precision and one-time processing.
New improvements of CE certificate Car Brake Disc and Drum Maintenance Lathe Brake Drum Disc Skimming Machine C9335A:
1. Adopts frequency inverter to adjust the spindle speed from 0-140 rpm, the more smaller diameter of the brake disc/drum, the more faster the spindle speed, and our this machine is the fastest speed in all C9335A brake disc and drum skimming lathes;
2. Adopts 2 sets of independent control system for spindle and auto-feeding with 2 motors, which do not interfere with each other, and we are easy to judge problems and maintenance in the later stage;
3. Adopts industrial chain transmission instead of belt transmission, no need to change belt timely;
4. Adopts adjusting double cutters for cutting brake disc, when cutting the brake disc, the 2 cutters can be adjusted to move the surface of disc respectively, fast to set cutters positions.

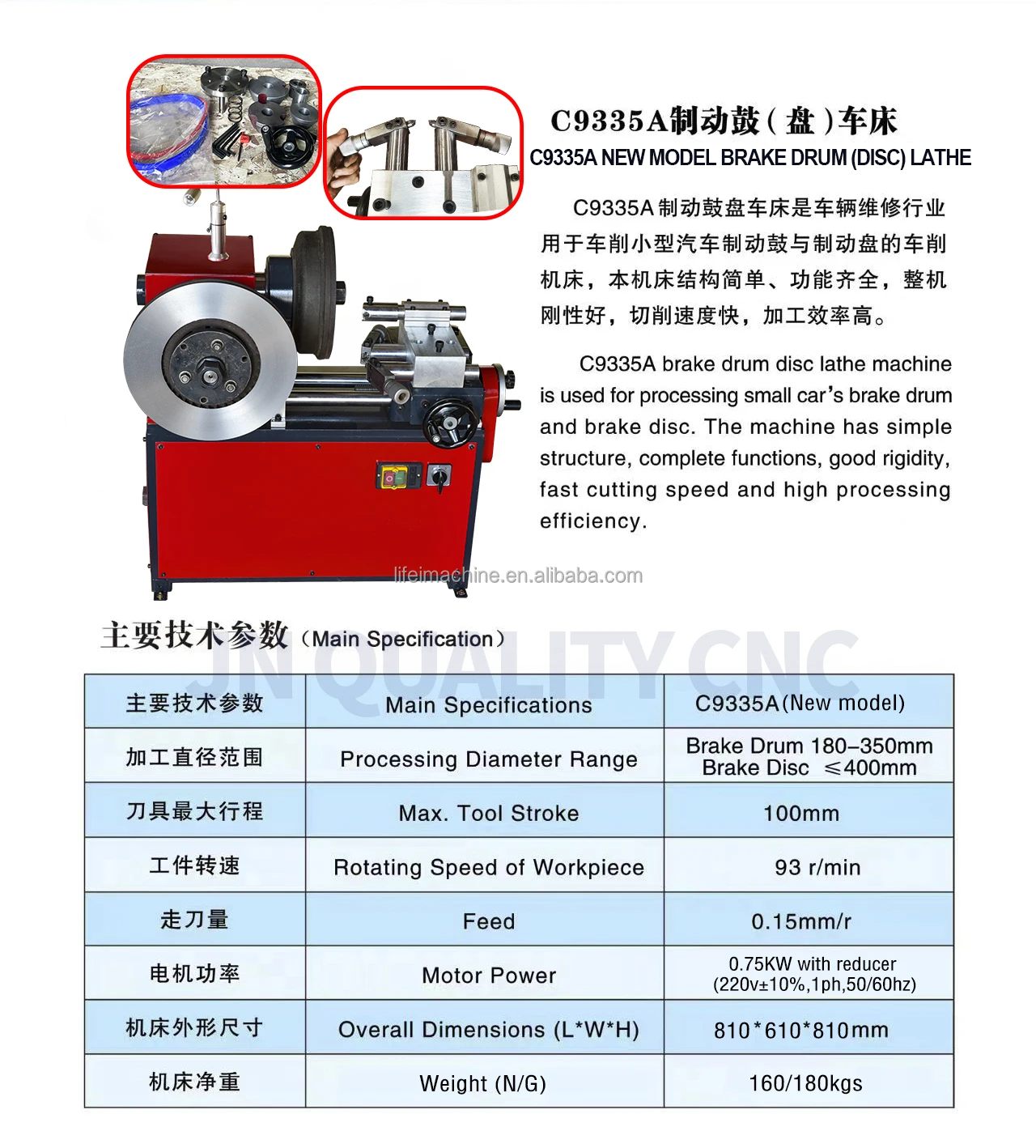

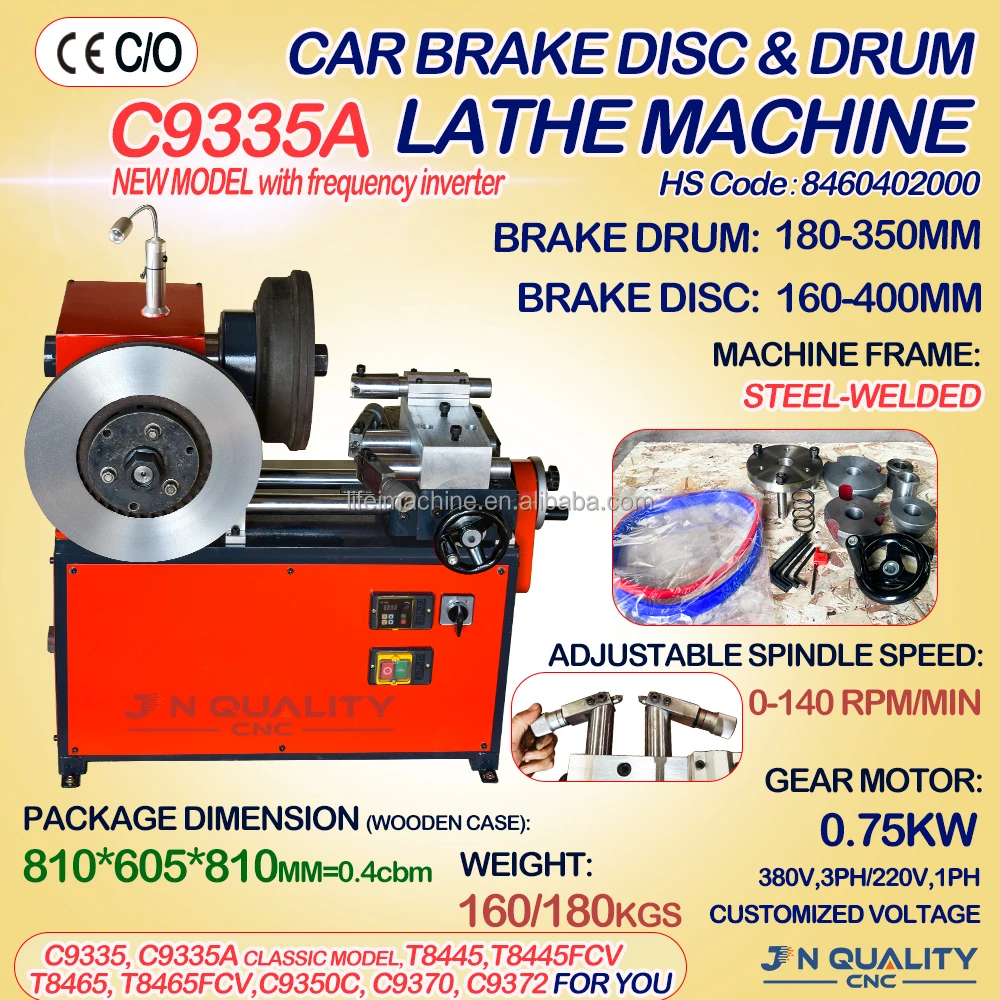

1 | Machine name | CE certificate Car Brake Disc and Drum Maintenance Lathe Brake Drum Disc Skimming Machine C9335A |
2 | Model | C9335A New Model with frequency inverter |
3 | Range processing diameter | Brake disc: 160mm - 400mm; Brake drum: 180mm - 350mm |
4 | Rotational speed | 0-140r/min |
5 | Frequency inverter | 750w |
6 | Infinitely variable speed feed /feeding capacity | 0.075mm/r |
7 | Motor systems | 2 motor systems for spindle turning and auto-feeding: 750w frequency gear motor for main spindle turning;40w frequency motor for auto-feeding |
8 | Machine / Package size (L*W*H) | 775*575*770mm / 805*605*800mm |
9 | Net / Gross weight | 160kg / 180kg |
10 | Electrical voltage | 220v ± 10% / single phase, or 380v, ± 10% / 3 phases, 50hz/60hz |
11 | Producting time | 7-20 days |
12 | Warranty | 24 months (no man-made reasons) |

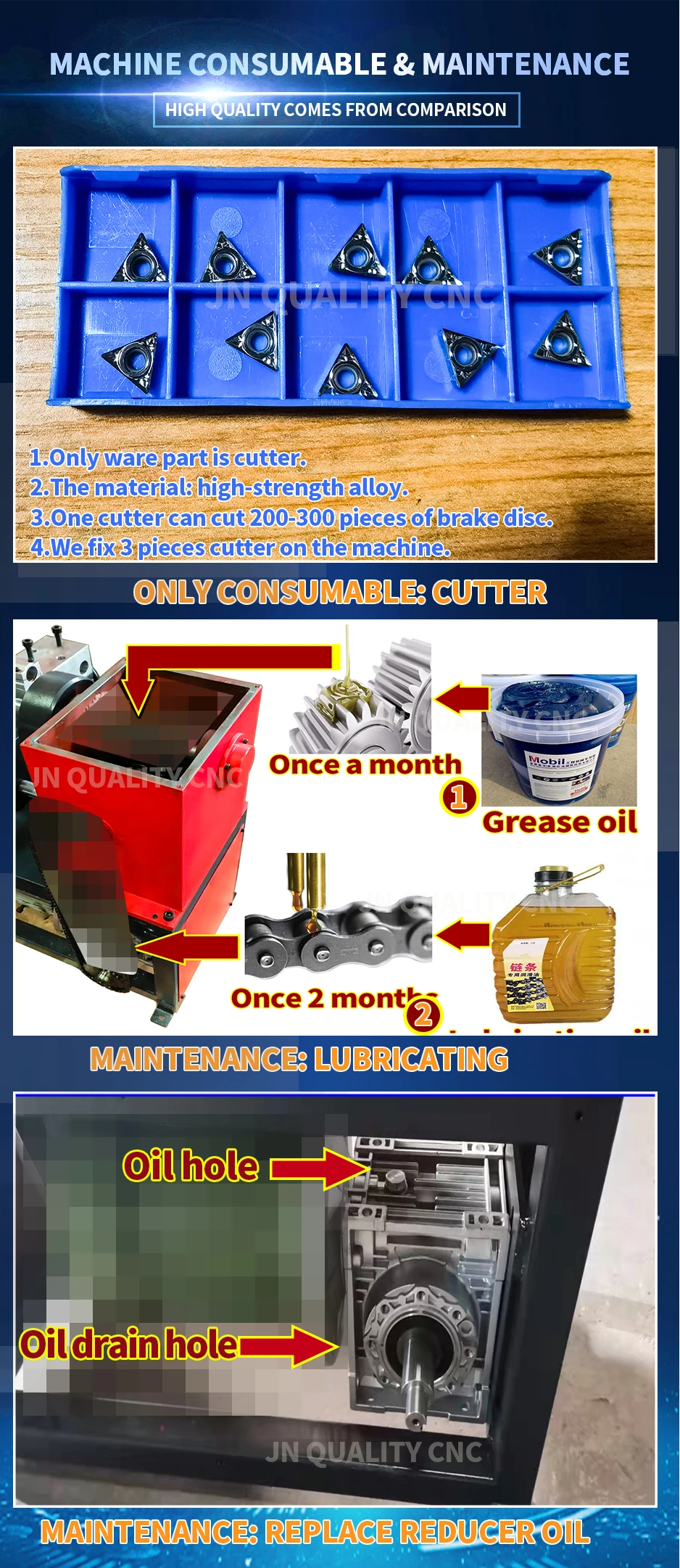

13 | Machine consumable / wear part | Cutter (one cutter can cut 200-300 pics brake disc) |
14 | Machine maintenance recommended | 1. Lubricating grease for main shaft gear (once every month); 2. Lubricating oil for transmission industrial chain (once every 2 months); 3. Change reducer gear oil (once every 6-8 months). |
