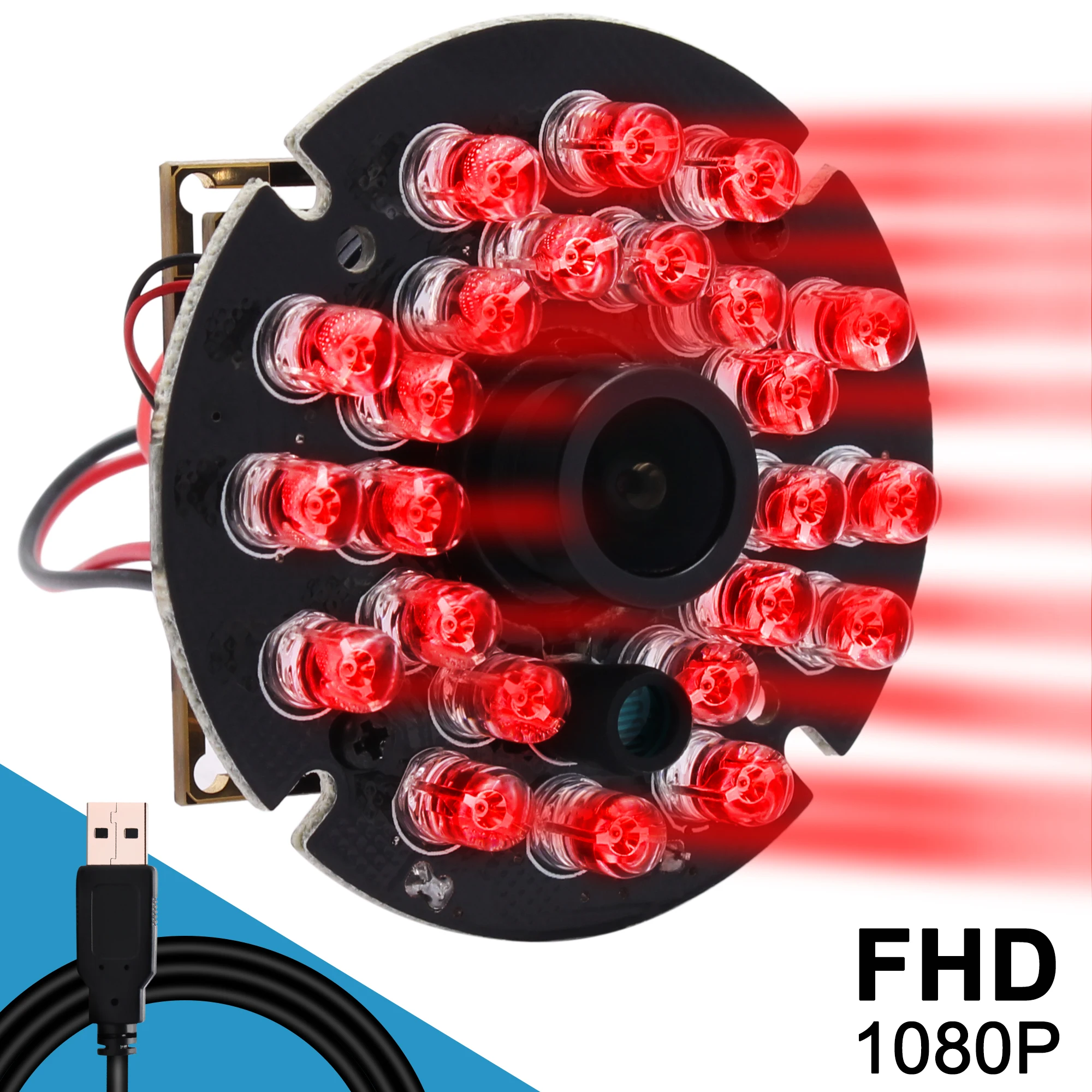

ELP High 30fps H.264 1080P WDR Infrared 3MP USB Camera Audio Night Vision Driverless UVC Camera Module with IR LED
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600728223707):
Product Overview
Description
SHENZHEN AILIPU TECHNOLOGY CO., LTD
USB Camera Module, Model: ELP-USB3MP01H-RL36
3MP USB Camera feature as WDR Wide Dynamic Range up to 100dB, Full HD Webcam 1080P 30fps H.264/MJPEG .

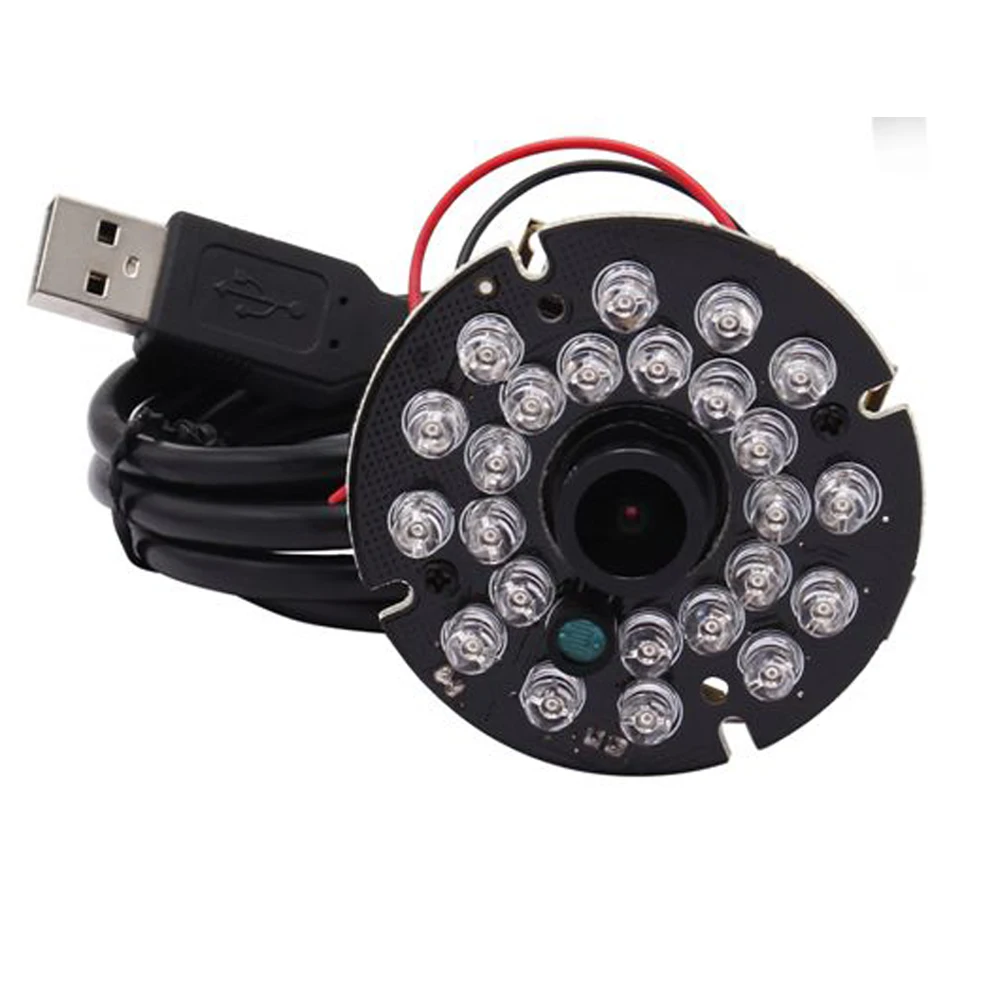

CMOS Camera Module AR0331 (1/3INCH ) Color Image Sensor , M12 Fixed Focus Lens 3.6mm , standard 1m USB Cable; 24pcs IR LED Camera for night vision
Products Description
Features of this USB Camera
*1/3inch AR0331 CMOS Sensor
*3megapixels, Highest resolution 2048X1536
*WDR function, Dynamic Range up to 100dB
*With H.264/MJPEG/ YUY2 High profile compression.
*Can drive 1920*1080 30FPS
*Come with microphone on the board which support single channel and dual channel.

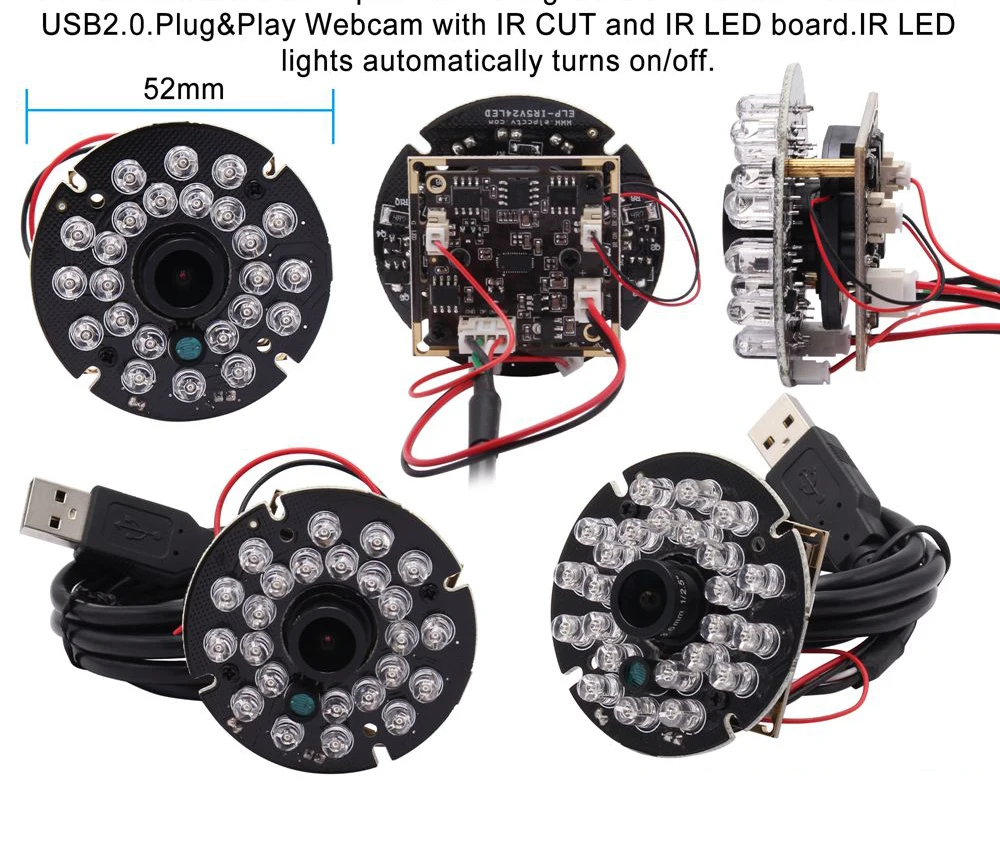

*With 2P-2.0mm socket for connecting IR LED Board for night vision
*USB 2.0 High speed port
*Camera with UVC, Support Windows / Linux 2.6 or above / Android 4.0 or above /Mac
*3megapixels, Highest resolution 2048X1536
*WDR function, Dynamic Range up to 100dB
*With H.264/MJPEG/ YUY2 High profile compression.
*Can drive 1920*1080 30FPS
*Come with microphone on the board which support single channel and dual channel.
*With 2P-2.0mm socket for connecting IR LED Board for night vision
*USB 2.0 High speed port
*Camera with UVC, Support Windows / Linux 2.6 or above / Android 4.0 or above /Mac
Specification of The USB Camera
Model ELP-USB3MP01H-KL36IR | ||||||
Resolution & frame | H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps MJPEG: 640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/ 1280X1024@ 30fps/1920X1080@ 30fps /1600X1200@ 15fps / 2048X1536@ 15fps YUV: 640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/ 1280X1024@ 5fps/1920X1080@5fps /1600X1200@ 5fps / 2048X1536@ 3fps | |||||
Dynamic Rangde | Up to 100 dB | Picture format | H.264 /MJPEG / YUV2(YUYV) | |||
Sensor | AR0331 | Lens Parameter | 3.6mm lens, Lens changeable | |||
Sensor Size | 1/3 inch | Cable | Standard 1M/ Optional 2m,3m,5m | |||

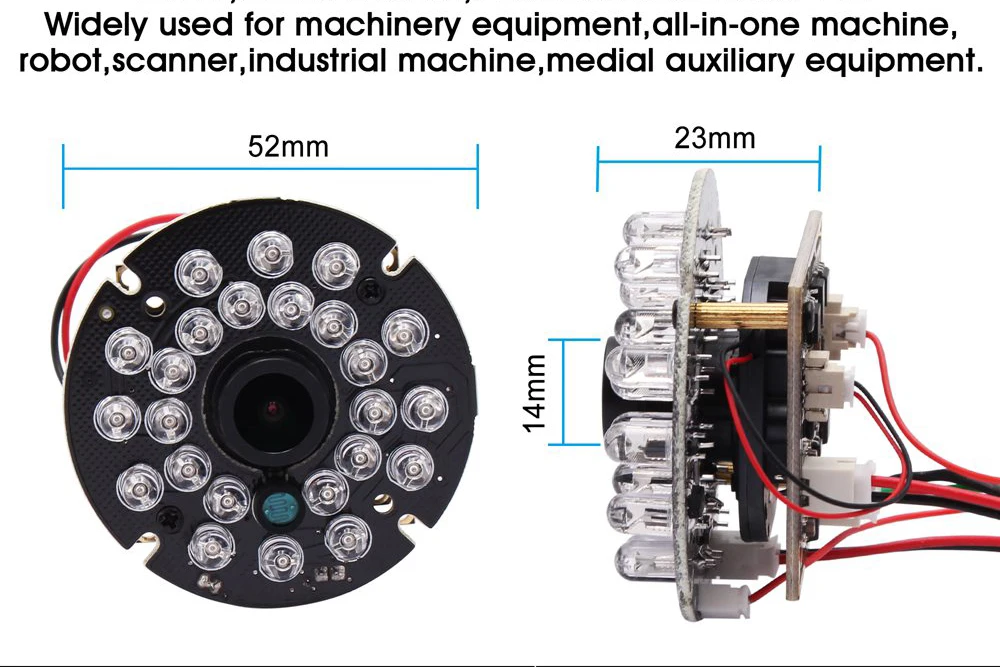

Pixel Size | 2.2μm x 2.2μm | Board Size/Weight | 38X38mm/ about 30g | |||
Image Area | 3888μm x 2430μm | Sensitivity | 2V/lux-sec@550nm | |||
Max. Resolution | 1920(H)X1080(V) | Shutter Type | Electronic rolling shutter &GRR | |||
S/N Radio | 39dB | Connecting Port Type | USB2.0 High speed | |||
Mini illumination | 0.05lux | OTG protocol | USB2.0 OTG | |||
AEC,AEB,AGC | Support | Free Drive Protocol | USB Video Class(UVC) | |||
Power Supply | DC 5V | Work Temperature | -10~70 Degree | |||
Operating Voltage | 140mA~220mA | Storage Temperature | -20~85 Degree | |||
Digital audio | High quality digital MIC, support single, dual channel | Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure | |||
IR CUT Connect | Support 2P-1.25mm socket | LED board power connector | Support 2P-2.0mm socket, 24PCS IR LED BOARD | |||
Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | |||||
Details Images
3.0 Megapixel WDR usb Camera,
H.264,MICRON AR0330 Sensor,
Dynamic Range Up to 100 dB,
Support IR CUT, Microphone.

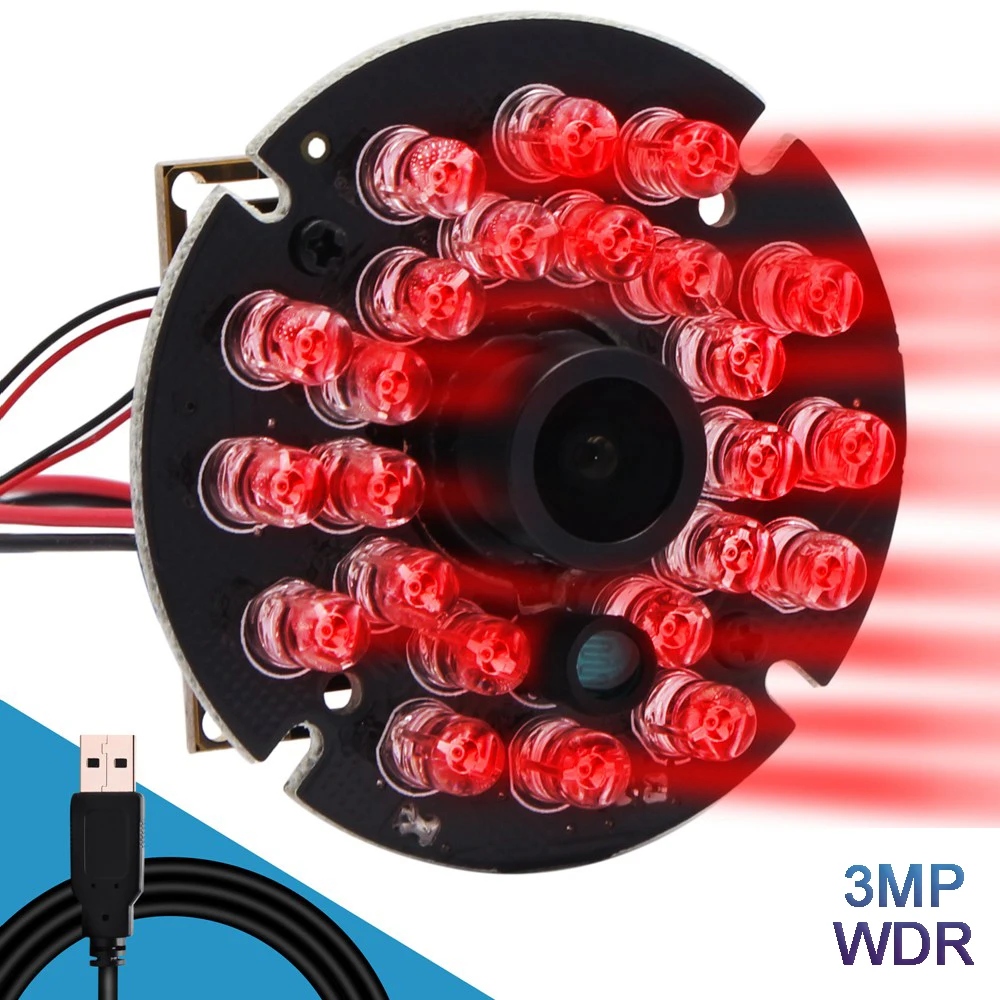

USB3MP01H Serials is a WDR(Wide Dynamic Range) USB camera, it can view clear image under very strong light or very low light, such as the car front light is very strong, while the WDR camera can capture the clear image too.
WDR camera very newly used in USB cameras, with USB port easy to plug and play installation, widely used in all kinds of industrial or personal home security, equiped with WDR perfect to use in any light condition.
Title goes here.
3Megapixel 2048X1536 resolution
Sensor 1/3 inch MICRON AR0331 CMOS Sensor
Picture format H.264/MJPEG/ YUY2 optional/USB Protocal USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Sensor 1/3 inch MICRON AR0331 CMOS Sensor
Picture format H.264/MJPEG/ YUY2 optional/USB Protocal USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support

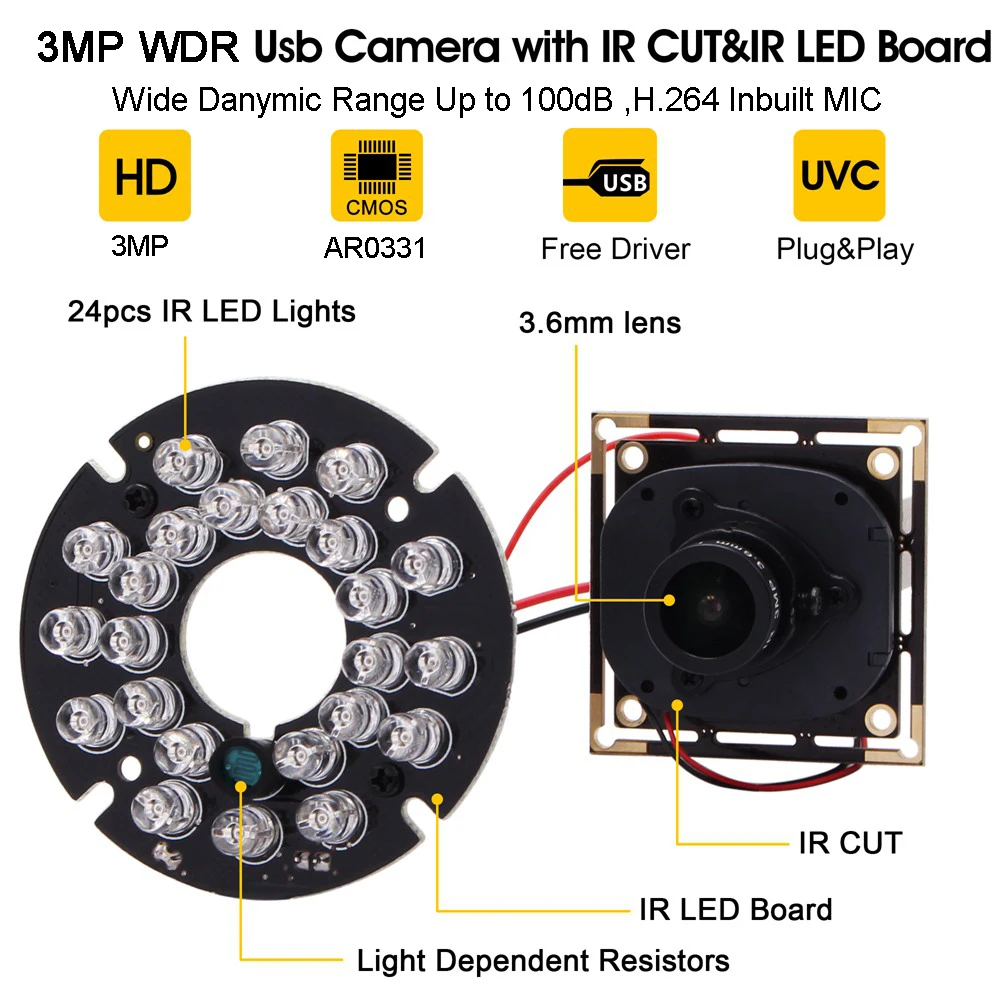

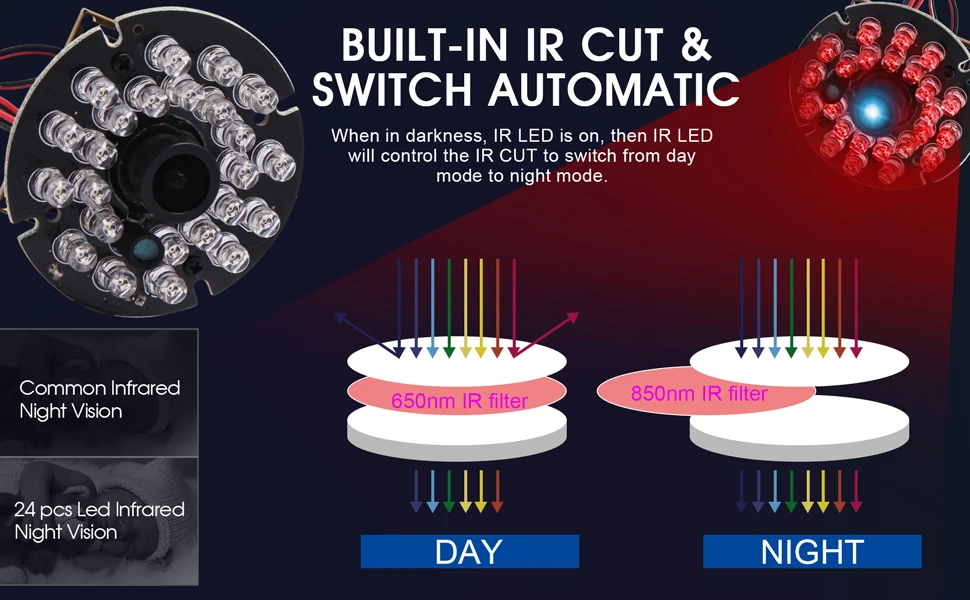

Built in IR CUT ,it switch Automatic between Day mode and Night mode
Camera with IR LED , there is 2 IR Filter ,650nm work at daytime, 850nm work at night. When in darkness, IR LED is on, then IR LED will control the IR CUT to switch from day mode to night mode.
Widely Appication
USB Camera work with all kinds of machine vision device
1. VR camera ,
2. 3D scanner
3.ATM,Kiosk,POS,
3.ATM,Kiosk,POS,
4.Smart TV box
5. advertising cameras
6. Electronic microscope
7. Automatic vending machine
8. Automated image acquisition system
5. advertising cameras
6. Electronic microscope
7. Automatic vending machine
8. Automated image acquisition system
10: Medical diagnostic image acquisition
11: fingerprints, palm prints image acquisition
12:video door phone
13:HD surveillance
11: fingerprints, palm prints image acquisition
12:video door phone
13:HD surveillance
USB camera Compatible with most system
* Application:Traffic Monitoring,Parking Lot,Parking Entrance,ATM Machine,Traffic Toll Gate.
* Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
* Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
How to use
ELP USB Camera with UVC, free driver to work in variouds operation system, such as Windows, Linux ,Android and Mac . Most cameras also support OTG Function, can connect to Android mobile via OTG Cable .
Steps to run this camera :
1-Look up the USB Port in your device
2-Plug our camera USB Cable to your USB port
3-Open your video software , and select the USB Cable as video out put
Recommend video software
Windows : Amcap ,e-CAMView ， Blue iris , Contacam , Yawcam, iSpy ,Webcam Viewer, IP Camera viewer
Linux :Motion Eye OS, V4L2
Android : USB Camera ,Camera Fi
Mac : Facetime, Quick time . Webcam Viewer, Webcam Settings，NCH Software
