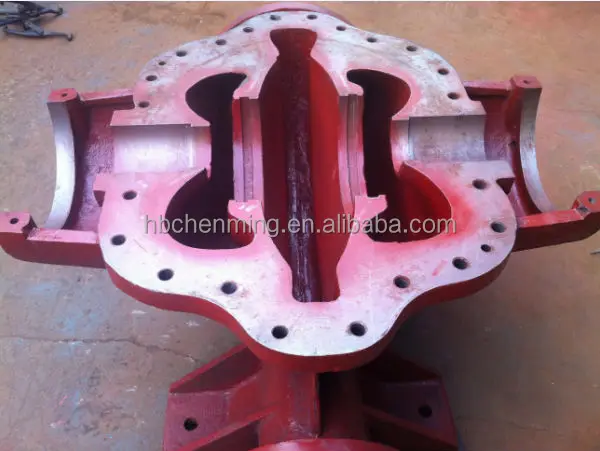

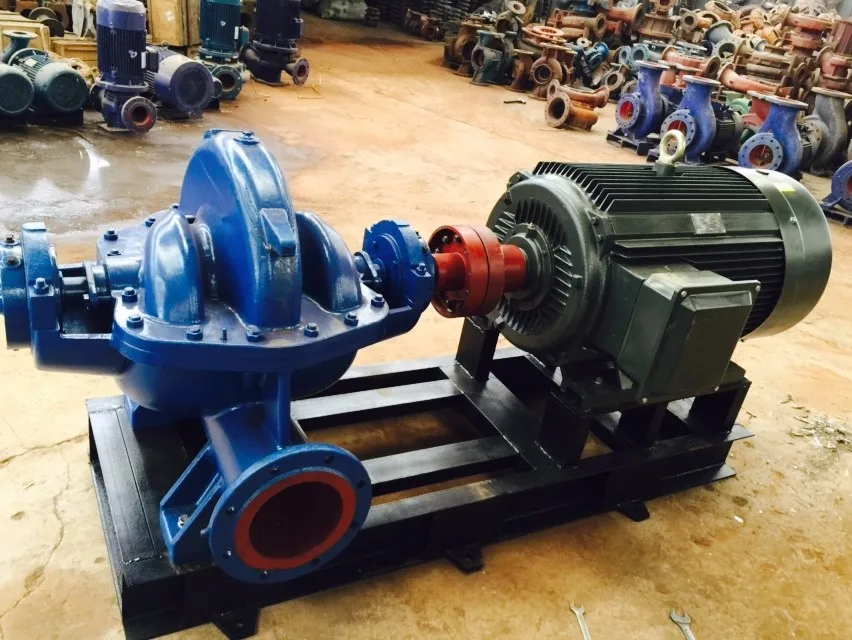

6 inch 8 inch Myanmar Axially Split Case Double Volute Suction Water Pump for sale

Product Overview

Description

6 inch 8 inch Myanmar Axially Split Case Double Volute Suction Water Pump for sale

12SH-6

flow: 792m3/h

head: 90m

speed:1450rpm

power: 300kw

voltage: 380V 50Hz 3phase

our double suction pump factory could produce as your requirement, drawing, size, voltage, speed,capacity, head,etc



S model Operating Data:

Inlet Diameter: 150-800mm

Capacity: 112-3600m³/h

Head: 9-140m

Rotation Speed: 970-2950r/min

Power: 18.5-850kW





SH model Operating Data:

Inlet Diameter:150-1200mm

Capacity: 112-6460m³/h

Head: 10-140m

Rotation Speed: 970-2950r/min

Power: 22-850kW



Application:

a double suction pump is suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects.

a. suitable for agriculture irrigation

b. Suitable for supply and discharge pure water or liquids with physical and chemical properties similar to water .

c. Suitable for fire fighting.

d. Suitable for water supply and drainage in factory.

e. Suitable for power station.

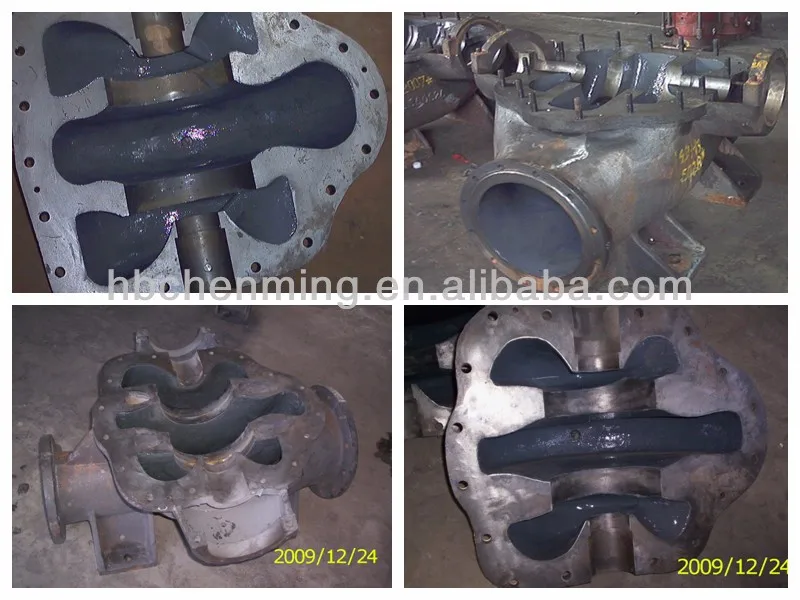

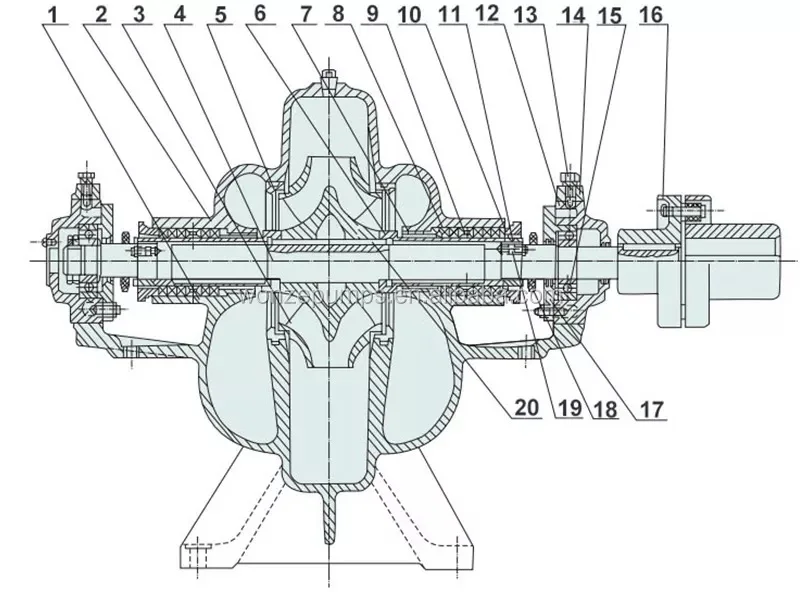

Structure:





1	Pump Casing	2	Pump Cover	3	Impeller	4	Shaft
5	Dual-suction seal ring	6	Shaft Sleeve	7	Packing Sleeve	8	Packing
9	Packing ring	10	Packing Gland	11	Nut	12	Bearing Body
13	Fixing screw	14	Gland of bearing body	15	Single-column centripetal ball bearing	16	Clutch
17	End cap of bearing	18	Water retaining ring	19	Stud	20	Key



Character Data:

Model	Inlet/Outlet (inch)	Capacity (m3/h)	Head (m)	Power (KW)	Speed (rpm)
6SH	6	112-220	35-84	30-55	2900
8SH	8	160-351	31-100	37-110	2900
10SH	10	320-612	8.6-71	22-132	1450
12SH	12	504-972	10-98	30-300	1450
14SH	14	745-1663	10-140	55-680	1450/1470
16SH	16	800-1620	30-97	110-630	980/1480
20SH	20	1150-2450	10-108	110-800	970
24SH	24	2340-3960	13-80	185-900	960/970
32SH	32	4680-9900	25.4-73.5	560-2240	590/730/742
48SH	48	8500-12500	14.3-28.5	800-1250	800/1250



Model	Inlet/Outlet (mm)	Capacity m³/h	Head (m)	Speed (rpm)	Shaft power(kw)
150S-78	150/150	160	78	2900	45
150S-50	150/150	160	50	2900	27.3
200S-95	200/200	280	95	2900	94
200S-63	200/200	280	63	2900	59.3
200S-42	200/200	280	42	2900	37.7
250S-65	250/250	485	65	1450	108.7
250S-39	250/250	485	39	1450	62.1
250S-24	250/250	485	24	1450	36.9
250S-14	250/250	485	14	1450	21.7
300S-90	300/300	790	90	1450	249.8
300S-58	300/300	790	58	1450	148.5
300S-32	300/300	790	32	1450	79
300S-19	300/300	790	19	1450	46.9
300S-12	300/300	790	12	1450	31.1
350S-125	350/350	1260	125	1450	531
350S-75	350/350	1260	75	1450	304
350S-44	350/350	1260	44	1450	177.6
350S-26	350/350	1260	26	1450	101.5
350S-16	350/350	1260	16	1450	63.8
500S-13	500/500	2020	13	980	86.2
500S-35	500/500	2020	35	980	219
500S-98	500/500	2020	98	980	678
600S22	600/600	3241	22	980	231.8
600S75	600/600	3060	75	980	694.4
800S32	800/800	5500	32	730	538.5
800S47	800/800	5500	47	730	782.2
