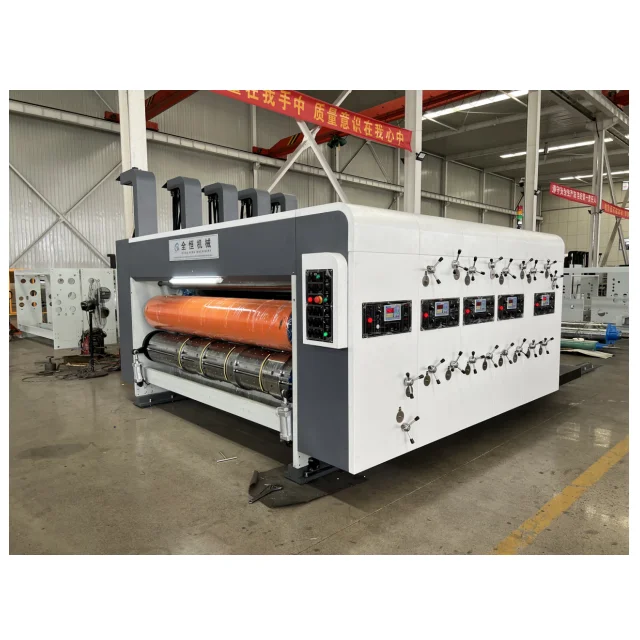

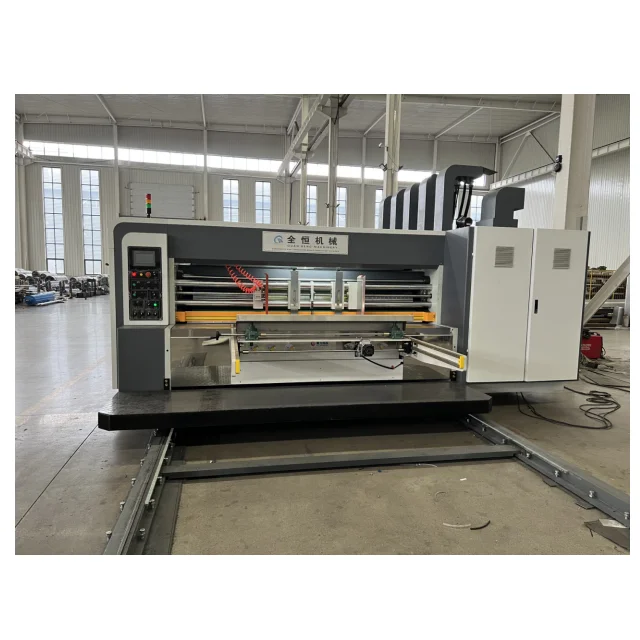

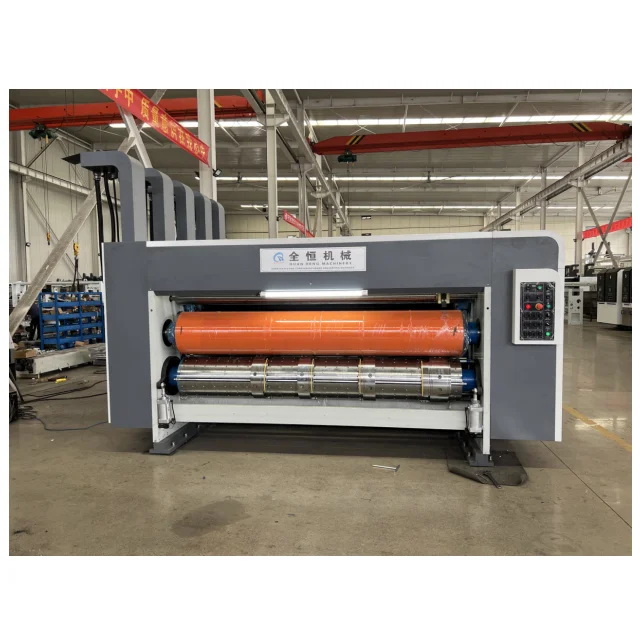

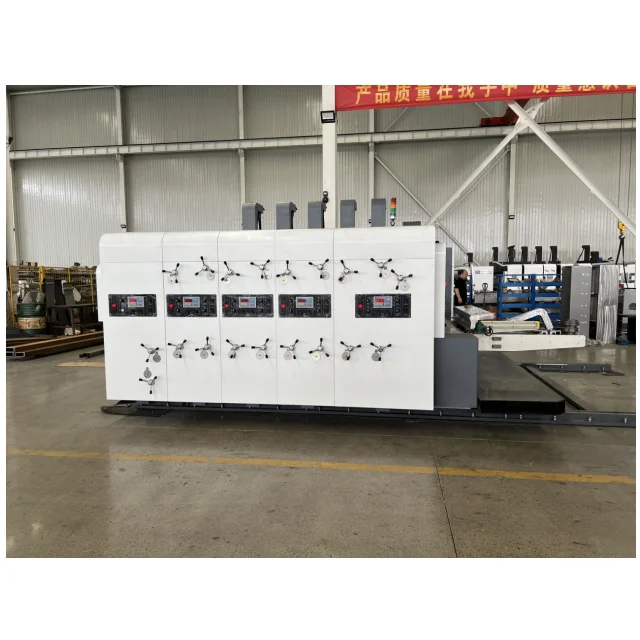

Automatic carton box Printer slotter Rotary Die Cutter Machine box cutting and printing economical carton box printing machine
- Category: >>>
- Supplier: Cangzhou Quanheng Imp & Exp Trade Co. Ltd.
Share on (1600728274363):
Product Overview
Description
Product Description

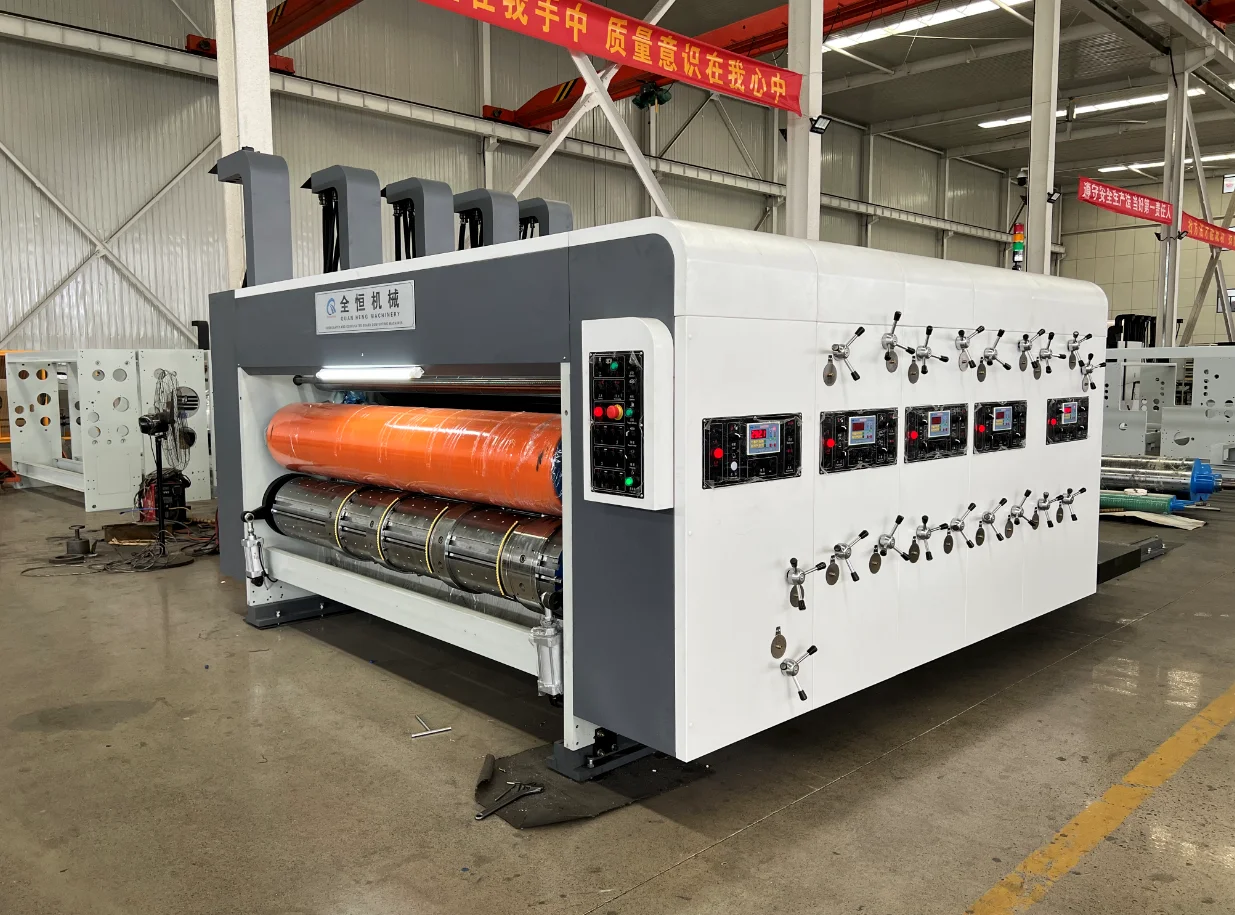

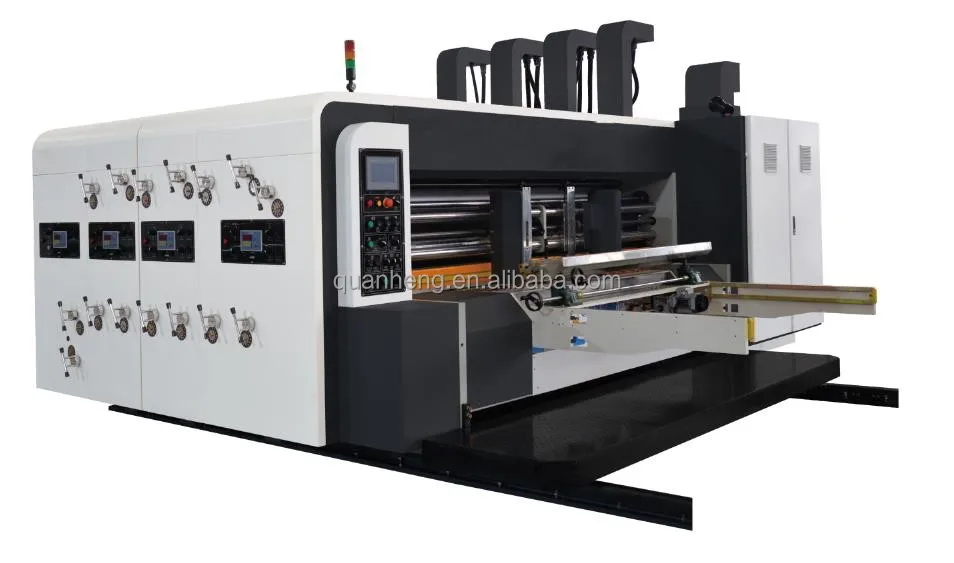

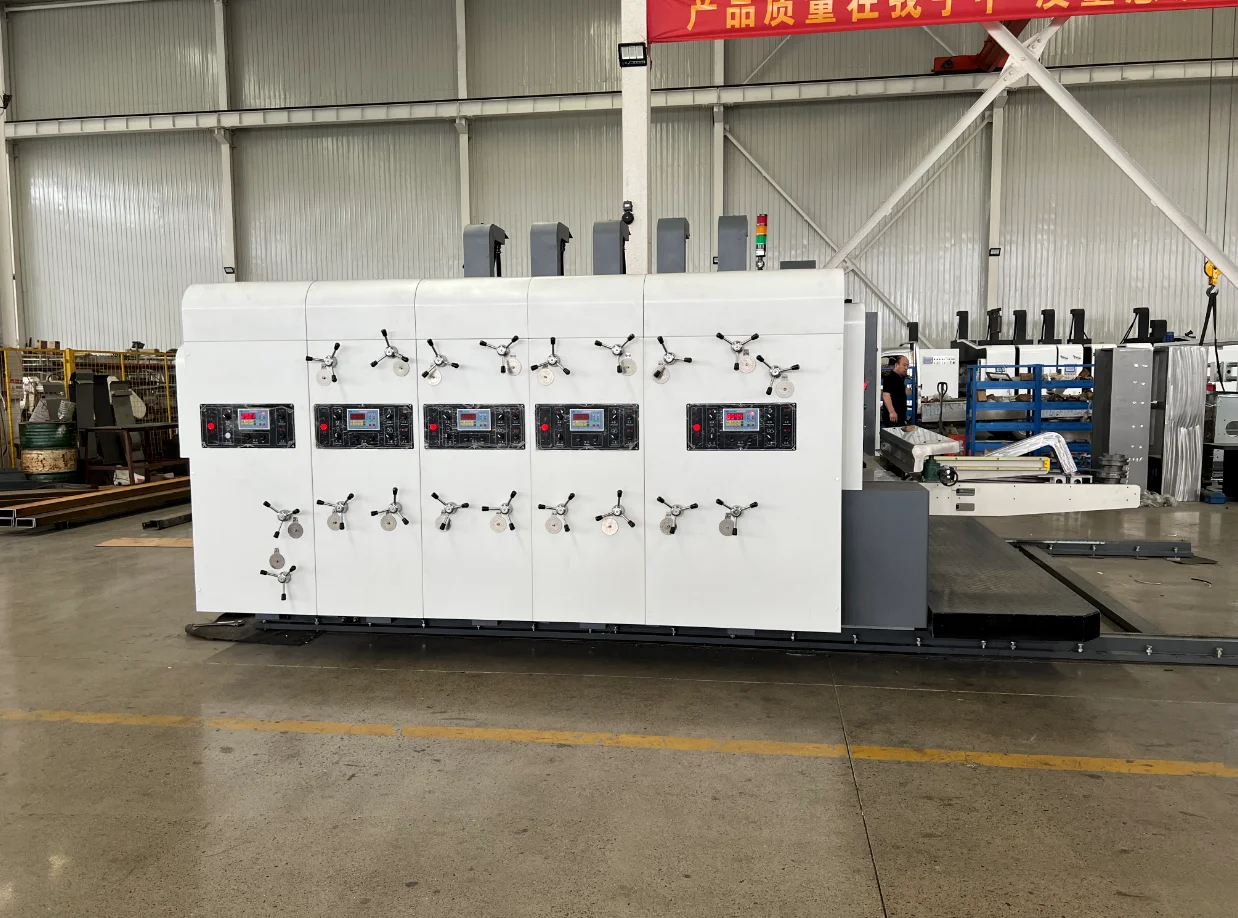

QHFP150-1228 Model High Speed Flexo Printing Slotting Die cutting Machine is for stardard carton box big quantity production.
It with Lead edge vaccum feeder unit, printing unit, slotting unit, rotary die cutting unit.
model | QHFP150-920 | QHFP150-1225 | QHFP150-1425 | QHFP150-1628 |
max paper size | 900x2000mm | 1200x2500mm | 1400x2500mm | 1600x2800mm |
speed | 150pcs/min | 150pcs/min | 150pcs/min | 120pcs/min |
voltage | customization | customization | customization | customization |
1.Electric control machine clutch attached to an alarm, warning road between the continuous ringing, to ensure the safety of
workers.
2.Equipped with high effective brush roller and rows of brushes dust removal device.

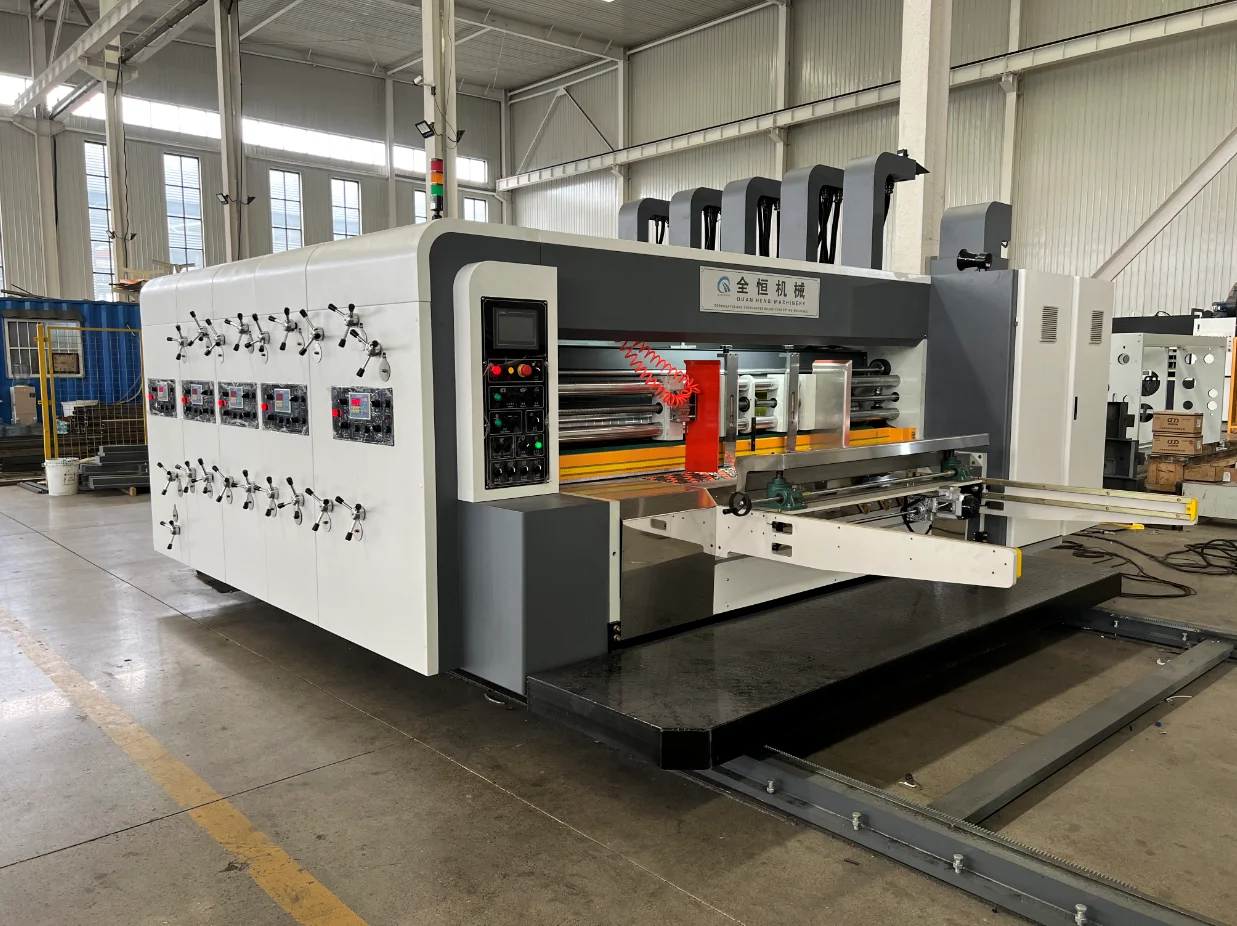

3.Feeding unit is designed to be a perfect feeding system with functions of two vacuum suction transmission box, feeding roller,
bush roller, and electrostatic dust.
workers.
2.Equipped with high effective brush roller and rows of brushes dust removal device.
3.Feeding unit is designed to be a perfect feeding system with functions of two vacuum suction transmission box, feeding roller,
bush roller, and electrostatic dust.
1.High quality cerimic anilox printing roller with doctor blade.
2.The anilox roller with quick-change structure, convenient maintenance and maintenance of the machine.
3.Full vacuum transfer type with belower,high precesion transfer vacuum box.
4.The printing nip Worm electric adjustment, digital display, the adjustment range of 0-12mm.
5.Automatic induction ink detection system, including warning lights and alarm bells.
2.The anilox roller with quick-change structure, convenient maintenance and maintenance of the machine.
3.Full vacuum transfer type with belower,high precesion transfer vacuum box.
4.The printing nip Worm electric adjustment, digital display, the adjustment range of 0-12mm.
5.Automatic induction ink detection system, including warning lights and alarm bells.
1.The device self-locking function, the preload and quick adjustment mechanism ensures the
long-term accuracy between the disc and the shaft, and reduces the cracking of the paper when pressing.
2.There are buttons, left and right synchronous intersections, electric axial movement, so that the upper and lower pressure line
wheels, the upper and lower grooved knives are adjusted synchronously, and the electric adjusting box is highly functional.
3.A planetary gear type phase adjustment mechanism with digital display.
long-term accuracy between the disc and the shaft, and reduces the cracking of the paper when pressing.
2.There are buttons, left and right synchronous intersections, electric axial movement, so that the upper and lower pressure line
wheels, the upper and lower grooved knives are adjusted synchronously, and the electric adjusting box is highly functional.
3.A planetary gear type phase adjustment mechanism with digital display.

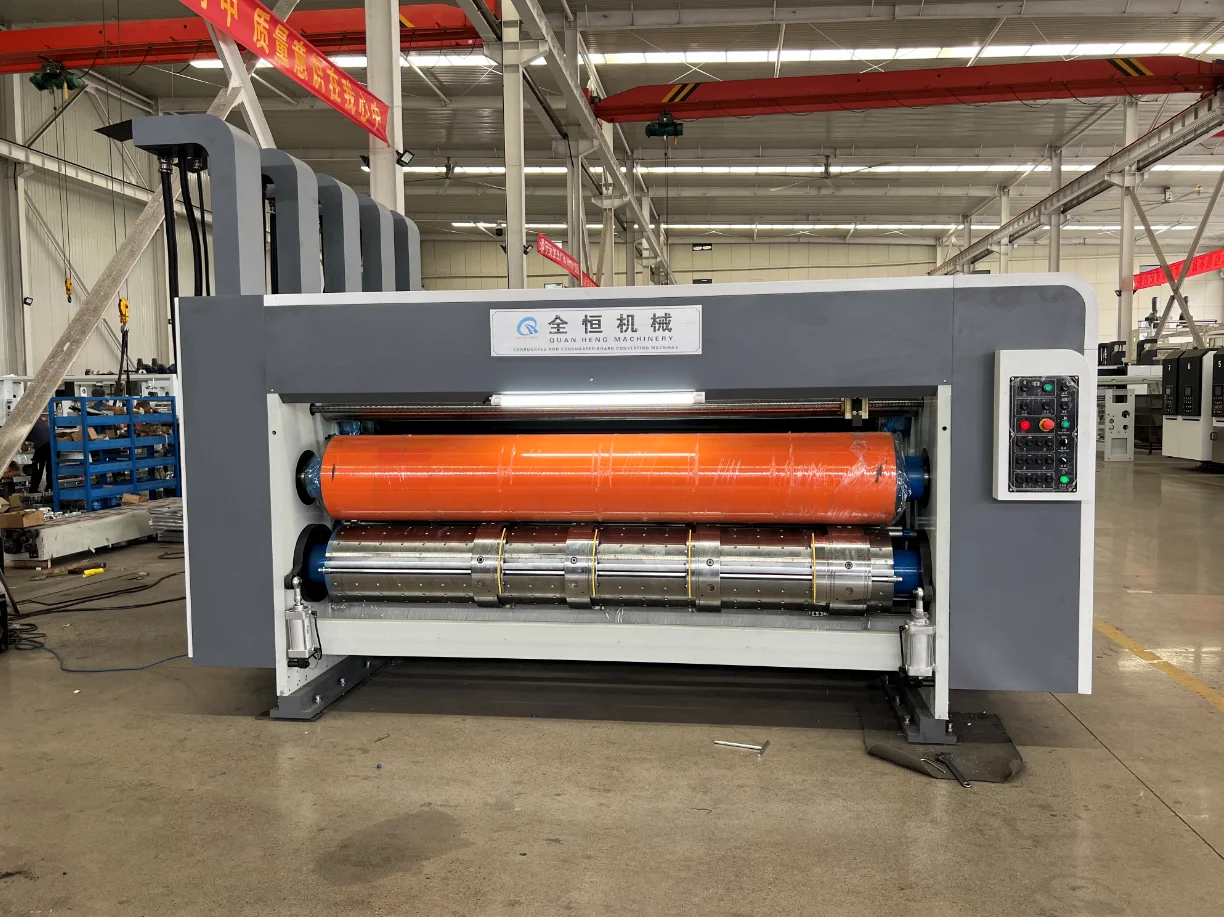

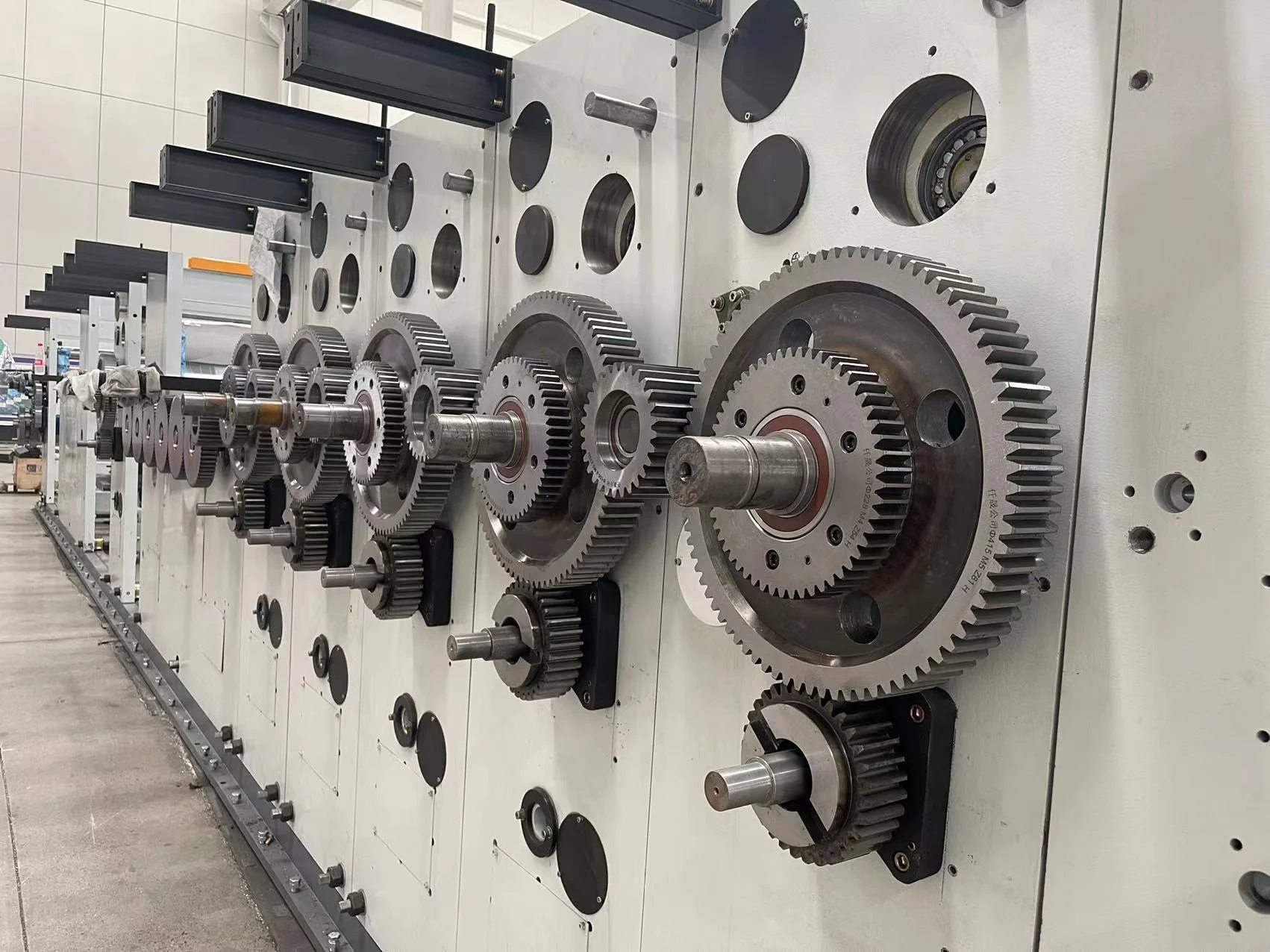

1.Die cutter phase adopt gear system, can be electric adjust 360 degree.
2.If stop feeding, the roller auto lifting,less demage
3.Rubber plate roller can be lift right adjust 30mm,each balde cut in different position.
4.Up and down roller diameter different,but the line speed is same.can be control the die knives no stop working.make the plate
grinding uniform.
5.Line speed compensation device,when the rubber roller diameter chnage,the line speed will be compensation use this system.
2.If stop feeding, the roller auto lifting,less demage
3.Rubber plate roller can be lift right adjust 30mm,each balde cut in different position.
4.Up and down roller diameter different,but the line speed is same.can be control the die knives no stop working.make the plate
grinding uniform.
5.Line speed compensation device,when the rubber roller diameter chnage,the line speed will be compensation use this system.

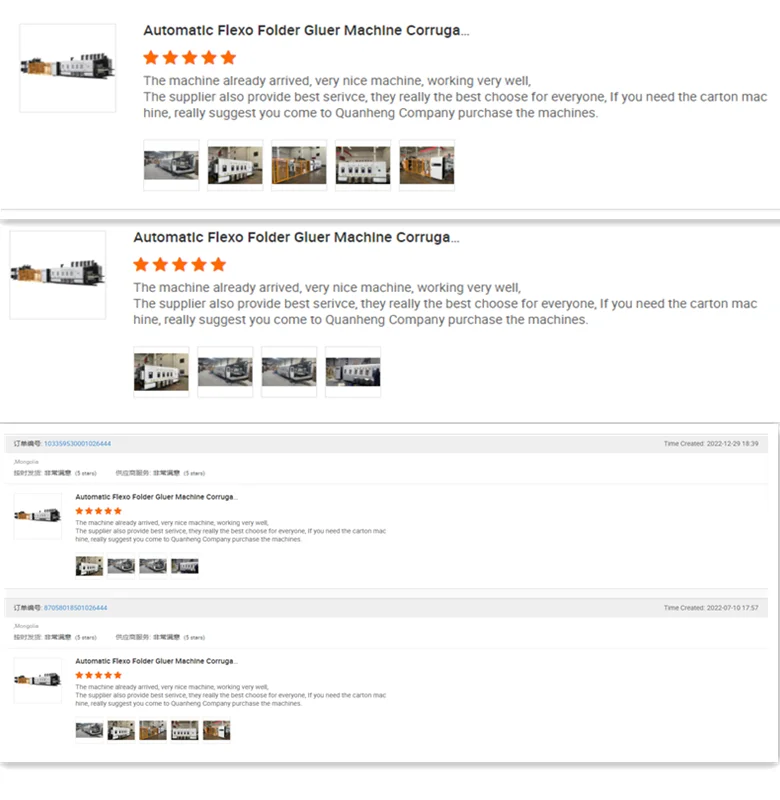

Customer Reviews
Packing&Shipping
with stardard export packaging, hard fixing in containers.All machine before packaging , all coating un-resut oil.
