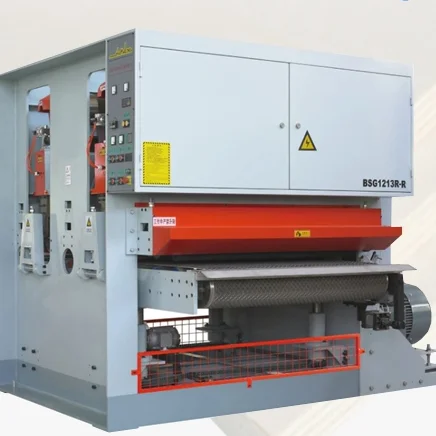

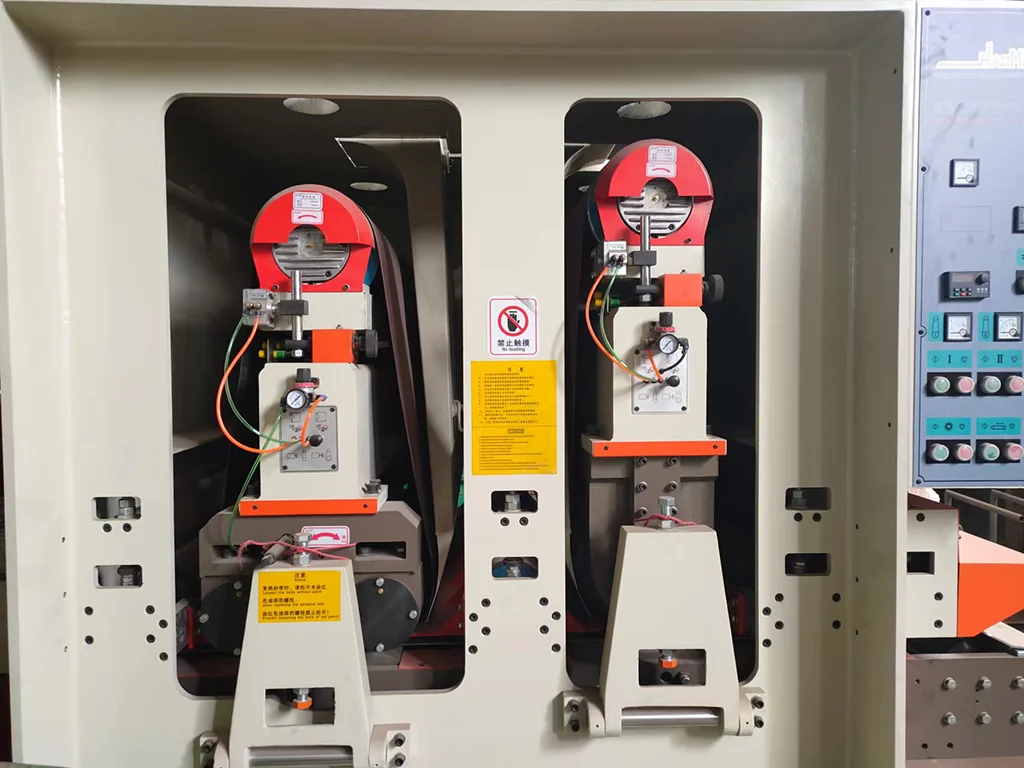

Industrial heavy duty mdf solid wood board door woodworking drum wide belt sander sanding polishing machine
- Category: >>>
- Supplier: Shandong Sinoeuro International Trade Co. Ltd.
Share on (1600728307730):
Product Overview
Description

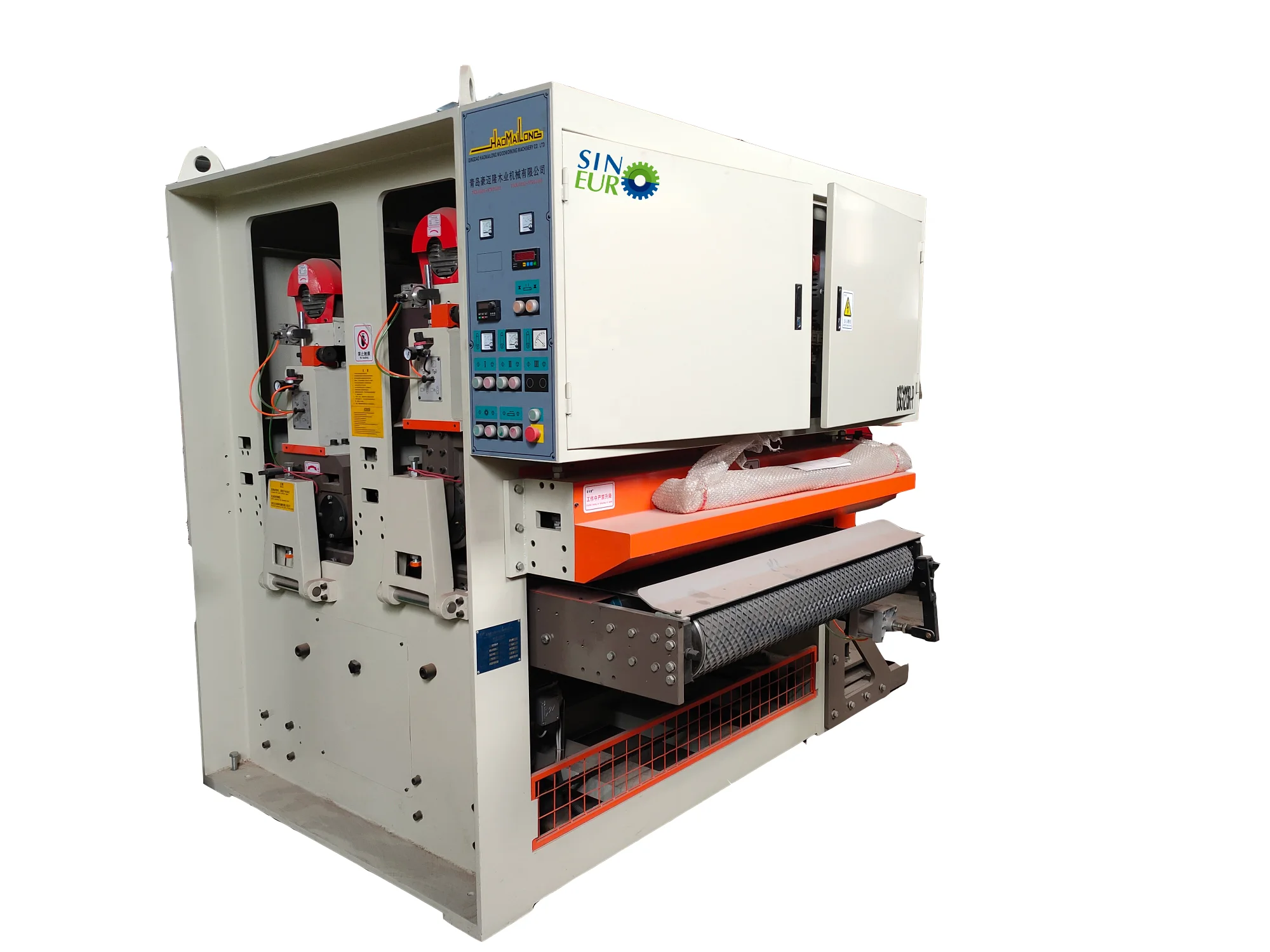

Calibrating sanding machine
It can sand the following wood-based boards intensively or according to the required thickness:solid-wood jointing board, plywood, block board, fiber board and so on.
0.5-1 mm big thickness remove with perfect surface finishing.
Taiwan sanding roller, wear-resisting, high precision.
Specification
Name and Model | BSG2313R-R-R | BSG2113R-R |
Working width | ≤1300mm | ≤1300mm |
Working thickness | 0-100mm | 0-100mm |
Working length | ≥750mm | ≥1000mm |
Working precision | ±0.08mm | ±0.1mm |
Abrasive belt speed | 22.5m/s | 22.5m/s |
Abrasive belt size P*W | 2620*1320mm | 2620*1320mm |
Auto-feeding system: frequency | 15-50m/min (adjustable) | 5-30m/min (adjustable) |
Motor for 3M non-woven roller | 4KW (optional) | |
Motor for abrasive belt | 55KW+45KW+37KW (optional) | 55KW+45KW (optional) |
Total power | 150KW | 116KW |
Working air pressure | 0.55Mpa | 0.5-0.8Mpa |
Air consumption | 1.2cbm/min | 1cbm/min |
Speed of dust-collecting | 6-45m/s | 5-30m/s |
Volume of dust-collecting | 28000cbm/h | 18000cbm/h |
Overall dimension | 3100*2845*2500mm | 2900*2820*2500mm |
Net weight | 12000kg | 10000kg |
Product Description
The machine adopts the overall welded frame structure, with strong rigidity, good stability and long service life of the machine. Adopting foundry frame, the sanding units can not be distorted and have good effect of vibration and absorption.
Fault display makes maintenance and repair easy. When fault happens, the machine will be powered off, brake, the table fall and protect work pieces from being damaged.
Multiple safety devices are designed to be safe and reliable, effectively ensuring the safety of personnel and machinery when working and saving labor.

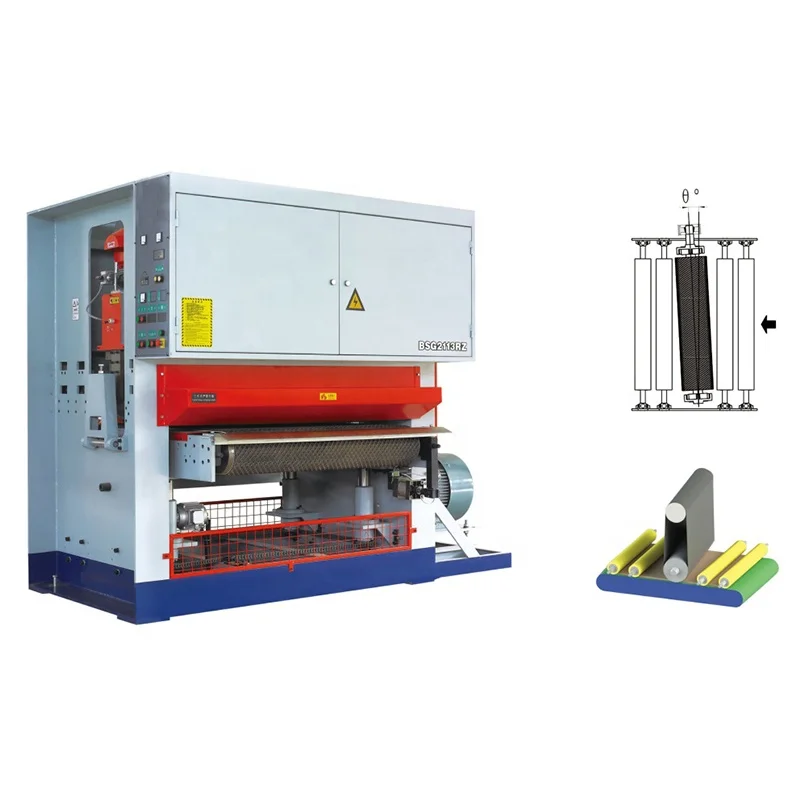

The inclined roller structure effectively improves the surface quality of the sheet and better solves the effect of fixing the thickness of the overlapping part of the sheet.
The sanding roller has a large diameter, and works quickly with high precision. Feeding power adopts frequency conversion speed control.

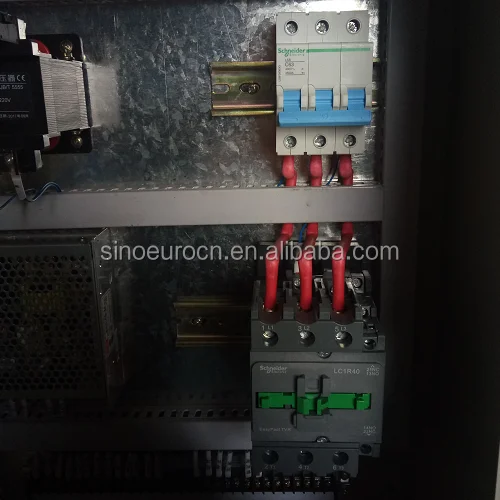

Selected international advanced electrical components, effectively guarantee its normal work.
The panel is equipped with micro computer controller. The desired thickness can be preset for maximum convenience.
Company Profile
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We can supply complete production line equipment, including rotary cutters, peelers, hot presses, dryers, etc. If you have any needs, you can also contact us !
